09210-03440 PUMP ASSY, FUEL FE Denso Cross


Rating:
62
Buy PUMP ASSY, FUEL FE 09210-03440 genuine, new aftermarket engine parts with delivery

Information pump assy, fuel fe Denso

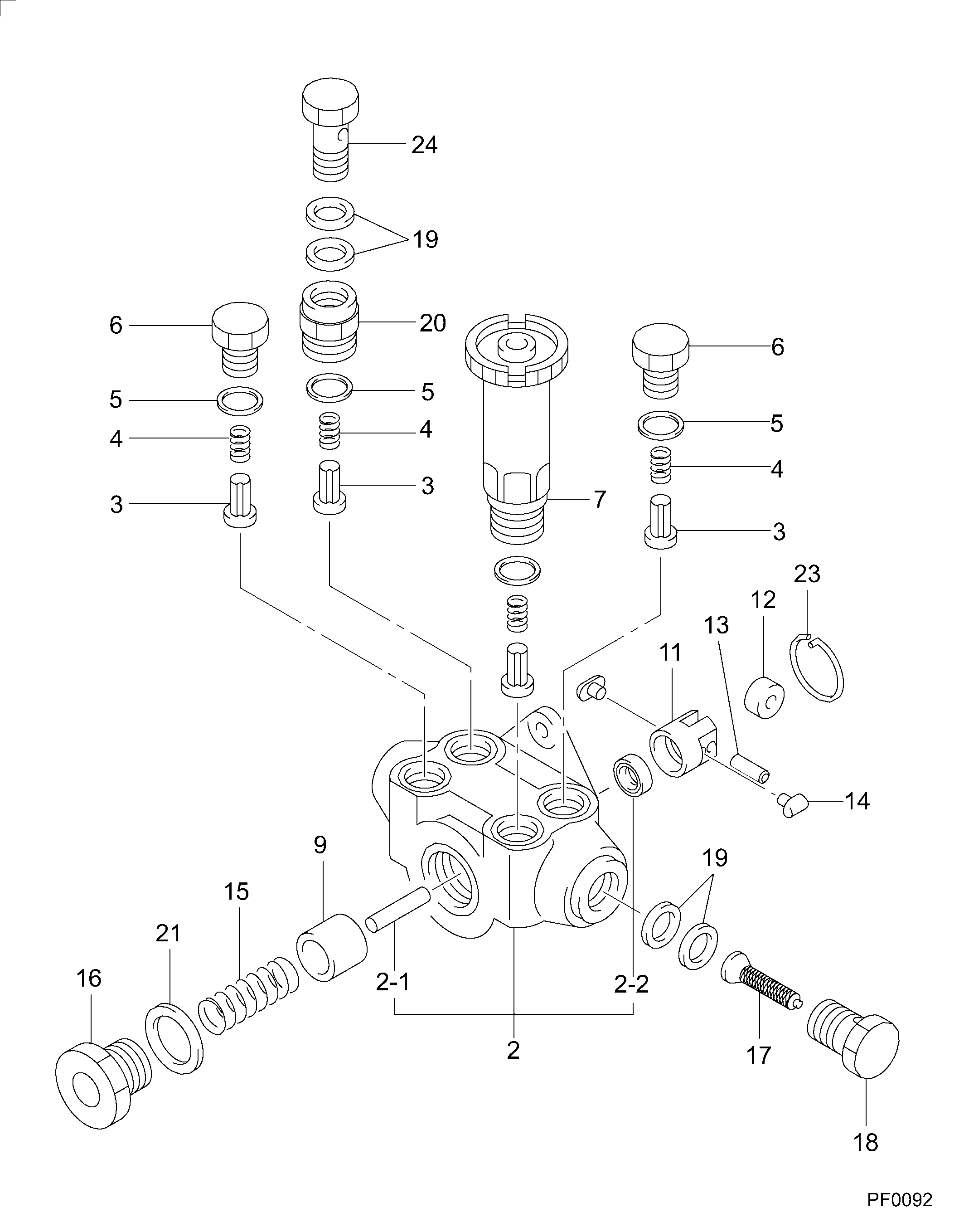

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09210-03440
PUMP ASSY, FUEL FE
KD
002
[01]
HOUSING SUB-ASSY,
002-001
[01]
ROD, FEED PUMP PUS
002-002
[01]
SEAL, OIL
D14,T5.5
003
[04]
VALVE, FEED PUMP C
004
[04]
SPRING, FEED PUMP
L15.5
005
[04]
GASKET, CHECK VALV
ID16,T1
006
[02]
PLUG, FEED PUMP CH
M16
007
[01]
PUMP SUB-ASSY, PRI
M16
009
[01]
PISTON, FEED PUMP
011
[01]
TAPPET, FEED PUMP
012
[01]
ROLLER, FEED PUMP
013
[01]
PIN, FEED PUMP TAP
014
[02]
BLOCK, FEED PUMP T
015
[01]
SPRING, FEED PUMP
016
[01]
PLUG, FEED PUMP PI
017
[01]
FILTER, FEED PUMP
018
[01]
SCREW, FUEL PIPE H
M14,L26
019
[04]
WASHER, FUEL PIPE
T1.5
020
[01]
SUPPORT, VALVE
021
[01]
WASHER, COPPER PLA
T1
023
[01]
RING, SNAP
ID28
024
[01]
SCREW, HOLLOW
M14,L26

Include in ##:

09200-04860 as PUMP ASSY, FUEL FE
09210-03440 PUMP ASSY, FUEL FE

Cross reference number



Part num
Firm num
Firm
Name
09210-03440

PUMP ASSY, FUEL FE
