09210-03300 PUMP ASSY, FUEL FE Denso Cross


Rating:
37
Buy PUMP ASSY, FUEL FE 09210-03300 genuine, new aftermarket engine parts with delivery

Information pump assy, fuel fe Denso

KIT List:

Part name
Kit1
Kit2
Pump assy, fuel fe
1922900070
Pump assy, fuel fe
1922900070

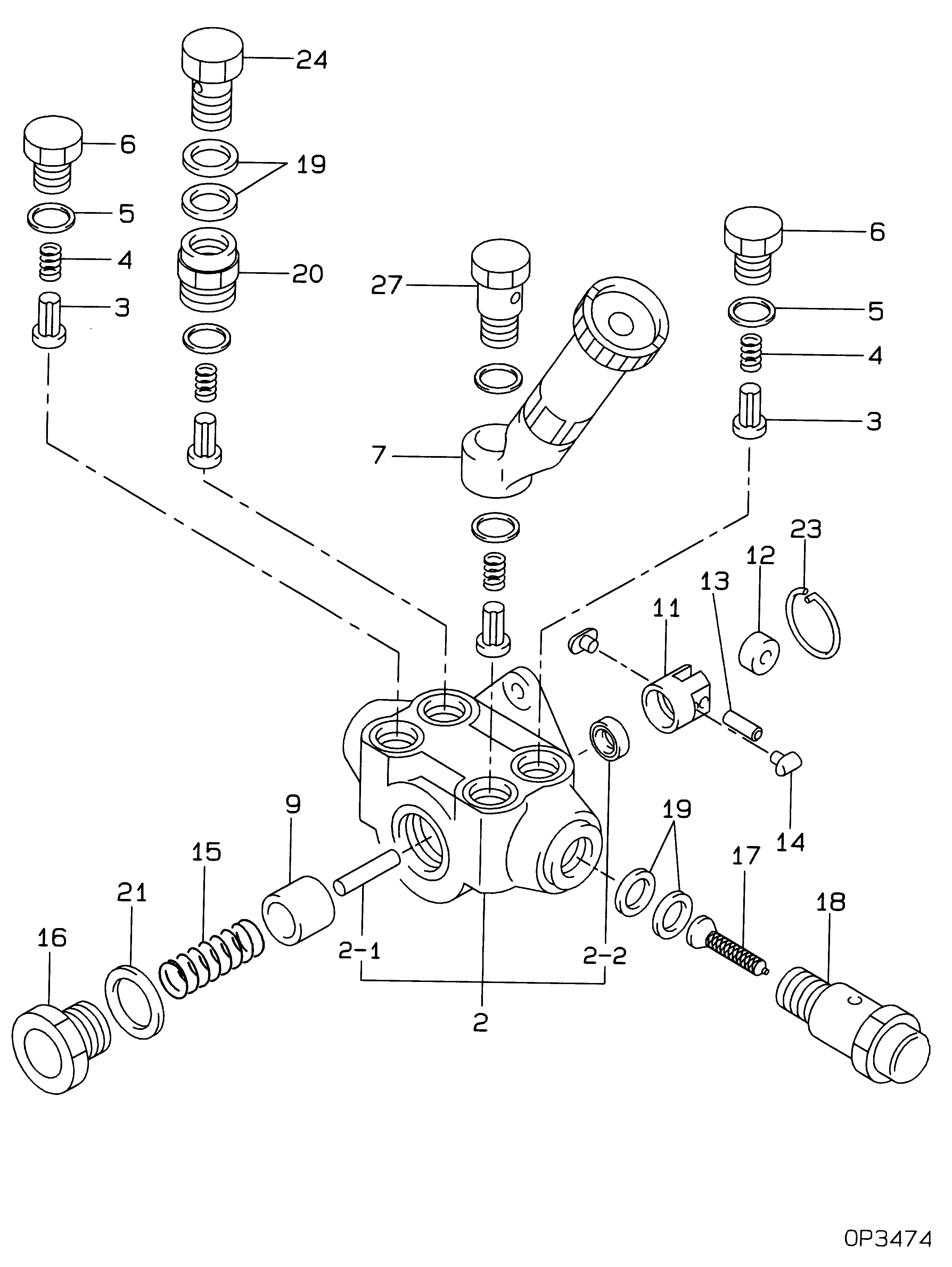

Scheme #.#:

PUMP ASSY, FUEL FE
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09210-03300
PUMP ASSY, FUEL FE
KD22
002
[01]
09212-00760
HOUSING SUB-ASSY,
002-001
[01]
09216-80160
ROD, FEED PUMP PUS
22565-1220A HINO
002-002
[01]
94915-02700
SEAL, OIL
22827-1700A HINO
003
[04]
09212-10011
VALVE, FEED PUMP C
22563-1041A HINO
004
[04]
09212-40010
SPRING, FEED PUMP
22562-1020A HINO
005
[05]
09212-50010
GASKET, CHECK VALV
22847-1680A HINO
006
[02]
09212-60010
PLUG, FEED PUMP CH
22845-1350A HINO
007
[01]
09213-00340
PUMP SUB-ASSY, PRI
22509-1310A HINO
009
[01]
09217-10011
PISTON, FEED PUMP
BLUE
22566-1200A HINO
011
[01]
09217-40070
TAPPET, FEED PUMP
012
[01]
09217-60050
ROLLER, FEED PUMP
013
[01]
09217-80030
PIN, FEED PUMP TAP
22571-1060A HINO
014
[02]
09217-90081
BLOCK, FEED PUMP T
22572-1120A HINO
015
[01]
09218-20050
SPRING, FEED PUMP
22567-1090A HINO
016
[01]
09218-40021
PLUG, FEED PUMP PI
22845-1360A HINO
017
[01]
09222-00040
FILTER, FEED PUMP
22574-1040A HINO
018
[01]
09222-30070
SCREW, FUEL PIPE H
M14,L26
22835-1370A HINO
019
[04]
94901-02490
WASHER
T1.4
22877-1100A HINO
020
[01]
09212-70040
SUPPORT, VALVE
22841-1970A HINO
021
[01]
94901-81240
WASHER, COPPER PLA
T1
22847-1690A HINO
023
[01]
94907-20940
RING, SNAP
ID28
22887-1160A HINO
024
[01]
94918-00310
SCREW, HOLLOW
M14,L10
22835-1310A HINO
027
[01]
09216-00020
HOLDER SUB-ASSY, V
22815-2600A HINO

Include in ##:

09200-03822 as PUMP ASSY, FUEL FE
09210-03300 PUMP ASSY, FUEL FE

Cross reference number



Part num
Firm num
Firm
Name
09210-03300

PUMP ASSY, FUEL FE
