09210-03120 PUMP ASSY, FUEL FE Denso Cross


Rating:
2
Buy PUMP ASSY, FUEL FE 09210-03120 genuine, new aftermarket engine parts with delivery

Information pump assy, fuel fe Denso

KIT List:

Part name
Kit1
Kit2
Pump assy, fuel fe
Pump assy, fuel fe
Pump assy, fuel fe
Pump assy, fuel fe
Pump assy, fuel fe
Pump assy, fuel fe
Pump assy, fuel fe
Pump assy, fuel fe
Pump assy, fuel fe
Pump assy, fuel fe

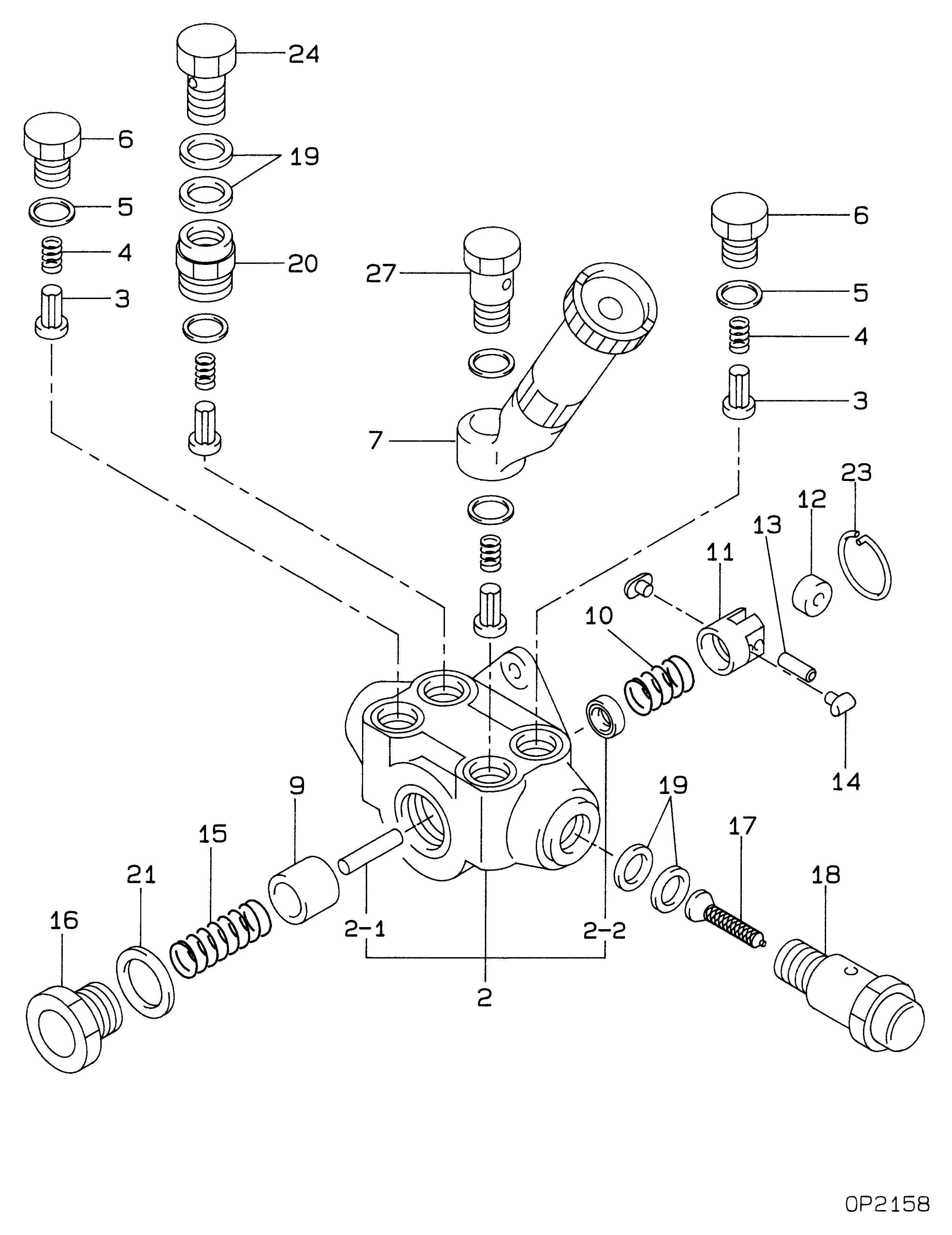

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09210-03120
PUMP ASSY, FUEL FE
KD22
22570-1690 HINO
000
[01]
09210-03120
PUMP ASSY, FUEL FE
KD22
S2257-01690 HINO
002
[01]
HOUSING SUB-ASSY,
-9707
002
[01]
HOUSING SUB-ASSY,
9708-
002-001
[01]
ROD, FEED PUMP PUS
22565-1220A HINO
002-002
[01]
SEAL, OIL
22827-1700A HINO
003
[04]
VALVE, FEED PUMP C
22563-1041A HINO
004
[04]
SPRING, FEED PUMP
22562-1020A HINO
005
[05]
GASKET, CHECK VALV
22847-1680A HINO
006
[02]
PLUG, FEED PUMP CH
22845-1350A HINO
007
[01]
PUMP SUB-ASSY, PRI
22509-1310A HINO
009
[01]
PISTON, FEED PUMP
BLUE
22566-1200A HINO
010
[01]
SPRING, FEED PUMP
DISCONTINUED -9701
22567-1040A HINO
011
[01]
TAPPET, FEED PUMP
22568-1170A HINO
012
[01]
ROLLER, FEED PUMP
22569-1110A HINO
013
[01]
PIN, FEED PUMP TAP
22571-1090A HINO
014
[02]
BLOCK, FEED PUMP T
22572-1070A HINO
015
[01]
SPRING, FEED PUMP
22567-1090A HINO
016
[01]
PLUG, FEED PUMP PI
22845-1360A HINO
017
[01]
FILTER, FEED PUMP
22574-1040A HINO
018
[01]
SCREW, FUEL PIPE H
22835-1370A HINO
019
[04]
WASHER
T1.4
22877-1100A HINO
020
[01]
SUPPORT, VALVE
22841-1970A HINO
021
[01]
WASHER, COPPER PLA
T1
22847-1690A HINO
023
[01]
RING, SNAP
ID28
22887-1160A HINO
024
[01]
SCREW, HOLLOW
M14,L10
22835-1310A HINO
027
[01]
HOLDER SUB-ASSY, V
22815-2600A HINO

Cross reference number



Part num
Firm num
Firm
Name
09210-03120
S2257-0169
PUMP ASSY, FUEL FE
0921003120
22570-1690
HINO
PUMP ASSY, FUEL FE
0921003120
S2257-01690
HINO
PUMP ASSY, FUEL FE
0921003120
S2257-01690-A
HINO
PUMP ASSY, FUEL FE
