09210-02730 PUMP ASSY, FUEL FE Denso Cross


Rating:
6
Buy PUMP ASSY, FUEL FE 09210-02730 genuine, new aftermarket engine parts with delivery

Information pump assy, fuel fe Denso

KIT List:

Part name
Kit1
Kit2
Pump assy, fuel fe
Pump assy, fuel fe
Pump assy, fuel fe
Pump assy, fuel fe
Pump assy, fuel fe

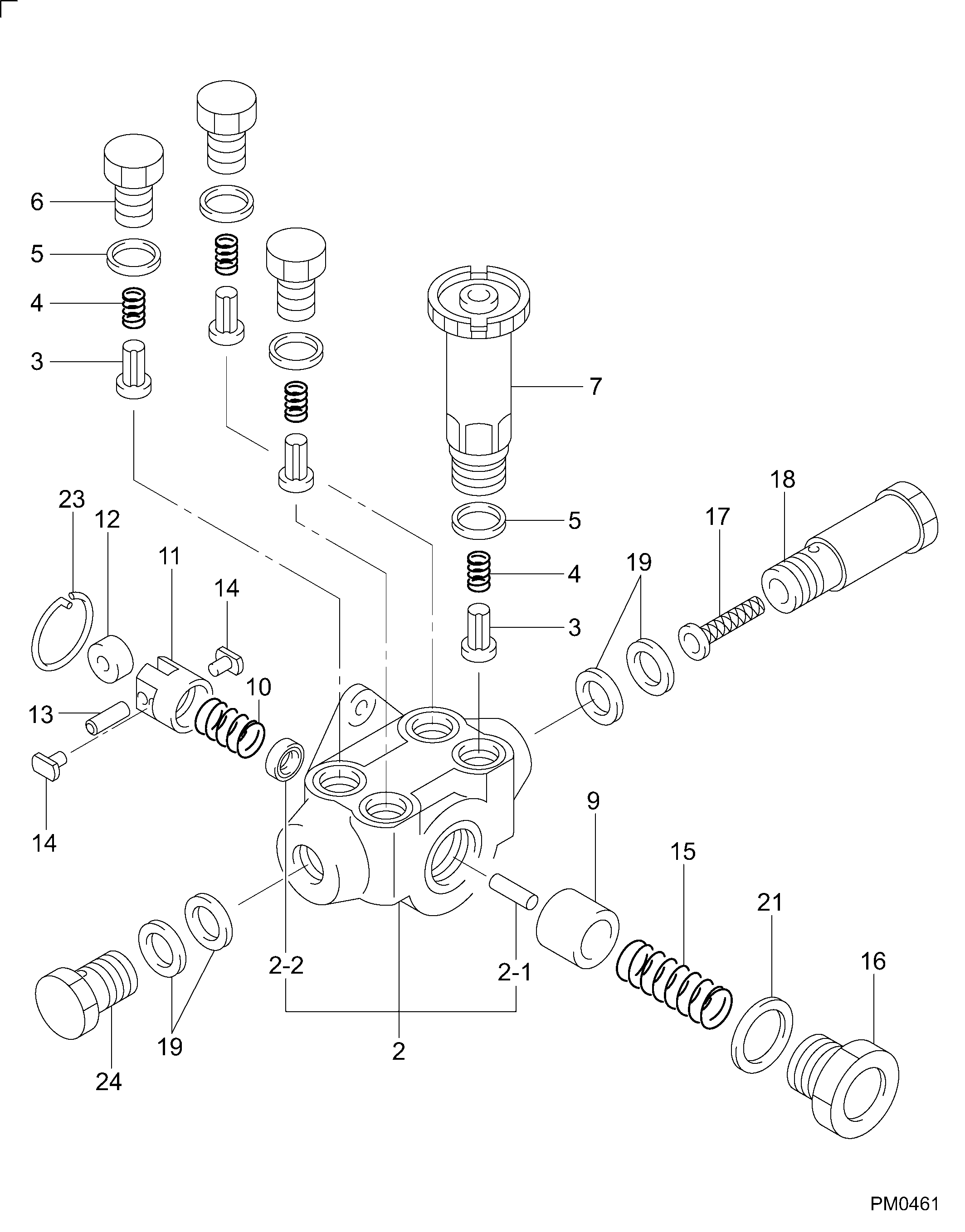

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09210-02730
PUMP ASSY, FUEL FE
KD22
002
[01]
HOUSING SUB-ASSY,
-9707
002
[01]
HOUSING SUB-ASSY,
9708-
002-001
[01]
ROD, FEED PUMP PUS
22565-1220A HINO
002-002
[01]
SEAL, OIL
22827-1700A HINO
003
[04]
VALVE, FEED PUMP C
22563-1041A HINO
004
[04]
SPRING, FEED PUMP
22562-1020A HINO
005
[04]
GASKET, CHECK VALV
22847-1680A HINO
006
[03]
PLUG, FEED PUMP CH
22845-1350A HINO
007
[01]
PUMP SUB-ASSY, PRI
ALUMINUM -9803
22509-1160A HINO
007
[01]
PUMP SUB-ASSY, PRI
9804-
22509-1370A HINO
009
[01]
PISTON, FEED PUMP
22566-1200A HINO
010
[01]
SPRING, FEED PUMP
DISCONTINUED -9701
22567-1040A HINO
011
[01]
TAPPET, FEED PUMP
22568-1170A HINO
012
[01]
ROLLER, FEED PUMP
22569-1110A HINO
013
[01]
PIN, FEED PUMP TAP
22571-1090A HINO
014
[02]
BLOCK, FEED PUMP T
22572-1070A HINO
015
[01]
SPRING, FEED PUMP
22567-1090A HINO
016
[01]
PLUG, FEED PUMP PI
22845-1360A HINO
017
[01]
FILTER, FEED PUMP
22574-1040A HINO
018
[01]
SCREW, FUEL PIPE H
22835-1160A HINO
019
[04]
WASHER
T1.4
22877-1100A HINO
021
[01]
WASHER, COPPER PLA
T1
22847-1690A HINO
023
[01]
RING, SNAP
ID28
22887-1160A HINO
024
[01]
SCREW, HOLLOW
M14,L10
22835-1310A HINO

Include in ##:

09200-00131 as PUMP ASSY, FUEL FE

Cross reference number



Part num
Firm num
Firm
Name
09210-02730

PUMP ASSY, FUEL FE




Information:


Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
The following changes are adaptable to the products within the listed serial numbers, and are effective with all products after the listed serial numbers.The Disassembly and Assembly publication has been updated to reflect the increased assembly torque on the injector hold down bolts. Refer to the updated torque specification in the appropriate Disassembly and Assembly manuals listed in the reference section above.
