09210-01580 PUMP ASSY, FUEL FE Denso Cross


Rating:
12
Buy PUMP ASSY, FUEL FE 09210-01580 genuine, new aftermarket engine parts with delivery

Information pump assy, fuel fe Denso

KIT List:

Part name
Kit1
Kit2
Pump assy, fuel fe
Pump assy, fuel fe
Pump assy, fuel fe
Pump assy, fuel fe
Pump assy, fuel fe

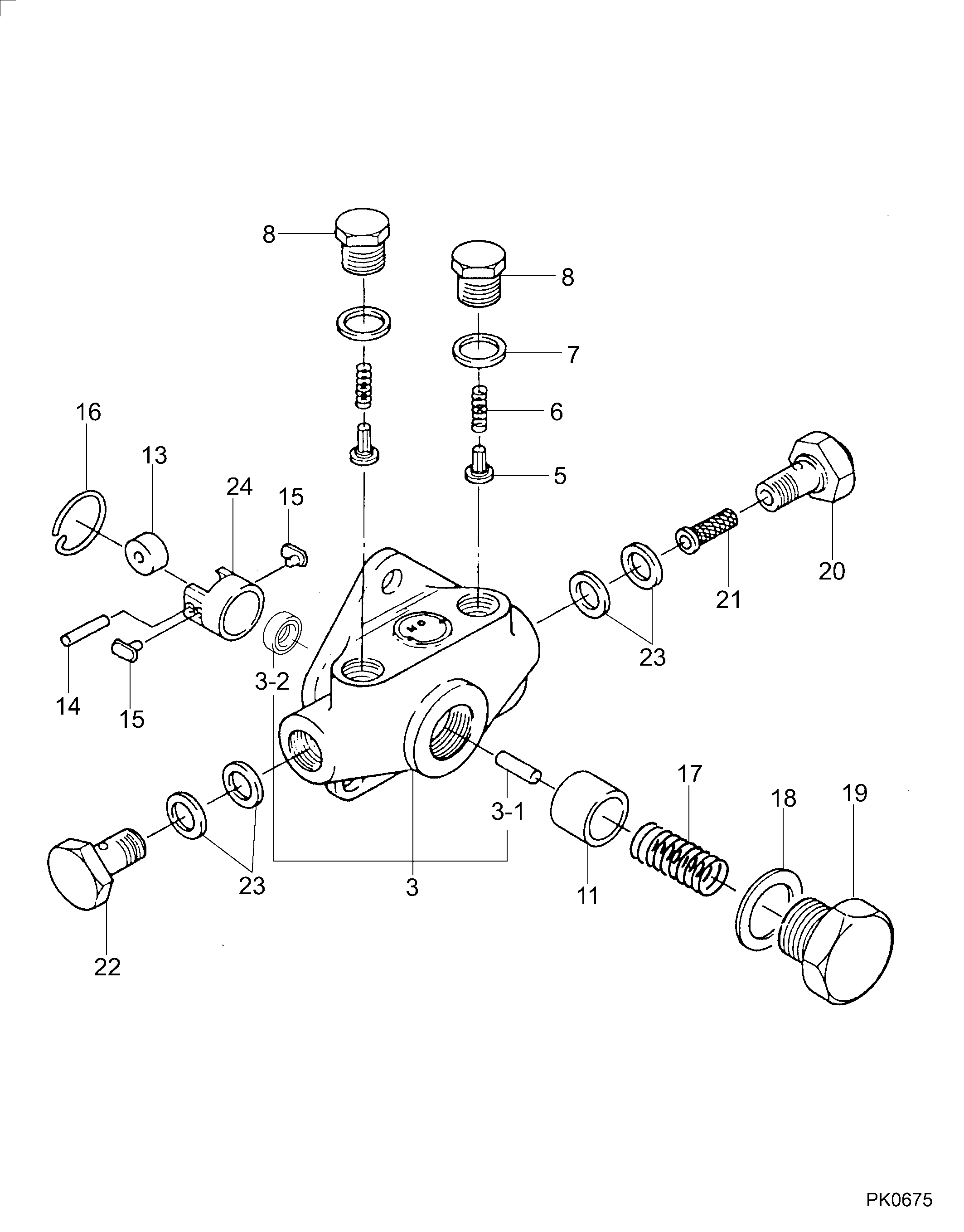

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09210-01580
PUMP ASSY, FUEL FE
KE
000
[01]
09210-01580
PUMP ASSY, FUEL FE
KE
003
[01]
HOUSING SUB-ASSY,
003
[01]
HOUSING SUB-ASSY,
003-001
[1C]
ROD, FEED PUMP PUS
BLUE -8405
003-001
[1C]
ROD, FEED PUMP PUS
KEY -8405
003-001
[1C]
ROD, FEED PUMP PUS
YELLOW -8405
003-001
[1C]
ROD, FEED PUMP PUS
GREEN -8405
003-001
[1C]
ROD, FEED PUMP PUS
WHITE -8405
003-001
[1C]
ROD, FEED PUMP PUS
BROWN -8405
003-001
[01]
ROD, FEED PUMP PUS
8405-
003-001
[1C]
ROD, FEED PUMP PUS
BLUE -8405
003-001
[1C]
ROD, FEED PUMP PUS
KEY -8405
003-001
[1C]
ROD, FEED PUMP PUS
YELLOW -8405
003-001
[1C]
ROD, FEED PUMP PUS
GREEN -8405
003-001
[1C]
ROD, FEED PUMP PUS
WHITE -8405
003-001
[1C]
ROD, FEED PUMP PUS
BROWN -8405
003-001
[01]
ROD, FEED PUMP PUS
8405-
003-002
[01]
SEAL, OIL
D13,T8.2 -8405
003-002
[01]
SEAL, OIL
D14,T5.5 8405-
003-002
[01]
SEAL, OIL
D13,T8.2 -8405
003-002
[01]
SEAL, OIL
D14,T5.5 8405-
005
[02]
VALVE, FEED PUMP C
005
[02]
VALVE, FEED PUMP C
006
[02]
SPRING, FEED PUMP
006
[02]
SPRING, FEED PUMP
007
[02]
GASKET, CHECK VALV
ID16 COPPER
007
[02]
GASKET, CHECK VALV
ID16 COPPER
22513-77020 TOYOTA
008
[02]
PLUG, FEED PUMP CH
008
[02]
PLUG, FEED PUMP CH
011
[01]
PISTON, FEED PUMP
BLUE
011
[01]
PISTON, FEED PUMP
BLUE
013
[01]
ROLLER, FEED PUMP
013
[01]
ROLLER, FEED PUMP
014
[01]
PIN, FEED PUMP TAP
014
[01]
PIN, FEED PUMP TAP
015
[02]
BLOCK, FEED PUMP T
015
[02]
BLOCK, FEED PUMP T
016
[01]
RING, SNAP
ID28
016
[01]
RING, SNAP
ID28
017
[01]
SPRING, FEED PUMP
017
[01]
SPRING, FEED PUMP
018
[01]
WASHER, COPPER PLA
T1
018
[01]
WASHER, COPPER PLA
T1
019
[01]
PLUG, FEED PUMP PI
019
[01]
PLUG, FEED PUMP PI
020
[01]
SCREW, FUEL PIPE H
M14,L26
020
[01]
SCREW, FUEL PIPE H
M14,L26
021
[01]
FILTER, FEED PUMP
021
[01]
FILTER, FEED PUMP
022
[01]
SCREW, HOLLOW
M14,L26
022
[01]
SCREW, HOLLOW
M14,L10
90099-18010 TOYOTA
023
[04]
WASHER, FUEL PIPE
T1.2
023
[04]
WASHER, FUEL PIPE
T1.2
94712-77121 TOYOTA
024
[01]
TAPPET, FEED PUMP
024
[01]
TAPPET, FEED PUMP

Include in ##:

09210-01580 as PUMP ASSY, FUEL FE

Cross reference number



Part num
Firm num
Firm
Name
09210-01580

PUMP ASSY, FUEL FE
