09200-05560 PUMP ASSY, INJECTI Denso Cross


Rating:
13
Buy PUMP ASSY, INJECTI 09200-05560 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
TRUCK J05E-TE
Engine
J05E-TE
Serial start-end
0804-
Info
Injector Nozzle
093500-8100
Injector nozzle: 0935008100

KIT List:

Part name
Kit1
Kit2
Governor assy, mec
Pump assy, fuel fe

Components :

00.001
PUMP ASSY, INJECTI
01.002
GOVERNOR ASSY, MEC
02.003
LEVER SET
ADJUST L
02.004
COMPENSATOR SUB-AS
01.005
TIMER ASSY, AUTOMA
SA1
01.006
PUMP ASSY, FUEL FE
KD
01.007
COUPLING ASSY
SD

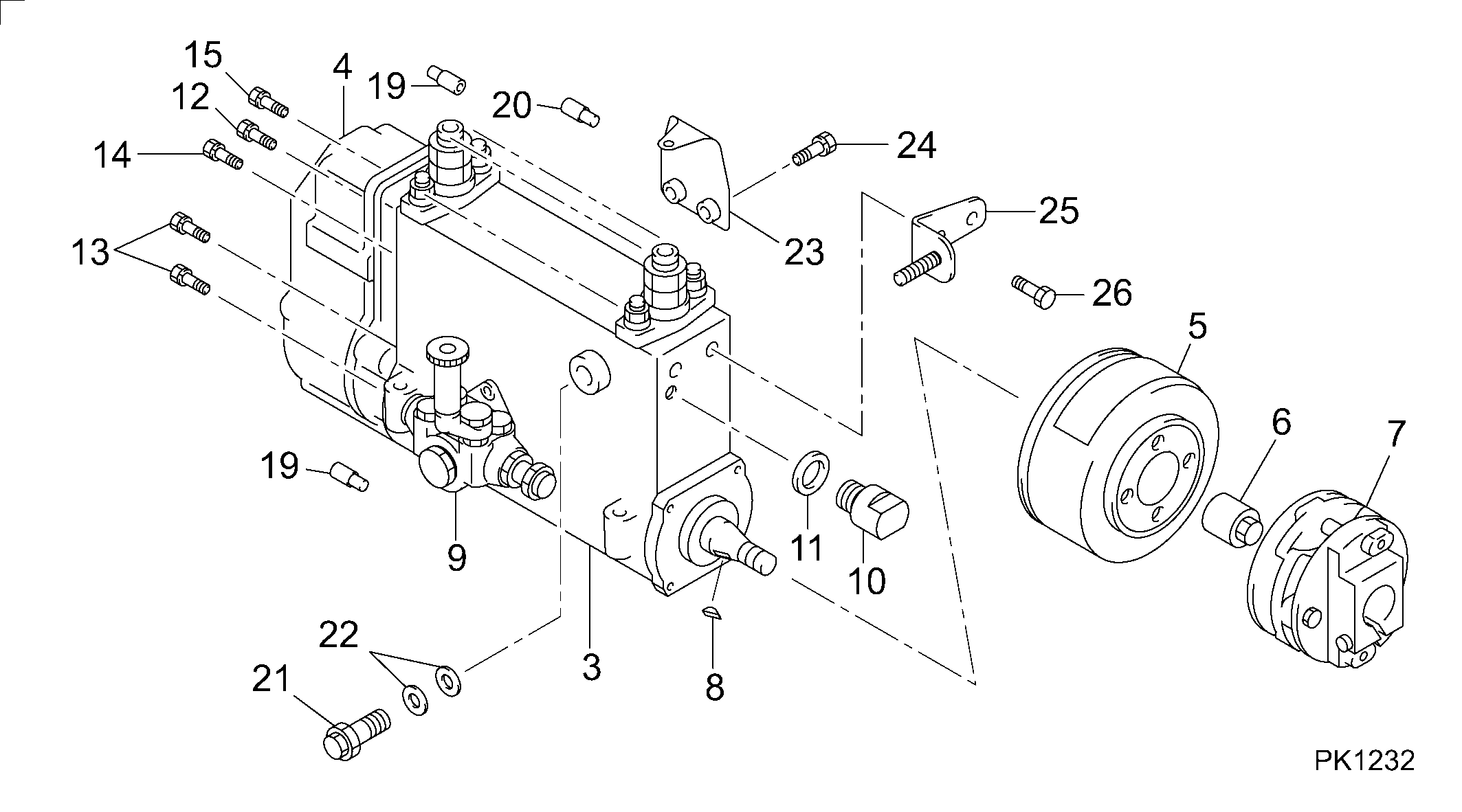

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09200-05560
PUMP ASSY, INJECTI
22010-E0120 HINO
003
[01]
BODY ASSY, INJECTI
S2211-03870-A HINO
004
[01]
GOVERNOR ASSY, MEC
S2231-07270-A HINO
005
[01]
TIMER ASSY, AUTOMA
SA1
006
[01]
NUT, TIMER ROUND
M18X1.5
S2282-52240-A HINO
007
[01]
COUPLING ASSY
SD
S2261-01860-A HINO
008
[01]
KEY, WOODRUFF
W5,H7.5
S2289-11070-A HINO
009
[01]
PUMP ASSY, FUEL FE
KD
S2257-01860-A HINO
010
[01]
COVER, CONTROL RAC
S2211-41200-A HINO
011
[01]
WASHER, COPPER PLA
T1.5
SL722-02215 HINO
012
[01]
BOLT, W/WASHER
M8,L20
S2281-53230-A HINO
013
[04]
BOLT, W/WASHER
M8,L16
S2281-53210-A HINO
014
[01]
BOLT, W/WASHER
M8,L22
S2281-53240-A HINO
015
[02]
BOLT, W/WASHER
M8,L14
S2281-53320-A HINO
019
[02]
CAP
FOR MAX.SPEED
S2232-31210-A HINO
020
[01]
CAP
FOR FULL-LOAD
S2232-31430-A HINO
021
[01]
VALVE ASSY, OVERFL
MARK 45
S2210-71570-A HINO
022
[02]
WASHER
T1,D15.9
S2284-71940-A HINO
023
[01]
STAY, INJECTION PU
S1140-91261-A HINO
024
[02]
BOLT, W/WASHER
M8,L35
S2281-53380-A HINO
025
[01]
BRACKET SUB-ASSY,
S2376-82650-A HINO
026
[02]
BOLT, FLANGE
M8,L12
S2281-53330-A HINO

Include in ##:

09200-05560 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09200-05560
22010-E012
PUMP ASSY, INJECTI
0920005560
22010-E0120
HINO
PUMP ASSY, INJECTI
