Information pump assy, injecti Denso

Components :

00.001

PUMP ASSY, INJECTI

09200-03543 HINO

NB4,R901

01.002

GOVERNOR ASSY, MEC

09130-06322 HINO

R901

02.003

LEVER SET

09129-10580 HINO

ADJUST L

02.004

COVER ASSY, GOVERN

09145-00910 HINO

02.005

COMPENSATOR SUB-AS

19260-01091 HINO

02.006

COMPENSATOR SUB-AS

19260-01210 HINO

01.007

TIMER ASSY, AUTOMA

09180-04001 HINO

SA1

01.008

PUMP ASSY, FUEL FE

09210-03271 HINO

01.009

COUPLING ASSY

09250-01061 HINO

01.010

BODY ASSY, INJECTI

19010-01431 HINO

NB4

02.011

COVER, BEARING

09020-10430 HINO

DUMMY

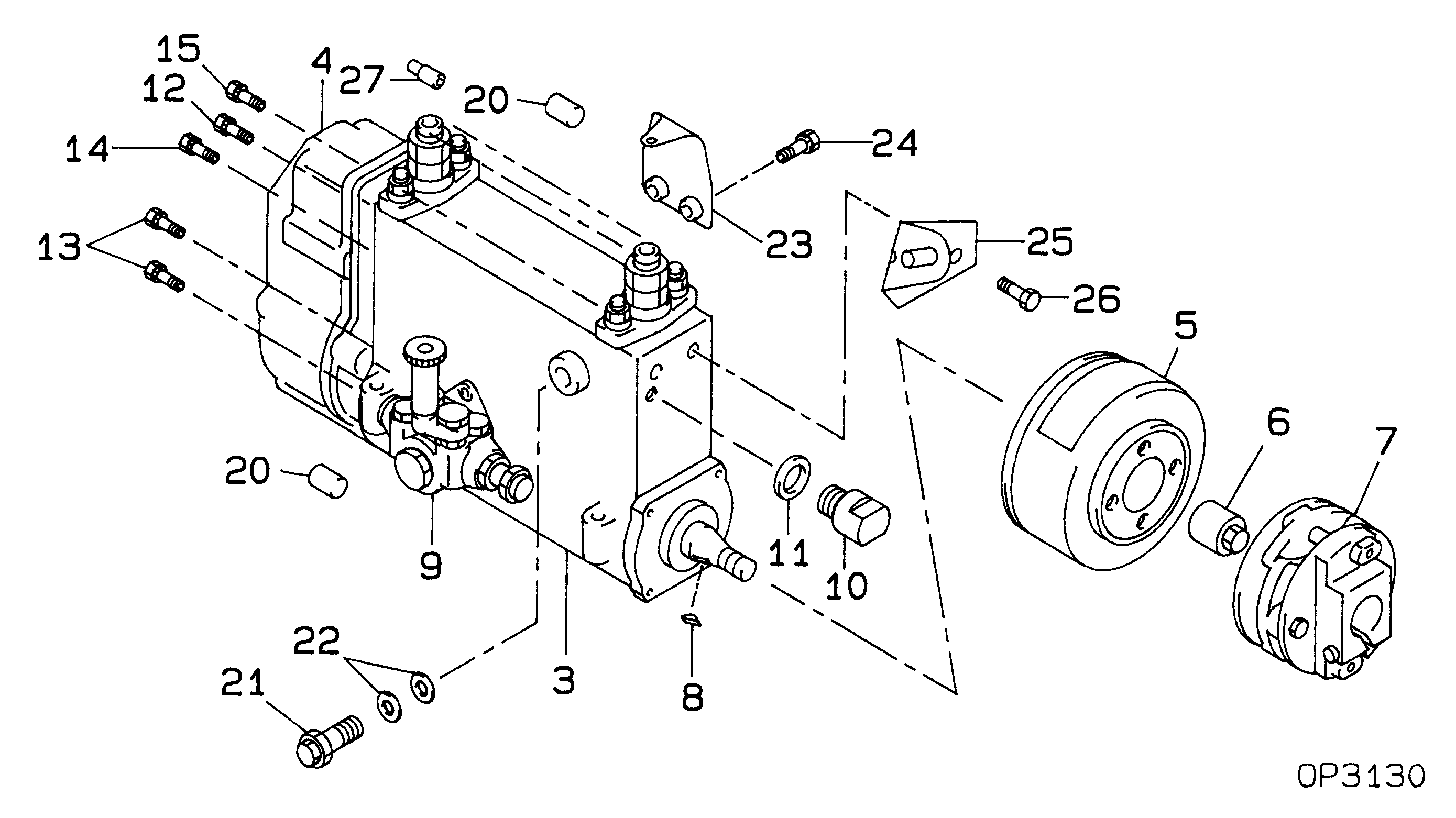

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

09200-03543

PUMP ASSY, INJECTI

NB4,R901

22010-8314 HINO

000

[01]

09200-03543

PUMP ASSY, INJECTI

NB4,R901

S2201-08314 HINO

003

[01]

19010-01430

BODY ASSY, INJECTI

NB4

22110-3580A HINO

004

[01]

09130-06322

GOVERNOR ASSY, MEC

R901

22310-6730A HINO

005

[01]

09180-04001

TIMER ASSY, AUTOMA

SA1

S2251-02870-A HINO

006

[01]

09001-20340

NUT, TIMER ROUND

M18X1.5

S2282-52240-A HINO

007

[01]

09250-01061

COUPLING ASSY

S2261-01860-A HINO

008

[01]

90458-05750

KEY, WOODRUFF

W5,H7.5

S2289-11070-A HINO

009

[01]

09210-03271

PUMP ASSY, FUEL FE

S2257-01860-A HINO

010

[01]

09001-80381

COVER, CONTROL RAC

S2211-41200-A HINO

011

[01]

94901-81550

WASHER, COPPER PLA

T1.5

SL722-02215 HINO

012

[01]

94904-76900

BOLT, W/WASHER

M8,L20

S2281-53230-A HINO

013

[04]

94904-76890

BOLT, W/WASHER

M8,L16

S2281-53210-A HINO

014

[01]

94904-76910

BOLT, W/WASHER

M8,L22

S2281-53240-A HINO

015

[02]

94904-76880

BOLT, W/WASHER

M8,L14

S2281-53320-A HINO

020

[02]

09103-10310

NUT, CAP

S2234-22020-A HINO

021

[01]

09031-00450

VALVE ASSY, OVERFL

MARK 45

S2210-71570-A HINO

022

[02]

94901-02480

WASHER

T1,D15.9

S2284-71940-A HINO

023

[01]

09045-30160

STAY, INJECTION PU

S1140-91261-A HINO

024

[02]

91418-08351

BOLT, W/WASHER

M8,L35

S2281-53380-A HINO

025

[01]

09069-00870

BRACKET SUB-ASSY,

22044-1400A HINO

026

[02]

91808-08121

BOLT, FLANGE

M8,L12

S2281-53330-A HINO

027

[01]

09028-50030

CAP

FOR MAX.SPEED

S2232-31210-A HINO

Include in ##:

09200-03543 as PUMP ASSY, INJECTI

09200-03543 PUMP ASSY, INJECTI

Cross reference number

Part num

Firm num

Firm

Name

09200-03543

22010-8314

PUMP ASSY, INJECTI

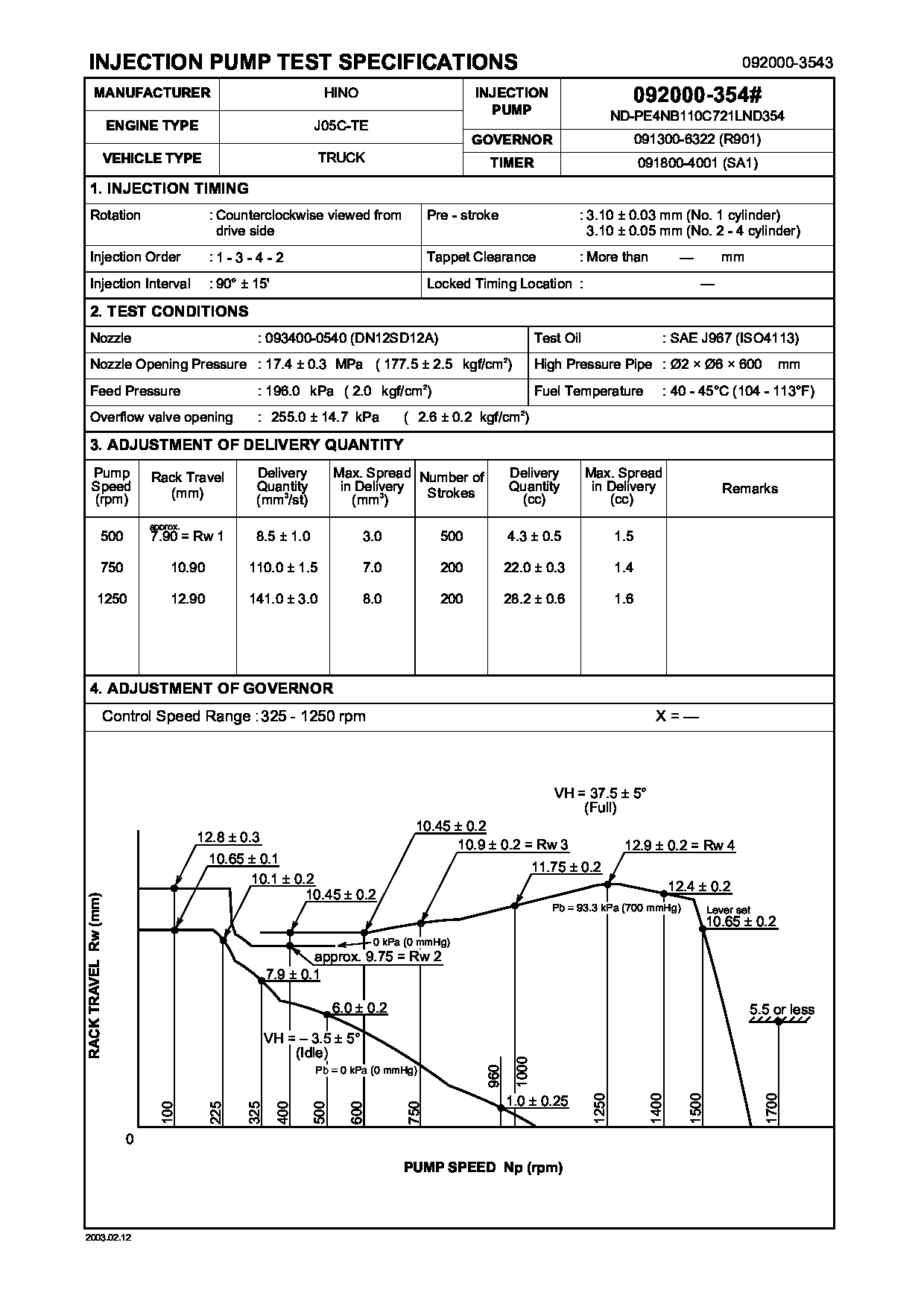

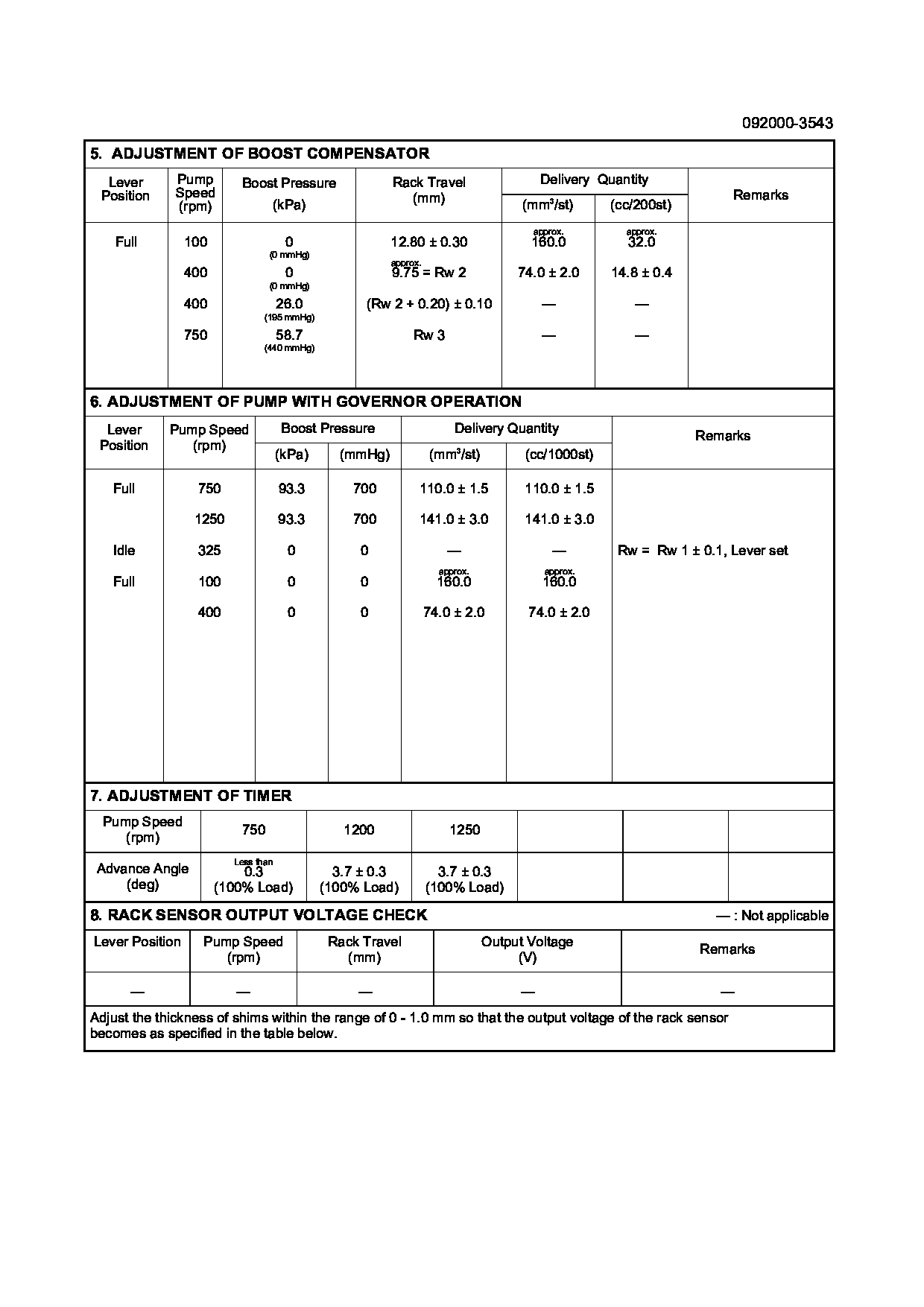

Test Calibration Data:

Get Full test data file

0920003543 22010-8311
