09200-03514 PUMP ASSY, INJECTI Calibration Data


Rating:
11
Buy PUMP ASSY, INJECTI 09200-03514 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Components :

00.001
PUMP ASSY, INJECTI
NB6,R901
01.002
GOVERNOR ASSY, MEC
R901
02.003
COVER ASSY, GOVERN
02.004
COMPENSATOR SUB-AS
01.005
TIMER ASSY, AUTOMA
SB1
01.006
PUMP ASSY, FUEL FE
KD
01.007
COUPLING ASSY
SD
01.008
BODY ASSY, INJECTI
NB6
02.009
COVER, BEARING
DUMMY
01.010
BODY ASSY, INJECTI
NB6

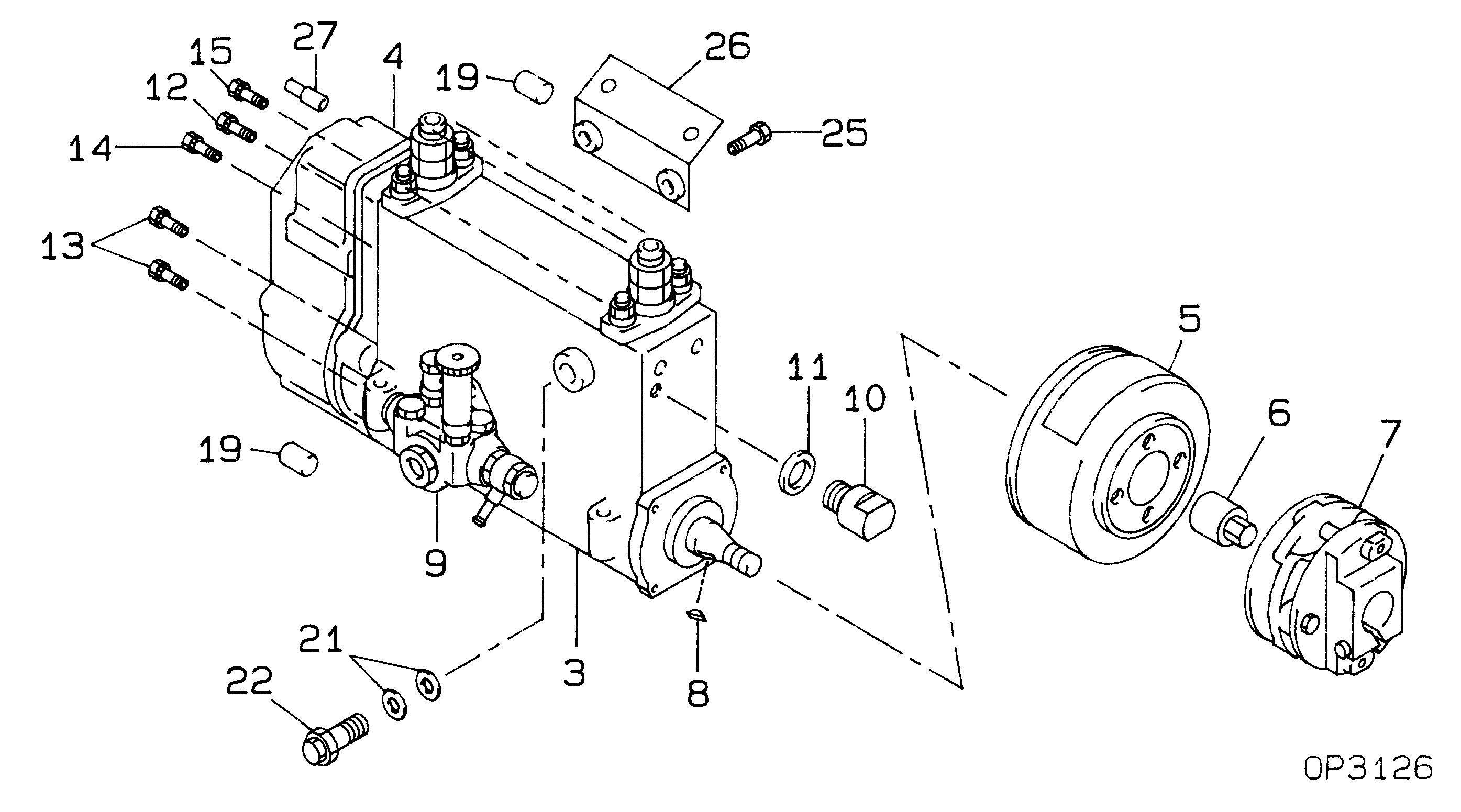

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
PUMP ASSY, INJECTI
NB6,R901
22010-8292 HINO
000
[01]
09200-03514
PUMP ASSY, INJECTI
NB6,R901
22010-8293 HINO
000
[01]
09200-03514
PUMP ASSY, INJECTI
NB6,R901
S2201-08293 HINO
003
[01]
BODY ASSY, INJECTI
NB6 -9802
22110-3290A HINO
003
[01]
BODY ASSY, INJECTI
NB6 9802-
22110-3660A HINO
004
[01]
GOVERNOR ASSY, MEC
R901
S2231-07170-A HINO
005
[01]
TIMER ASSY, AUTOMA
SB1
S2251-02830-A HINO
006
[01]
NUT, TIMER ROUND
M18X1.5
S2282-52240-A HINO
007
[01]
COUPLING ASSY
SD
S2261-01860-A HINO
008
[01]
KEY, WOODRUFF
W5,H7.5
S2289-11070-A HINO
009
[01]
PUMP ASSY, FUEL FE
KD
S2257-01750-A HINO
010
[01]
COVER, CONTROL RAC
S2211-41200-A HINO
011
[01]
WASHER, COPPER PLA
T1.5
SL722-02215 HINO
012
[01]
BOLT, W/WASHER
M8,L20
S2281-53230-A HINO
013
[04]
BOLT, W/WASHER
M8,L16
S2281-53210-A HINO
014
[01]
BOLT, W/WASHER
M8,L22
S2281-53240-A HINO
015
[02]
BOLT, W/WASHER
M8,L14
S2281-53320-A HINO
019
[02]
NUT, CAP
S2234-22020-A HINO
021
[02]
WASHER
T1,D15.9
S2284-71940-A HINO
022
[01]
VALVE ASSY, OVERFL
MARK 45
S2210-71570-A HINO
025
[02]
BOLT, FLANGE
M8,L20
S2281-53390-A HINO
026
[01]
STAY, INJECTION PU
S1140-91270-C HINO
027
[01]
CAP
FOR MAX.SPEED
S2232-31210-A HINO

Include in ##:

09200-03514 as PUMP ASSY, INJECTI
09200-03514 PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09200-03514
22010-8293
PUMP ASSY, INJECTI

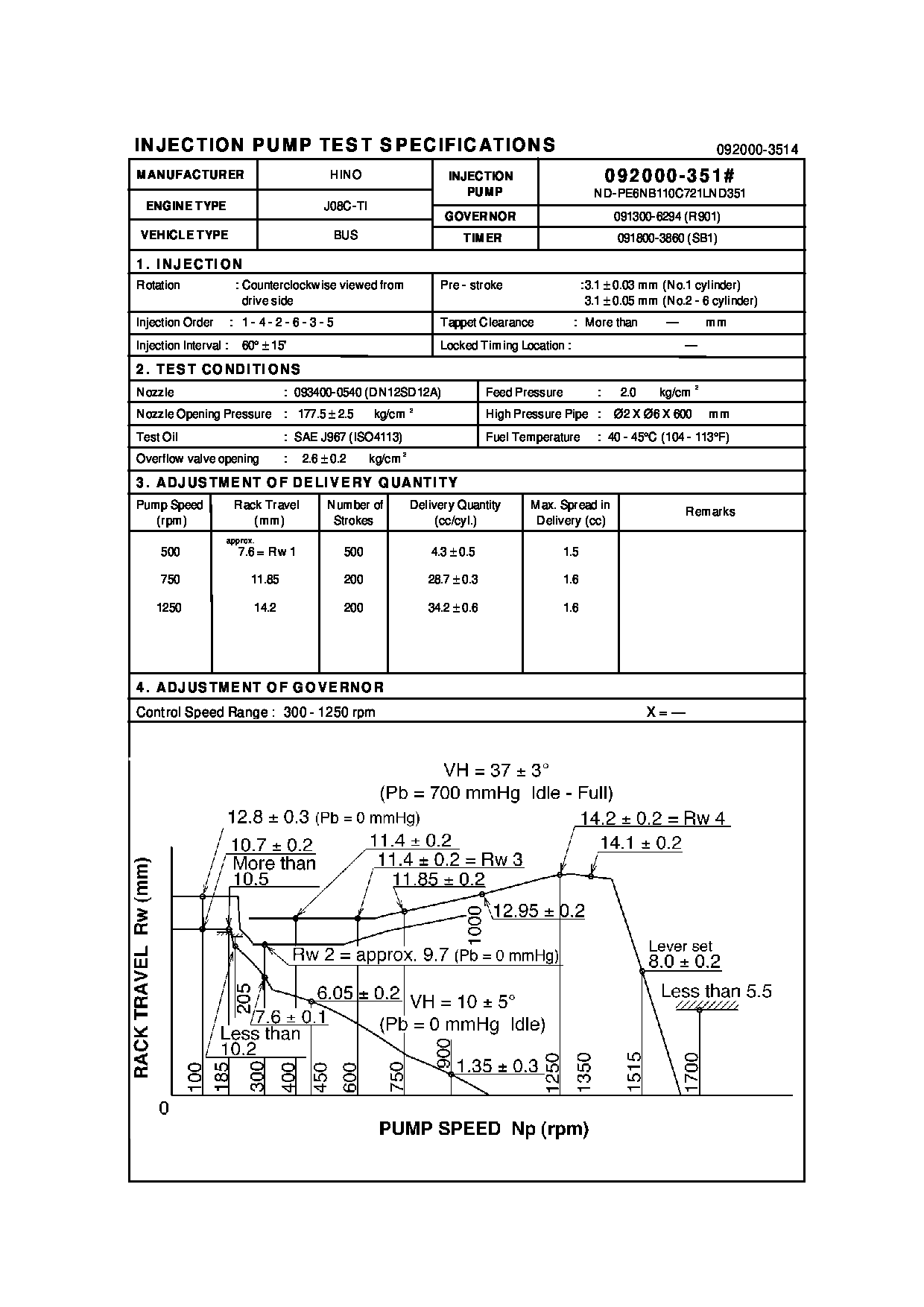

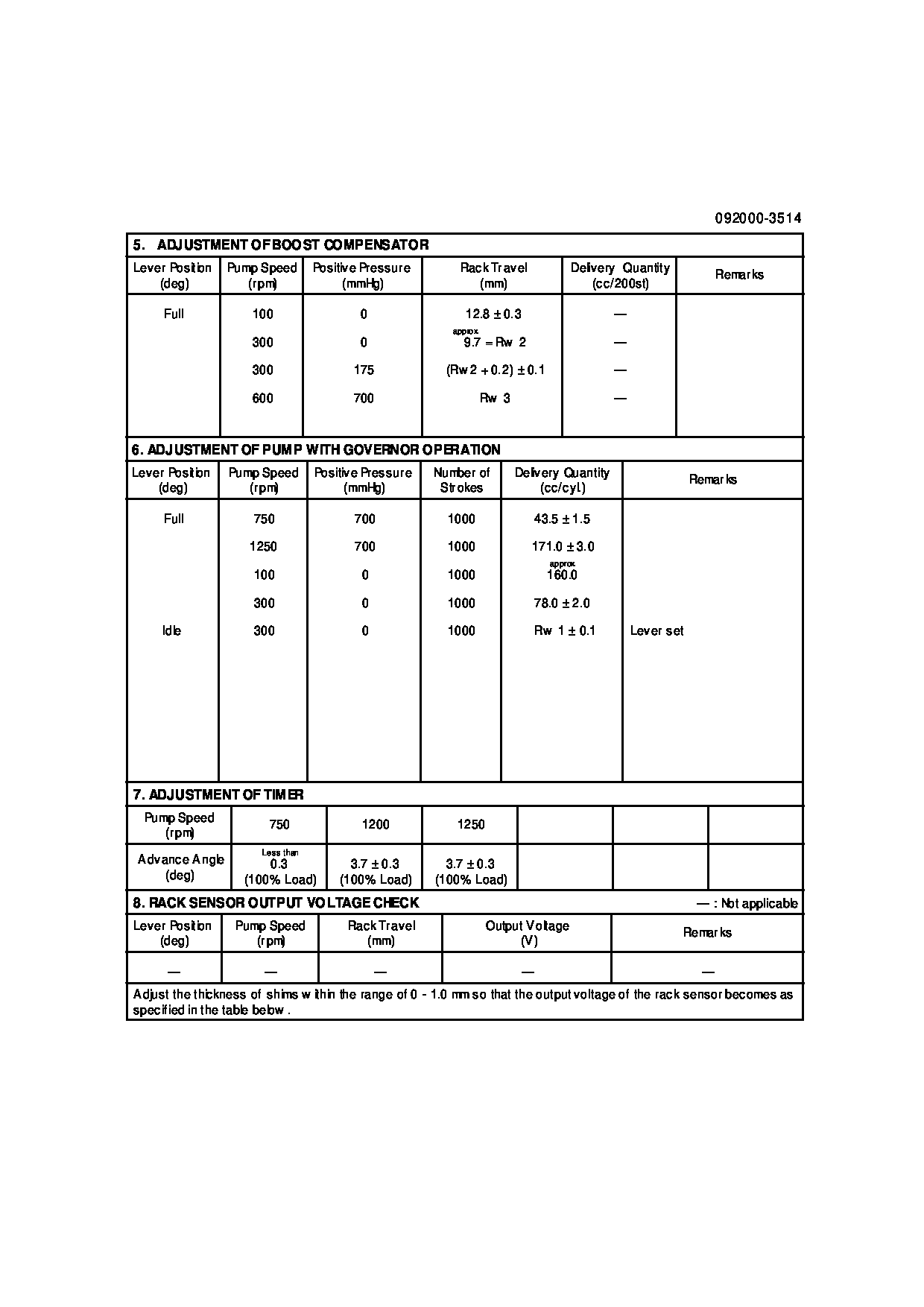

Test Calibration Data:

0920003513 22010-8293
0920003514 22010-8293




Information:

have been introduced on the 4.236 engine for the Backhoe Loaders. They have a larger cylinder liner parent bore diameter. The outside diameter of the cylinder liner is also larger. There is no longer a flame ring on the liner. The change became effective with engine serial number LD70178U106654N. The engine serial number is located above the fuel injection pump on the block.(1) Outside diameter of cylinder liner. Earlier engines with thin wall liners: Production liner ... 103.238 to 103.264 mm (4.0645 to 4.0655 in)Service liner ... 103.188 to 103.213 mm (4.0625 to 4.0635 in)Current engines with thick wall liners: Production liner ... 104.254 to 104.280 mm (4.1045 to 4.1055 in)Service liner ... 104.204 to 104.229 mm (4.1025 to 4.1035 in)(2) Inside diameter of cylinder liner: Production liner ... 98.48 to 98.50 mm (3.877 to 3.878 in)Service liner ... 98.50 to 98.53 mm (3.878 to 3.879 in)Maximum diameter wear (when new liners are needed) ... 0.20 mm (.008 in)Transition fit of service liner in cylinder block ... 0.03 mm ( .001 in)Length of cylinder liner ... 227.10 to 227.43 mm (8.941 to 8.954 in)(3) Liner (flange) projection [do not measure from flame ring (if so equipped)] ... 0.10 mm (.004 in) above to ... 0.10 mm (.004 in) below Flange thickness of cylinder liner ... 3.81 to 3.86 mm (.150 to .152 in)Flange projection ... 0.10 mm (.004 in) above to ... 0.10 mm (.004 in) below face of cylinder block(4) Diameter of parent bore in cylinder block for liner: Earlier engines with thin wall liners ... 103.188 to 103.213 mm (4.0625 to 4.0635 in)Current engines with thick wall liners ... 104.204 to 104.229 mm (4.1025 to 4.1035 in)Depth of recess for cylinder liner flange ... 3.81 to 3.91 mm (.150 to .154 in)(5) Diameter of bore in cylinder block for camshaft No. 1 front bearing [has only front bearing (6)] ... 55.563 to 55.593 mm (2.1875 to 2.1887 in) Diameter of bearing bore for camshaft ... 50.800 to 50.843 mm (2.0000 to 2.0017 in)Diameter of bore for No. 2 journal ... 50.55 to 50.592 mm (1.990 to 1.9918 in)Diameter of bore for No. 3 journal ... 50.04 to 50.084 mm (1.970 to 1.9718 in)Clearance of camshaft in bore:Front (No. 1) ... 0.064 to 0.114 mm (.0025 to .0045 in)No. 2, No. 3 ... 0.064 to 0.135 mm (.0025 to .0053 in)Camshaft end play ... 0.10 to 0.41 mm (.004 to .016 in)Maximum permissible end play (worn) ... 0.51 mm (.020 in)(7) Diameter of bores in cylinder block for main bearings ... 80.42 to 80.44 mm (3.166 to 3.167 in)(8) Torque for main bearing cap bolts ... 245 N m (180 lb ft).Total height of cylinder block between top and bottom faces (not shown) ... 441.12 to 441.33 mm (17.367 to 17.375 in)
