09200-03444 PUMP ASSY, INJECTI Calibration Data


Rating:
78
Buy PUMP ASSY, INJECTI 09200-03444 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Components :

00.001
PUMP ASSY, INJECTI
NB6,R901
01.002
GOVERNOR ASSY, MEC
R901
02.003
COVER ASSY, GOVERN
02.004
COMPENSATOR SUB-AS
01.005
TIMER ASSY, AUTOMA
SB1
01.006
PUMP ASSY, FUEL FE
KD
01.007
COUPLING ASSY
SD
01.008
BODY ASSY, INJECTI
NB6
02.009
COVER, BEARING
DUMMY
01.010
BODY ASSY, INJECTI
NB6

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09200-03444
PUMP ASSY, INJECTI
NB6,R901
22010-8283 HINO
000
[01]
PUMP ASSY, INJECTI
NB6,R901
S2201-08283 HINO
003
[01]
BODY ASSY, INJECTI
NB6 -9802
22110-3290A HINO
003
[01]
BODY ASSY, INJECTI
NB6 9802-
22110-3660A HINO
004
[01]
GOVERNOR ASSY, MEC
R901
005
[01]
TIMER ASSY, AUTOMA
SB1
S2251-02830-A HINO
006
[01]
NUT, TIMER ROUND
M18X1.5
S2282-52240-A HINO
007
[01]
COUPLING ASSY
SD
S2261-01860-A HINO
008
[01]
KEY, WOODRUFF
W5,H7.5
S2289-11070-A HINO
009
[01]
PUMP ASSY, FUEL FE
KD
S2257-01750-A HINO
010
[01]
COVER, CONTROL RAC
S2211-41200-A HINO
011
[01]
WASHER, COPPER PLA
T1.5
SL722-02215 HINO
012
[01]
BOLT, W/WASHER
M8,L20
S2281-53230-A HINO
013
[04]
BOLT, W/WASHER
M8,L16
S2281-53210-A HINO
014
[01]
BOLT, W/WASHER
M8,L22
S2281-53240-A HINO
015
[02]
BOLT, W/WASHER
M8,L14
S2281-53320-A HINO
019
[02]
NUT, CAP
22342-2020A HINO
021
[02]
WASHER
T1,D15.9
22847-1940A HINO
022
[01]
VALVE ASSY, OVERFL
MARK 45
22107-1570A HINO
025
[02]
BOLT, FLANGE
M8,L20
22815-3390A HINO
026
[01]
STAY, INJECTION PU
11409-1270C HINO
027
[01]
CAP
FOR BOOST

Include in ##:

09200-03444 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09200-03444
22010-8283
PUMP ASSY, INJECTI

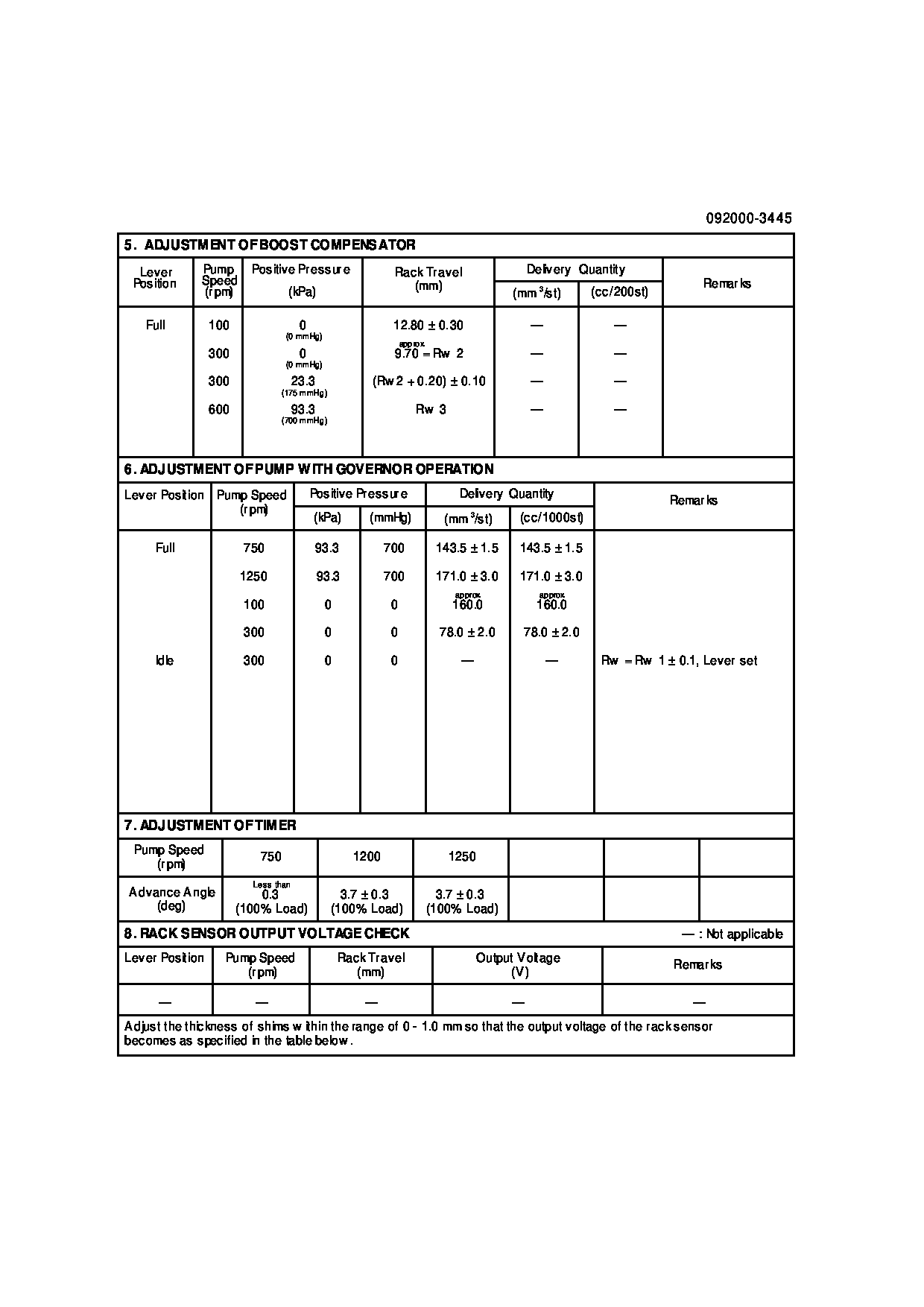

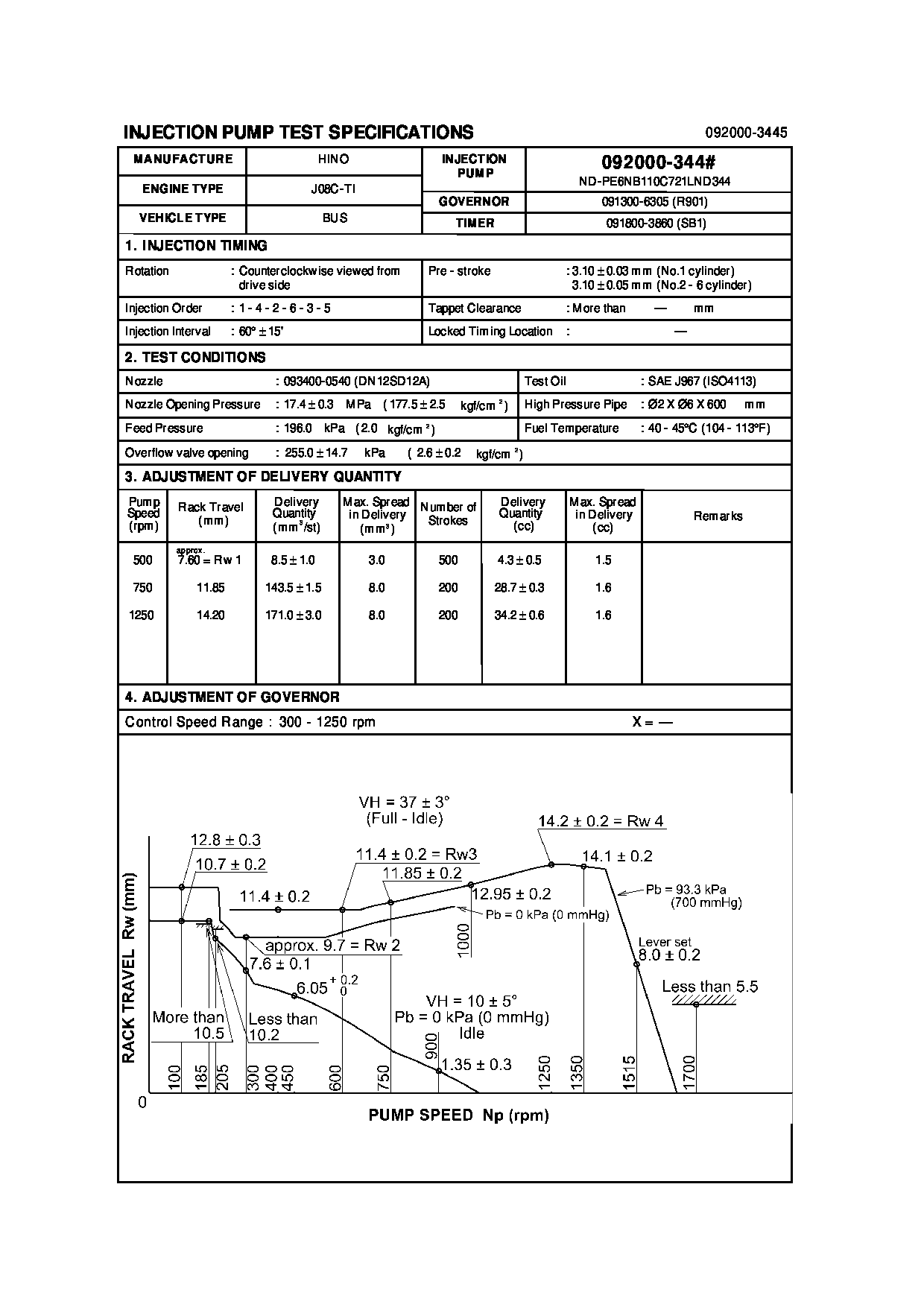

Test Calibration Data:

0920003444 22010-8281




Information:


10Sep2012
U-487
A-384
D-415
O-449
Before/After
PRODUCT SUPPORT PROGRAM FOR REPLACING THE GREASE INJECTOR FOR THE FRONT SUSPENSION A-FRAME BEARING ON CERTAIN 735B, 740B, AND 740B EJECTOR ARTICULATED TRUCKS
7510 7540 PS43700
This Program must be administered either before or after failure.In either case the decision whether to apply the Program is made by the dealer. When reporting the repair, use "PS43700" as the Part Numberand "7755" as the Group Number. If administered before failure, use "56" as the Warranty Claim Description Code and "T" as the SIMS Description code.If administered after failure, use "96" as the Warranty Claim Description Code, and "Z" as the SIMS Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
TERMINATION DATE
30Sep2014
PROBLEM
The front suspension A-Frame bearing may not be receiving an adequate amount of grease on machines that are equipped with the factory fitted Automatic Lubrication System. An inadequate amount of grease supply to the bearing does not promote purging of grease through the joint, especially in severe applications. This may result in premature wear of the bearing.
A larger sized injector is available which increases the amount of grease that is supplied to the bearing
Note: This service letter covers machines with factory fitted Automatic Lubrication Systems only. Dealer installed Automatic Lubrications Systems are not covered.
AFFECTED PRODUCT
Model Identification Number
735B L4D00368, 372, 375-380, 384-403
T4P00253-00258, 268-271, 275-277, 280-282, 284-286, 290-292, 302, 304
740B L4E00374-00378, 380, 385, 390, 392-393, 401-403, 407-408, 411, 419, 429-430, 433-437, 440, 443-449, 451, 453-455, 459, 465, 469, 471, 478, 480, 489, 492, 505, 511, 517, 522-529, 533, 535, 543, 549-550, 558, 560, 563, 567, 570, 575-576, 584, 592, 609-610, 612-616, 622, 624-627, 633-634, 643, 666, 670-673, 679-682, 687-694, 701-702, 708, 710, 712, 715-716, 722, 726-728, 734-735, 738, 741-743, 745-746, 755-757, 760, 763, 768, 774, 777, 779, 784-785, 788-789, 792, 796-799, 802-803, 805, 810, 812-813, 816-817, 821-822, 826-828, 833, 837, 842, 851, 853, 857, 861, 865-867, 881-882, 885, 887, 890-891, 896, 900, 903-904, 909-910, 912-915, 917-919, 921, 924-925, 927, 932-933, 945-950, 955-957, 962-971, 976-980, 985
T4R00267-00273, 278, 282-283, 289, 294, 299-300, 309-310, 322-323, 327, 339, 342, 348, 352, 354, 356, 359-360, 362-369, 371, 376-377, 393, 406, 423, 427, 431-432, 450, 518, 539-540, 543-546, 550, 557, 568, 581-582, 587-590
740B EJ L4F00383-00388
T4S00272-00274, 276-279, 282, 289-290, 296-299, 301, 304-309, 311
PARTS NEEDED
Qty
Part Number Description
1 1926212 INJECTOR
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 16% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
See attached rework procedure.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first
