09200-02940 PUMP ASSY, INJECTI Calibration Data


Rating:
62
Buy PUMP ASSY, INJECTI 09200-02940 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
INDUSTRIAL 4045H
Engine
4045H
Serial start-end
9611-
Info
Injector Nozzle

KIT List:

Part name
Kit1
Kit2
Pump assy, fuel fe
1922900060
Body assy, injecti
1904400320
Governor assy, mec
1908900170

Components :

00.001
PUMP ASSY, INJECTI
09200-02940 JOHN DEERE
A4,RSV
01.002
PUMP ASSY, FUEL FE
09210-03130 JOHN DEERE
KS
01.003
BODY ASSY, INJECTI
19010-01050 JOHN DEERE
A4
01.004
GOVERNOR ASSY, MEC
19080-05570 JOHN DEERE
RSV
02.005
COMPENSATOR SUB-AS
19260-00961 JOHN DEERE
02.006
COMPENSATOR SUB-AS
19260-00970 JOHN DEERE

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09200-02940
PUMP ASSY, INJECTI
A4,RSV
001
[01]
19010-01050
BODY ASSY, INJECTI
A4
002
[01]
19080-05570
GOVERNOR ASSY, MEC
RSV
003
[01]
09210-03130
PUMP ASSY, FUEL FE
KS
004
[01]
09255-10790
BLOCK, COUPLING
005
[01]
94901-50900
WASHER, SPRING
T2.4
006
[01]
94905-03570
NUT, HEXAGON
M14
011
[01]
09001-80140
COVER, CONTROL RAC
012
[06]
91418-06161
BOLT, W/WASHER
M6,L16
013
[01]
91518-08221
BOLT, W/WASHER
M8,L22
014
[01]
90458-04051
KEY, WOODRUFF
W4,H5
016
[01]
94904-06950
BOLT, HEXAGON
M8,L25
017
[01]
94914-03430
O-RING

Include in ##:

09200-02940 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09200-02940

PUMP ASSY, INJECTI

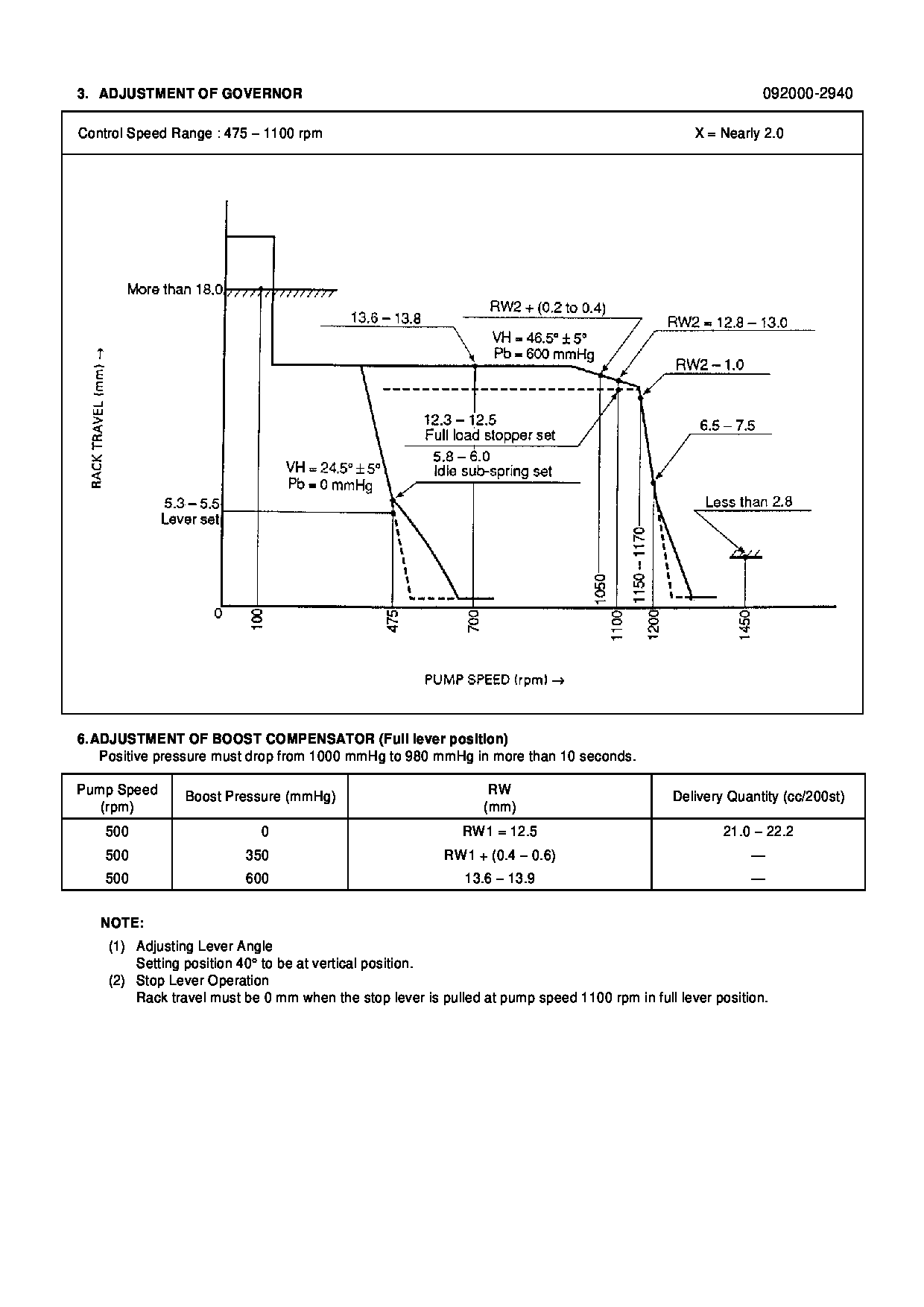

Test Calibration Data:

Get Full test data file
0920002940 RE58634
ED2940
ED2940
