09200-02610 PUMP ASSY, INJECTI Calibration Data


Rating:
79
Buy PUMP ASSY, INJECTI 09200-02610 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product
Fuel Injection Pump
Vehicle engine
MARINE S6M3F-MTK-S
Engine
S6M3F-MTK-S
Serial start-end
9607-
Info
Injector Nozzle
093500-3810
Injector nozzle: 0935003810

KIT List:

Part name
Kit1
Kit2
Pump assy, fuel fe
Body assy, injecti
Governor assy, mec
Governor assy, mec

Components :

00.001
PUMP ASSY, INJECTI
NB6,RSV
01.002
PUMP ASSY, FUEL FE
KE
01.002
PUMP ASSY, FUEL FE
KE -8306
01.002
PUMP ASSY, FUEL FE
8307-
01.003
BODY ASSY, INJECTI
NB6
01.004
GOVERNOR ASSY, MEC
RSV
02.006
COMPENSATOR SUB-AS
-9309
02.006
COMPENSATOR SUB-AS
9309-
01.007
GOVERNOR ASSY, MEC
RSV

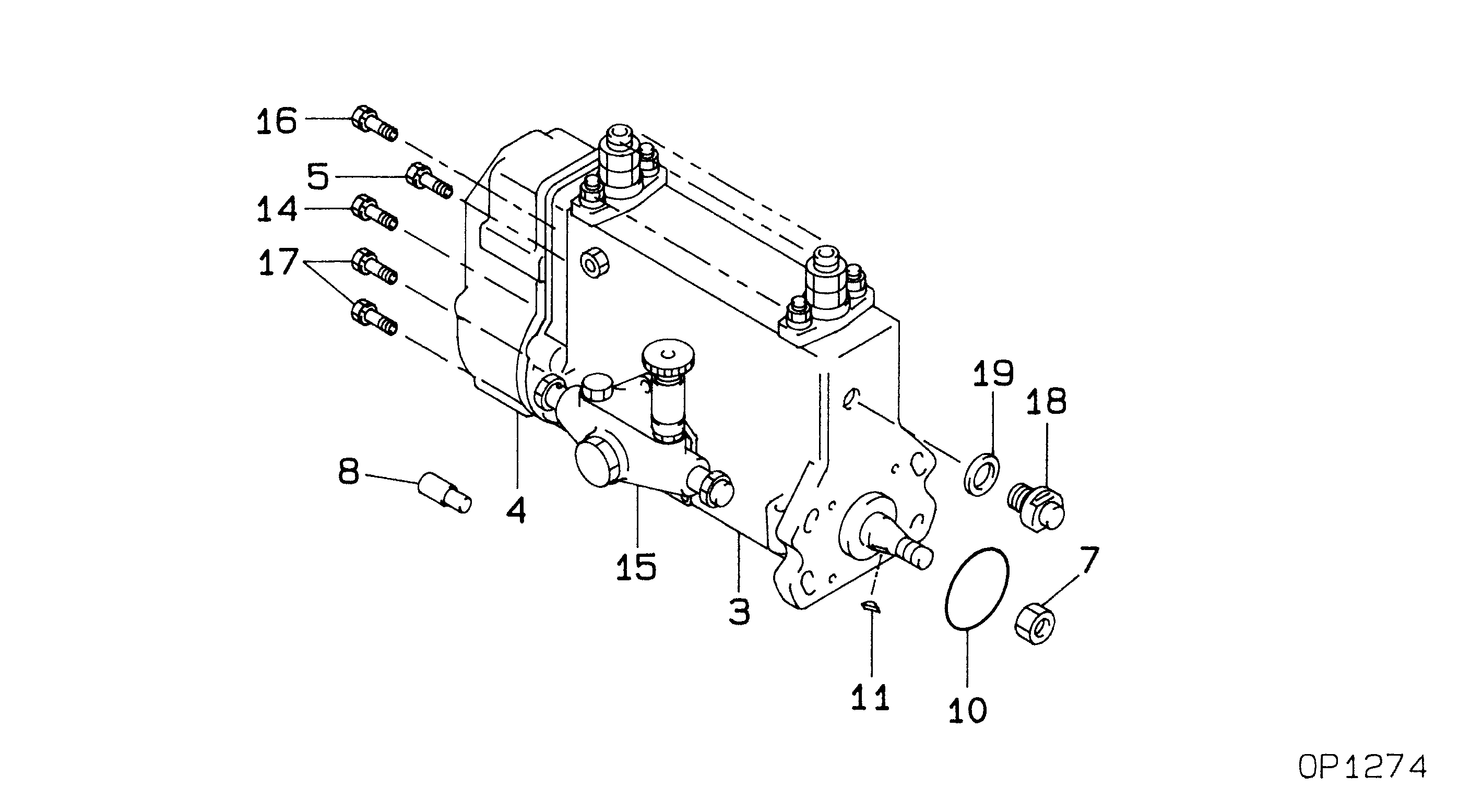

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
PUMP ASSY, INJECTI
NB6,RSV
33A6510800 MITSUBISHI HEAEY INDUSTRIES
003
[01]
BODY ASSY, INJECTI
NB6
004
[01]
GOVERNOR ASSY, MEC
RSV -9608
004
[01]
GOVERNOR ASSY, MEC
RSV 9608-
005
[01]
BOLT, W/WASHER
M8,L20
007
[01]
NUT
008
[01]
CAP
FOR MAX.SPEED
33A6500911 MITSUBISHI HEAEY INDUSTRIES
010
[01]
O-RING
ID79.5
011
[01]
KEY, WOOD RUFF
014
[01]
BOLT, W/WASHER
M8,L22
015
[01]
PUMP ASSY, FUEL FE
KE
016
[02]
BOLT, W/WASHER
M8,L14
017
[04]
BOLT, W/WASHER
M8,L16
018
[01]
COVER, CONTROL RAC
019
[01]
WASHER, COPPER PLA
T1.5

Cross reference number



Part num
Firm num
Firm
Name
09200-02610

PUMP ASSY, INJECTI
0920002610
33A6510800
MITSUBISHI HEAEY INDUSTRIES
PUMP ASSY, INJECTI

Test Calibration Data:

0920002610 33A6500800




Information:

Crater. The piston is a symmetrical piston with an "on center" crater.Thoroughly lubricate piston group 360° in zone (A) with clean engine oil prior to inserting into the block group.(2) Top piston ring.Install ring with side marked "UP-1" toward top of piston (yellow color stripe to right of ring end gap). Clearance between ends of piston ring when installed in a cylinder liner with a bore size of 125.00 mm (4.9213 in) ... 0.625 0.125 mm (.0250 .0050 in)Increase in clearance between ends of piston ring for each 0.03 mm (.001 in) increase in cylinder liner bore size ... 0.09 mm (004 in)(3) Intermediate piston ring.Install ring with side marked "UP-2" toward top of piston (green color stripe to right of ring end gap).Width of groove in piston for intermediate ring (new) ... 3.061 0.013 mm (.1032 .0005 in)Depth of groove in piston for intermediate ring (new) ... 3.727 mm (.1467 in)Thickness of intermediate ring (new) ... 2.990 0.010 mm (.1177 .0004 in)Clearance between groove and intermediate ring (new) ... 0.048 to 0.094 mm (.0002 to .0037 in)Clearance between ends of piston ring when installed in a cylinder liner with a bore size of 125.000 mm (4.9213 in) ... 0.625 0.125 mm (.0250 .0050 in)Increase in clearance between ends of piston ring for each 0.03 mm (.001 in) increase in cylinder liner bore size ... 0.09 mm (.004 in)(4) Oil regulating piston ring.Oil ring spring ends to be assembled 180° from ring end gap (white colored portion of spring must be visible at ring end gap).Width of groove in piston for oil ring (new) ... 4.033 0.013 mm (.1588 .0005 in)Depth of groove in piston for oil ring (new) ... 3.727 mm (.1467 in)Thickness of oil ring (new) ... 3.987 0.013 mm (.1570 .0005 in)Clearance between groove and oil ring (new) ... 0.020 to 0.072 mm (.0008 to .0028 in)Clearance between ends of piston ring when installed in a cylinder liner with a bore size of 125.000 mm (4.9213 in) ... 0.55 0.15 mm (.022 .006 in)Increase in clearance between ends of piston ring for each 0.03 mm (.001 in) increase in cylinder liner bore size ... 0.09 mm (.004 in)After piston rings have been installed, rotate rings so the end gaps are 120° apart.(5) Crown assembly.(6) Piston pin bore diameter in piston skirt ... 51.15 0.15 mm (2.014 .006 in)Thoroughly lubricate piston pin with clean engine oil prior to inserting into piston group and rod assembly.(7) Piston skirt.
