Buy PUMP ASSY, INJECTI 09000-09060 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Product

Fuel Injection Pump

Vehicle engine

INDUSTRIAL 2D

Engine

Serial start-end

7502--8001

Info

Injector Nozzle

093500-0970

Injector nozzle: 0935000970

KIT List:

Part name

Kit1

Kit2

Pump assy, fuel fe

No Application

Components :

00.001

PUMP ASSY, INJECTI

09000-09060 TOYOTA

A6,MN

01.002

BODY ASSY, INJECTI

09010-00153 TOYOTA

A6,OLD

01.003

TIMER ASSY, AUTOMA

09180-00730 TOYOTA

SA/2SP

01.004

PUMP ASSY, FUEL FE

09210-00042 TOYOTA

01.005

COUPLING ASSY

09240-00161 TOYOTA

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

09000-09060

PUMP ASSY, INJECTI

A6,MN

22100-77091 TOYOTA

001

[01]

09010-00153

BODY ASSY, INJECTI

A6,OLD

22120-77020 TOYOTA

002

[01]

09050-00252

GOVERNOR ASSY, INJ

22310-77091 TOYOTA

003

[01]

09210-00042

PUMP ASSY, FUEL FE

22510-46010 TOYOTA

004

[01]

09180-00730

TIMER ASSY, AUTOMA

SA/2SP

22610-77052 TOYOTA

005

[01]

09243-60020

COUPLING, INJECTIO

22632-66010 TOYOTA

006

[01]

09240-00161

COUPLING ASSY

22630-77051 TOYOTA

012

[01]

09001-80010

COVER, CONTROL RAC

M18L30.5

22116-77020 TOYOTA

013

[01]

94913-00050

KEY, WOODRUFF

T3.0

90099-13002 TOYOTA

014

[01]

90258-12001

WASHER, SPRING

ID12.2

94511-01200 TOYOTA

015

[01]

09001-20010

NUT, TIMER ROUND

22611-77020 TOYOTA

019

[04]

90258-06001

WASHER, SPRING

T1.5 -7805

94511-00600 TOYOTA

021

[01]

09006-10011

COVER, PRIMING PUM

22511-77020 TOYOTA

023

[04]

94904-10121

BOLT, SLOTTED HEXA

M6,L16 -7805

90099-04036 TOYOTA

023

[04]

91518-06161

BOLT, W/WASHER

M6,L16 7805-

90091-20611 TOYOTA

024

[01]

91518-08221

BOLT, W/WASHER

M8,L22

90091-20804 TOYOTA

025

[01]

09432-00012

BOX KIT, ENGINE SP

22330-77091 TOYOTA

026

[01]

90258-08001

WASHER, SPRING

FOR M8 -7805

94511-00800 TOYOTA

027

[01]

09048-10010

CLAMP, HOSE

22172-77121 TOYOTA

028

[02]

90258-05001

WASHER, SPRING

90032-04023 TOYOTA

029

[02]

91107-05081

BOLT, HEXAGON

M5,L8

90091-00597 TOYOTA

Include in ##:

09000-09060 as PUMP ASSY, INJECTI

Cross reference number

Part num

Firm num

Firm

Name

09000-09060

22100-7709

PUMP ASSY, INJECTI

0900009060

22100-77091

TOYOTA

PUMP ASSY, INJECTI

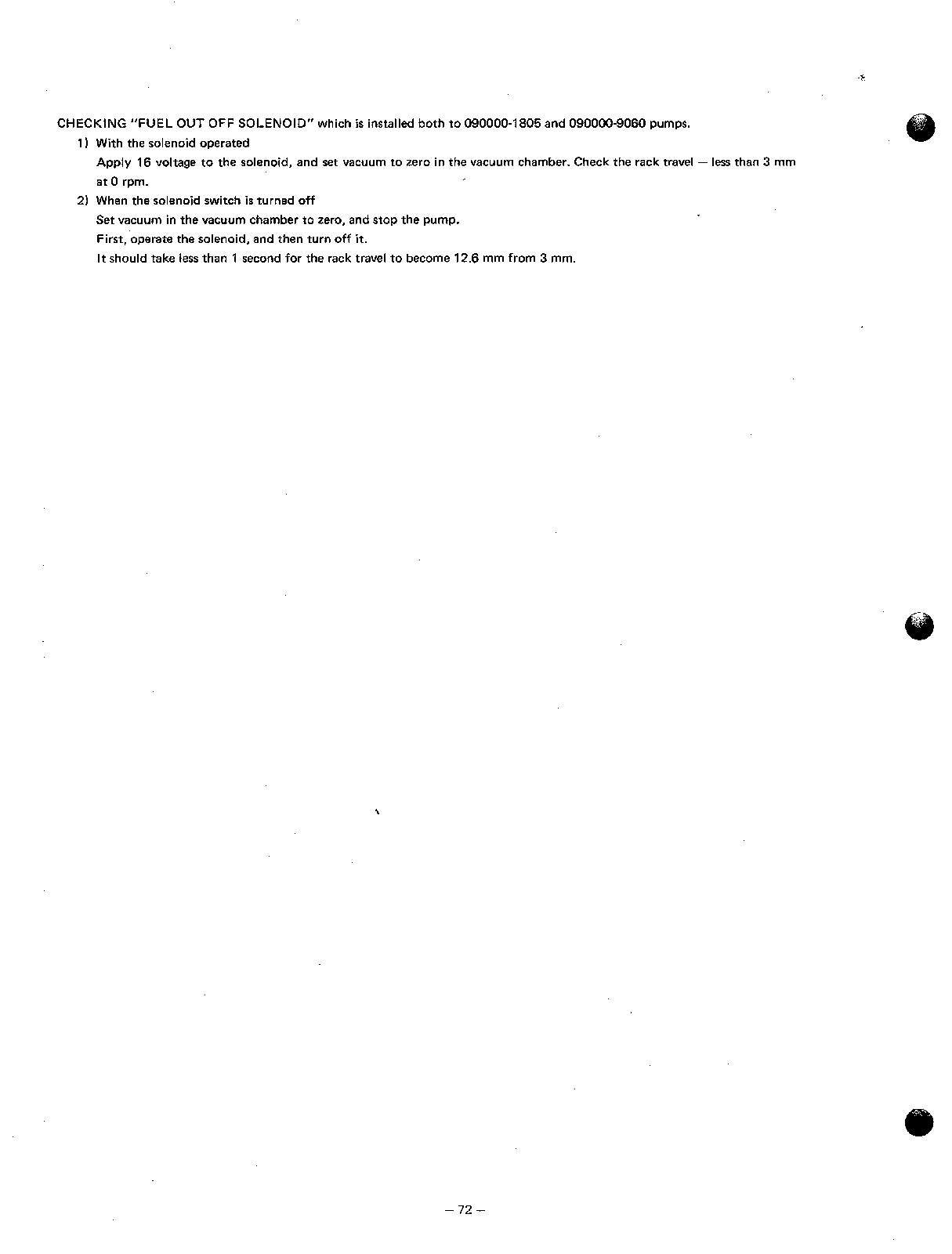

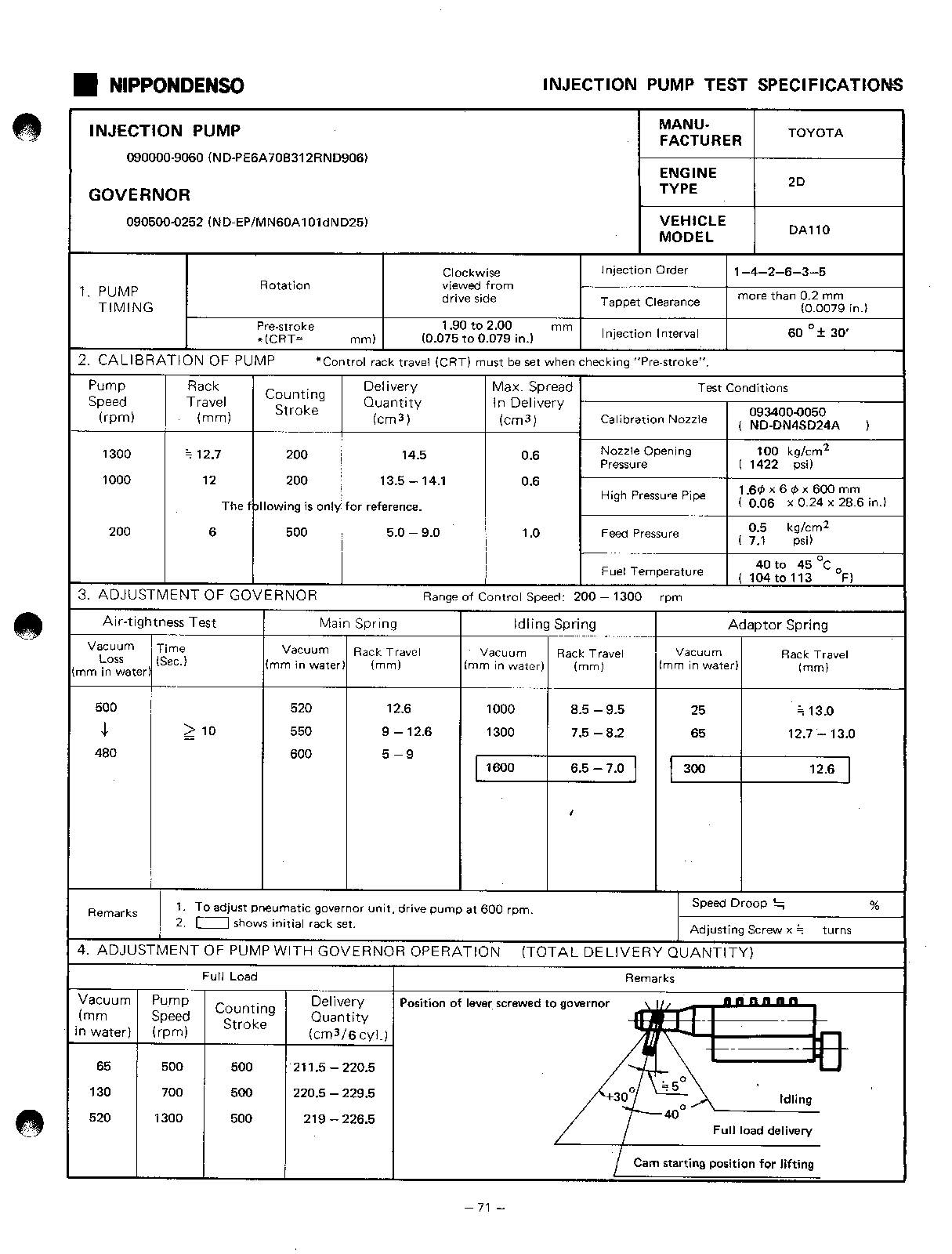

Test Calibration Data:

Get Full test data file

0900009060 22100-77091

09000-09060 PUMP ASSY, INJECTI Calibration Data

Information pump assy, injecti Denso

KIT List:

Components :

Scheme #.#:

Include in ##:

Cross reference number

Test Calibration Data:
