09000-08063 PUMP ASSY, INJECTI Calibration Data


Rating:
44
Buy PUMP ASSY, INJECTI 09000-08063 genuine, new aftermarket engine parts with delivery

Information pump assy, injecti Denso

Components :

00.001
PUMP ASSY, INJECTI
09000-08063 HINO
A6,R721
01.002
SWITCH KIT, CONTRO
09009-90130 HINO
01.003
BODY ASSY, INJECTI
09010-01082 HINO
A6,OLD
02.004
COVER, BEARING
09020-10053 HINO
DUMMY
01.005
GOVERNOR ASSY, MEC
09080-03470 HINO
R721
01.006
TIMER ASSY, AUTOMA
09180-00530 HINO
SA/2SP
01.007
PUMP ASSY, FUEL FE
09210-00342 HINO
KE
01.008
COUPLING ASSY
09240-00043 HINO

Scheme #.#:

PUMP ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09000-08063
PUMP ASSY, INJECTI
A6,R721
6 074 1014 50 HINO
007
[01]
09010-01082
BODY ASSY, INJECTI
A6,OLD
22110-1530 HINO
008
[01]
09080-03470
GOVERNOR ASSY, MEC
R721
22310-1630 HINO
009
[06]
94904-71150
BOLT, W/WASHER
M6,L14
6 306 1001 00 HINO
011
[01]
94904-73910
BOLT, W/WASHER
M8,L18
22815-2820A HINO
013
[01]
09001-80081
COVER, CONTROL RAC
M18L23.0
22114-1130A HINO
014
[01]
09180-00530
TIMER ASSY, AUTOMA
SA/2SP
22510-1310 HINO
015
[01]
09001-20010
NUT, TIMER ROUND
22353-1050A HINO
016
[01]
94913-00050
KEY, WOODRUFF
T3.0
22891-1040A HINO
017
[01]
90258-12001
WASHER, SPRING
ID12.2
22873-1310A HINO
018
[01]
09210-00342
PUMP ASSY, FUEL FE
KE
6 065 1501 01 HINO
019
[01]
09006-10011
COVER, PRIMING PUM
6 053 1552 60 HINO
022
[01]
09240-00043
COUPLING ASSY
22610-1090A HINO
023
[01]
09243-60040
COUPLING, INJECTIO
22612-1100A HINO
025
[01]
09009-90130
SWITCH KIT, CONTRO
22690-1020 HINO

Include in ##:

09000-08063 as PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09000-08063
6 074 1014
PUMP ASSY, INJECTI

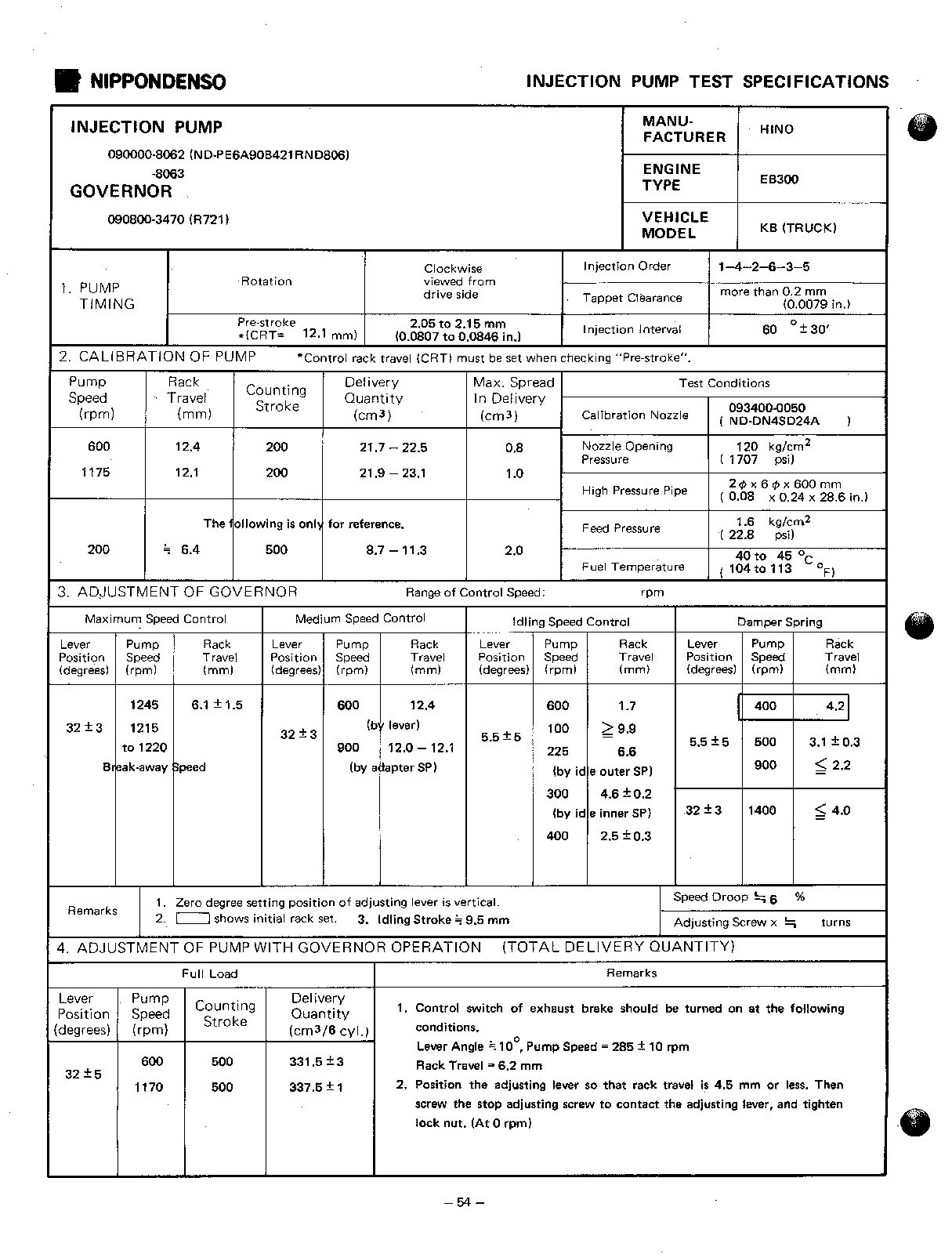

Test Calibration Data:

Get Full test data file
0900008063 6-074-1014-50
EA8062
EA8062
