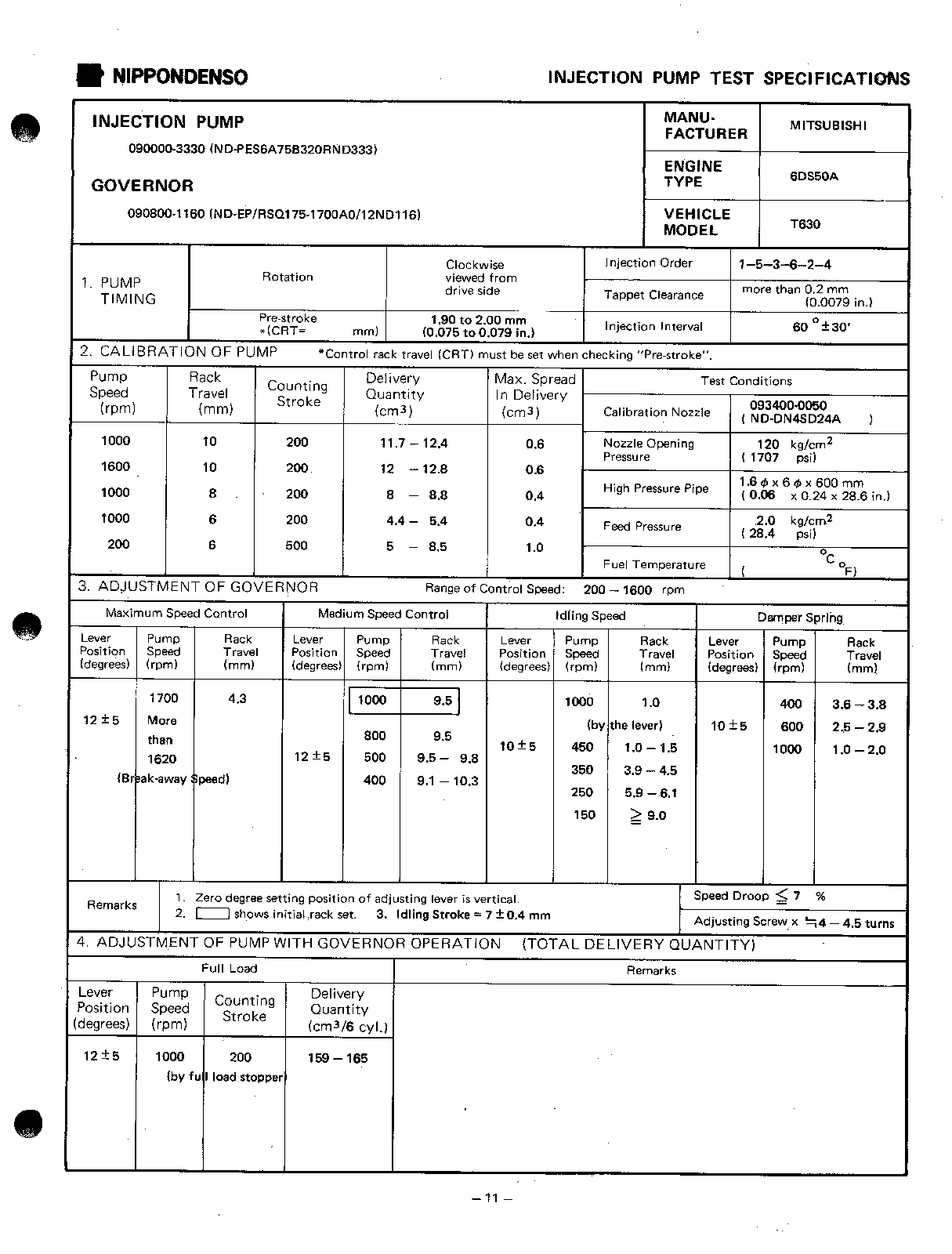

09000-03330 PUMP ASSY, INJECTI Calibration Data

Danger of Fire and Explosion* Keep Flames Away Do not use flames or smoke at a site where fuel or engine oil is handled or cleaning solvent is used for washing parts. Flames can ignite such materials and result in a dangerous situation.Spilled fuel and oil should be wiped immediately and thoroughly. Spilled fuel and oil can ignite and cause fire.When storing fuel or engine oil, make sure the caps of containers are tightly closed.* Keep Surrounding Area Neat and Clean Do not leave combustible or explosive materials, such as fuel and engine oil, near the engine. They can cause fire or explosion.Remove dust, dirt and other foreign materials accumulated on or near the engine. They can cause fire or engine overheating. Be sure to remove dust from the top side of the battery after maintenance. Dust can cause a short-circuit.The engine must be positioned at least 1 m (3.28 ft) away from buildings and other equipment to prevent possible fire caused by engine heat.* Do Not Open Crankcase Until Engine Cools After the engine stops operation, let the engine cool for at least 10 minutes before opening the side cover of the crankcase.Inflow of fresh air into the crankcase of a hot engine can cause oil mist to ignite and explode.* Check For Fuel and Oil Leaks When fuel or oil leaks are found, repair the leakage immediately.Fuel or engine oil spilled on a hot surface of the engine can cause fire and result in personal injury or equipment damage.* Use Shatterproof Light Use a shatterproof light when inspecting the fuel system, lubrication system, cooling system or battery fluid level.A non-shatterproof light may catch fire and explode.* Do Not Short-Circuit Electrical Wires Do not inspect or repair the electrical system with the battery cables connected to the battery, since it can cause accidental short-circuiting and lead to fire. Be sure to disconnect the negative (-) battery cable from the battery before conducting work.Loose terminals and damaged cables/wires can result in a short-circuit and cause fire. Inspect the terminals, cables and wires before servicing, and repair or replace when damage is found.* Keep Fire Extinguishers and First Aid Kit Nearby Always keep fire extinguishers nearby, and be familiarized with their usage. Keep a first aid kit at a designated place, and make sure it is easily accessible whenever needed.Also, establish emergency response procedures to follow in the event of a fire or accident, and post emergency contact locations and contact methods.
Danger of Entanglement* Install Protective Covers On Rotating Parts Make sure the protective covers of the engine are installed correctly at rotating parts. If protective covers are loose or damaged, repair.Never remove the covers guarding rotating parts, such as the camshaft cover and rocker covers, when the engine is operating.When the engine is coupled to other equipment or connected to a radiator, be sure to install covers on the exposed connecting belt and coupling.Never remove protective covers.* Check Surrounding Area For Safety Before Starting Engine Before starting the
