09350-06950 HOLDER & NOZZLE SE Denso Cross


Rating:
77
Buy HOLDER & NOZZLE SE 09350-06950 genuine, new aftermarket engine parts with delivery

Information holder & nozzle se Denso

Product
Nozzle & Nozzle Holder
Vehicle engine
INDUSTRIAL H07B-TI
Engine
H07B-TI
Serial start-end
9802-
Info
Injector Nozzle

Components :

00.001
HOLDER & NOZZLE SE
09350-06950 HINO
-0708
00.001
HOLDER & NOZZLE SE
09350-06950 HINO
0708-

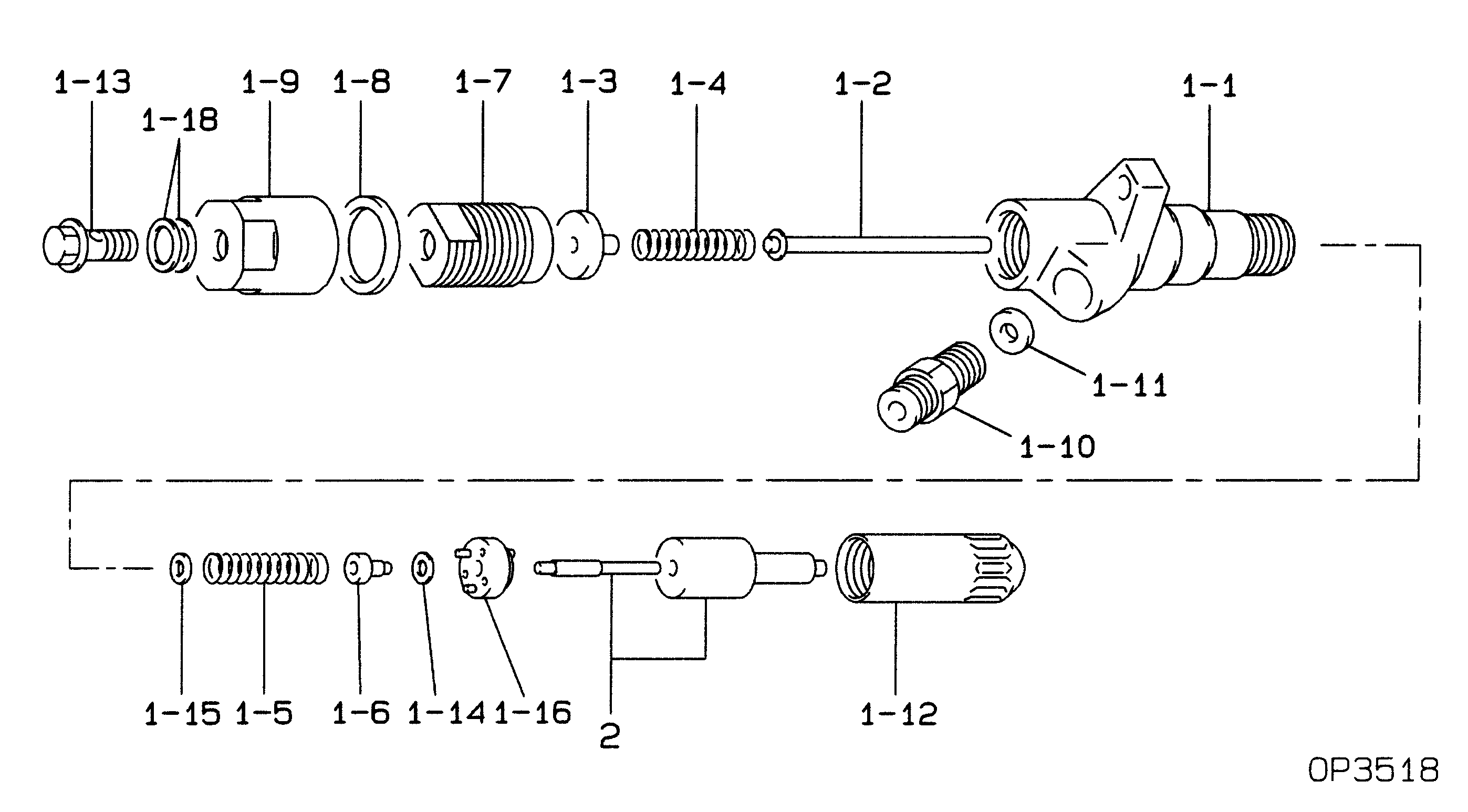

Scheme #.#:

HOLDER & NOZZLE SE
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09350-06950
HOLDER & NOZZLE SE
-0708
000
[01]
09350-06950
HOLDER & NOZZLE SE
0708-
001
[01]
09310-06950
HOLDER ASSY, NOZZL
001-001
[01]
09311-06950
BODY SUB-ASSY, NOZ
001-002
[01]
09312-10580
PIN, NOZZLE HOLDER
001-003
[01]
09312-50090
BUSH, GUIDE
001-004
[01]
09312-70270
SPRING, NOZZLE HOL
001-005
[01]
09312-70510
SPRING, NOZZLE HOL
001-006
[01]
09312-80100
SEAT, SPRING
001-007
[01]
09312-90150
SCREW, CAP
001-008
[01]
09313-30100
GASKET
D26,ID22
001-009
[01]
09313-40191
NUT, CAP
001-010
[01]
09315-10290
CONNECTOR, NOZZLE
001-011
[01]
09315-80010
GASKET, INLET CONN
001-012
[01]
09316-41600
NUT, NOZZLE RETAIN
001-013
[01]
94918-00630
SCREW, HOLLOW
M8,L17 -0708
001-013
[01]
09507-40012
SCREW, HOLLOW OUTL
M8,L17 0708-
001-014
[1C]
09317-55270
WASHER
T1.3
001-014
[1C]
09317-55280
WASHER
T1.32
001-014
[1C]
09317-55290
WASHER
T1.34
001-014
[1C]
09317-55300
WASHER
T1.36
001-014
[1C]
09317-55310
WASHER
T1.38
001-014
[1C]
09317-55320
WASHER
T1.4
001-014
[1C]
09317-55330
WASHER
T1.42
001-014
[1C]
09317-55340
WASHER
T1.44
001-014
[1C]
09317-55350
WASHER
T1.46
001-014
[1C]
09317-55360
WASHER
T1.48
001-014
[1C]
09317-55370
WASHER
T1.5
001-014
[1C]
09317-55380
WASHER
T1.52
001-014
[1C]
09317-55390
WASHER
T1.54
001-014
[1C]
09317-55400
WASHER
T1.56
001-014
[1C]
09317-55410
WASHER
T1.58
001-014
[1C]
09317-55420
WASHER
T1.6
001-014
[1C]
09317-55430
WASHER
T1.62
001-014
[1C]
09317-55440
WASHER
T1.64
001-014
[1C]
09317-55450
WASHER
T1.66
001-014
[1C]
09317-55460
WASHER
T1.68
001-014
[1C]
09317-55470
WASHER
T1.7
001-015
[1C]
09317-55480
WASHER
T1.4
001-015
[1C]
09317-55490
WASHER
T1.4258
001-015
[1C]
09317-55500
WASHER
T1.45
001-015
[1C]
09317-55510
WASHER
T1.475
001-015
[1C]
09317-55520
WASHER
T1.5
001-015
[1C]
09317-55530
WASHER
T1.525
001-015
[1C]
09317-55540
WASHER
T1.55
001-015
[1C]
09317-55550
WASHER
T1.575
001-015
[1C]
09317-55560
WASHER
T1.6
001-015
[1C]
09317-55570
WASHER
T1.625
001-015
[1C]
09317-55580
WASHER
T1.65
001-015
[1C]
09317-55590
WASHER
T1.675
001-015
[1C]
09317-55600
WASHER
T1.7
001-015
[1C]
09317-55610
WASHER
T1.725
001-015
[1C]
09317-55620
WASHER
T1.75
001-015
[1C]
09317-55630
WASHER
T1.775
001-015
[1C]
09317-55640
WASHER
T1.8
001-015
[1C]
09317-55650
WASHER
T1.825
001-015
[1C]
09317-55660
WASHER
T1.85
001-015
[1C]
09317-55670
WASHER
T1.875
001-015
[1C]
09317-55680
WASHER
T1.9
001-015
[1C]
09317-55690
WASHER
T1.925
001-015
[1C]
09317-55700
WASHER
T1.95
001-015
[1C]
09317-55710
WASHER
T1.975
001-015
[1C]
09317-55720
WASHER
T2.0
001-015
[1C]
09317-55730
WASHER
T2.025
001-015
[1C]
09317-55740
WASHER
T2.05
001-015
[1C]
09317-55750
WASHER
T2.075
001-015
[1C]
09317-55760
WASHER
T2.1
001-016
[01]
09322-00120
PACKING SUB-ASSY,
001-018
[02]
94901-02640
WASHER
T1
002
[01]
09340-03180
NOZZLE ASSY

Include in ##:

09350-06950 as HOLDER & NOZZLE SE
09350-06950 HOLDER & NOZZLE SE

Nozzle Specification:

Parts number
0935006950 HINO
Nozzle
0934003180
First opm
17.15-17.93
First op
175-183
Second om
27.04-27.83
Second op
276-284
Torquen
58.8-68.6
Torque
6.0-7.0
Prelift
0.097-0.133
Max lift
0.280-0.310
Engine
INDUSTRIAL H07B-TI
Information

Cross reference number



Part num
Firm num
Firm
Name
09350-06950

HOLDER & NOZZLE SE
