Information holder & nozzle se Denso
Product
Nozzle & Nozzle Holder
Vehicle engine
INDUSTRIAL S3MD-M15
Engine
S3MD-M15
Serial start-end
9007-
Info

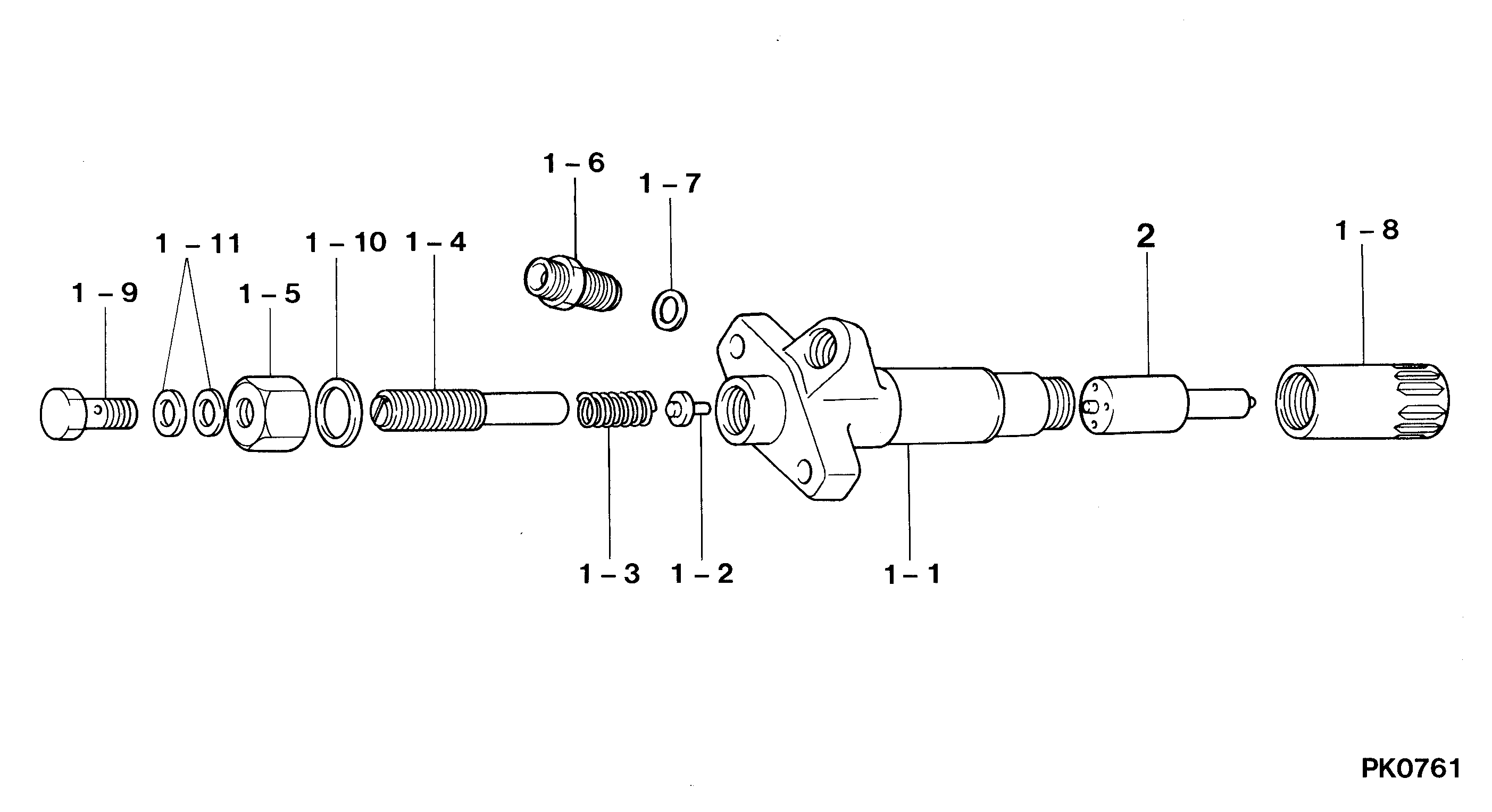

Injector Nozzle
Components :
Scheme #.#:
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09350-04960
HOLDER & NOZZLE SE
Include in ##:
09350-04960
as HOLDER & NOZZLE SE
Nozzle Specification:
Parts number
0935004960 MITSUBISHI
Nozzle
0934002570
First opm
23.52-24.50
First op
240-250
Second om
-
Second op
-
Torquen
58.8-78.4
Torque
6.0-8.0
Prelift
-
Max lift
Engine
INDUSTRIAL S3MD-M15
Information
Include as Nozzle:
Cross reference number
Part num
Firm num
Firm
Name
09350-04960
HOLDER & NOZZLE SE
Information:
Introduction
Table 1
Revision History
Revision Summary of Changes
06 Updated machine effectivity
05 Changes were made to serial numbers. This Special Instruction include the procedure to register the DPF & DOC Injector Serial Number, and Fuel Injection Timing Correction for C2.4, C3.3B Tier 4 Final Engines, C3.8 Tier 4 Interim Engines, and C3.8 Tier 4 Final Engines.Do not perform any procedure in this publication until you have read and you understand the information contained in this publication.Registering New DPF/DOC Serial Numbers
Use the following steps when replacing a DPF or a DOC.
Go to Service Information System (SIS).
Illustration 1 g06074521
Select "View More" under "Additional Service Information".
Illustration 2 g06078724
Select "C3.3B and C3.8 Downloads".
Illustration 3 g06074552
Select "DPF/DOC Service Info Registration".
Illustration 4 g03841493
Input the 6-digit or 7-digit code. Refer to Troubleshooting, UENR3423, "Engine Serial Number Location".
Illustration 5 g06074556
Select your engine (4).
Illustration 6 g06074988
Enter the new DPF or DOC part number, serial number, hour meter, and service date. Click register once appropriate fields have been entered.Entering New Fuel Injector Trim Files Within Cat® Electronic Technician Cat(ET)
The Caterpillar Electronic Technician (ET) is used to load injector trim files into the Engine Control Module (ECM).Replacing an Injector
An injector trim code must be loaded into the ECM, if an injector is replaced.Replacing the Engine ECM
Prior to replacing an ECM, it is recommended to download a Product Status Report for documentation of the injector trim codes. After replacing the Engine ECM, ensure the injector trim codes in the new Engine ECM match the saved Product Status Report.
Record the injector trim code for each cylinder.
Illustration 7 g06074990
C3.8 Fuel Injector
(1) QR Code
(2) ID Code
Illustration 8 g06070597
C3.3B Fuel Injector
Illustration 9 g06070596
C2.4 Fuel Injector
Note: The injector serial number and the injector confirmation code are located on the injector. Record the injector serial number and the injector confirmation code (5) for each injector.
Establish communication between Cat ET and the engine ECM. Refer to Troubleshooting, "Electronic Service Tools", if necessary.
Select t
