Information holder & nozzle se Denso
Product
Nozzle & Nozzle Holder
Vehicle engine
BUS 8DC11
Engine
8DC11
Serial start-end
9003-
Info
Injector Nozzle

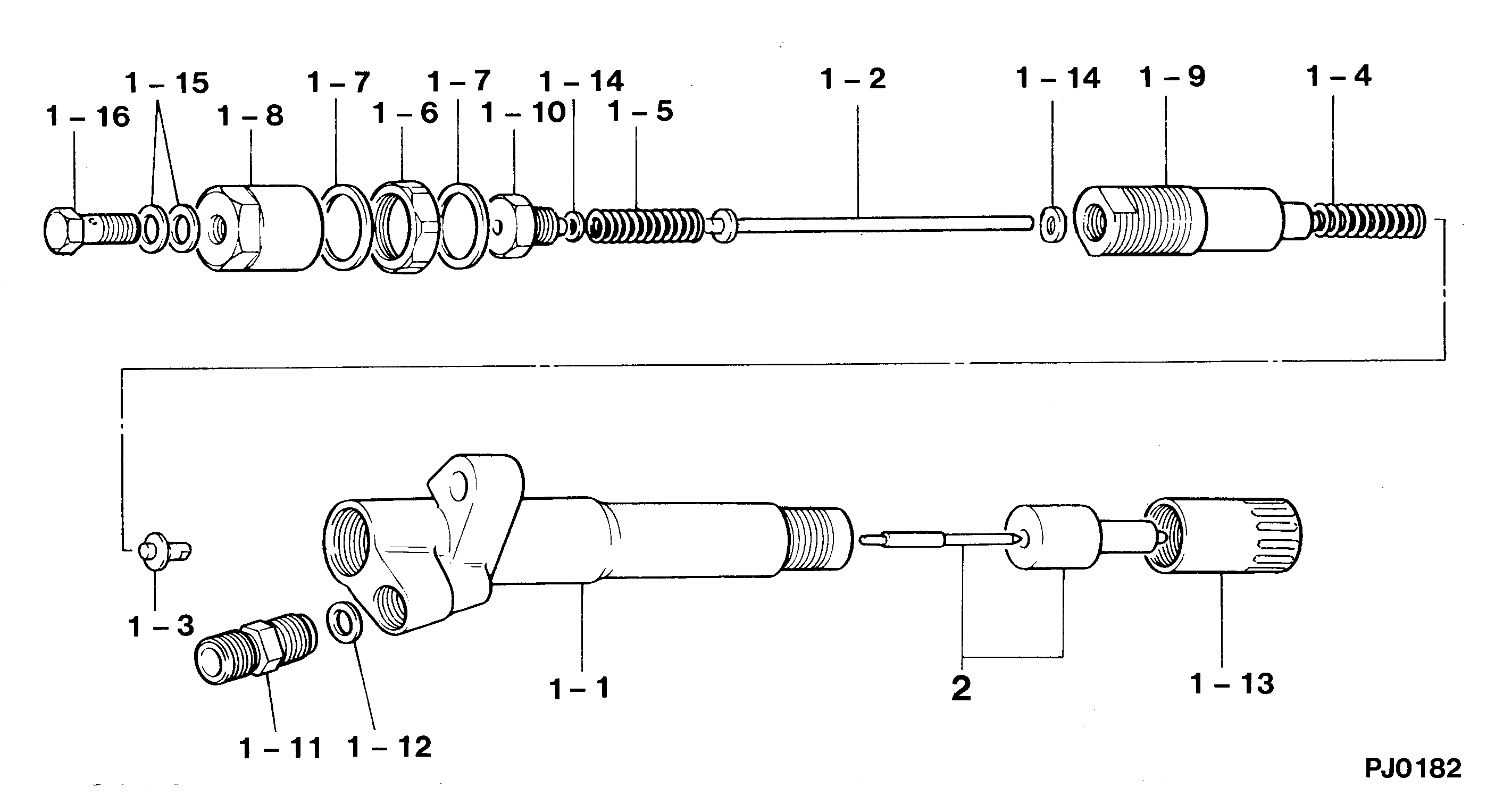

Components :
Scheme #.#:
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09350-04820
HOLDER & NOZZLE SE
KBL
ME091882
MITSUBISHI
Include in ##:
09350-04820
as HOLDER & NOZZLE SE
Nozzle Specification:
Parts number
0935004820 MITSUBISHI
Nozzle
0934002510
First opm
18.13-18.91
First op
185-193
Second om
29.20-29.98
Second op
298-306
Torquen
58.8-78.4
Torque
6.0-8.0
Prelift
0.080-0.120
Max lift
0.330-0.360
Engine
BUS 8DC11
Information
Include as Nozzle:
Cross reference number
Part num
Firm num
Firm
Name
09350-04820
ME091882
HOLDER & NOZZLE SE
0935004820
ME091882
MITSUBISHI
HOLDER & NOZZLE SE
