09350-04730 HOLDER & NOZZLE SE Denso Cross


Rating:
20
Buy HOLDER & NOZZLE SE 09350-04730 genuine, new aftermarket engine parts with delivery

Information holder & nozzle se Denso

Product
Nozzle & Nozzle Holder
Vehicle engine
BUS M10U
Engine
M10U
Serial start-end
9003-
Info
Injector Nozzle

Components :

00.001
HOLDER & NOZZLE SE
09350-04730 HINO
-0708
00.001
HOLDER & NOZZLE SE
09350-04730 HINO
0708-

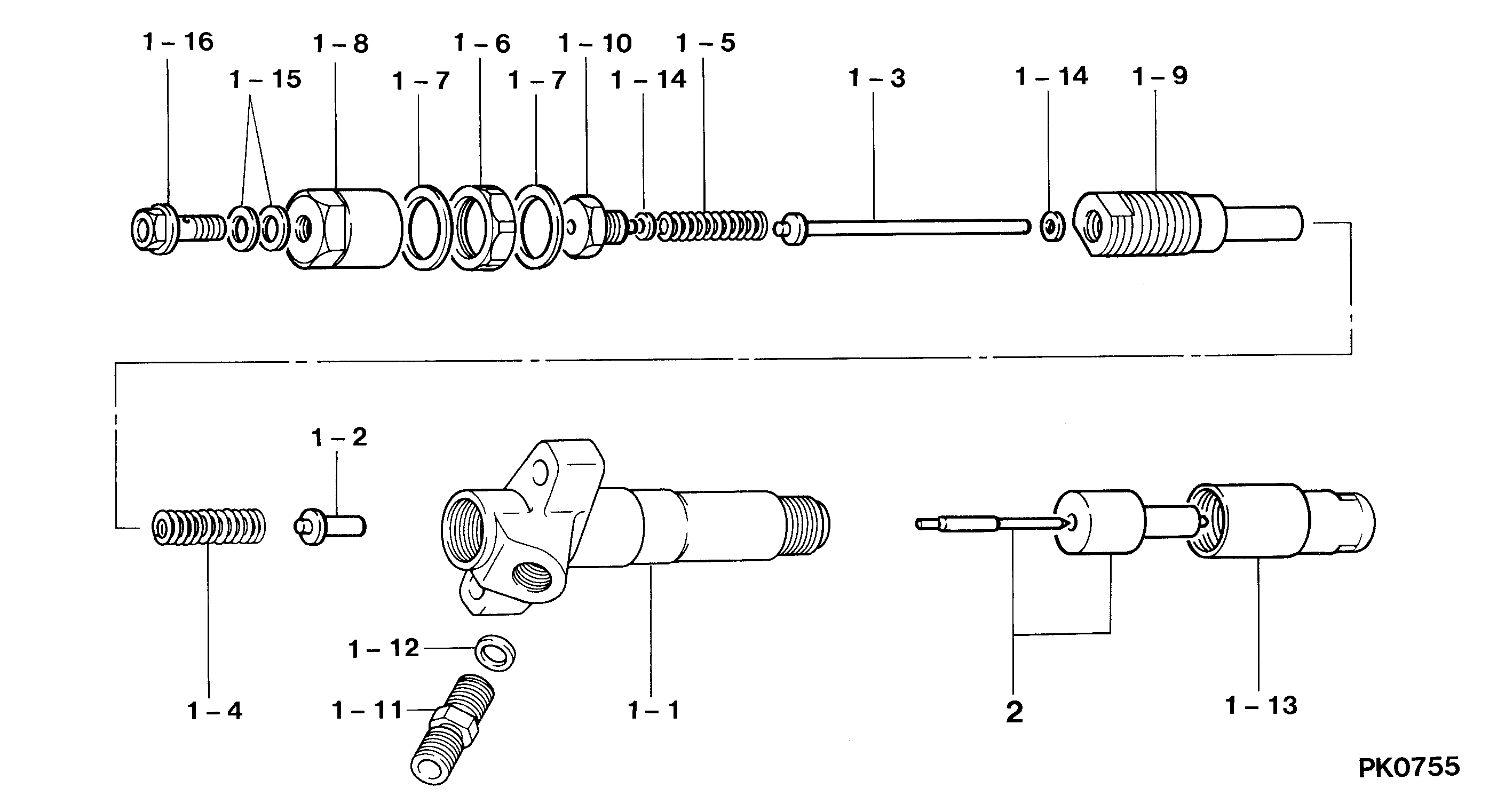

Scheme #.#:

HOLDER & NOZZLE SE
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09350-04730
HOLDER & NOZZLE SE
-0708
000
[01]
09350-04730
HOLDER & NOZZLE SE
0708-
001
[01]
09310-04730
HOLDER ASSY, NOZZL
001-001
[01]
09311-04730
BODY SUB-ASSY, NOZ
001-002
[01]
09312-10440
PIN, NOZZLE HOLDER
001-003
[01]
09312-10420
PIN, NOZZLE HOLDER
001-004
[01]
09312-70280
SPRING, NOZZLE HOL
001-005
[01]
09312-70380
SPRING, NOZZLE HOL
001-006
[01]
09313-20060
NUT, LOCK
001-007
[02]
09313-30100
GASKET
D26,ID22
001-008
[01]
09313-40370
NUT, CAP
001-009
[01]
09313-60020
SCREW, CAPSULE
001-010
[01]
09313-70010
SCREW, PLUG
001-011
[01]
09315-10420
CONNECTOR, NOZZLE
001-012
[01]
09315-80010
GASKET, INLET CONN
001-013
[01]
09316-41450
NUT, NOZZLE RETAIN
001-014
[2C]
09317-52670
WASHER
T1.0
001-014
[2C]
09317-52690
WASHER
T1.02
001-014
[2C]
09317-52710
WASHER
T1.04
001-014
[2C]
09317-52730
WASHER
T1.06
001-014
[2C]
09317-52750
WASHER
T1.08
001-014
[2C]
09317-52770
WASHER
T1.1
001-014
[2C]
09317-52790
WASHER
T1.12
001-014
[2C]
09317-52810
WASHER
T1.14
001-014
[2C]
09317-52830
WASHER
T1.16
001-014
[2C]
09317-52850
WASHER
T1.18
001-014
[2C]
09317-52870
WASHER
T1.2
001-014
[2C]
09317-52890
WASHER
T1.22
001-014
[2C]
09317-52910
WASHER
T1.24
001-014
[2C]
09317-52930
WASHER
T1.26
001-014
[2C]
09317-52950
WASHER
T1.28
001-014
[2C]
09317-52970
WASHER
T1.3
001-014
[2C]
09317-52990
WASHER
T1.32
001-014
[2C]
09317-53010
WASHER
T1.34
001-014
[2C]
09317-53030
WASHER
T1.36
001-014
[2C]
09317-53050
WASHER
T1.38
001-014
[2C]
09317-53070
WASHER
T1.4
001-014
[2C]
09317-53090
WASHER
T1.42
001-014
[2C]
09317-53110
WASHER
T1.44
001-014
[2C]
09317-53130
WASHER
T1.46
001-014
[2C]
09317-53150
WASHER
T1.48
001-014
[2C]
09317-53170
WASHER
T1.5
001-014
[2C]
09317-53190
WASHER
T1.52
001-014
[2C]
09317-53210
WASHER
T1.54
001-014
[2C]
09317-53230
WASHER
T1.56
001-014
[2C]
09317-53250
WASHER
T1.58
001-014
[2C]
09317-53270
WASHER
T1.6
001-014
[2C]
09317-53290
WASHER
T1.62
001-014
[2C]
09317-53310
WASHER
T1.64
001-014
[2C]
09317-53330
WASHER
T1.66
001-014
[2C]
09317-53350
WASHER
T1.68
001-014
[2C]
09317-53370
WASHER
T1.7
001-014
[2C]
09317-53390
WASHER
T1.72
001-014
[2C]
09317-53410
WASHER
T1.74
001-014
[2C]
09317-53430
WASHER
T1.76
001-014
[2C]
09317-53450
WASHER
T1.78
001-014
[2C]
09317-53470
WASHER
T1.8
001-014
[2C]
09317-53490
WASHER
T1.82
001-014
[2C]
09317-53510
WASHER
T1.84
001-014
[2C]
09317-53530
WASHER
T1.86
001-014
[2C]
09317-53550
WASHER
T1.88
001-014
[2C]
09317-53570
WASHER
T1.9
001-014
[2C]
09317-53590
WASHER
T1.92
001-014
[2C]
09317-53610
WASHER
T1.94
001-014
[2C]
09317-53630
WASHER
T1.96
001-014
[2C]
09317-53650
WASHER
T1.98
001-014
[2C]
09317-53670
WASHER
T2.0
001-014
[2C]
09317-53680
WASHER
T2.05
001-014
[2C]
09317-53690
WASHER
T2.10
001-014
[2C]
09317-53700
WASHER
T2.15
001-014
[2C]
09317-53710
WASHER
T2.2
001-014
[2C]
09317-53720
WASHER
T2.25
001-014
[2C]
09317-53730
WASHER
T2.3
001-014
[2C]
09317-53740
WASHER
T2.35
001-014
[2C]
09317-53750
WASHER
T2.4
001-014
[2C]
09317-53760
WASHER
T2.45
001-014
[2C]
09317-53770
WASHER
T2.5
001-014
[2C]
09317-53780
WASHER
T0.5
001-014
[2C]
09317-53790
WASHER
T0.55
001-014
[2C]
09317-53800
WASHER
T0.6
001-014
[2C]
09317-53810
WASHER
T0.65
001-014
[2C]
09317-53820
WASHER
T0.7
001-014
[2C]
09317-53830
WASHER
T0.75
001-014
[2C]
09317-53840
WASHER
T0.8
001-014
[2C]
09317-53850
WASHER
T0.85
001-014
[2C]
09317-53860
WASHER
T0.9
001-014
[2C]
09317-53870
WASHER
T0.95
001-015
[02]
94901-02640
WASHER
T1
001-016
[01]
94918-00630
SCREW, HOLLOW
M8,L17 -0708
001-016
[01]
09507-40012
SCREW, HOLLOW OUTL
M8,L17 0708-
002
[01]
09340-02480
NOZZLE ASSY

Include in ##:

09350-04730 as HOLDER & NOZZLE SE
09350-04730 HOLDER & NOZZLE SE

Nozzle Specification:

Parts number
0935004730 HINO
Nozzle
0934002480
First opm
15.19-15.68
First op
155-160
Second om
26.85-27.63
Second op
274-282
Torquen
58.8-78.4
Torque
6.0-8.0
Prelift
0.090-0.130
Max lift
0.320-0.360
Engine
BUS M10U
Information

Include as Nozzle:

0920000150 as Nozzle
0920000920 PUMP ASSY, INJECTI
0920001050
1910007590
1910008180
1910008270 None

Cross reference number



Part num
Firm num
Firm
Name
09350-04730

HOLDER & NOZZLE SE
