Rating:
Information holder & nozzle se Denso
Product
Nozzle & Nozzle Holder
Vehicle engine
TRUCK H06C-T
Engine
H06C-T
Serial start-end
8907-
Info
Injector Nozzle

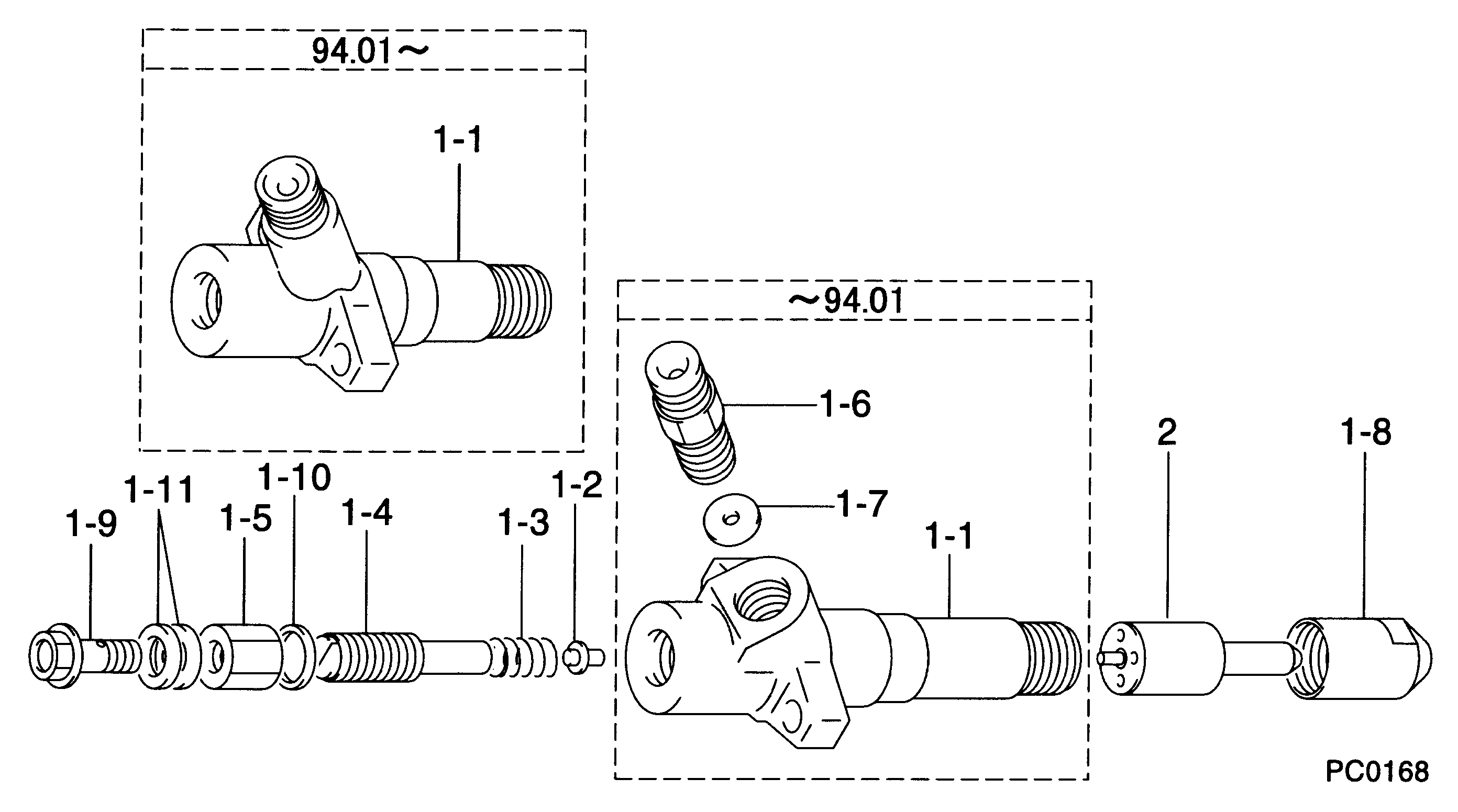

Components :
Scheme #.#:
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09350-04370
HOLDER & NOZZLE SE
-0708
000
[01]
09350-04370
HOLDER & NOZZLE SE
0708-
Include in ##:
09350-04370
as HOLDER & NOZZLE SE
09350-04370 HOLDER & NOZZLE SE
Nozzle Specification:
Parts number
0935004370 HINO
Nozzle
0934002301
First opm
22.05-22.83
First op
225-233
Second om
-
Second op
-
Torquen
58.8-68.6
Torque
6.0-7.0
Prelift
-
Max lift
Engine
RANGER H06C-T
Information
Include as Nozzle:
Cross reference number
Part num
Firm num
Firm
Name
09350-04370
HOLDER & NOZZLE SE
Information:
08Apr2019
O-194
Before/After
PRODUCT SUPPORT PROGRAM FOR REPLACING THE INJECTORS ON A CERTAIN C13 INDUSTRIAL ENGINE
1290 1251 1254 1713 PS46216
Caterpillar’s obligations under this Service Letter are subject to, and shall not apply in contravention of, the laws, rules, regulations, directives, ordinances, orders, or statutes of the United States, or of any other applicable jurisdiction, without recourse or liability with respect to Caterpillar.
This Program must be administered either before or after failure.In either case the decision whether to apply the Program is made by the dealer. When reporting the repair, use "PS46216" as the Part Numberand "7755" as the Group Number. If administered before failure, use "56" as the Warranty Claim Description Code and "T" as the SIMS Description code.If administered after failure, use "96" as the Warranty Claim Description Code, and "Z" as the SIMS Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
TERMINATION DATE
30Apr2021
PROBLEM
The existing injectors can fail on a certain C13 Industrial Engine. If the existing injectors fails it can create performance issues.
AFFECTED PRODUCT
Model Identification Number
C13 RRA13617
PARTS NEEDED
Qty
Part Number Description
6 2490705 INJECTOR GP-FUEL
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 32% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
Remove the existing injectors and install new injectors. Refer to KENR8165, "Electronic Unit injector- Remove and Install".
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
0-3000 hrs,
0-12 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
