09350-02640 HOLDER & NOZZLE SE Denso Cross Denso

Buy now

Add to cart Go to cart

Rating:

Buy HOLDER & NOZZLE SE 09350-02640 genuine, new aftermarket engine parts with delivery

Information holder & nozzle se Denso

Product

Nozzle & Nozzle Holder

Vehicle engine

MARINE 70X

Engine

70X

Serial start-end

8310-

Info

Injector Nozzle

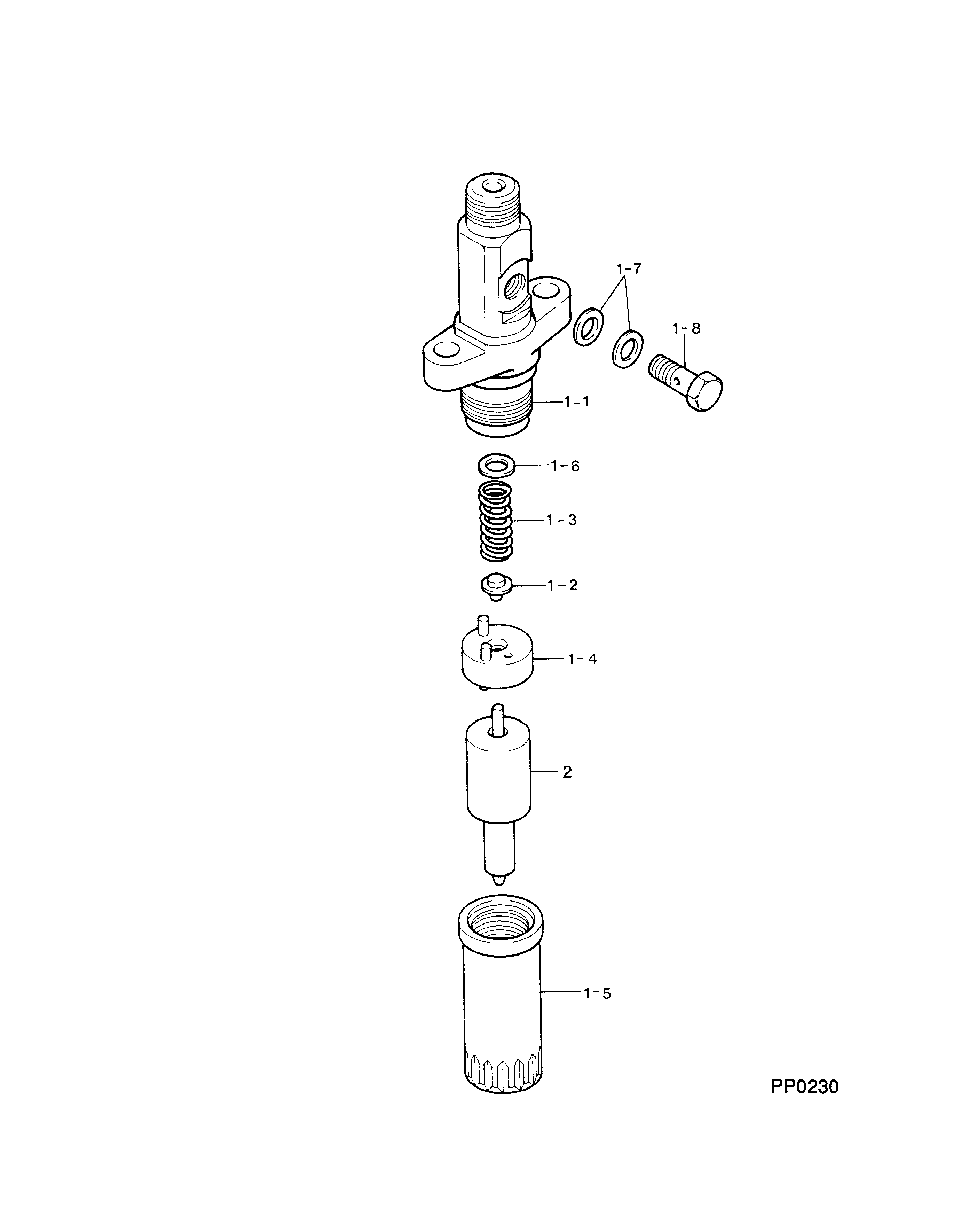

Components :

00.001

HOLDER & NOZZLE SE

09350-02640 YAMAHA

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

09350-02640

HOLDER & NOZZLE SE

001

[01]

09310-02640

HOLDER ASSY, NOZZL

001-001

[01]

09311-02640

BODY SUB-ASSY, NOZ

001-002

[01]

09312-10320

PIN, NOZZLE HOLDER

001-003

[01]

09312-70280

SPRING, NOZZLE HOL

001-004

[01]

09322-00050

PACKING SUB-ASSY,

001-005

[01]

09316-41060

NUT, NOZZLE RETAIN

001-006

[C]

09317-51020

WASHER

T0.7

001-006

[C]

09317-51030

WASHER

T0.75

001-006

[C]

09317-51040

WASHER

T0.8

001-006

[C]

09317-51170

WASHER

T1.45

001-006

[C]

09317-51180

WASHER

T1.5

001-006

[C]

09317-51500

WASHER

T0.725

001-006

[C]

09317-51510

WASHER

T0.775

001-006

[C]

09317-51520

WASHER

T0.825

001-006

[C]

09317-51640

WASHER

T1.425

001-006

[C]

09317-51650

WASHER

T1.475

001-007

[02]

94901-81020

WASHER, COPPER PLA

001-008

[01]

94918-00152

SCREW, HOLLOW

002

[01]

09340-01510

NOZZLE ASSY

Include in ##:

09350-02640 as HOLDER & NOZZLE SE

Nozzle Specification:

Parts number

0935002640 YAMAHA

Nozzle

0934001510

First opm

21.56-22.54

First op

220-230

Second om

Second op

Torquen

Torque

Prelift

Max lift

Engine

MARINE 70X

Information

Include as Nozzle:

0960002880 as Nozzle

1900009970 PUMP ASSY, INJECTI

Cross reference number

Part num

Firm num

Firm

Name

09350-02640

HOLDER & NOZZLE SE
