Information holder & nozzle se Denso
Product
Nozzle & Nozzle Holder
Vehicle engine
MARINE 716
Engine
716
Serial start-end
8301-
Info

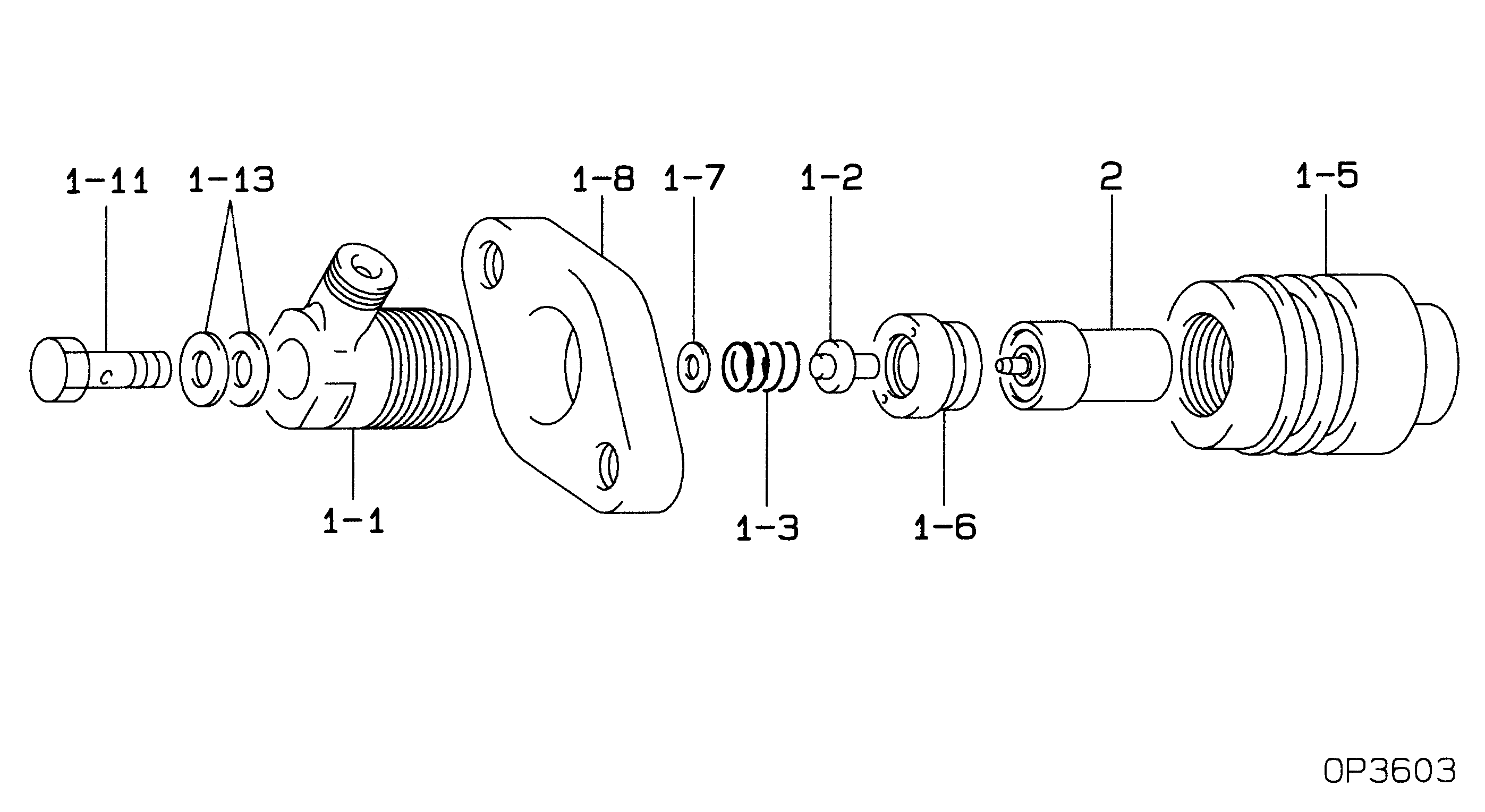

Injector Nozzle
Components :
Scheme #.#:
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09350-02490
HOLDER & NOZZLE SE
Include in ##:
09350-02490
as HOLDER & NOZZLE SE
Nozzle Specification:
Parts number
0935002490 YAMAHA
Nozzle
0934000250
First opm
14.70-15.68
First op
150-160
Second om
-
Second op
-
Torquen
58.8-78.4
Torque
6.0-8.0
Prelift
-
Max lift
Engine
MARINE 716
Information
Cross reference number
Part num
Firm num
Firm
Name
09350-02490
HOLDER & NOZZLE SE
Information:
Manual Fuel Shutoff Lever
