Information holder & nozzle se Denso
Product
Nozzle & Nozzle Holder
Vehicle engine
INDUSTRIAL 4D105
Engine
4D105
Serial start-end
8301-
Info
Injector Nozzle

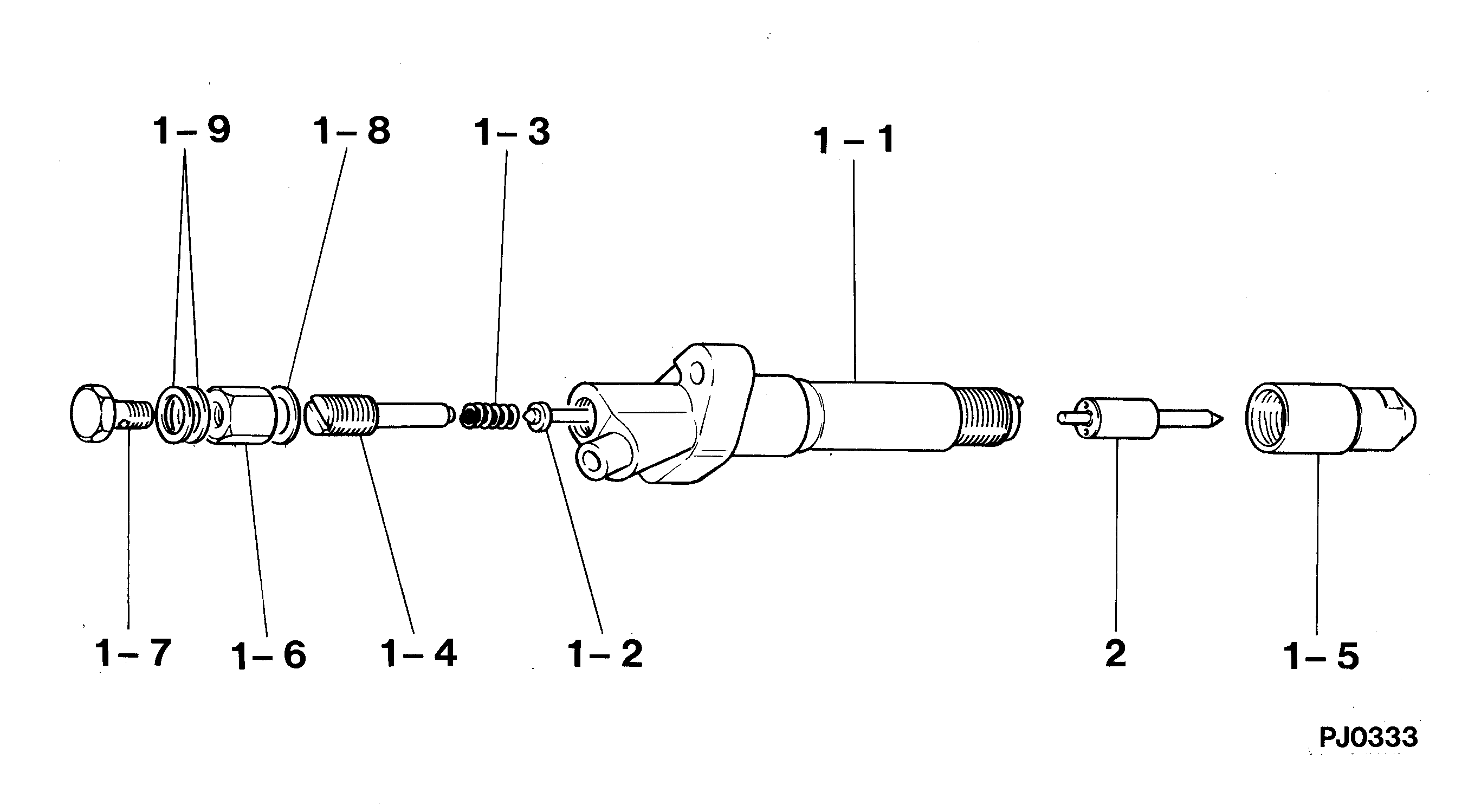

Components :
Scheme #.#:
№
Qty
Part num
Name
Remarks
Manufacture num
Nozzle Specification:
Parts number
0935002360 KOMATSU
Nozzle
0934001341
First opm
22.05
First op
225
Second om
-
Second op
-
Torquen
78.4-98.0
Torque
8.0-10.0
Prelift
-
Max lift
Engine
INDUSTRIAL 4D105
Information
Cross reference number
Part num
Firm num
Firm
Name
09350-02360
HOLDER & NOZZLE SE
Information:
DO NOT START THE ENGINE WITHOUT PRIMING THE FUEL SYSTEM
Illustration 1 g03735591
Damaged plunger spring due to improper fuel system primingFuel System Priming Procedure:
Disconnect the injector harness at the valve cover.
Use the hand primer to fill the fuel system. Pump until the hand primer becomes too hard to depress by hand.
Crank the engine 3 times for 15 seconds each. Reapply the hand primer after each cranking cycle.
Once the hand primer remains hard to depress after the 15 second crank, reconnect the injector harness and start the engine.
Clear any related fault codes (ET) that were logged while cranking the engine with the injector harness disconnected.
Illustration 2 g03736011
