09350-02130 HOLDER & NOZZLE SE Denso Cross


Rating:
63
Buy HOLDER & NOZZLE SE 09350-02130 genuine, new aftermarket engine parts with delivery

Information holder & nozzle se Denso

Product
Nozzle & Nozzle Holder
Vehicle engine
MARINE 4D105M
Engine
4D105M
Serial start-end
8811-
Info
Injector Nozzle

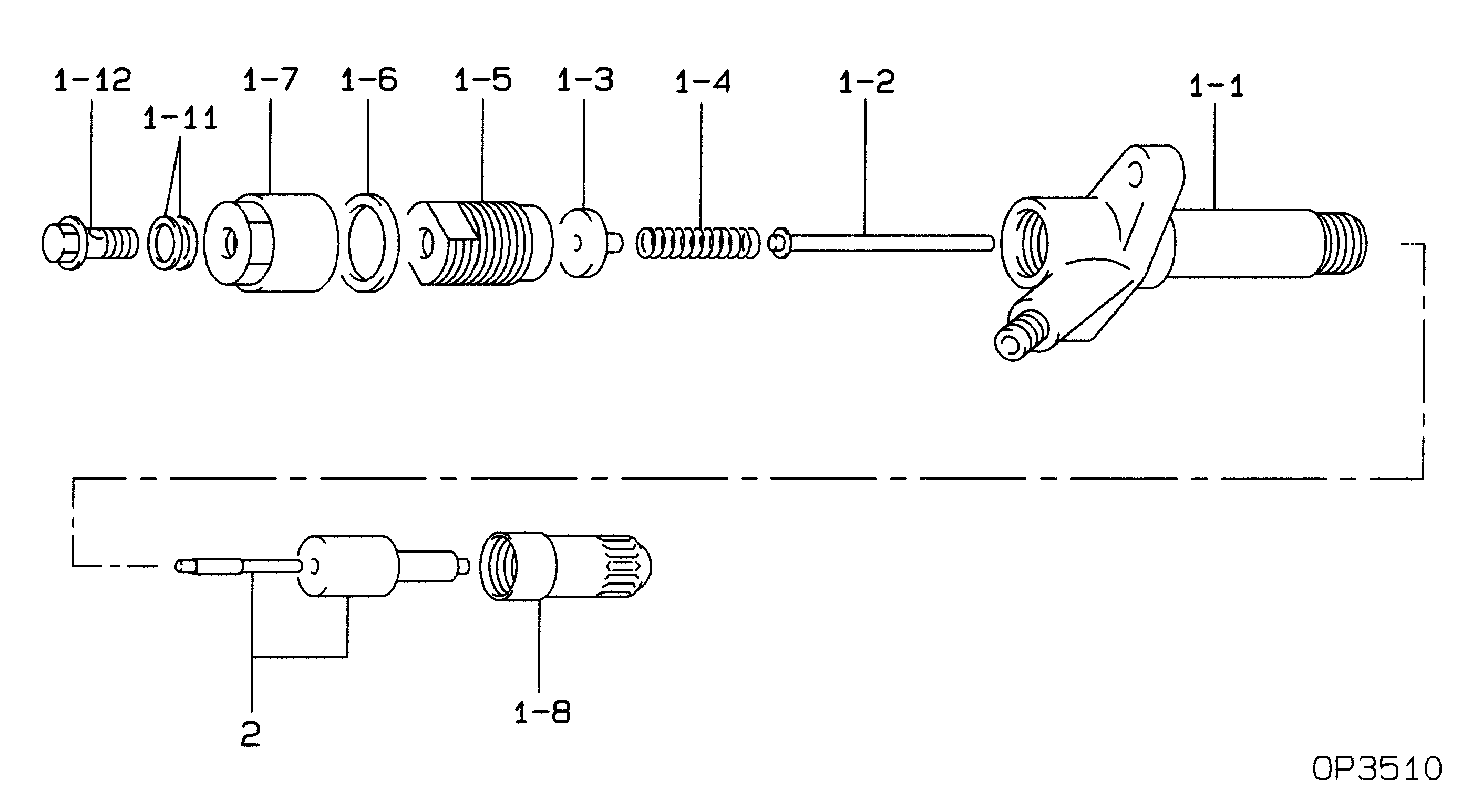

Components :

00.001
HOLDER & NOZZLE SE

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09350-02130
HOLDER & NOZZLE SE
001
[01]
HOLDER ASSY, NOZZL
001-001
[01]
BODY SUB-ASSY, NOZ
001-002
[01]
PIN SUB-ASSY, PRES
001-003
[01]
PIN, NOZZLE HOLDER
001-004
[01]
SPRING, NOZZLE HOL
001-005
[01]
SCREW, CAP
001-006
[01]
GASKET
D26,ID22
001-007
[01]
NUT, CAP
001-008
[01]
NUT, NOZZLE RETAIN
001-011
[02]
WASHER, FUEL PIPE
001-012
[01]
SCREW, HOLLOW
M8,14.9
002
[01]
NOZZLE ASSY

Include in ##:

09350-02130 as HOLDER & NOZZLE SE

Include as Nozzle:

1900005070 as Nozzle

Cross reference number



Part num
Firm num
Firm
Name
09350-02130

HOLDER & NOZZLE SE




Information:


Table 1
Revision Summary of Changes
01 Added serial number prefixes Description Of Change: The improved Diesel Exhaust Fluid (DEF) filters have updated material to reduce debris passing to the DEF pump.Adaptable To:
Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
The following changes are adaptable to the products within the listed serial numbers, and are effective with all products after the listed serial numbers.The new and former DEF filter part numbers are listed in Table 2.
Table 2
Required Parts
Qty New Part Number Part Name Former Part Numbers(1)
1 584-8135 Diesel Exhaust Fluid Filter Gp 453-1604
1 584-8136 Diesel Exhaust Fluid Filter Gp 453-1605
1 584-8137 Diesel Exhaust Fluid Filter Gp 453-1606
(1) The former part number listed is for reference only and may differ.
