19080-06490 GOVERNOR ASSY, MEC Denso Cross


Rating:
17
Buy GOVERNOR ASSY, MEC 19080-06490 genuine, new aftermarket engine parts with delivery

Information governor assy, mec Denso

KIT List:

Part name
Kit1
Kit2
Governor assy, mec
1908900170
Governor assy, mec
1908900170

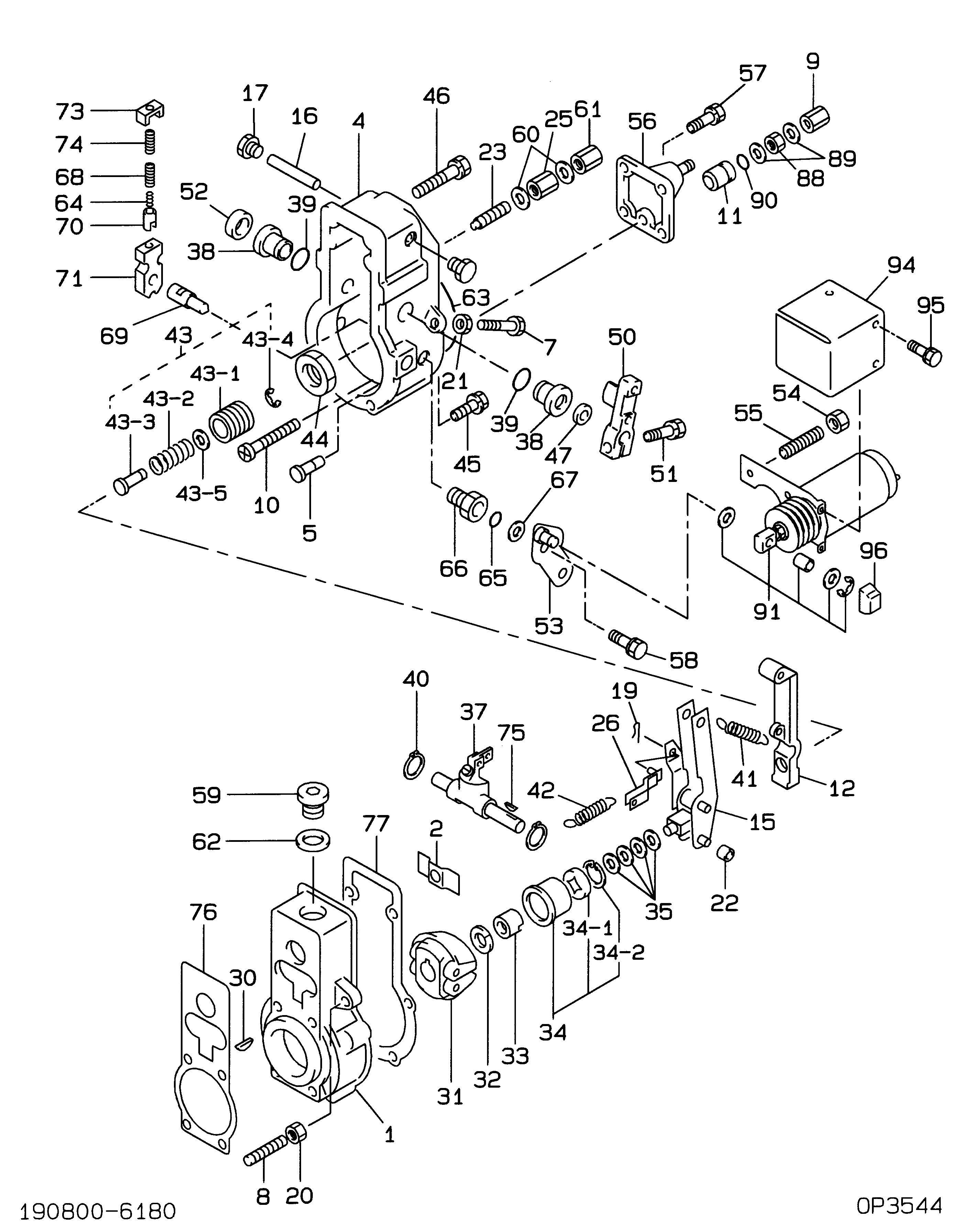

Scheme #.#:

GOVERNOR ASSY, MEC
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19080-06490
GOVERNOR ASSY, MEC
RSV
001
[01]
09081-00660
HOUSING SUB-ASSY,
002
[01]
09087-80030
PLATE
004
[01]
09101-11670
COVER, GOVERNOR
005
[01]
09101-40090
PIN, STOP
007
[01]
09102-40031
SCREW, ADJUSTING
M8,L57
008
[01]
09102-40211
SCREW, ADJUSTING
L55.5
009
[01]
09103-10151
NUT, CAP
L15.5
010
[01]
09100-60150
SCREW, STROKE ADJU
011
[01]
09094-40310
BUSHING
012
[01]
09090-10150
LEVER, TENSION
015
[01]
09093-00510
LEVER ASSY, CONTRO
L/R:1.2
016
[01]
09098-90010
SHAFT, LEVER SUPPO
017
[02]
09099-10010
PLUG, SCREW
019
[01]
90400-02101
PIN, SPLIT
D2,L10
020
[01]
90190-08051
NUT, HEXAGON
M8,L5
021
[01]
94805-30051
NUT, HEXAGON, W/HO
M6
022
[01]
09104-60010
SLIDER, SUPPORTING
023
[01]
09056-00170
CAPSULE, FULL STOP
025
[01]
09092-30060
NUT, ADAPTER LOCK
026
[01]
09097-00170
SHACKLE ASSY
030
[01]
94913-00050
KEY, WOODRUFF
031
[01]
09084-00310
FLYWEIGHT ASSY
032
[01]
94901-50500
WASHER, SPRING
T2.5
033
[01]
09084-40010
NUT, ROUND
M12L12.5
034
[01]
09086-00200
SLEEVE SUB-ASSY, F
034-001
[01]
09086-80040
PLATE, THRUST
034-002
[01]
90567-30000
RING, HOLE SNAP
OD30
035
[4C]
94901-34060
WASHER, PLATE, SK
T0.2
035
[4C]
94901-34070
WASHER, PLATE, SK
T0.3
035
[4C]
94901-34080
WASHER, PLATE, SK
T0.4
035
[4C]
94901-34090
WASHER, PLATE, SK
T0.1
035
[4C]
94901-34100
WASHER, PLATE, SK
T1.0
037
[01]
09088-00140
LEVER ASSY, SWIEVE
038
[02]
09089-20080
BUSHING, LEVER
039
[02]
90801-20160
O-RING
ID15.8
040
[02]
94907-10090
WASHER, SNAP
ID15
041
[01]
09099-20480
SPRING, SPEED CONT
042
[01]
09099-30010
SPRING, START
043
[01]
09091-01410
ADAPTER ASSY
043-001
[01]
09091-10010
SCREW, ADPTER
043-002
[01]
09091-82120
SPRING, MECHANICAL
043-003
[01]
09091-90010
ADAPTER
043-004
[01]
09089-40010
E-RING
043-005
[1C]
94901-33880
WASHER, PLATE, SK
T0.1
043-005
[1C]
94901-34020
WASHER, PLATE, SK
T0.25
043-005
[1C]
94901-34030
WASHER, PLATE, SK
T0.5
043-005
[1C]
94901-34040
WASHER, PLATE, SK
T0.2
044
[01]
09092-30011
NUT, ADAPTER LOCK
045
[04]
94904-71760
BOLT, W/WASHER
M6,L40
046
[02]
94904-71750
BOLT, W/WASHER
M6,L50
047
[01]
94915-00210
SEAL, OIL
050
[01]
09107-11420
LEVER, ADJUSTING
051
[01]
94904-71190
BOLT, W/WASHER
M6,L22
052
[01]
09109-40060
CAP, LEVER
053
[01]
09109-01030
LEVER SUB-ASSY, ST
054
[03]
94905-05120
NUT, HEXAGON
M6
055
[03]
94904-32250
BOLT, STUD
M6,L29.6
056
[01]
09105-00491
PLATE SUB-ASSY, CO
057
[01]
94904-72701
BOLT, W/WASHER
M6,L20
058
[01]
94904-74850
BOLT, W/WASHER
M6,L12.5
059
[01]
09116-70050
PLUG, SCREW
060
[02]
09024-10010
WASHER, AIR BLEEDE
T1.6
061
[01]
09103-10030
NUT, CAP
062
[01]
94901-81550
WASHER, COPPER PLA
T1.5
063
[01]
94906-21270
PACKING, RUBBER PL
064
[01]
09103-80040
SPRING, B
OD3.6
065
[01]
94914-00130
O-RING
ID9.0
066
[01]
09101-60360
BUSHING, BEARING
067
[01]
09133-10540
SHIM
T0.4
068
[01]
09103-80050
SPRING, B
OD6.6
069
[01]
09103-50240
SHAFT, MECHANICAL
070
[01]
09103-60010
CUP, SPRING
071
[01]
09103-40130
LEVER, SUPPORT
073
[01]
09103-30030
PLATE, CAP
074
[01]
09103-80030
SPRING, B
OD8.6
075
[01]
94913-00030
KEY, WOODRUFF
076
[01]
09082-30460
GASKET
077
[01]
09082-30420
GASKET
088
[01]
94905-03390
NUT, HEXAGON
M8
089
[02]
94901-81020
WASHER, COPPER PLA
T1
090
[01]
90801-10120
O-RING
ID12.3
091
[01]
19089-00610
OVER-HAUL KIT, GOV
094
[01]
09109-50303
PLATE
095
[03]
91518-05081
BOLT, W/WASHER
M5,L8
096
[01]
09007-80142
COVER

Include in ##:

09200-04360 as GOVERNOR ASSY, MEC
19080-06490 GOVERNOR ASSY, MEC

Cross reference number



Part num
Firm num
Firm
Name
19080-06490

GOVERNOR ASSY, MEC
