Buy GOVERNOR ASSY, MEC 19080-06250 genuine, new aftermarket engine parts with delivery

Information governor assy, mec Denso

KIT List:

Part name

Kit1

Kit2

Governor assy, mec

Governor assy, mec

Governor assy, mec

Governor assy, mec

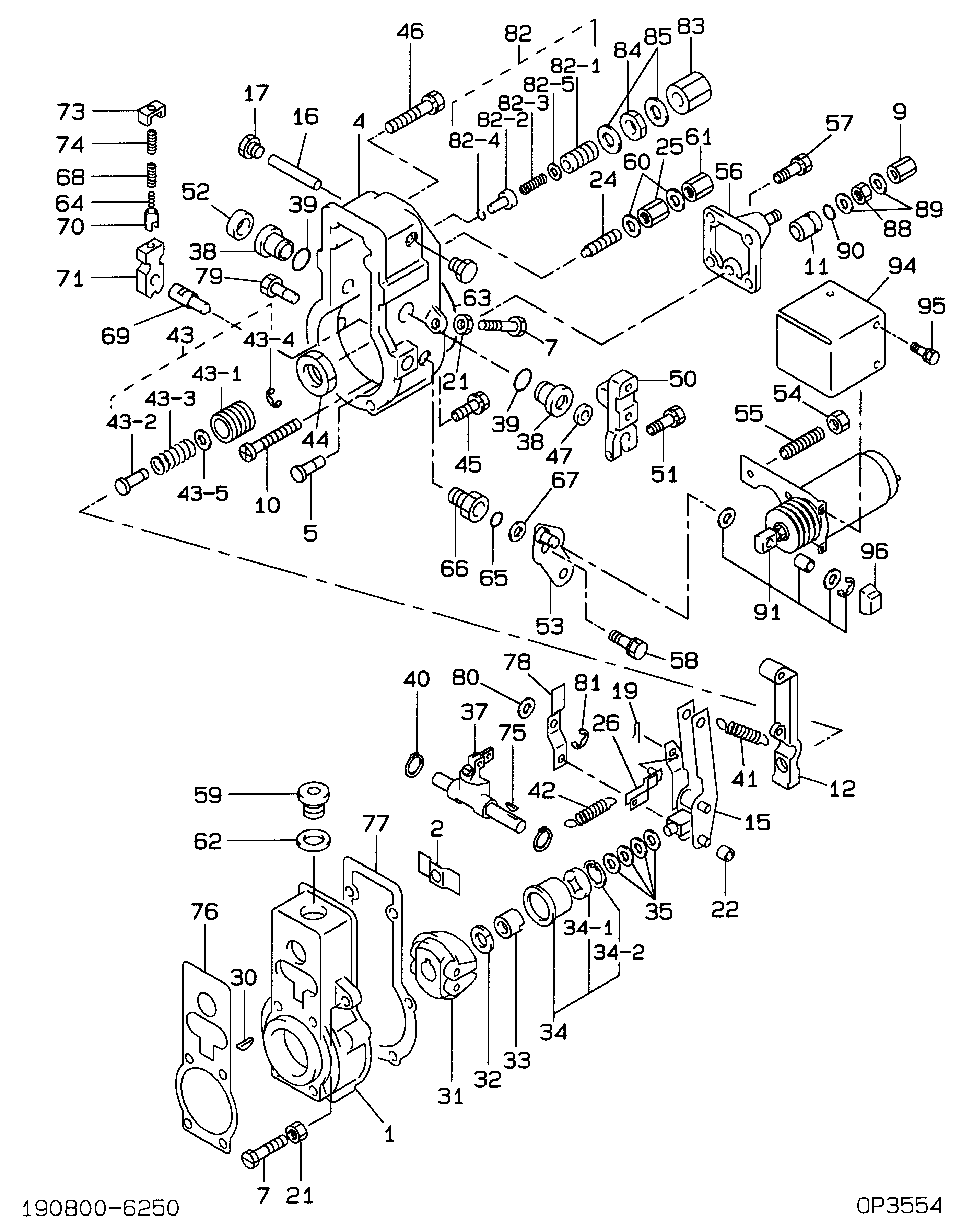

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

19080-06250

GOVERNOR ASSY, MEC

RSV

001

[01]

09081-00660

HOUSING SUB-ASSY,

002

[01]

09087-80030

PLATE

004

[01]

09101-11950

COVER, GOVERNOR

005

[01]

09101-40090

PIN, STOP

007

[02]

09102-40031

SCREW, ADJUSTING

M8,L57

009

[01]

09103-10151

NUT, CAP

L15.5

010

[01]

09100-60150

SCREW, STROKE ADJU

011

[01]

09094-40310

BUSHING

012

[01]

09090-00140

LEVER ASSY, TENSIO

015

[01]

09093-00510

LEVER ASSY, CONTRO

L/R:1.2

016

[01]

09098-90010

SHAFT, LEVER SUPPO

017

[02]

09099-10010

PLUG, SCREW

019

[01]

90400-02101

PIN, SPLIT

D2,L10

021

[02]

94805-30051

NUT, HEXAGON, W/HO

022

[01]

09104-60010

SLIDER, SUPPORTING

024

[01]

09056-00170

CAPSULE, FULL STOP

025

[01]

09092-30060

NUT, ADAPTER LOCK

026

[01]

09097-00170

SHACKLE ASSY

030

[01]

94913-00050

KEY, WOODRUFF

031

[01]

09084-00310

FLYWEIGHT ASSY

032

[01]

94901-50500

WASHER, SPRING

T2.5

033

[01]

09084-40010

NUT, ROUND

M12L12.5

034

[01]

09086-00200

SLEEVE SUB-ASSY, F

034-001

[01]

09086-80040

PLATE, THRUST

034-002

[01]

90567-30000

RING, HOLE SNAP

OD30

035

[4C]

94901-34060

WASHER, PLATE, SK

T0.2

035

[4C]

94901-34070

WASHER, PLATE, SK

T0.3

035

[4C]

94901-34080

WASHER, PLATE, SK

T0.4

035

[4C]

94901-34090

WASHER, PLATE, SK

T0.1

035

[4C]

94901-34100

WASHER, PLATE, SK

T1.0

037

[01]

09088-00140

LEVER ASSY, SWIEVE

038

[02]

09089-20080

BUSHING, LEVER

039

[02]

90801-20160

O-RING

ID15.8

040

[02]

94907-10090

WASHER, SNAP

ID15

041

[01]

09099-20480

SPRING, SPEED CONT

042

[01]

09099-30010

SPRING, START

043

[01]

09091-01410

ADAPTER ASSY

043-001

[01]

09091-10010

SCREW, ADPTER

043-002

[01]

09091-90010

ADAPTER

043-003

[01]

09091-82120

SPRING, MECHANICAL

043-004

[01]

09089-40010

E-RING

043-005

[1C]

94901-33880

WASHER, PLATE, SK

T0.1

043-005

[1C]

94901-34020

WASHER, PLATE, SK

T0.25

043-005

[1C]

94901-34030

WASHER, PLATE, SK

T0.5

043-005

[1C]

94901-34040

WASHER, PLATE, SK

T0.2

043-005

[1C]

94901-37880

WASHER, PLATE, SK

T1.0

044

[01]

09092-30011

NUT, ADAPTER LOCK

045

[04]

94904-71760

BOLT, W/WASHER

M6,L40

046

[02]

94904-71750

BOLT, W/WASHER

M6,L50

047

[01]

94915-00210

SEAL, OIL

050

[01]

09107-11420

LEVER, ADJUSTING

051

[01]

94904-71190

BOLT, W/WASHER

M6,L22

052

[01]

09109-40060

CAP, LEVER

053

[01]

09109-01030

LEVER SUB-ASSY, ST

054

[03]

94905-05120

NUT, HEXAGON

M6,L7.5

055

[03]

94904-32250

BOLT, STUD

M6,L29.6

056

[01]

09105-00491

PLATE SUB-ASSY, CO

057

[01]

94904-72701

BOLT, W/WASHER

M6,L20

058

[01]

94904-74850

BOLT, W/WASHER

M6,L12.5

059

[01]

09116-70050

PLUG, SCREW

060

[02]

09024-10010

WASHER, AIR BLEEDE

T1.6

061

[01]

09103-10030

NUT, CAP

062

[01]

94901-81550

WASHER, COPPER PLA

T1.5

063

[01]

94906-21270

PACKING, RUBBER PL

064

[01]

09103-80040

SPRING, B

OD3.6

065

[01]

94914-00130

O-RING

ID9.0

066

[01]

09101-60360

BUSHING, BEARING

067

[01]

09133-10540

SHIM

T0.4

068

[01]

09103-80050

SPRING, B

OD6.6

069

[01]

09103-50240

SHAFT, MECHANICAL

070

[01]

09103-60010

CUP, SPRING

071

[01]

09103-40130

LEVER, SUPPORT

073

[01]

09103-30030

PLATE, CAP

074

[01]

09103-80030

SPRING, B

OD8.6

075

[01]

94913-00030

KEY, WOODRUFF

076

[01]

09082-30460

GASKET

077

[01]

09082-30420

GASKET

078

[01]

09117-00050

LEVER SUB-ASSY

079

[01]

09108-40050

PIN, TORQUE CONTRO

080

[01]

90218-08250

WASHER, PLATE

T0.5

081

[01]

09089-40030

E-RING

082

[01]

09091-00820

ADAPTER ASSY

082-001

[01]

09002-60080

SCREW, ADJUSTING

082-002

[01]

09091-90240

ADAPTER

082-003

[01]

09091-80020

SPRING, MECHANICAL

082-004

[01]

90567-12000

RING, HOLE SNAP

OD12

082-005

[1C]

94901-33880

WASHER, PLATE, SK

T0.1

082-005

[1C]

94901-34020

WASHER, PLATE, SK

T0.25

082-005

[1C]

94901-34030

WASHER, PLATE, SK

T0.5

082-005

[1C]

94901-34040

WASHER, PLATE, SK

T0.2

082-005

[1C]

94901-37880

WASHER, PLATE, SK

T1.0

083

[01]

09003-20040

CAP

084

[01]

94805-30090

NUT, HEXAGON, W/HO

085

[02]

94901-80350

WASHER, COPPER PLA

T1,FOR M16

088

[01]

94905-03390

NUT, HEXAGON

089

[02]

94901-81020

WASHER, COPPER PLA

090

[01]

90801-10120

O-RING

ID12.3

091

[01]

19089-00610

OVER-HAUL KIT, GOV

094

[01]

09109-50303

PLATE

095

[03]

91518-05081

BOLT, W/WASHER

M5,L8

096

[01]

09007-80142

COVER

Include in ##:

09200-03950 as GOVERNOR ASSY, MEC

09200-04540 PUMP ASSY, INJECTI

09200-05130

19080-06250 GOVERNOR ASSY, MEC
