19080-05511 GOVERNOR ASSY, MEC Denso Cross


Rating:
16
Buy GOVERNOR ASSY, MEC 19080-05511 genuine, new aftermarket engine parts with delivery

Information governor assy, mec Denso

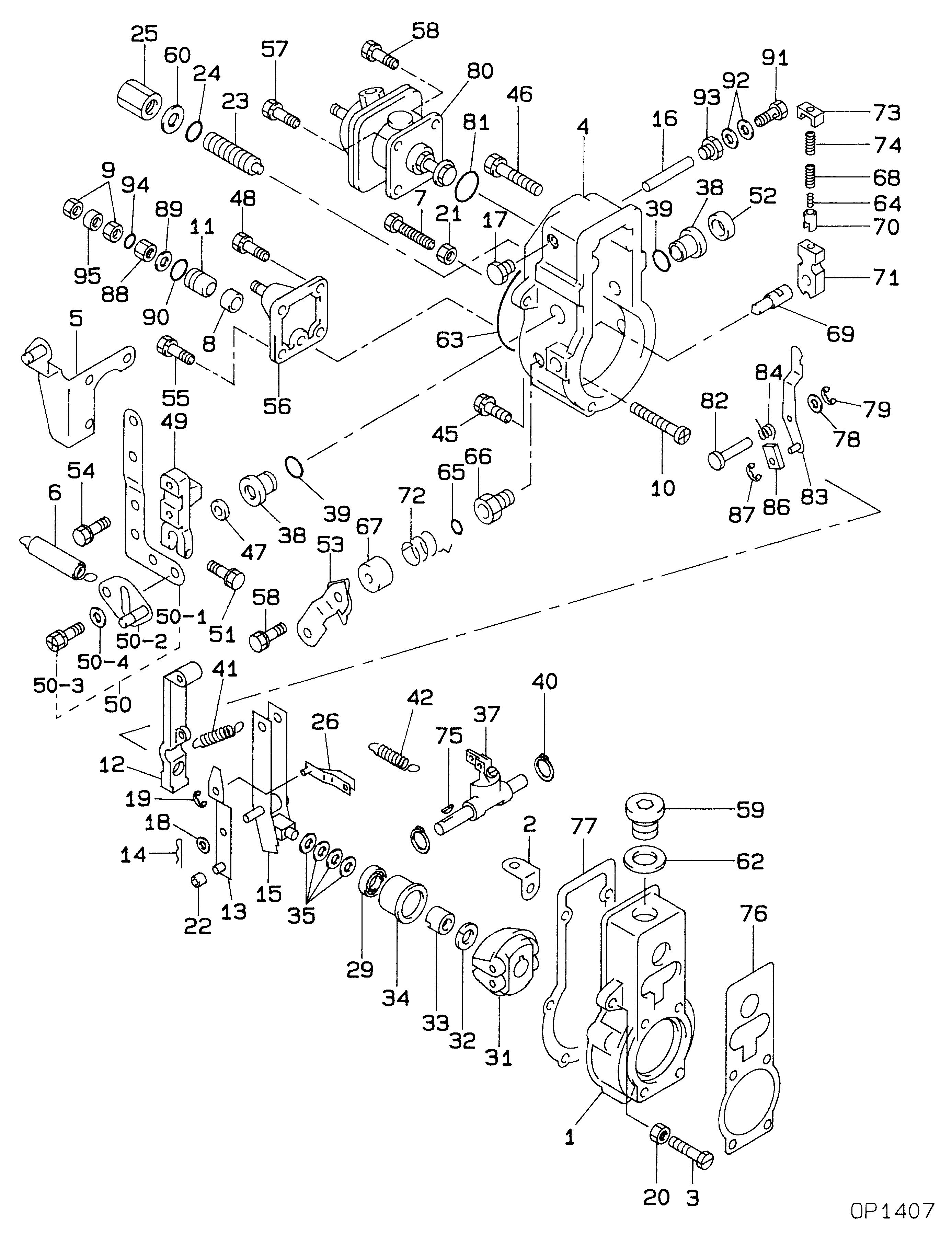

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
GOVERNOR ASSY, MEC
RSVH
001
[01]
HOUSING SUB-ASSY,
002
[01]
PLATE
003
[01]
SCREW, ADJUSTING
M8,L60.5
004
[01]
COVER, GOVERNOR
005
[01]
ARM, SPRING
006
[01]
SPRING SUB-ASSY, R
007
[01]
SCREW, ADJUSTING
M8,L57
008
[01]
COLLAR, STEEL
-9901
009
[02]
NUT
010
[01]
SCREW, STROKE ADJU
011
[01]
BUSHING
-9901
011
[01]
BUSHING
9901-
012
[01]
LEVER, TENSION
013
[01]
LEVER SUB-ASSY, CO
014
[01]
PIN, SPLIT
D2,L10
015
[01]
LEVER ASSY, GUIDE
016
[01]
SHAFT, LEVER SUPPO
017
[01]
PLUG, SCREW
018
[01]
SHIM
019
[01]
E-RING
D9, T0.7
020
[01]
NUT
M8,L19
021
[01]
NUT, HEXAGON, W/HO
M8
022
[01]
SLIDER, SUPPORTING
023
[01]
CAPSULE, FULL STOP
-0405
023
[01]
CAPSULE, FULL STOP
0406-
024
[01]
O-RING
ID9.8
025
[01]
NUT, ADAPTER LOCK
026
[01]
SHACKLE ASSY
029
[01]
BEARING, BALL
OD30
031
[01]
FLYWEIGHT ASSY
032
[01]
WASHER, SPRING
T2.5
033
[01]
NUT, ROUND
M12L12.5
034
[01]
SLEEVE, GOVERNOR
035
[4C]
WASHER, PLATE, SK
T0.2
035
[4C]
WASHER, PLATE, SK
T0.3
035
[4C]
WASHER, PLATE, SK
T0.4
035
[4C]
WASHER, PLATE, SK
T0.1
035
[4C]
WASHER, PLATE, SK
T1.0
037
[01]
LEVER ASSY, SWIEVE
038
[02]
BUSHING, LEVER
039
[02]
O-RING
ID15.8
040
[02]
WASHER, SNAP
ID15
041
[01]
SPRING, SPEED CONT
51.5D3.8
042
[01]
SPRING, START
-1309
042
[01]
SPRING, START
1309-
045
[04]
BOLT, W/WASHER
M6,L40
046
[02]
BOLT, W/WASHER
M6,L50
047
[01]
SEAL, OIL
048
[03]
BOLT, W/WASHER
M6,L24
049
[01]
LEVER, ADJUSTING
050
[01]
LEVER SUB-ASSY, AD
050-001
[01]
LEVER, ADJUSTING
050-002
[01]
LEVER SUB-ASSY, AD
050-003
[02]
BOLT, W/WASHER
M8,L16
050-004
[01]
WASHER, COUPLING S
051
[01]
BOLT, W/WASHER
M6,L22
052
[01]
CAP, LEVER
053
[01]
LEVER SUB-ASSY, ST
054
[02]
BOLT, W/WASHER
M6,L16
055
[01]
BOLT, W/WASHER
M6,L20
056
[01]
PLATE SUB-ASSY, CO
057
[02]
BOLT, W/WASHER
M6,L14
058
[03]
BOLT, W/WASHER
M6,L14
059
[01]
PLUG, SCREW
060
[01]
WASHER, AIR BLEEDE
T1.6ID12
062
[01]
WASHER, COPPER PLA
T1.5
063
[01]
PACKING, RUBBER PL
064
[01]
SPRING, B
OD3.6
065
[01]
O-RING
ID9.0
066
[01]
BUSHING, BEARING
M16,16.6 -9707
066
[01]
BUSHING, BEARING
M16,16.6 9707-
067
[01]
COVER, SPRING
068
[01]
SPRING, B
OD6.6
069
[01]
SHAFT, MECHANICAL
070
[01]
CUP, SPRING
071
[01]
LEVER, SUPPORT
072
[01]
SPRING, RETURN
073
[01]
PLATE, CAP
074
[01]
SPRING, B
OD8.6
075
[01]
KEY, WOODRUFF
T3.0
076
[01]
GASKET, PUMP BODY
077
[01]
GASKET
078
[01]
WASHER, PLATE
T0.5
079
[01]
E-RING
D5
080
[01]
COMPENSATOR SUB-AS
081
[01]
O-RING
ID26.2
082
[01]
PIN
083
[01]
LEVER SUB-ASSY, CO
084
[01]
SPRING, RETURN
086
[01]
BUSHING
087
[01]
E-RING
088
[01]
NUT
089
[01]
WASHER, COPPER PLA
T1,ID8.2
090
[01]
O-RING
ID12.3
091
[01]
SCREW, HOLLOW
092
[02]
WASHER, DRAIN SCRE
T1.0
093
[01]
NIPPLE
094
[01]
O-RING
ID5.8
095
[01]
COLLAR, STEEL

Include in ##:

09200-02840 as GOVERNOR ASSY, MEC
