19080-04251 GOVERNOR ASSY, MEC Denso Cross


Rating:
10
Buy GOVERNOR ASSY, MEC 19080-04251 genuine, new aftermarket engine parts with delivery

Information governor assy, mec Denso

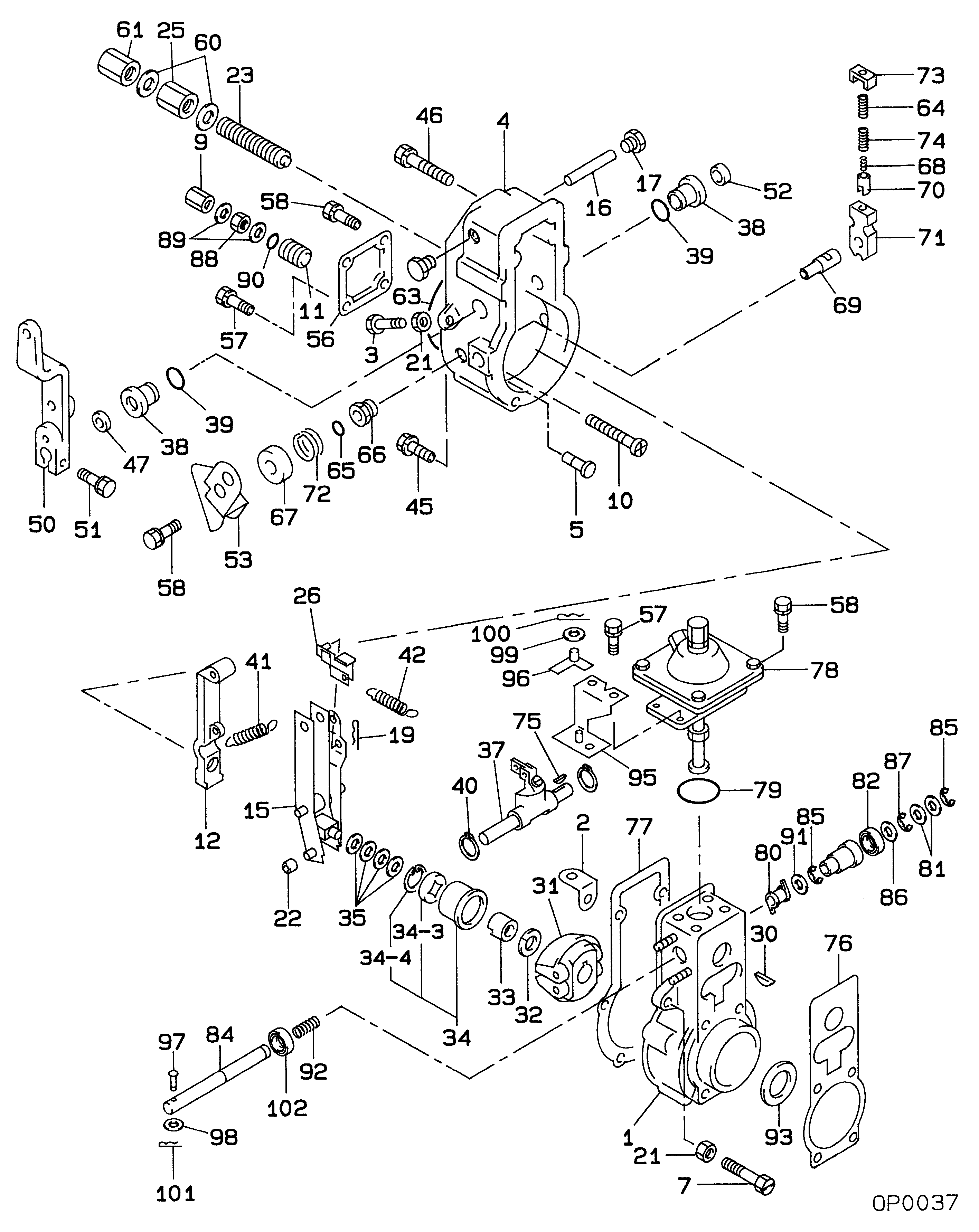

Scheme #.#:

GOVERNOR ASSY, MEC
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19080-04251
GOVERNOR ASSY, MEC
RSV
001
[01]
09081-00431
HOUSING SUB-ASSY,
002
[01]
09087-80040
PLATE
003
[01]
09082-10080
STOPPER
004
[01]
09101-11781
COVER, GOVERNOR
005
[01]
09101-40090
PIN, STOP
007
[01]
09102-40031
SCREW, ADJUSTING
M8,L57
009
[01]
09103-10151
NUT, CAP
010
[01]
09100-60150
SCREW, STROKE ADJU
011
[01]
09094-40310
BUSHING
012
[01]
09090-10150
LEVER, TENSION
015
[01]
09093-00880
LEVER ASSY, CONTRO
016
[01]
09098-90010
SHAFT, LEVER SUPPO
017
[02]
09099-10010
PLUG, SCREW
019
[01]
90400-02101
PIN, SPLIT
D2,L10
021
[02]
94805-30051
NUT, HEXAGON, W/HO
022
[01]
09104-60010
SLIDER, SUPPORTING
023
[01]
09056-00230
CAPSULE, FULL STOP
025
[01]
09092-30060
NUT, ADAPTER LOCK
026
[01]
09097-00310
SHACKLE ASSY
030
[01]
94913-00050
KEY, WOODRUFF
031
[01]
09084-00310
FLYWEIGHT ASSY
032
[01]
94901-50500
WASHER, SPRING
T2.5
033
[01]
09084-40010
NUT, ROUND
034
[01]
09086-00200
SLEEVE SUB-ASSY, F
034-003
[01]
09086-80040
PLATE, THRUST
034-004
[01]
90567-30000
RING, HOLE SNAP
OD30
035
[4C]
94901-34060
WASHER, PLATE, SK
T0.2
035
[4C]
94901-34070
WASHER, PLATE, SK
T0.3
035
[4C]
94901-34080
WASHER, PLATE, SK
T0.4
035
[4C]
94901-34090
WASHER, PLATE, SK
T0.1
035
[4C]
94901-34100
WASHER, PLATE, SK
T1.0
037
[01]
09088-00110
LEVER ASSY, SWIEVE
038
[02]
09089-20080
BUSHING, LEVER
039
[02]
90801-20160
O-RING
ID15.8
040
[02]
94907-10090
WASHER, SNAP
ID15
041
[01]
09099-20480
SPRING, SPEED CONT
042
[01]
09099-30280
SPRING, START
045
[04]
94904-71760
BOLT, W/WASHER
M6,L40
046
[02]
94904-71750
BOLT, W/WASHER
M6,L50
047
[01]
94915-00210
SEAL, OIL
050
[01]
09107-01700
LEVER SUB-ASSY, AD
051
[01]
94904-71190
BOLT, W/WASHER
M6,L22
052
[01]
09109-40060
CAP, LEVER
053
[01]
09109-00520
LEVER SUB-ASSY, ST
056
[01]
09105-10480
PLATE, COVER
057
[04]
94904-71790
BOLT, W/WASHER
M6,L14
058
[05]
91418-06141
BOLT, W/WASHER
M6,L14
060
[02]
09024-10010
WASHER, AIR BLEEDE
T1.6
061
[01]
09103-10030
NUT, CAP
063
[01]
94906-21270
PACKING, RUBBER PL
064
[01]
09103-80040
SPRING, B
OD3.6
065
[01]
94914-00130
O-RING
ID9.0
066
[01]
09101-60020
BUSHING, BEARING
-9709
066
[01]
09101-60360
BUSHING, BEARING
9709-
067
[01]
09104-30010
COVER, SPRING
068
[01]
09103-80050
SPRING, B
OD6.6
069
[01]
09103-50240
SHAFT, MECHANICAL
070
[01]
09103-60010
CUP, SPRING
071
[01]
09103-40130
LEVER, SUPPORT
072
[01]
09104-20220
SPRING, RETURN
073
[01]
09103-30030
PLATE, CAP
074
[01]
09103-80030
SPRING, B
OD8.6
075
[01]
94913-00030
KEY, WOODRUFF
076
[01]
09082-30240
GASKET
-9408
076
[01]
09082-30460
GASKET
9409-
077
[01]
09082-30300
GASKET
-9309
077
[01]
09082-30420
GASKET
9310-
078
[01]
19260-00630
COMPENSATOR SUB-AS
079
[01]
90801-20260
O-RING
ID26.2
080
[01]
19265-00050
LEVER SUB-ASSY, FO
081
[02]
94901-34480
WASHER, PLATE, SK
T0.3
082
[01]
94915-01770
SEAL, OIL
084
[01]
19265-30041
SHAFT, LEVER
085
[02]
90577-06001
E-RING
D6
086
[01]
94901-17250
WASHER, STEEL PLAT
T1
087
[01]
09089-40080
E-RING
088
[01]
94905-03390
NUT, HEXAGON
M8
089
[02]
94901-81020
WASHER, COPPER PLA
T1
090
[01]
90801-10120
O-RING
ID12.3
091
[01]
90218-08230
WASHER, PLATE
T0.2
092
[01]
19265-40020
SPRING, CANCEL
093
[01]
94901-15270
WASHER, STEEL PLAT
T0.6
095
[01]
09097-50731
ARM, SPRING
096
[01]
09109-81470
STOPPER
097
[01]
09098-30390
PIN, CONNECTING
098
[01]
90200-05301
WASHER, PLATE
T1.0
099
[01]
90200-06081
WASHER, PLATE
M6,T1.6
100
[01]
90400-02151
PIN, SPLIT
D2,L15
101
[01]
90400-12121
PIN, SPLIT
D1.2,L12
102
[01]
94915-01980
SEAL, OIL

Include in ##:

09200-00260 as GOVERNOR ASSY, MEC
19080-04251 GOVERNOR ASSY, MEC

Cross reference number



Part num
Firm num
Firm
Name
19080-04251

GOVERNOR ASSY, MEC
