19080-03641 GOVERNOR ASSY, MEC Denso Cross


Rating:
35
Buy GOVERNOR ASSY, MEC 19080-03641 genuine, new aftermarket engine parts with delivery

Information governor assy, mec Denso

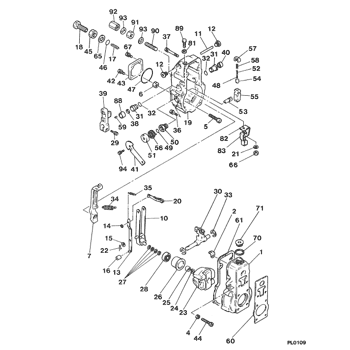

Scheme #.#:

GOVERNOR ASSY, MEC
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19080-03641
GOVERNOR ASSY, MEC
001
[01]
09081-11250
HOUSING, GOVERNOR
002
[01]
09087-80200
PLATE
004
[01]
94805-30051
NUT, HEXAGON, W/HO
005
[01]
09100-60170
SCREW, STROKE ADJU
006
[01]
94905-03390
NUT, HEXAGON
M8
007
[01]
09090-10150
LEVER, TENSION
010
[01]
09095-90010
LEVER ASSY, GUIDE
011
[01]
09098-90010
SHAFT, LEVER SUPPO
012
[02]
09099-10090
PLUG, SCREW
013
[01]
09093-00190
LEVER ASSY, CONTRO
014
[01]
09089-40010
E-RING
015
[01]
09098-70010
SHIM
016
[01]
09104-60010
SLIDER, SUPPORTING
018
[01]
09091-00990
ADAPTER ASSY
019
[01]
09101-01070
COVER SUB-ASSY, GO
020
[01]
09097-00390
SHACKLE ASSY
021
[01]
90258-06001
WASHER, SPRING
M6
022
[01]
90400-02101
PIN, SPLIT
D2,L10
023
[01]
09084-00720
FLYWEIGHT ASSY
024
[01]
94901-50500
WASHER, SPRING
T2.5
025
[01]
09084-40010
NUT, ROUND
026
[01]
09086-10010
SLEEVE, GOVERNOR
027
[4C]
94901-34060
WASHER, PLATE, SK
T0.2
027
[4C]
94901-34070
WASHER, PLATE, SK
T0.3
027
[4C]
94901-34080
WASHER, PLATE, SK
T0.4
027
[4C]
94901-34090
WASHER, PLATE, SK
T0.1
027
[4C]
94901-34100
WASHER, PLATE, SK
T1.0
028
[01]
94910-00010
BEARING, BALL
OD30
029
[01]
94904-71190
BOLT, W/WASHER
M6,L22
030
[01]
09088-00110
LEVER ASSY, SWIEVE
031
[02]
09089-20080
BUSHING, LEVER
032
[02]
90801-20160
O-RING
ID15.8
033
[02]
94907-10090
WASHER, SNAP
ID15
034
[01]
09099-20410
SPRING, SPEED CONT
035
[01]
09099-30200
SPRING, START
036
[04]
94904-71760
BOLT, W/WASHER
M6,L40
037
[02]
94904-72340
BOLT, W/WASHER
M6,L60
038
[01]
94915-00210
SEAL, OIL
039
[01]
09107-11420
LEVER, ADJUSTING
040
[01]
09109-40060
CAP, LEVER
041
[01]
09109-01330
LEVER SUB-ASSY, ST
-9302
041
[01]
09109-01441
LEVER SUB-ASSY, ST
9303-
042
[02]
91418-06121
BOLT, W/WASHER
M6,L12
043
[01]
09105-00500
PLATE SUB-ASSY, CO
044
[01]
09102-40031
SCREW, ADJUSTING
M8,L57
045
[01]
09103-10010
NUT, CAP
046
[01]
94905-02460
NUT, HEXAGON
M12
047
[01]
94906-21270
PACKING, RUBBER PL
048
[01]
09103-80040
SPRING, B
OD3.6
049
[01]
94914-00130
O-RING
ID9.0
050
[01]
09101-60020
BUSHING, BEARING
-9707
050
[01]
09101-60360
BUSHING, BEARING
9707-
051
[01]
09104-30010
COVER, SPRING
052
[01]
09103-80050
SPRING, B
OD6.6
053
[01]
09103-50240
SHAFT, MECHANICAL
054
[01]
09103-60010
CUP, SPRING
055
[01]
09103-40130
LEVER, SUPPORT
056
[01]
09104-20010
SPRING, RETURN
L8.5D1.6 -9108
057
[01]
09103-30030
PLATE, CAP
058
[01]
09103-80030
SPRING, B
OD8.6
059
[01]
94913-00030
KEY, WOODRUFF
060
[01]
09011-90080
GASKET, PUMP BODY
-9304
060
[01]
09011-90160
GASKET, PUMP BODY
9305-
061
[01]
09082-30022
GASKET
065
[02]
09024-10010
WASHER, AIR BLEEDE
T1.6
066
[03]
90160-06051
NUT, HEXAGON
M6,L5
067
[02]
94904-72210
BOLT, W/WASHER
M6,L12
070
[01]
94901-81550
WASHER, COPPER PLA
T1.5
071
[01]
09116-70050
PLUG, SCREW
081
[01]
09024-80010
WASHER, DRAIN SCRE
082
[01]
19266-10011
MAGNET SUB-ASSY
083
[01]
19266-50010
COVER, MAGNET
088
[01]
94919-24580
COLLAR, STEEL
089
[01]
90107-06201
BOLT, HEXAGON
M6,L20
090
[01]
09082-10170
STOPPER
-9311
090
[01]
09082-10171
STOPPER
9312-
091
[01]
94905-30140
NUT, HEXAGON, W/ H
M8
092
[01]
09103-10170
NUT, CAP
-9311
092
[01]
09103-10042
NUT, CAP
9312-
093
[02]
94901-81020
WASHER, COPPER PLA
T1
094
[01]
91418-06141
BOLT, W/WASHER
M6,L14

Include in ##:

19080-03641 as GOVERNOR ASSY, MEC
19100-09160 PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19080-03641

GOVERNOR ASSY, MEC
