19080-02301 GOVERNOR ASSY, MEC Denso Cross


Rating:
32
Buy GOVERNOR ASSY, MEC 19080-02301 genuine, new aftermarket engine parts with delivery

Information governor assy, mec Denso

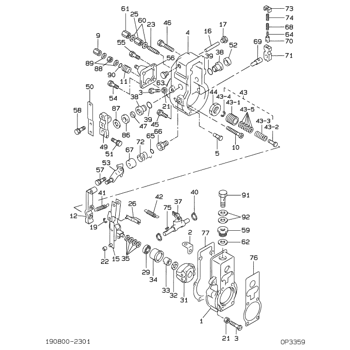

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19080-02301
GOVERNOR ASSY, MEC
RSVH
001
[01]
HOUSING SUB-ASSY,
002
[01]
PLATE
003
[02]
SCREW, ADJUSTING
M8,L57
004
[01]
COVER, GOVERNOR
-9606
004
[01]
COVER, GOVERNOR
9607-
005
[01]
PIN, STOP
009
[01]
NUT, CAP
L15.5
010
[01]
SCREW, STROKE ADJU
011
[01]
BUSHING
012
[01]
LEVER, TENSION
-9404
012
[01]
LEVER, TENSION
9404-
015
[01]
LEVER ASSY, CONTRO
016
[01]
SHAFT, LEVER SUPPO
017
[02]
PLUG, SCREW
019
[01]
E-RING
D9, T0.7
021
[02]
NUT, HEXAGON, W/HO
M6
022
[01]
SLIDER, SUPPORTING
023
[01]
CAPSULE, FULL STOP
025
[01]
NUT, ADAPTER LOCK
026
[01]
SHACKLE ASSY
029
[01]
BEARING, BALL
OD30
031
[01]
FLYWEIGHT ASSY
032
[01]
WASHER, SPRING
T2.5
033
[01]
NUT, ROUND
M12L12.5
034
[01]
SLEEVE, GOVERNOR
035
[4C]
WASHER, PLATE, SK
T0.2
035
[4C]
WASHER, PLATE, SK
T0.3
035
[4C]
WASHER, PLATE, SK
T0.4
035
[4C]
WASHER, PLATE, SK
T0.1
035
[4C]
WASHER, PLATE, SK
T1.0
037
[01]
LEVER ASSY, SWIEVE
038
[02]
BUSHING, LEVER
-8904
038
[02]
BUSHING, LEVER
8904--9212
038
[02]
BUSHING, LEVER
9212-
039
[02]
O-RING
ID15.8
040
[02]
WASHER, SNAP
ID15
041
[01]
SPRING, SPEED CONT
042
[01]
SPRING, START
043
[01]
ADAPTER ASSY
-9403
043-001
[01]
SCREW, ADPTER
-9403
043-002
[01]
ADAPTER
-9403
043-003
[01]
SPRING, MECHANICAL
-9403
043-004
[01]
E-RING
D9, T0.7 -9403
043-005
[5C]
WASHER, PLATE, SK
T0.1 -9403
043-005
[5C]
WASHER, PLATE, SK
T0.25 -9403
043-005
[5C]
WASHER, PLATE, SK
T0.5 -9403
043-005
[5C]
WASHER, PLATE, SK
T0.2 -9403
043-005
[5C]
WASHER, PLATE, SK
T1.0 -9403
044
[01]
NUT, ADAPTER LOCK
-9403
045
[04]
BOLT, W/WASHER
M6,L40
046
[02]
BOLT, W/WASHER
M6,L50
047
[01]
SEAL, OIL
049
[01]
LEVER, ADJUSTING
050
[01]
LEVER, ADJUSTING
051
[01]
BOLT, W/WASHER
M6,L22
052
[01]
CAP, LEVER
053
[01]
LEVER SUB-ASSY, ST
-8904
053
[01]
LEVER SUB-ASSY, ST
8905-
054
[02]
BOLT, W/WASHER
M6,L20
055
[02]
BOLT, W/WASHER
M6,L20
056
[01]
PLATE SUB-ASSY, CO
057
[01]
BOLT, W/WASHER
M6,L14
058
[02]
BOLT, W/WASHER
M6,L16
059
[01]
SCREW,PLUG
060
[02]
WASHER, AIR BLEEDE
T1.6ID12
061
[01]
NUT, CAP
062
[01]
WASHER, COPPER PLA
T1.5
063
[01]
PACKING, RUBBER PL
-9005
063
[01]
PACKING, RUBBER PL
9005-
064
[01]
SPRING, B
OD3.6
065
[01]
O-RING
ID9.0
066
[01]
BUSHING, BEARING
-9707
066
[01]
BUSHING, BEARING
9707-
067
[01]
COVER, SPRING
068
[01]
SPRING, B
OD6.6
069
[01]
SHAFT, MECHANICAL
070
[01]
CUP, SPRING
071
[01]
LEVER, SUPPORT
072
[01]
SPRING, RETURN
L8.5D1.6
073
[01]
PLATE, CAP
074
[01]
SPRING, B
OD8.6
075
[01]
KEY, WOODRUFF
T3.0
076
[01]
GASKET, PUMP BODY
-9305
076
[01]
GASKET, PUMP BODY
9305-
077
[01]
GASKET
-9305
077
[01]
GASKET
9306-
086
[01]
BUSHING
087
[C]
WASHER, PLATE, SK
T0.3
087
[C]
WASHER, PLATE, SK
T0.6
087
[C]
WASHER, PLATE, SK
T0.9
088
[01]
NUT, HEXAGON
M8
089
[02]
WASHER, COPPER PLA
T1,ID8.2
090
[01]
O-RING
ID12.3
091
[01]
SCREW, HOLLOW
092
[02]
WASHER, FUEL PIPE
ID9.8

Include in ##:

19080-02301 as GOVERNOR ASSY, MEC

Cross reference number



Part num
Firm num
Firm
Name
19080-02301

GOVERNOR ASSY, MEC
