Buy GOVERNOR ASSY, MEC 09130-07930 genuine, new aftermarket engine parts with delivery

Information governor assy, mec Denso

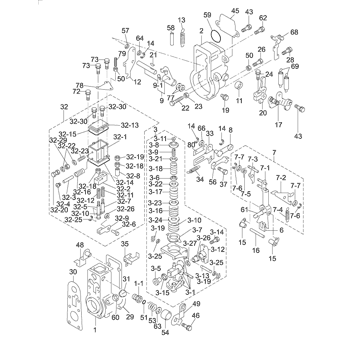

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

09130-07930

GOVERNOR ASSY, MEC

R901

001

[01]

09131-00310

HOUSING SUB-ASSY,

ME743685 MITSUBISHI

001-001

[01]

09101-60020

BUSHING, BEARING

M16,16.6

ME702636 MITSUBISHI

002

[01]

09145-00940

COVER ASSY, GOVERN

ME743686 MITSUBISHI

003

[01]

09133-01950

FLYWEIGHT ASSY

ME743655 MITSUBISHI

003-001

[01]

09137-00101

FLYWEIGHT SUB-ASSY

ME736981 MITSUBISHI

003-005

[01]

09134-00081

BUSHING ASSY, CAMS

ME728665 MITSUBISHI

003-006

[02]

09137-70371

SEAT, GOVERNOR SPR

ME728666 MITSUBISHI

003-007

[02]

09136-30050

SEAT, GOVERNOR SPR

ME728667 MITSUBISHI

003-008

[02]

09139-30100

GUIDE, SPRING

ME728668 MITSUBISHI

003-009

[02]

09091-81710

SPRING, MECHANICAL

ME702137 MITSUBISHI

003-010

[02]

09138-91100

SPRING, IDLING

L32.9,YELLOW

ME728669 MITSUBISHI

003-011

[02]

09139-50050

NUT, ADJUSTING

M8,0.75

ME728670 MITSUBISHI

003-012

[01]

09140-50090

BUSHING, GUIDE

ME728671 MITSUBISHI

003-013

[01]

09140-10061

BOLT, BELLCRANK

PIN TYPE

ME743665 MITSUBISHI

003-014

[02]

94904-78260

BOLT, W/WASHER

M6,L16

ME736916 MITSUBISHI

003-015

[06]

09133-70100

DAMPER, FLYWEIGHT

ME728672 MITSUBISHI

003-016

[02]

09138-91090

SPRING, IDLING

L34.0YELLOWGREEN

ME728673 MITSUBISHI

003-017

[02]

09139-10620

SPRING, SPEED CONT

L34.7,RED

ME743687 MITSUBISHI

003-018

[02]

09139-10760

SPRING, SPEED CONT

ME743394 MITSUBISHI

003-019

[02]

09089-40101

E-RING

PIN TYPE

ME743666 MITSUBISHI

003-021

[6C]

09140-30560

WASHER, LOCK

T0.2

ME728676 MITSUBISHI

003-021

[6C]

09140-30570

WASHER, LOCK

T0.3

ME728677 MITSUBISHI

003-021

[6C]

09140-30640

WASHER, LOCK

T0.6

ME728678 MITSUBISHI

003-021

[6C]

09140-30650

WASHER, LOCK

T1.0

ME728679 MITSUBISHI

003-022

[6C]

09140-30600

WASHER, LOCK

T0.2

ME728680 MITSUBISHI

003-022

[6C]

09140-30610

WASHER, LOCK

T0.3

ME728681 MITSUBISHI

003-022

[6C]

09140-30680

WASHER, LOCK

T0.6

ME728682 MITSUBISHI

003-022

[6C]

09140-30690

WASHER, LOCK

T1.0

ME728683 MITSUBISHI

003-023

[6C]

09140-30540

WASHER, LOCK

T0.2

ME728684 MITSUBISHI

003-023

[6C]

09140-30550

WASHER, LOCK

T0.3

ME728685 MITSUBISHI

003-023

[6C]

09140-30620

WASHER, LOCK

T0.6

ME728686 MITSUBISHI

003-023

[6C]

09140-30630

WASHER, LOCK

T1.0

ME728687 MITSUBISHI

003-024

[6C]

09140-30580

WASHER, LOCK

T0.2

ME728688 MITSUBISHI

003-024

[6C]

09140-30590

WASHER, LOCK

T0.3

ME728689 MITSUBISHI

003-024

[6C]

09140-30660

WASHER, LOCK

T0.6

ME728690 MITSUBISHI

003-024

[6C]

09140-30670

WASHER, LOCK

T1.0

ME728691 MITSUBISHI

003-025

[02]

09140-30800

WASHER, LOCK

ID6,T1.0

ME743667 MITSUBISHI

003-026

[01]

09133-40100

NUT, ROUND

ME728692 MITSUBISHI

003-027

[1C]

09133-10110

SHIM

T1.6

ME702584 MITSUBISHI

003-027

[1C]

09133-10120

SHIM

T1.65

ME703151 MITSUBISHI

003-027

[1C]

09133-10130

SHIM

T1.7

ME703152 MITSUBISHI

003-027

[1C]

09133-10140

SHIM

T1.75

ME703153 MITSUBISHI

003-027

[1C]

09133-10150

SHIM

T1.8

ME703154 MITSUBISHI

003-027

[1C]

09133-10160

SHIM

T1.85

ME703155 MITSUBISHI

003-027

[1C]

09133-10170

SHIM

T1.9

ME703156 MITSUBISHI

003-027

[1C]

09133-10180

SHIM

T1.95

ME703157 MITSUBISHI

003-027

[1C]

09133-10190

SHIM

T2.0

ME703158 MITSUBISHI

003-027

[1C]

09133-10200

SHIM

T2.1

ME703159 MITSUBISHI

003-027

[1C]

09133-10210

SHIM

T2.2

ME703160 MITSUBISHI

003-027

[1C]

09133-10220

SHIM

T2.3

ME703161 MITSUBISHI

003-027

[1C]

09133-10230

SHIM

T2.05

ME703148 MITSUBISHI

003-027

[1C]

09133-10240

SHIM

T2.15

ME703149 MITSUBISHI

003-027

[1C]

09133-10250

SHIM

T2.25

ME703150 MITSUBISHI

006

[01]

09142-60081

SLIDER

ME702154 MITSUBISHI

007

[01]

09143-00161

LEVER ASSY, FLOATI

ME743668 MITSUBISHI

007-001

[01]

09143-60300

LEVER SUB-ASSY, FL

ME743669 MITSUBISHI

007-002

[01]

09169-50041

STOPPER SUB-ASSY,

ME702162 MITSUBISHI

007-003

[01]

09094-00630

LEVER SUB-ASSY, CO

ME743670 MITSUBISHI

007-004

[01]

09104-22070

SPRING, RETURN

ME743671 MITSUBISHI

007-005

[01]

09104-22050

SPRING, RETURN

ME743672 MITSUBISHI

007-006

[02]

09089-40020

E-RING

D11,T0.7

ME702639 MITSUBISHI

007-007

[1C]

94901-31390

WASHER, PLATE, SK

T0.1

ME703126 MITSUBISHI

007-007

[1C]

94901-32370

WASHER, PLATE, SK

T0.05

ME703127 MITSUBISHI

007-007

[1C]

94901-33960

WASHER, PLATE, SK

D12,T0.2

ME702190 MITSUBISHI

007-007

[1C]

94901-35080

WASHER, PLATE, SK

T0.3

ME728577 MITSUBISHI

007-007

[1C]

94901-35090

WASHER, PLATE, SK

T0.4

ME703128 MITSUBISHI

008

[01]

09098-00341

SHACKLE SUB-ASSY

ME703129 MITSUBISHI

009

[01]

09148-00040

ARM ASSY, GUIDE

ME743013 MITSUBISHI

009-001

[01]

19089-00800

OVER-HAUL KIT, GOV

L107.0

ME743014 MITSUBISHI

011

[01]

94915-02522

SEAL, OIL

ME728021 MITSUBISHI

012

[01]

09101-70360

PLATE, CAM

ME728659 MITSUBISHI

013

[01]

09104-20600

SPRING, RETURN

ME702121 MITSUBISHI

014

[03]

09089-40020

E-RING

D11,T0.7

ME702639 MITSUBISHI

015

[02]

09156-00021

LEVER SUB-ASSY, SU

ME702172 MITSUBISHI

016

[01]

09156-30050

SHAFT, LEVER SUPPO

ME702173 MITSUBISHI

017

[01]

09129-10880

LEVER SET

ADJUST L

ME743963 MITSUBISHI

019

[02]

09116-70110

PLUG, SCREW

M8,L9

ME702131 MITSUBISHI

020

[01]

09107-13742

LEVER, ADJUSTING

ME736253 MITSUBISHI

021

[01]

94913-00030

KEY, WOODRUFF

T3.0

ME702205 MITSUBISHI

022

[01]

09082-10310

STOPPER

ME703179 MITSUBISHI

023

[01]

09116-90024

NUT

M8,L19

ME702132 MITSUBISHI

024

[01]

91418-06201

BOLT, W/WASHER

M6,L20

ME702041 MITSUBISHI

026

[01]

94904-03840

BOLT, HEXAGON

M6,L25

ME702201 MITSUBISHI

028

[02]

94904-71760

BOLT, W/WASHER

M6,L40

ME702581 MITSUBISHI

029

[01]

09151-70130

GASKET, COVER

ME743688 MITSUBISHI

030

[01]

09011-90160

GASKET, PUMP BODY

ME736184 MITSUBISHI

031

[01]

09154-30040

PLUG, SCREW

ME728709 MITSUBISHI

032

[01]

09169-04210

HOUSING SUB-ASSY,

032-001

[01]

09169-10150

HOUSING, FULL LOAD

032-002

[01]

09148-70310

BLOCK, SLIDING

032-003

[01]

09156-30060

SHAFT, LEVER SUPPO

ME703382 MITSUBISHI

032-004

[01]

09031-70270

PLUG, SCREW

M10,L9.5

ME728357 MITSUBISHI

032-005

[01]

09091-90321

ADAPTER

ME702181 MITSUBISHI

032-006

[01]

09098-30300

PIN, CONNECTING

ME702184 MITSUBISHI

032-007

[01]

09091-90421

ADAPTER

ME702646 MITSUBISHI

032-008

[01]

09083-50050

COLLAR

ME703476 MITSUBISHI

032-009

[01]

09152-13950

CAM, FULL STOP

032-010

[01]

09095-30181

BUSHING

ME702183 MITSUBISHI

032-011

[01]

09091-82050

SPRING, MECHANICAL

ME702644 MITSUBISHI

032-012

[01]

09091-81630

SPRING, MECHANICAL

ME702178 MITSUBISHI

032-013

[01]

09105-10651

PLATE, COVER

ME702651 MITSUBISHI

032-014

[01]

09169-40220

GASKET

54X42 MM

ME743689 MITSUBISHI

032-015

[01]

09169-40230

GASKET

51X51 MM

ME743690 MITSUBISHI

032-016

[01]

09091-82110

SPRING, MECHANICAL

ME702645 MITSUBISHI

032-018

[02]

90160-06051

NUT, HEXAGON

M6,L5

ME702588 MITSUBISHI

032-019

[01]

90170-06361

NUT, HEXAGON

M6,L36

ME702591 MITSUBISHI

032-020

[01]

09103-10220

NUT, CAP

ME703968 MITSUBISHI

032-022

[02]

09024-80010

WASHER, DRAIN SCRE

T1.0

ME702175 MITSUBISHI

032-023

[01]

09152-40520

SCREW, STOPPER

032-025

[01]

09089-40020

E-RING

D11,T0.7

ME702639 MITSUBISHI

032-026

[1C]

94901-32370

WASHER, PLATE, SK

T0.05

ME703127 MITSUBISHI

032-026

[1C]

94901-35020

WASHER, PLATE, SK

T0.1

ME702628 MITSUBISHI

032-026

[1C]

94901-35030

WASHER, PLATE, SK

T0.2

ME702741 MITSUBISHI

032-026

[1C]

94901-36730

WASHER, PLATE, SK

T0.3

ME703328 MITSUBISHI

032-027

[01]

90801-20260

O-RING

ID26.2

ME702648 MITSUBISHI

032-029

[01]

09116-90080

NUT

ME703967 MITSUBISHI

032-030

[02]

94904-81460

BOLT, WASHER HEAD

M6,L16

ME743678 MITSUBISHI

033

[01]

09115-90640

ARM SUB-ASSY

ME743020 MITSUBISHI

034

[01]

09104-20590

SPRING, RETURN

ME702120 MITSUBISHI

035

[01]

09087-80270

PLATE

ME743021 MITSUBISHI

037

[02]

09057-30160

BOLT, DIAPHRAGM CO

ME728717 MITSUBISHI

043

[04]

91418-06161

BOLT, W/WASHER

M6,L16

ME702149 MITSUBISHI

045

[01]

09105-10540

PLATE, COVER

ME703135 MITSUBISHI

046

[01]

91418-06141

BOLT, W/WASHER

M6,L14

ME702592 MITSUBISHI

048

[01]

09115-90141

ARM SUB-ASSY

ME703136 MITSUBISHI

049

[01]

09109-01570

LEVER SUB-ASSY, ST

050

[02]

90160-06051

NUT, HEXAGON

M6,L5

ME702588 MITSUBISHI

051

[01]

94914-00130

O-RING

ID9.0

ME702207 MITSUBISHI

053

[01]

09104-20010

SPRING, RETURN

L8.5D1.6

ME703585 MITSUBISHI

054

[01]

09104-30010

COVER, SPRING

ME702122 MITSUBISHI

056

[01]

09140-30460

WASHER, LOCK

T0.5

ME703741 MITSUBISHI

057

[01]

09140-30420

WASHER, LOCK

T2.0

ME702152 MITSUBISHI

058

[01]

94933-06540

TUBE, RUBBER

ME703992 MITSUBISHI

059

[01]

94914-02190

O-RING

ID39.5

ME702208 MITSUBISHI

060

[01]

09169-40160

GASKET

ME728722 MITSUBISHI

061

[1C]

09141-10320

SHAFT, SLIDING WEI

L34.54

ME728693 MITSUBISHI

061

[1C]

09141-10330

SHAFT, SLIDING WEI

L34.34

ME728694 MITSUBISHI

061

[1C]

09141-10340

SHAFT, SLIDING WEI

L34.14

ME728695 MITSUBISHI

061

[1C]

09141-10350

SHAFT, SLIDING WEI

L33.94

ME728696 MITSUBISHI

061

[1C]

09141-10360

SHAFT, SLIDING WEI

L33.74

ME728697 MITSUBISHI

061

[1C]

09141-10370

SHAFT, SLIDING WEI

L33.54

ME728698 MITSUBISHI

061

[1C]

09141-10380

SHAFT, SLIDING WEI

L33.34

ME728699 MITSUBISHI

061

[1C]

09141-10450

SHAFT, SLIDING WEI

L34.74

ME736992 MITSUBISHI

062

[05]

91418-06351

BOLT, W/WASHER

M6,L35

ME702594 MITSUBISHI

063

[1C]

94901-31960

WASHER, PLATE, SK

T0.1,D16

ME702866 MITSUBISHI

063

[1C]

94901-31970

WASHER, PLATE, SK

T0.2,D16

ME702867 MITSUBISHI

063

[1C]

94901-31980

WASHER, PLATE, SK

T0.5,D16

ME023379 MITSUBISHI

064

[1C]

09140-30300

WASHER, LOCK

T0.2

ME702151 MITSUBISHI

064

[1C]

09140-30310

WASHER, LOCK

T0.3

ME703109 MITSUBISHI

064

[1C]

09140-30320

WASHER, LOCK

T0.4

ME703110 MITSUBISHI

064

[1C]

09140-30330

WASHER, LOCK

T0.5

ME703111 MITSUBISHI

066

[01]

94901-16220

WASHER, STEEL PLAT

T0.5

ME703144 MITSUBISHI

068

[01]

09069-70190

BRACKET SUB-ASSY,

ME743023 MITSUBISHI

069

[02]

09104-10910

SPRING SUB-ASSY, R

ME728997 MITSUBISHI

072

[02]

94904-81460

BOLT, WASHER HEAD

M6,L16

ME743678 MITSUBISHI

073

[02]

94904-81470

BOLT, WASHER HEAD

M6,L20

ME743679 MITSUBISHI

077

[2C]

09140-30230

WASHER, LOCK

T0.5

ME702589 MITSUBISHI

077

[2C]

09140-30240

WASHER, LOCK

T0.55

ME703112 MITSUBISHI

077

[2C]

09140-30250

WASHER, LOCK

T0.6

ME703113 MITSUBISHI

077

[2C]

09140-30260

WASHER, LOCK

T0.65

ME703114 MITSUBISHI

077

[2C]

09140-30270

WASHER, LOCK

T0.7

ME703115 MITSUBISHI

077

[2C]

09140-30280

WASHER, LOCK

T0.75

ME703116 MITSUBISHI

077

[2C]

09140-30290

WASHER, LOCK

T0.8

ME703117 MITSUBISHI

078

[01]

09069-10970

BRACKET, STOP WIRE

ME702634 MITSUBISHI

079

[01]

09266-40020

SCREW, LEVER STOP

ME702654 MITSUBISHI

080

[01]

09072-10150

PLATE

ME703720 MITSUBISHI

Include in ##:

09130-07930 as GOVERNOR ASSY, MEC

09300-07070 PUMP ASSY, INJECTI

Cross reference number

Part num

Firm num

Firm

Name

09130-07930

GOVERNOR ASSY, MEC

09130-07930 GOVERNOR ASSY, MEC Denso Cross

Information governor assy, mec Denso

Scheme #.#:

Include in ##:

Cross reference number

Have questions with 09130-07930?

Group cross 09130-07930
