Buy GOVERNOR ASSY, MEC 09130-05711 genuine, new aftermarket engine parts with delivery

Information governor assy, mec Denso

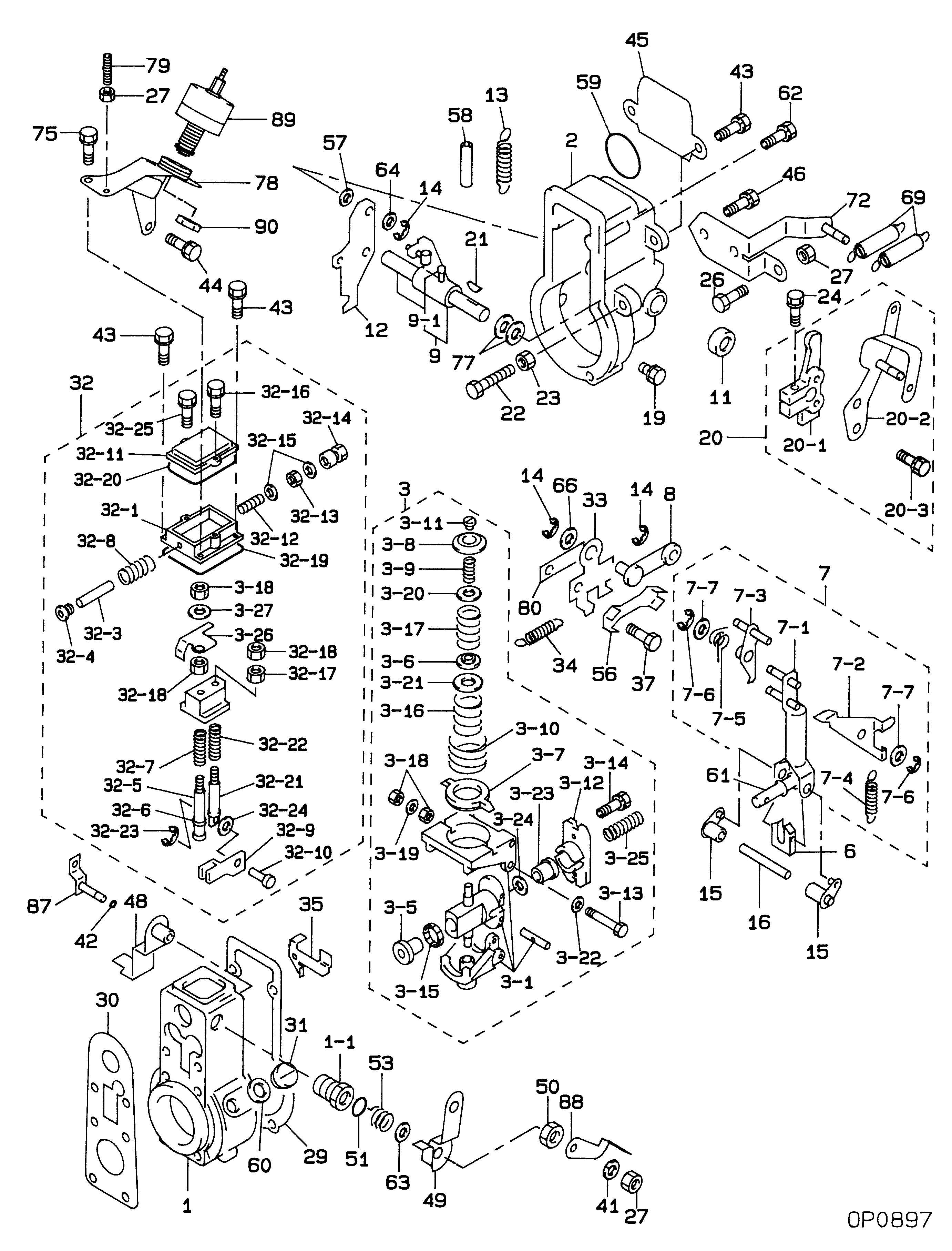

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

09130-05711

GOVERNOR ASSY, MEC

R801

001

[01]

09131-00131

HOUSING SUB-ASSY,

22301-1190A HINO

001-001

[01]

09101-60290

BUSHING, BEARING

22322-2490A HINO

002

[01]

09145-00223

COVER ASSY, GOVERN

22380-1340A HINO

003

[01]

09133-01432

FLYWEIGHT ASSY

003-001

[01]

09137-00062

FLYWEIGHT SUB-ASSY

22304-1650A HINO

003-005

[01]

09134-00031

BUSHING ASSY, CAMS

22321-1751A HINO

003-006

[02]

09137-70351

SEAT, GOVERNOR SPR

22351-1680A HINO

003-007

[02]

09136-30010

SEAT, GOVERNOR SPR

22351-1370A HINO

003-008

[02]

09139-30091

GUIDE, SPRING

22385-1471A HINO

003-009

[02]

09091-81710

SPRING, MECHANICAL

22341-2160A HINO

003-010

[02]

09138-91180

SPRING, IDLING

L28.6,BLUE

22411-2750A HINO

003-011

[02]

09139-50020

NUT, ADJUSTING

M8,1.25 -9610

22825-1350A HINO

003-011

[02]

09139-50050

NUT, ADJUSTING

M8,0.75 9611-

22825-2310A HINO

003-012

[01]

09140-50080

BUSHING, GUIDE

22322-2020A HINO

003-013

[01]

09140-10040

BOLT, BELLCRANK

BOLTTYPE -9904

22815-1940A HINO

003-013

[01]

09140-10061

BOLT, BELLCRANK

PIN TYPE 9905-

22815-3600A HINO

003-014

[02]

91418-06161

BOLT, W/WASHER

M6,L16 -9512

22815-1380A HINO

003-014

[02]

94904-78260

BOLT, W/WASHER

M6,L16 9512-

22815-3410A HINO

003-015

[06]

09133-70150

DAMPER, FLYWEIGHT

22385-2070A HINO

003-016

[2C]

09138-90610

SPRING, IDLING

L26.0,RED

22411-2380A HINO

003-016

[2C]

09138-91010

SPRING, IDLING

L26.15,YELLOW

22411-2450A HINO

003-016

[2C]

09138-91020

SPRING, IDLING

L26.05,GREEN

22411-2460A HINO

003-016

[2C]

09138-91030

SPRING, IDLING

L25.95,BROWN

22411-2470A HINO

003-016

[2C]

09138-91042

SPRING, IDLING

L25.85,BLACK

22411-2480A HINO

003-017

[02]

09139-10470

SPRING, SPEED CONT

22321-2250A HINO

003-018

[02]

90160-06051

NUT, HEXAGON

M6,L5 -9904

22825-1480A HINO

003-018

[02]

09089-40101

E-RING

PIN TYPE 9905-

22456-1260A HINO

003-019

[01]

09140-30010

WASHER, LOCK

D16,T0.5 -9904

22863-1190A HINO

003-020

[2C]

09140-30190

WASHER, LOCK

T0.4

22877-1300A HINO

003-020

[2C]

09140-30200

WASHER, LOCK

T0.6

22877-1310A HINO

003-020

[2C]

09140-30410

WASHER, LOCK

T1.0

22877-1900A HINO

003-020

[2C]

09140-30700

WASHER, LOCK

T0.3

22877-2250A HINO

003-020

[2C]

09140-30710

WASHER, LOCK

T0.2

22877-2260A HINO

003-021

[2C]

09140-30160

WASHER, LOCK

T0.2

22877-1270A HINO

003-021

[2C]

09140-30170

WASHER, LOCK

T0.4

22877-1280A HINO

003-021

[2C]

09140-30180

WASHER, LOCK

T0.6

22877-1290A HINO

003-021

[2C]

09140-30400

WASHER, LOCK

T1.0

22877-1890A HINO

003-021

[2C]

09140-30530

WASHER, LOCK

T0.3

22877-2340A HINO

003-022

[01]

94901-33970

WASHER, PLATE, SK

D12,T0.5 -9904

22885-1740A HINO

003-022

[02]

09140-30800

WASHER, LOCK

ID6,T1.0 9905-

22863-2450A HINO

003-023

[01]

09133-40040

NUT, ROUND

22353-1150A HINO

003-024

[1C]

09133-10110

SHIM

T1.6

22885-2450A HINO

003-024

[1C]

09133-10120

SHIM

T1.65

22885-2460A HINO

003-024

[1C]

09133-10130

SHIM

T1.7

22885-2470A HINO

003-024

[1C]

09133-10140

SHIM

T1.75

22885-2480A HINO

003-024

[1C]

09133-10150

SHIM

T1.8

22885-2490A HINO

003-024

[1C]

09133-10160

SHIM

T1.85

22885-2500A HINO

003-024

[1C]

09133-10170

SHIM

T1.9

22885-2510A HINO

003-024

[1C]

09133-10180

SHIM

T1.95

22885-2520A HINO

003-024

[1C]

09133-10190

SHIM

T2.0

22885-2530A HINO

003-024

[1C]

09133-10200

SHIM

T2.1

22885-2540A HINO

003-024

[1C]

09133-10210

SHIM

T2.2

22885-2550A HINO

003-024

[1C]

09133-10220

SHIM

T2.3

22885-2560A HINO

003-024

[1C]

09133-10230

SHIM

T2.05

22885-5950A HINO

003-024

[1C]

09133-10240

SHIM

T2.15

22885-5960A HINO

003-024

[1C]

09133-10250

SHIM

T2.25

22885-5970A HINO

003-025

[01]

09138-90940

SPRING, IDLING

L21.75,YELLOW

22411-2300A HINO

006

[01]

09142-60081

SLIDER

22349-1131A HINO

007

[01]

09143-00110

LEVER ASSY, FLOATI

22041-1140A HINO

007-001

[01]

09143-60212

LEVER SUB-ASSY, FL

22350-1182A HINO

007-002

[01]

09169-50041

STOPPER SUB-ASSY,

22357-1091A HINO

007-003

[01]

09094-00410

LEVER SUB-ASSY, CO

22042-1190A HINO

007-004

[01]

09104-20580

SPRING, RETURN

22341-1680A HINO

007-005

[01]

09104-20610

SPRING, RETURN

22341-1690A HINO

007-006

[02]

09089-40020

E-RING

22873-1390A HINO

007-007

[C]

94901-31390

WASHER, PLATE, SK

T0.1

22885-1920A HINO

007-007

[C]

94901-32370

WASHER, PLATE, SK

T0.05

22885-1930A HINO

007-007

[C]

94901-33960

WASHER, PLATE, SK

T0.2

22885-1030A HINO

007-007

[C]

94901-35080

WASHER, PLATE, SK

T0.3

22885-1270A HINO

007-007

[C]

94901-35090

WASHER, PLATE, SK

T0.4

22885-1280A HINO

008

[01]

09098-00341

SHACKLE SUB-ASSY

22045-1110A HINO

009

[01]

09148-00360

ARM ASSY, GUIDE

22307-2190A HINO

009-001

[01]

19089-00780

OVER-HAUL KIT, GOV

011

[01]

94915-02522

SEAL, OIL

22827-1530A HINO

012

[01]

09101-70350

PLATE, CAM

22369-2040A HINO

013

[01]

09104-20600

SPRING, RETURN

22341-1710A HINO

014

[03]

09089-40020

E-RING

22873-1390A HINO

015

[02]

09156-00021

LEVER SUB-ASSY, SU

22350-1190A HINO

016

[01]

09156-30120

SHAFT, LEVER SUPPO

22358-1570A HINO

019

[02]

09116-70110

PLUG, SCREW

22845-1250A HINO

020

[01]

09129-00950

LEVER SET

22350-1850A HINO

020-001

[01]

09107-13742

LEVER, ADJUSTING

22415-1760A HINO

020-002

[01]

09129-10120

LEVER SET

ADJUST L

22319-2030A HINO

020-003

[02]

91418-06161

BOLT, W/WASHER

M6,L16

22815-1380A HINO

021

[01]

94913-00030

KEY, WOODRUFF

22891-1060A HINO

022

[01]

09082-10310

STOPPER

22865-1360A HINO

023

[01]

09116-90024

NUT

22825-1890A HINO

024

[01]

91418-06201

BOLT, W/WASHER

M6,L20

22815-1290A HINO

026

[01]

94904-07220

BOLT, HEXAGON

M6,L35

22815-2950A HINO

027

[03]

90160-06051

NUT, HEXAGON

22825-1480A HINO

029

[01]

09151-70090

GASKET, COVER

22847-2370A HINO

030

[01]

09082-30460

GASKET

031

[01]

09154-30031

PLUG, SCREW

22845-1261A HINO

032

[01]

09169-02540

HOUSING SUB-ASSY,

-9904

22301-1750A HINO

032

[01]

09169-03430

HOUSING SUB-ASSY,

9905-

032-001

[01]

09169-10110

HOUSING, FULL LOAD

22371-1130A HINO

032-002

[01]

09148-70093

BLOCK, SLIDING

-9904

032-002

[01]

09148-70280

BLOCK, SLIDING

9905-

032-003

[01]

09156-30040

SHAFT, LEVER SUPPO

22338-1070A HINO

032-004

[01]

09031-70270

PLUG, SCREW

22845-1480A HINO

032-005

[01]

09091-90460

ADAPTER

L62.5

22385-1820A HINO

032-006

[01]

09095-30181

BUSHING

22322-1701A HINO

032-007

[01]

09091-81630

SPRING, MECHANICAL

22411-1710A HINO

032-008

[01]

09091-82110

SPRING, MECHANICAL

22411-1800A HINO

032-009

[01]

09152-12370

CAM, FULL STOP

032-010

[01]

09098-30300

PIN, CONNECTING

22455-1230A HINO

032-011

[01]

09105-10651

PLATE, COVER

22386-1380A HINO

032-012

[01]

09152-40400

SCREW, STOPPER

-9904

22395-1510A HINO

032-012

[01]

09152-40500

SCREW, STOPPER

9905-

032-013

[01]

09634-20010

NUT, LOCK

M6,L5

22821-1530A HINO

032-014

[01]

09103-10250

NUT, CAP

22342-1820A HINO

032-015

[02]

09024-80010

WASHER, DRAIN SCRE

T1.0

22847-1730A HINO

032-016

[01]

94904-74620

BOLT, W/WASHER

M6,L16

22815-2920A HINO

032-017

[01]

90160-06051

NUT, HEXAGON

M6,L5

22825-1480A HINO

032-018

[03]

90170-06361

NUT, HEXAGON

M6,L36

92100-6040A HINO

032-019

[01]

94914-04200

O-RING

ID54.5 -9911

22817-1320A HINO

032-019

[01]

09169-40230

GASKET

51X51 MM 9912-

22847-2690A HINO

032-020

[01]

94914-02030

O-RING

ID52.5 -9911

22817-1310A HINO

032-020

[01]

09169-40220

GASKET

9912-

22847-2590A HINO

032-021

[01]

09091-90470

ADAPTER

L63.5

22385-1830A HINO

032-022

[01]

09091-82050

SPRING, MECHANICAL

22411-1790A HINO

032-023

[01]

09089-40020

E-RING

D11,T0.7

22873-1390A HINO

032-024

[1C]

94901-32370

WASHER, PLATE, SK

T0.05

22885-1930A HINO

032-024

[1C]

94901-35020

WASHER, PLATE, SK

T0.1

22885-1440A HINO

032-024

[1C]

94901-35030

WASHER, PLATE, SK

T0.2

22885-1450A HINO

032-025

[01]

91418-06161

BOLT, W/WASHER

M6,L16

22815-1380A HINO

032-026

[01]

09103-60120

CUP, SPRING

22414-1360A HINO

032-027

[01]

94901-32120

WASHER, PLATE, SK

T0.5

22885-7660A HINO

033

[01]

09115-90500

ARM SUB-ASSY

22343-3210A HINO

034

[01]

09104-20590

SPRING, RETURN

22341-1700A HINO

035

[01]

09087-80060

PLATE

22343-1650A HINO

037

[02]

09057-30150

BOLT, DIAPHRAGM CO

22815-2890A HINO

041

[01]

90258-06001

WASHER, SPRING

FOR M6

28219-1110A HINO

042

[01]

94914-03660

O-RING

ID5.5

22847-1740A HINO

043

[05]

91418-06161

BOLT, W/WASHER

M6,L16

22815-1380A HINO

044

[01]

91418-06121

BOLT, W/WASHER

M6,L12

22815-1500A HINO

045

[01]

09105-10540

PLATE, COVER

22386-1390A HINO

046

[02]

91418-06141

BOLT, W/WASHER

L14

22815-1480A HINO

048

[01]

09115-90321

ARM SUB-ASSY

22348-1531A HINO

049

[01]

09109-82690

STOPPER

050

[01]

94905-04420

NUT, HEXAGON

M12

22825-1540A HINO

051

[01]

90801-10130

O-RING

ID13

22847-1980A HINO

053

[01]

09104-20900

SPRING, RETURN

22341-2150A HINO

056

[01]

09140-30460

WASHER, LOCK

T0.5

22877-1990A HINO

057

[01]

09140-30420

WASHER, LOCK

22877-1880A HINO

058

[01]

94933-06540

TUBE, RUBBER

22385-1800A HINO

059

[01]

94914-02190

O-RING

ID39.5

22847-1540A HINO

060

[01]

09169-40170

GASKET

22847-2360A HINO

061

[1C]

09141-10180

SHAFT, SLIDING WEI

L31.9

22318-1130A HINO

061

[1C]

09141-10190

SHAFT, SLIDING WEI

L31.7

22318-1140A HINO

061

[1C]

09141-10200

SHAFT, SLIDING WEI

L31.5

22318-1150A HINO

061

[1C]

09141-10210

SHAFT, SLIDING WEI

L31.3

22318-1160A HINO

061

[1C]

09141-10220

SHAFT, SLIDING WEI

L31.1

22318-1170A HINO

061

[1C]

09141-10230

SHAFT, SLIDING WEI

L30.9

22318-1180A HINO

061

[1C]

09141-10240

SHAFT, SLIDING WEI

L30.7

22318-1190A HINO

061

[1C]

09141-10390

SHAFT, SLIDING WEI

L31.8

22318-1320A HINO

061

[1C]

09141-10400

SHAFT, SLIDING WEI

L31.6

22318-1330A HINO

061

[1C]

09141-10410

SHAFT, SLIDING WEI

L31.4

22318-1340A HINO

061

[1C]

09141-10420

SHAFT, SLIDING WEI

L31.2

22318-1350A HINO

061

[1C]

09141-10430

SHAFT, SLIDING WEI

L31.0

22318-1360A HINO

061

[1C]

09141-10440

SHAFT, SLIDING WEI

L30.8

22318-1370A HINO

061

[1C]

09141-10460

SHAFT, SLIDING WEI

L32.0

22318-1380A HINO

061

[1C]

09141-10470

SHAFT, SLIDING WEI

L32.1

22318-1390A HINO

062

[06]

91418-06351

BOLT, W/WASHER

M6,L35

22815-1920A HINO

063

[1C]

09140-30360

WASHER, LOCK

T0.6 -9804

22877-1740A HINO

063

[1C]

09140-30370

WASHER, LOCK

T0.7 -9804

22877-1750A HINO

063

[1C]

09140-30380

WASHER, LOCK

T1.0 -9804

22877-1760A HINO

063

[1C]

09140-30510

WASHER, LOCK

T0.1 9805-

22877-2190A HINO

063

[1C]

09140-30520

WASHER, LOCK

T0.2 9805-

22877-2200A HINO

064

[1C]

09140-30300

WASHER, LOCK

T0.2

22877-1360A HINO

064

[1C]

09140-30310

WASHER, LOCK

T0.3

22877-1370A HINO

064

[1C]

09140-30320

WASHER, LOCK

T0.4

22877-1380A HINO

064

[1C]

09140-30330

WASHER, LOCK

T0.5

22877-1390A HINO

066

[01]

94901-16220

WASHER, STEEL PLAT

T0.5

22877-1320A HINO

069

[02]

09104-10820

SPRING SUB-ASSY, R

22341-3290A HINO

072

[01]

09097-30101

ARM, SPRING

22343-4800A HINO

075

[01]

94904-72700

BOLT, W/WASHER

M6,L20

22815-2030A HINO

077

[2C]

09140-30230

WASHER, LOCK

T0.5

22877-1400A HINO

077

[2C]

09140-30240

WASHER, LOCK

T0.55

22877-1410A HINO

077

[2C]

09140-30250

WASHER, LOCK

T0.6

22877-1420A HINO

077

[2C]

09140-30260

WASHER, LOCK

T0.65

22877-1430A HINO

077

[2C]

09140-30270

WASHER, LOCK

T0.7

22877-1440A HINO

077

[2C]

09140-30280

WASHER, LOCK

T0.75

22877-1450A HINO

077

[2C]

09140-30290

WASHER, LOCK

T0.8

22877-1460A HINO

078

[01]

09072-00260

BRACKET SUB-ASSY,

079

[01]

09266-40020

SCREW, LEVER STOP

22865-1390A HINO

080

[01]

09072-10150

PLATE

22343-3180A HINO

087

[01]

09115-90311

ARM SUB-ASSY

22348-1551A HINO

088

[01]

09108-30910

ARM

089

[01]

09071-00551

BELLOWS ASSY, PNEU

22440-1100A HINO

090

[01]

94905-30241

NUT, HEXAGON, W/ H

M22

22825-1510A HINO

Include in ##:

09130-05711 as GOVERNOR ASSY, MEC

09200-02221 PUMP ASSY, INJECTI

Cross reference number

Part num

Firm num

Firm

Name

09130-05711

GOVERNOR ASSY, MEC

09130-05711 GOVERNOR ASSY, MEC Denso Cross

Information governor assy, mec Denso

Scheme #.#:

Include in ##:

Cross reference number

Have questions with 09130-05711?

Group cross 09130-05711
