09130-05553 GOVERNOR ASSY, MEC Denso Cross


Rating:
5
Buy GOVERNOR ASSY, MEC 09130-05553 genuine, new aftermarket engine parts with delivery

Information governor assy, mec Denso

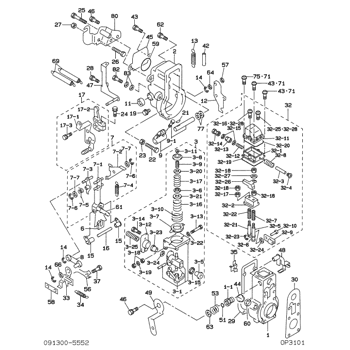

Scheme #.#:

GOVERNOR ASSY, MEC
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09130-05553
GOVERNOR ASSY, MEC
R801H
22310-5810 HINO
000
[01]
09130-05553
GOVERNOR ASSY, MEC
R801H
S2231-05813 HINO
001
[01]
09131-00280
HOUSING SUB-ASSY,
22301-1730A HINO
001-001
[01]
09101-60020
BUSHING, BEARING
M16,16.6
22322-1180A HINO
002
[01]
09145-00463
COVER ASSY, GOVERN
22380-2290A HINO
003
[01]
09133-01532
FLYWEIGHT ASSY
22360-1920A HINO
003-001
[01]
09137-00092
FLYWEIGHT SUB-ASSY
22304-1700A HINO
003-005
[01]
09134-00081
BUSHING ASSY, CAMS
22322-2380A HINO
003-006
[02]
09137-70343
SEAT, GOVERNOR SPR
22351-1640A HINO
003-007
[02]
09136-30010
SEAT, GOVERNOR SPR
22351-1370A HINO
003-008
[02]
09139-30091
GUIDE, SPRING
22385-1471A HINO
003-009
[02]
09091-81710
SPRING, MECHANICAL
22341-2160A HINO
003-010
[02]
09138-91130
SPRING, IDLING
L26.6,YELLOW
22321-2930A HINO
003-011
[02]
09139-50020
NUT, ADJUSTING
M8,1.25 -9610
22825-1350A HINO
003-011
[02]
09139-50050
NUT, ADJUSTING
M8,0.75 9611-
22825-2310A HINO
003-012
[01]
09140-50080
BUSHING, GUIDE
22322-2020A HINO
003-013
[01]
09140-10040
BOLT, BELLCRANK
BOLTTYPE -9904
22815-1940A HINO
003-013
[01]
09140-10061
BOLT, BELLCRANK
PIN TYPE 9905-
22815-3600A HINO
003-014
[02]
91418-06161
BOLT, W/WASHER
M6,L16 -9512
22815-1380A HINO
003-014
[02]
94904-78260
BOLT, W/WASHER
M6,L16 9512-
22815-3410A HINO
003-015
[06]
09133-70100
DAMPER, FLYWEIGHT
22385-1900A HINO
003-016
[02]
09138-90580
SPRING, IDLING
L25.7,YELLOW
22411-2510A HINO
003-017
[02]
09139-10391
SPRING, SPEED CONT
L23.5
22321-3570A HINO
003-018
[02]
90160-06051
NUT, HEXAGON
M6,L5 -9904
22825-1480A HINO
003-018
[02]
09089-40101
E-RING
PIN TYPE 9905-
22456-1260A HINO
003-019
[01]
09140-30010
WASHER, LOCK
D16,T0.5 -9904
22863-1190A HINO
003-020
[2C]
09140-30190
WASHER, LOCK
T0.4
22877-1300A HINO
003-020
[2C]
09140-30200
WASHER, LOCK
T0.6
22877-1310A HINO
003-020
[2C]
09140-30410
WASHER, LOCK
T1.0
22877-1900A HINO
003-020
[2C]
09140-30700
WASHER, LOCK
T0.3
22877-2250A HINO
003-020
[2C]
09140-30710
WASHER, LOCK
T0.2
22877-2260A HINO
003-021
[2C]
09140-30160
WASHER, LOCK
T0.2
22877-1270A HINO
003-021
[2C]
09140-30170
WASHER, LOCK
T0.4
22877-1280A HINO
003-021
[2C]
09140-30180
WASHER, LOCK
T0.6
22877-1290A HINO
003-021
[2C]
09140-30400
WASHER, LOCK
T1.0
22877-1890A HINO
003-022
[01]
94901-33970
WASHER, PLATE, SK
D12,T0.5 -9904
22885-1740A HINO
003-022
[02]
09140-30800
WASHER, LOCK
ID6,T1.0 9905-
22863-2450A HINO
003-023
[01]
09133-40100
NUT, ROUND
22535-1120A HINO
003-024
[1C]
09133-10110
SHIM
T1.6
22885-2450A HINO
003-024
[1C]
09133-10120
SHIM
T1.65
22885-2460A HINO
003-024
[1C]
09133-10130
SHIM
T1.7
22885-2470A HINO
003-024
[1C]
09133-10140
SHIM
T1.75
22885-2480A HINO
003-024
[1C]
09133-10150
SHIM
T1.8
22885-2490A HINO
003-024
[1C]
09133-10160
SHIM
T1.85
22885-2500A HINO
003-024
[1C]
09133-10170
SHIM
T1.9
22885-2510A HINO
003-024
[1C]
09133-10180
SHIM
T1.95
22885-2520A HINO
003-024
[1C]
09133-10190
SHIM
T2.0
22885-2530A HINO
003-024
[1C]
09133-10200
SHIM
T2.1
22885-2540A HINO
003-024
[1C]
09133-10210
SHIM
T2.2
22885-2550A HINO
003-024
[1C]
09133-10220
SHIM
T2.3
22885-2560A HINO
003-024
[1C]
09133-10230
SHIM
T2.05
22885-5950A HINO
003-024
[1C]
09133-10240
SHIM
T2.15
22885-5960A HINO
003-024
[1C]
09133-10250
SHIM
T2.25
22885-5970A HINO
003-025
[01]
09138-91330
SPRING, IDLING
L21.25,WHITE
006
[01]
09142-60081
SLIDER
22349-1131A HINO
007
[01]
09143-00110
LEVER ASSY, FLOATI
22041-1140A HINO
007-001
[01]
09143-60212
LEVER SUB-ASSY, FL
22350-1182A HINO
007-002
[01]
09169-50041
STOPPER SUB-ASSY,
22357-1091A HINO
007-003
[01]
09094-00410
LEVER SUB-ASSY, CO
22042-1190A HINO
007-004
[01]
09104-20580
SPRING, RETURN
22341-1680A HINO
007-005
[01]
09104-20610
SPRING, RETURN
22341-1690A HINO
007-006
[02]
09089-40020
E-RING
D11,T0.7
22873-1390A HINO
007-007
[C]
94901-31390
WASHER, PLATE, SK
T0.1
22885-1920A HINO
007-007
[C]
94901-32370
WASHER, PLATE, SK
T0.05
22885-1930A HINO
007-007
[C]
94901-33960
WASHER, PLATE, SK
D12,T0.2
22885-1030A HINO
007-007
[C]
94901-35080
WASHER, PLATE, SK
T0.3
22885-1270A HINO
007-007
[C]
94901-35090
WASHER, PLATE, SK
T0.4
22885-1280A HINO
008
[01]
09098-00341
SHACKLE SUB-ASSY
22045-1110A HINO
009
[01]
09148-00060
ARM ASSY, GUIDE
22307-1940A HINO
009-001
[01]
19089-00820
OVER-HAUL KIT, GOV
SHAFT KIT
22307-2700A HINO
011
[01]
94915-02522
SEAL, OIL
22827-1530A HINO
012
[01]
09101-70390
PLATE, CAM
22369-3210A HINO
013
[01]
09104-20600
SPRING, RETURN
22341-1710A HINO
014
[03]
09089-40020
E-RING
D11,T0.7
22873-1390A HINO
015
[02]
09156-00021
LEVER SUB-ASSY, SU
22350-1190A HINO
016
[01]
09156-30050
SHAFT, LEVER SUPPO
22358-1410A HINO
017
[01]
09129-01070
LEVER SET
22350-2000A HINO
017-001
[01]
09129-10300
LEVER SET
ADJUST L
22415-2650A HINO
017-002
[01]
09107-14500
LEVER, ADJUSTING
22415-2180A HINO
017-003
[02]
91418-06161
BOLT, W/WASHER
M6,L16
22815-1380A HINO
019
[02]
09116-70110
PLUG, SCREW
M8,L9
22845-1250A HINO
021
[01]
94913-00030
KEY, WOODRUFF
T3.0
22891-1060A HINO
022
[01]
09082-10254
STOPPER
22865-1320A HINO
023
[01]
09116-90024
NUT
M8,L19
22825-1890A HINO
024
[01]
91418-06201
BOLT, W/WASHER
M6,L20
22815-1290A HINO
025
[01]
94904-71750
BOLT, W/WASHER
M6,L50
22815-1490A HINO
026
[01]
94904-07220
BOLT, HEXAGON
M6,L35
22815-2950A HINO
027
[01]
90160-06051
NUT, HEXAGON
M6,L5
22825-1480A HINO
028
[02]
94904-71760
BOLT, W/WASHER
M6,L40
22815-1860A HINO
029
[01]
09151-70090
GASKET, COVER
22847-2370A HINO
030
[01]
09011-90160
GASKET, PUMP BODY
22847-2510A HINO
032
[01]
09169-02733
HOUSING SUB-ASSY,
22370-2360A HINO
032-001
[01]
09169-10110
HOUSING, FULL LOAD
22371-1130A HINO
032-002
[01]
09148-70261
BLOCK, SLIDING
-9809
22434-1120A HINO
032-002
[01]
09148-70270
BLOCK, SLIDING
*1 9810-
22434-1140A HINO
032-003
[01]
09156-30040
SHAFT, LEVER SUPPO
22338-1070A HINO
032-004
[01]
09031-70270
PLUG, SCREW
M10,L9.5
22845-1480A HINO
032-005
[01]
09091-90710
ADAPTER
L74.9
22385-2970A HINO
032-006
[01]
09095-30181
BUSHING
22322-1701A HINO
032-007
[01]
09091-82880
SPRING, MECHANICAL
22321-3940A HINO
032-008
[01]
09091-82110
SPRING, MECHANICAL
-9809
22411-1800A HINO
032-008
[01]
09091-82910
SPRING, MECHANICAL
*1 9810-
22411-2810A HINO
032-009
[01]
09152-12461
CAM, FULL STOP
22369-3330A HINO
032-010
[01]
09098-30300
PIN, CONNECTING
22455-1230A HINO
032-011
[01]
09105-11200
PLATE, COVER
22386-2010A HINO
032-012
[01]
09152-40400
SCREW, STOPPER
-9809
22395-1510A HINO
032-012
[01]
09152-40500
SCREW, STOPPER
*1 9810-
22395-2140A HINO
032-013
[01]
09634-20010
NUT, LOCK
M6,L5
22821-1530A HINO
032-014
[01]
09103-10250
NUT, CAP
22342-1820A HINO
032-015
[02]
09024-80010
WASHER, DRAIN SCRE
T1.0
22847-1730A HINO
032-016
[01]
94904-78060
BOLT, W/WASHER
M6,L16 -9709
22815-3470A HINO
032-017
[01]
90160-06051
NUT, HEXAGON
M6,L5
22825-1480A HINO
032-018
[03]
90170-06361
NUT, HEXAGON
M6,L3.6
92100-6040A HINO
032-019
[01]
94914-04200
O-RING
ID54.5 -9911
22817-1320A HINO
032-019
[01]
09169-40230
GASKET
51X51 MM 9912-
22847-2690A HINO
032-020
[01]
94914-02030
O-RING
ID52.5 -9911
22817-1310A HINO
032-020
[01]
09169-40220
GASKET
54X42 MM 9912-
22847-2590A HINO
032-021
[01]
09091-90720
ADAPTER
L75.9
22385-3120A HINO
032-022
[01]
09091-82890
SPRING, MECHANICAL
22321-3930A HINO
032-023
[01]
09089-40020
E-RING
D11,T0.7
22873-1390A HINO
032-024
[1C]
94901-32370
WASHER, PLATE, SK
T0.05
22885-1930A HINO
032-024
[1C]
94901-35020
WASHER, PLATE, SK
T0.1
22885-1440A HINO
032-024
[1C]
94901-35030
WASHER, PLATE, SK
T0.2
22885-1450A HINO
032-025
[01]
91418-06161
BOLT, W/WASHER
M6,L16 -9709
22815-1380A HINO
032-026
[01]
09103-60121
CUP, SPRING
22414-1360A HINO
032-027
[01]
94901-32120
WASHER, PLATE, SK
T0.5
22885-7660A HINO
032-028
[02]
94904-81460
BOLT, WASHER HEAD
M6,L16 9709-
22815-3490A HINO
033
[01]
09115-90700
ARM SUB-ASSY
22348-4200A HINO
034
[01]
09104-20590
SPRING, RETURN
22341-1700A HINO
035
[01]
09087-80300
PLATE
22343-6560A HINO
037
[02]
09057-30160
BOLT, DIAPHRAGM CO
22815-2990A HINO
042
[01]
94933-06540
TUBE, RUBBER
22385-1800A HINO
043
[04]
91418-06161
BOLT, W/WASHER
M6,L16 -9709
22815-1380A HINO
043
[01]
91418-06161
BOLT, W/WASHER
M6,L16 9709-
22815-1380A HINO
044
[01]
09154-30031
PLUG, SCREW
22845-1261A HINO
045
[01]
09105-10540
PLATE, COVER
22386-1390A HINO
046
[03]
91418-06141
BOLT, W/WASHER
M6,L14
22815-1480A HINO
047
[01]
09069-70130
BRACKET SUB-ASSY,
048
[01]
09115-90710
ARM SUB-ASSY
22348-4210A HINO
049
[01]
09109-82591
STOPPER
22395-1930A HINO
051
[01]
94914-00130
O-RING
ID9.0
22817-1440A HINO
053
[01]
09104-20690
SPRING, RETURN
22341-1750A HINO
056
[01]
09140-30460
WASHER, LOCK
T0.5
22877-1990A HINO
057
[01]
09140-30420
WASHER, LOCK
T2.0
22877-1880A HINO
058
[01]
09072-10150
PLATE
22343-3180A HINO
059
[01]
94914-02190
O-RING
ID39.5
22847-1540A HINO
060
[01]
09169-40170
GASKET
22847-2360A HINO
061
[1C]
09141-10180
SHAFT, SLIDING WEI
L31.9
22318-1130A HINO
061
[1C]
09141-10190
SHAFT, SLIDING WEI
L31.7
22318-1140A HINO
061
[1C]
09141-10200
SHAFT, SLIDING WEI
L31.5
22318-1150A HINO
061
[1C]
09141-10210
SHAFT, SLIDING WEI
L31.3
22318-1160A HINO
061
[1C]
09141-10220
SHAFT, SLIDING WEI
L31.1
22318-1170A HINO
061
[1C]
09141-10230
SHAFT, SLIDING WEI
L30.9
22318-1180A HINO
061
[1C]
09141-10240
SHAFT, SLIDING WEI
L30.7
22318-1190A HINO
061
[1C]
09141-10390
SHAFT, SLIDING WEI
L31.8
22318-1320A HINO
061
[1C]
09141-10400
SHAFT, SLIDING WEI
L31.6
22318-1330A HINO
061
[1C]
09141-10410
SHAFT, SLIDING WEI
L31.4
22318-1340A HINO
061
[1C]
09141-10420
SHAFT, SLIDING WEI
L31.2
22318-1350A HINO
061
[1C]
09141-10430
SHAFT, SLIDING WEI
L31.0
22318-1360A HINO
061
[1C]
09141-10440
SHAFT, SLIDING WEI
L30.8
22318-1370A HINO
061
[1C]
09141-10460
SHAFT, SLIDING WEI
L32.0
22318-1380A HINO
061
[1C]
09141-10470
SHAFT, SLIDING WEI
L32.1
22318-1390A HINO
062
[04]
91418-06351
BOLT, W/WASHER
M6,L35
22815-1920A HINO
063
[1C]
94901-31960
WASHER, PLATE, SK
T0.1
22885-3430A HINO
063
[1C]
94901-31970
WASHER, PLATE, SK
T0.2
22885-3440A HINO
063
[1C]
94901-31980
WASHER, PLATE, SK
T0.5
22885-3450A HINO
064
[1C]
09140-30300
WASHER, LOCK
T0.2
22877-1360A HINO
064
[1C]
09140-30310
WASHER, LOCK
T0.3
22877-1370A HINO
064
[1C]
09140-30320
WASHER, LOCK
T0.4
22877-1380A HINO
064
[1C]
09140-30330
WASHER, LOCK
T0.5
22877-1390A HINO
066
[01]
94901-16220
WASHER, STEEL PLAT
T0.5
22877-1320A HINO
069
[02]
09104-11041
SPRING SUB-ASSY, R
22341-4160A HINO
071
[04]
94904-81460
BOLT, WASHER HEAD
M6,L16 9709-
22815-3490A HINO
075
[01]
94904-74620
BOLT, W/WASHER
M6,L16 -9709
22815-2920A HINO
077
[2C]
09140-30230
WASHER, LOCK
T0.5
22877-1400A HINO
077
[2C]
09140-30240
WASHER, LOCK
T0.55
22877-1410A HINO
077
[2C]
09140-30250
WASHER, LOCK
T0.6
22877-1420A HINO
077
[2C]
09140-30260
WASHER, LOCK
T0.65
22877-1430A HINO
077
[2C]
09140-30270
WASHER, LOCK
T0.7
22877-1440A HINO
077
[2C]
09140-30280
WASHER, LOCK
T0.75
22877-1450A HINO
077
[2C]
09140-30290
WASHER, LOCK
T0.8
22877-1460A HINO
080
[01]
09069-00650
BRACKET SUB-ASSY,
22343-5470A HINO

Include in ##:

09130-05553 as GOVERNOR ASSY, MEC
09130-05553 GOVERNOR ASSY, MEC
09200-02034 PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09130-05553
22310-5810
GOVERNOR ASSY, MEC




Have questions with 09130-05553?





Group cross 09130-05553

Back to top
