Buy GOVERNOR ASSY, MEC 09130-04730 HINO genuine, new aftermarket engine parts with delivery

Information governor assy, mec Denso

HINO GOVERNOR ASSY, MEC DA

*1 WHEN REPLACING A CAM PLATE, SELECT THE SPECIFIED
GUIDE ARM TO MATCH THE MARK.

KIT List:

Part name

Kit1

Kit2

Governor assy, mec

1908900271

Governor assy, mec

1908900271

Governor assy, mec

1908900271

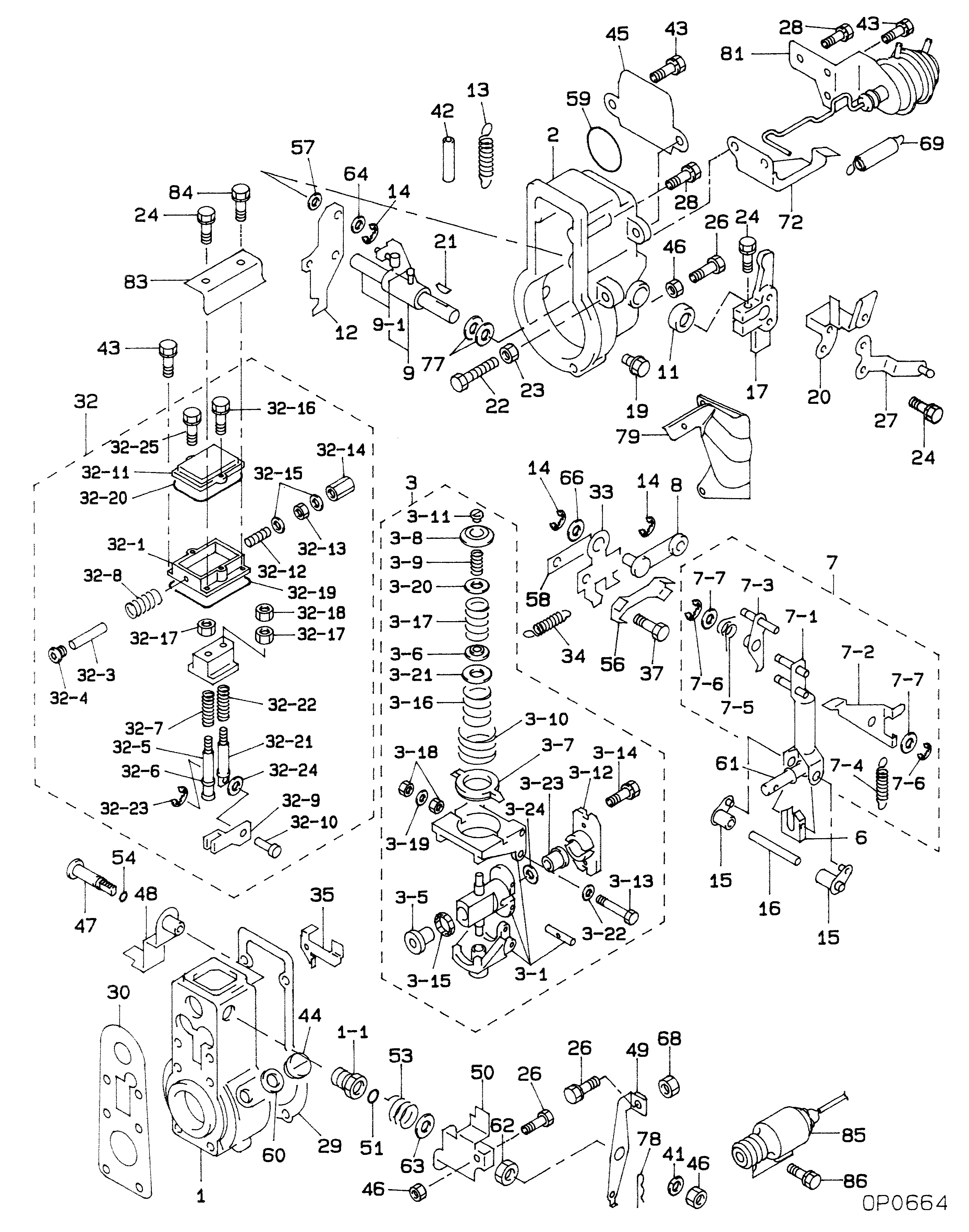

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

09130-04730

GOVERNOR ASSY, MEC

R801

001

[01]

09131-00230

HOUSING SUB-ASSY,

22301-1410A HINO

001-001

[01]

09101-60290

BUSHING, BEARING

002

[01]

09145-00901

COVER ASSY, GOVERN

-9512

002

[01]

09145-00881

COVER ASSY, GOVERN

9512-

003

[01]

09133-01322

FLYWEIGHT ASSY

003-001

[01]

09137-00062

FLYWEIGHT SUB-ASSY

22304-1650A HINO

003-005

[01]

09134-00031

BUSHING ASSY, CAMS

22321-1751A HINO

003-006

[02]

09137-70341

SEAT, GOVERNOR SPR

22351-1640A HINO

003-007

[02]

09136-30010

SEAT, GOVERNOR SPR

22351-1370A HINO

003-008

[02]

09139-30091

GUIDE, SPRING

22385-1471A HINO

003-009

[02]

09091-81710

SPRING, MECHANICAL

22341-2160A HINO

003-010

[02]

09138-90750

SPRING, IDLING

L23.3,YELLOW

22411-1980A HINO

003-011

[02]

09139-50020

NUT, ADJUSTING

M8,1.25 -9610

22825-1350A HINO

003-011

[02]

09139-50050

NUT, ADJUSTING

M8,0.75 9611-

003-012

[01]

09140-50071

BUSHING, GUIDE

22322-1760A HINO

003-013

[01]

09140-10040

BOLT, BELLCRANK

BOLTTYPE -9904

22815-1940A HINO

003-013

[01]

09140-10061

BOLT, BELLCRANK

PIN TYPE 9905-

003-014

[02]

91418-06161

BOLT, W/WASHER

M6,L16 -9512

22815-1380A HINO

003-014

[02]

94904-78260

BOLT, W/WASHER

M6,L16 9512-

22815-3410A HINO

003-015

[06]

09133-70150

DAMPER, FLYWEIGHT

22385-2070A HINO

003-016

[02]

09138-90560

SPRING, IDLING

L24.4,BLUE

22411-1670A HINO

003-017

[02]

09139-10400

SPRING, SPEED CONT

K4.5

22321-2160A HINO

003-018

[02]

90160-06051

NUT, HEXAGON

M6,L5 -9904

22825-1480A HINO

003-018

[02]

09089-40101

E-RING

PIN TYPE 9905-

003-019

[01]

09140-30010

WASHER, LOCK

D16,T0.5 -9904

22863-1190A HINO

003-020

[2C]

09140-30190

WASHER, LOCK

T0.4

22877-1300A HINO

003-020

[2C]

09140-30200

WASHER, LOCK

T0.6

22877-1310A HINO

003-020

[2C]

09140-30410

WASHER, LOCK

T1.0

22877-1900A HINO

003-021

[2C]

09140-30160

WASHER, LOCK

T0.2

22877-1270A HINO

003-021

[2C]

09140-30170

WASHER, LOCK

T0.4

22877-1280A HINO

003-021

[2C]

09140-30180

WASHER, LOCK

T0.6

22877-1290A HINO

003-021

[2C]

09140-30400

WASHER, LOCK

T1.0

22877-1890A HINO

003-022

[01]

94901-33970

WASHER, PLATE, SK

D12,T0.5 -9904

22885-1740A HINO

003-022

[02]

09140-30800

WASHER, LOCK

ID6,T1.0 9905-

003-023

[01]

09133-40040

NUT, ROUND

22353-1150A HINO

003-024

[1C]

09133-10110

SHIM

T1.6

22885-2450A HINO

003-024

[1C]

09133-10120

SHIM

T1.65

22885-2460A HINO

003-024

[1C]

09133-10130

SHIM

T1.7

22885-2470A HINO

003-024

[1C]

09133-10140

SHIM

T1.75

22885-2480A HINO

003-024

[1C]

09133-10150

SHIM

T1.8

22885-2490A HINO

003-024

[1C]

09133-10160

SHIM

T1.85

22885-2500A HINO

003-024

[1C]

09133-10170

SHIM

T1.9

22885-2510A HINO

003-024

[1C]

09133-10180

SHIM

T1.95

22885-2520A HINO

003-024

[1C]

09133-10190

SHIM

T2.0

22885-2530A HINO

003-024

[1C]

09133-10200

SHIM

T2.1

22885-2540A HINO

003-024

[1C]

09133-10210

SHIM

T2.2

22885-2550A HINO

003-024

[1C]

09133-10220

SHIM

T2.3

22885-2560A HINO

003-024

[1C]

09133-10230

SHIM

T2.05

22885-5950A HINO

003-024

[1C]

09133-10240

SHIM

T2.15

22885-5960A HINO

003-024

[1C]

09133-10250

SHIM

T2.25

22885-5970A HINO

006

[01]

09142-60081

SLIDER

22349-1131A HINO

007

[01]

09143-00110

LEVER ASSY, FLOATI

22041-1140A HINO

007-001

[01]

09143-60212

LEVER SUB-ASSY, FL

22350-1182A HINO

007-002

[01]

09169-50041

STOPPER SUB-ASSY,

22357-1091A HINO

007-003

[01]

09094-00410

LEVER SUB-ASSY, CO

22042-1190A HINO

007-004

[01]

09104-20580

SPRING, RETURN

22341-1680A HINO

007-005

[01]

09104-20610

SPRING, RETURN

22341-1690A HINO

007-006

[02]

09089-40020

E-RING

22873-1390A HINO

007-007

[C]

94901-31390

WASHER, PLATE, SK

T0.1

22885-1920A HINO

007-007

[C]

94901-32370

WASHER, PLATE, SK

T0.05

22885-1930A HINO

007-007

[C]

94901-33960

WASHER, PLATE, SK

T0.2

22885-1030A HINO

007-007

[C]

94901-35080

WASHER, PLATE, SK

T0.3

22885-1270A HINO

007-007

[C]

94901-35090

WASHER, PLATE, SK

T0.4

22885-1280A HINO

008

[01]

09098-00341

SHACKLE SUB-ASSY

22045-1110A HINO

009

[1C]

09148-00200

ARM ASSY, GUIDE

NO MARKING *1

009

[1C]

09148-00210

ARM ASSY, GUIDE

MARKING II *1

009

[1C]

09148-00220

ARM ASSY, GUIDE

MARKING III *1

009-001

[01]

19089-00780

OVER-HAUL KIT, GOV

SHAFT KIT

011

[01]

94915-02522

SEAL, OIL

22827-1530A HINO

012

[01]

09101-70080

PLATE, CAM

22369-1190A HINO

013

[01]

09104-20600

SPRING, RETURN

22341-1710A HINO

014

[03]

09089-40020

E-RING

22873-1390A HINO

015

[02]

09156-00021

LEVER SUB-ASSY, SU

22350-1190A HINO

016

[01]

09156-30050

SHAFT, LEVER SUPPO

22358-1410A HINO

017

[01]

09107-01591

LEVER SUB-ASSY, AD

22309-2060A HINO

019

[02]

09116-70110

PLUG, SCREW

22845-1250A HINO

020

[01]

09107-15150

LEVER, ADJUSTING

021

[01]

94913-00030

KEY, WOODRUFF

22891-1060A HINO

022

[01]

09082-10254

STOPPER

22865-1320A HINO

023

[01]

09116-90024

NUT

22825-1890A HINO

024

[04]

91418-06201

BOLT, W/WASHER

M6,L20

22815-1290A HINO

026

[03]

94904-03840

BOLT, HEXAGON

M6,L25

22396-1020A HINO

027

[01]

09107-04360

LEVER SUB-ASSY, AD

028

[07]

91418-06351

BOLT, W/WASHER

M6,L35

22815-1920A HINO

029

[01]

09151-70080

GASKET, COVER

22847-2200A HINO

030

[01]

09082-30240

GASKET

-9408

22847-1570A HINO

030

[01]

09082-30460

GASKET

9409-

032

[01]

09169-02270

HOUSING SUB-ASSY,

032-001

[01]

09169-10041

HOUSING, FULL LOAD

22371-1100A HINO

032-003

[01]

09156-30040

SHAFT, LEVER SUPPO

22338-1070A HINO

032-004

[01]

09031-70270

PLUG, SCREW

22845-1480A HINO

032-005

[01]

09091-90321

ADAPTER

22385-1670A HINO

032-006

[01]

09095-30181

BUSHING

22322-1701A HINO

032-007

[01]

09091-81630

SPRING, MECHANICAL

22411-1710A HINO

032-008

[01]

09091-81640

SPRING, MECHANICAL

22411-1690A HINO

032-009

[01]

09152-12000

CAM, FULL STOP

032-010

[01]

09098-30300

PIN, CONNECTING

22455-1230A HINO

032-011

[01]

09105-10592

PLATE, COVER

22371-1230A HINO

032-012

[01]

09152-40440

SCREW, STOPPER

22395-1870A HINO

032-013

[01]

09116-90080

NUT

22821-2820A HINO

032-014

[01]

09103-10220

NUT, CAP

22342-1650A HINO

032-015

[02]

09024-80010

WASHER, DRAIN SCRE

22847-1730A HINO

032-016

[01]

94904-74620

BOLT, W/WASHER

M6,L16

22815-2920A HINO

032-017

[02]

90160-06051

NUT, HEXAGON

22825-1480A HINO

032-018

[01]

90170-06361

NUT, HEXAGON

M6,L3.6

92100-6040A HINO

032-019

[01]

94914-02030

O-RING

ID52.5

22817-1310A HINO

032-020

[01]

94914-06360

O-RING

ID47.2

032-021

[01]

09091-90332

ADAPTER

22385-1690A HINO

032-022

[01]

09091-81650

SPRING, MECHANICAL

22411-1700A HINO

032-023

[01]

09089-40020

E-RING

22873-1390A HINO

032-024

[1C]

94901-32370

WASHER, PLATE, SK

T0.05

22885-1930A HINO

032-024

[1C]

94901-35020

WASHER, PLATE, SK

T0.1

22885-1440A HINO

032-024

[1C]

94901-35030

WASHER, PLATE, SK

T0.2

22885-1450A HINO

032-025

[01]

91418-06161

BOLT, W/WASHER

M6,L16

22815-1380A HINO

033

[01]

09115-90500

ARM SUB-ASSY

22343-3210A HINO

034

[01]

09104-20590

SPRING, RETURN

22341-1700A HINO

035

[01]

09087-80060

PLATE

22343-1650A HINO

037

[02]

09057-30150

BOLT, DIAPHRAGM CO

22815-2890A HINO

041

[01]

90258-06001

WASHER, SPRING

FOR M6

28219-1110A HINO

042

[01]

94933-06540

TUBE, RUBBER

22385-1800A HINO

043

[05]

91418-06161

BOLT, W/WASHER

M6,L16

22815-1380A HINO

044

[01]

09154-30031

PLUG, SCREW

22845-1261A HINO

045

[01]

09105-10540

PLATE, COVER

22386-1390A HINO

046

[03]

90160-06051

NUT, HEXAGON

22825-1480A HINO

047

[01]

09115-90590

ARM SUB-ASSY

22348-2840A HINO

048

[01]

09115-90600

ARM SUB-ASSY

22348-2870A HINO

049

[01]

09109-01180

LEVER SUB-ASSY, ST

22348-2830A HINO

050

[01]

09109-82170

STOPPER

22348-2820A HINO

051

[01]

90801-10130

O-RING

ID13

22847-1980A HINO

053

[01]

09104-20840

SPRING, RETURN

22341-2180A HINO

054

[01]

94914-03660

O-RING

ID5.5

22847-1740A HINO

056

[01]

09140-30460

WASHER, LOCK

T0.5

22877-1990A HINO

057

[01]

09140-30420

WASHER, LOCK

22877-1880A HINO

058

[01]

09072-10150

PLATE

22343-3180A HINO

059

[01]

94914-02190

O-RING

ID39.5

22847-1540A HINO

060

[01]

09169-40170

GASKET

22847-2360A HINO

061

[1C]

09141-10180

SHAFT, SLIDING WEI

L31.9

22318-1130A HINO

061

[1C]

09141-10190

SHAFT, SLIDING WEI

L31.7

22318-1140A HINO

061

[1C]

09141-10200

SHAFT, SLIDING WEI

L31.5

22318-1150A HINO

061

[1C]

09141-10210

SHAFT, SLIDING WEI

L31.3

22318-1160A HINO

061

[1C]

09141-10220

SHAFT, SLIDING WEI

L31.1

22318-1170A HINO

061

[1C]

09141-10230

SHAFT, SLIDING WEI

L30.9

22318-1180A HINO

061

[1C]

09141-10240

SHAFT, SLIDING WEI

L30.7

22318-1190A HINO

061

[1C]

09141-10460

SHAFT, SLIDING WEI

L32.0

22318-1380A HINO

061

[1C]

09141-10470

SHAFT, SLIDING WEI

L32.1

22318-1390A HINO

062

[01]

94905-04420

NUT, HEXAGON

M12

22825-1540A HINO

063

[1C]

09140-30360

WASHER, LOCK

T0.6 -9804

22877-1740A HINO

063

[1C]

09140-30370

WASHER, LOCK

T0.7 -9804

22877-1750A HINO

063

[1C]

09140-30380

WASHER, LOCK

T1.0 -9804

22877-1760A HINO

063

[1C]

09140-30510

WASHER, LOCK

T0.1

22877-2190A HINO

063

[1C]

09140-30520

WASHER, LOCK

T0.2

22877-2200A HINO

064

[1C]

09140-30300

WASHER, LOCK

T0.2

22877-1360A HINO

064

[1C]

09140-30310

WASHER, LOCK

T0.3

22877-1370A HINO

064

[1C]

09140-30320

WASHER, LOCK

T0.4

22877-1380A HINO

064

[1C]

09140-30330

WASHER, LOCK

T0.5

22877-1390A HINO

066

[01]

94901-16220

WASHER, STEEL PLAT

T0.5

22877-1320A HINO

068

[01]

09634-20010

NUT, LOCK

M6,L5

22821-1530A HINO

069

[01]

09104-10460

SPRING SUB-ASSY, R

22341-2620A HINO

072

[01]

09097-51010

ARM, SPRING

22343-3140A HINO

077

[2C]

09140-30230

WASHER, LOCK

T0.5

22877-1400A HINO

077

[2C]

09140-30240

WASHER, LOCK

T0.55

22877-1410A HINO

077

[2C]

09140-30250

WASHER, LOCK

T0.6

22877-1420A HINO

077

[2C]

09140-30260

WASHER, LOCK

T0.65

22877-1430A HINO

077

[2C]

09140-30270

WASHER, LOCK

T0.7

22877-1440A HINO

077

[2C]

09140-30280

WASHER, LOCK

T0.75

22877-1450A HINO

077

[2C]

09140-30290

WASHER, LOCK

T0.8

22877-1460A HINO

078

[01]

09645-50070

PIN, LEVER CONECTI

NOMNAL DIA.4.0

22456-1200A HINO

079

[01]

09009-20190

BRACKET

22343-3730A HINO

081

[01]

09647-20720

ACTUATOR SET, IDLE

22480-1020A HINO

083

[01]

09069-11430

BRACKET, STOP WIRE

22343-3740A HINO

084

[01]

94904-72700

BOLT, W/WASHER

M6,L18

22815-2030A HINO

085

[01]

09009-00221

SWITCH SUB-ASSY, C

84380-1530A HINO

086

[02]

91518-05081

BOLT, W/WASHER

M5,L8

22815-2980A HINO

Include in ##:

09130-04730 as GOVERNOR ASSY, MEC

09300-04920 PUMP ASSY, INJECTI

09300-04930

Cross reference number

Part num

Firm num

Firm

Name

09130-04730

HINO

GOVERNOR ASSY, MEC

09130-04730 HINO GOVERNOR ASSY, MEC Denso Cross

Information governor assy, mec Denso

KIT List:

Scheme #.#:

Include in ##:

Cross reference number

Have questions with 09130-04730?

Group cross 09130-04730 HINO
