Buy GOVERNOR ASSY, MEC 09130-04711 genuine, new aftermarket engine parts with delivery

Information governor assy, mec Denso

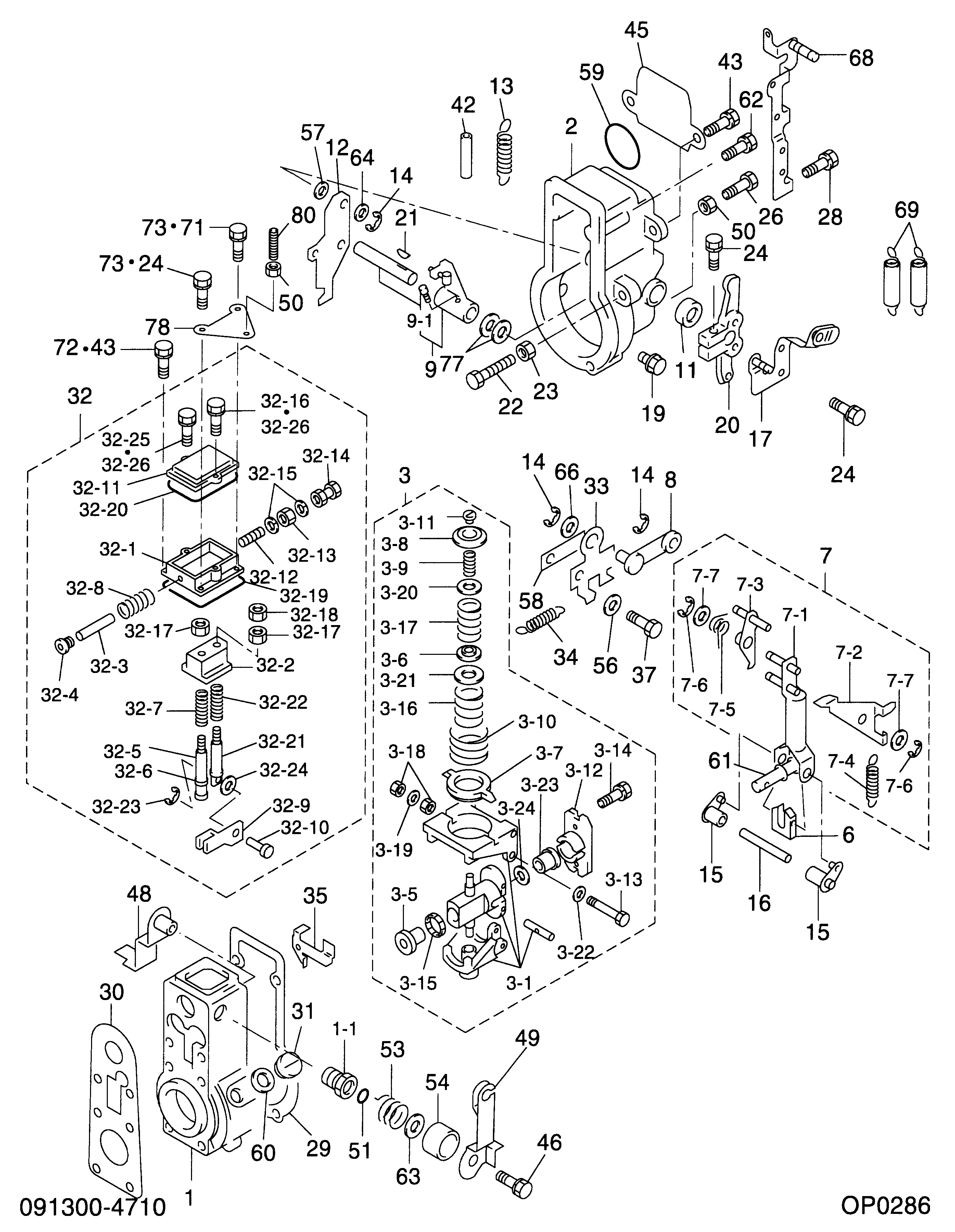

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

09130-04711

GOVERNOR ASSY, MEC

R801

001

[01]

09131-00050

HOUSING SUB-ASSY,

001-001

[01]

09101-60020

BUSHING, BEARING

002

[01]

09145-00881

COVER ASSY, GOVERN

003

[01]

09133-01132

FLYWEIGHT ASSY

-9501

003

[01]

09133-01462

FLYWEIGHT ASSY

9501-

003-001

[01]

09137-00042

FLYWEIGHT SUB-ASSY

003-005

[01]

09134-00031

BUSHING ASSY, CAMS

003-006

[02]

09137-70341

SEAT, GOVERNOR SPR

003-007

[02]

09136-30010

SEAT, GOVERNOR SPR

003-008

[02]

09139-30091

GUIDE, SPRING

003-009

[02]

09091-81710

SPRING, MECHANICAL

003-010

[02]

09138-90750

SPRING, IDLING

L23.3,YELLOW

003-011

[02]

09139-50020

NUT, ADJUSTING

M8,1.25 -9610

003-011

[02]

09139-50050

NUT, ADJUSTING

M8,0.75 9611-

003-012

[01]

09140-50071

BUSHING, GUIDE

-9501

003-012

[01]

09140-50080

BUSHING, GUIDE

9501-

003-013

[01]

09140-10040

BOLT, BELLCRANK

BOLTTYPE -9904

003-013

[01]

09140-10061

BOLT, BELLCRANK

PIN TYPE 9905-

003-014

[02]

91418-06161

BOLT, W/WASHER

M6,L16 -9512

003-014

[02]

94904-78260

BOLT, W/WASHER

M6,L16 9512-

003-015

[06]

09133-70150

DAMPER, FLYWEIGHT

003-016

[02]

09138-91141

SPRING, IDLING

L34.4,YELLOW -9501

003-016

[02]

09138-90880

SPRING, IDLING

L25.0,PINK 9501-

003-017

[01]

09139-10391

SPRING, SPEED CONT

L23.5 -9501

003-017

[01]

09139-10530

SPRING, SPEED CONT

9501-

003-018

[02]

90160-06051

NUT, HEXAGON

M6,L5 -9904

003-018

[02]

09089-40101

E-RING

PIN TYPE 9905-

003-019

[01]

09140-30010

WASHER, LOCK

D16,T0.5 -9904

003-020

[2C]

09140-30190

WASHER, LOCK

T0.4

003-020

[2C]

09140-30200

WASHER, LOCK

T0.6

003-020

[2C]

09140-30410

WASHER, LOCK

T1.0

003-020

[2C]

09140-30700

WASHER, LOCK

T0.3 9004-

003-020

[2C]

09140-30710

WASHER, LOCK

T0.2 9004-

003-021

[2C]

09140-30160

WASHER, LOCK

T0.2

003-021

[2C]

09140-30170

WASHER, LOCK

T0.4

003-021

[2C]

09140-30180

WASHER, LOCK

T0.6

003-021

[2C]

09140-30400

WASHER, LOCK

T1.0

003-022

[01]

94901-33970

WASHER, PLATE, SK

D12,T0.5 -9904

003-022

[02]

09140-30800

WASHER, LOCK

ID6,T1.0 9905-

003-023

[01]

09133-40040

NUT, ROUND

003-024

[1C]

09133-10110

SHIM

T1.6

003-024

[1C]

09133-10120

SHIM

T1.65

003-024

[1C]

09133-10130

SHIM

T1.7

003-024

[1C]

09133-10140

SHIM

T1.75

003-024

[1C]

09133-10150

SHIM

T1.8

003-024

[1C]

09133-10160

SHIM

T1.85

003-024

[1C]

09133-10170

SHIM

T1.9

003-024

[1C]

09133-10180

SHIM

T1.95

003-024

[1C]

09133-10190

SHIM

T2.0

003-024

[1C]

09133-10200

SHIM

T2.1

003-024

[1C]

09133-10210

SHIM

T2.2

003-024

[1C]

09133-10220

SHIM

T2.3

003-024

[1C]

09133-10230

SHIM

T2.05

003-024

[1C]

09133-10240

SHIM

T2.15

003-024

[1C]

09133-10250

SHIM

T2.25

003-025

[1C]

09138-90910

SPRING, IDLING

L20.75 9501-

006

[01]

09142-60081

SLIDER

007

[01]

09143-00110

LEVER ASSY, FLOATI

007-001

[01]

09143-60212

LEVER SUB-ASSY, FL

007-002

[01]

09169-50041

STOPPER SUB-ASSY,

007-003

[01]

09094-00410

LEVER SUB-ASSY, CO

007-004

[01]

09104-20580

SPRING, RETURN

007-005

[01]

09104-20610

SPRING, RETURN

007-006

[02]

09089-40020

E-RING

007-007

[2C]

94901-31390

WASHER, PLATE, SK

T0.1

007-007

[2C]

94901-32370

WASHER, PLATE, SK

T0.05

007-007

[2C]

94901-33960

WASHER, PLATE, SK

T0.2

007-007

[2C]

94901-35090

WASHER, PLATE, SK

T0.4

007-007

[2C]

94901-35080

WASHER, PLATE, SK

T0.3

008

[01]

09098-00401

SHACKLE SUB-ASSY

009

[1C]

09148-00200

ARM ASSY, GUIDE

NO MARKING *1

009

[1C]

09148-00210

ARM ASSY, GUIDE

MARKING II *1

009

[1C]

09148-00220

ARM ASSY, GUIDE

MARKING III *1

009-001

[01]

19089-00780

OVER-HAUL KIT, GOV

SHAFT KIT

011

[01]

94915-02522

SEAL, OIL

012

[01]

09101-70051

PLATE, CAM

013

[01]

09104-20600

SPRING, RETURN

014

[03]

09089-40020

E-RING

015

[02]

09156-00031

LEVER SUB-ASSY, SU

016

[01]

09156-30050

SHAFT, LEVER SUPPO

017

[01]

09129-10190

LEVER SET

ADJUST L

019

[02]

09116-70110

PLUG, SCREW

020

[01]

09107-04320

LEVER SUB-ASSY, AD

021

[01]

94913-00030

KEY, WOODRUFF

022

[01]

09082-10310

STOPPER

023

[01]

09116-90024

NUT

024

[02]

91418-06201

BOLT, W/WASHER

M6,L20 -9911

024

[01]

91418-06201

BOLT, W/WASHER

M6,L20 9912-

026

[01]

94904-03840

BOLT, HEXAGON

M6,L25

028

[03]

94904-71760

BOLT, W/WASHER

M6,L40

029

[01]

09151-70080

GASKET, COVER

030

[01]

09082-30240

GASKET

-9408

030

[01]

09082-30460

GASKET

9409-

031

[01]

09154-30031

PLUG, SCREW

032

[01]

09169-02261

HOUSING SUB-ASSY,

032-001

[01]

09169-10041

HOUSING, FULL LOAD

032-002

[01]

09148-70042

BLOCK, SLIDING

032-003

[01]

09156-30040

SHAFT, LEVER SUPPO

032-004

[01]

09031-70270

PLUG, SCREW

032-005

[01]

09091-90321

ADAPTER

032-006

[01]

09095-30181

BUSHING

032-007

[01]

09091-81630

SPRING, MECHANICAL

032-008

[01]

09091-81640

SPRING, MECHANICAL

032-009

[01]

09152-11992

CAM, FULL STOP

032-010

[01]

09098-30300

PIN, CONNECTING

032-011

[01]

09105-10592

PLATE, COVER

032-012

[01]

09152-40440

SCREW, STOPPER

032-013

[01]

09116-90080

NUT

032-014

[01]

09103-10220

NUT, CAP

032-015

[02]

09024-80010

WASHER, DRAIN SCRE

032-016

[01]

94904-74620

BOLT, W/WASHER

M6,L16 -9911

032-017

[02]

90160-06051

NUT, HEXAGON

032-018

[01]

90170-06361

NUT, HEXAGON

M6,L3.6

032-019

[01]

94914-02030

O-RING

ID52.5

032-020

[01]

94914-06360

O-RING

ID47.2

032-021

[01]

09091-90332

ADAPTER

032-022

[01]

09091-81650

SPRING, MECHANICAL

032-023

[01]

09089-40020

E-RING

032-024

[1C]

94901-32370

WASHER, PLATE, SK

T0.05

032-024

[1C]

94901-35020

WASHER, PLATE, SK

T0.1

032-024

[1C]

94901-35030

WASHER, PLATE, SK

T0.2

032-025

[01]

91418-06161

BOLT, W/WASHER

M6,L16 -9911

032-026

[02]

94904-81460

BOLT, WASHER HEAD

M6,L16 9912-

033

[01]

09115-90540

ARM SUB-ASSY

034

[01]

09104-20590

SPRING, RETURN

035

[01]

09087-80060

PLATE

037

[02]

09057-30150

BOLT, DIAPHRAGM CO

042

[01]

94933-06540

TUBE, RUBBER

043

[06]

91418-06161

BOLT, W/WASHER

M6,L16 -9911

043

[04]

91418-06161

BOLT, W/WASHER

M6,L16 9912-

045

[01]

09105-10540

PLATE, COVER

046

[01]

91418-06141

BOLT, W/WASHER

L14

048

[01]

09115-90141

ARM SUB-ASSY

049

[01]

09109-01420

LEVER SUB-ASSY, ST

050

[02]

90160-06051

NUT, HEXAGON

051

[01]

94914-00130

O-RING

ID9.0

053

[01]

09104-20010

SPRING, RETURN

L8.5D1.6

054

[01]

09104-30010

COVER, SPRING

056

[01]

09140-30460

WASHER, LOCK

T0.5

057

[01]

09140-30420

WASHER, LOCK

058

[01]

09072-10150

PLATE

059

[01]

94914-02190

O-RING

ID39.5

060

[01]

09169-40170

GASKET

061

[1C]

09141-10180

SHAFT, SLIDING WEI

L31.9

061

[1C]

09141-10190

SHAFT, SLIDING WEI

L31.7

061

[1C]

09141-10200

SHAFT, SLIDING WEI

L31.5

061

[1C]

09141-10210

SHAFT, SLIDING WEI

L31.3

061

[1C]

09141-10220

SHAFT, SLIDING WEI

L31.1

061

[1C]

09141-10230

SHAFT, SLIDING WEI

L30.9

061

[1C]

09141-10240

SHAFT, SLIDING WEI

L30.7

061

[1C]

09141-10460

SHAFT, SLIDING WEI

L32.0

061

[1C]

09141-10470

SHAFT, SLIDING WEI

L32.1

062

[03]

91418-06351

BOLT, W/WASHER

M6,L35

063

[1C]

94901-31960

WASHER, PLATE, SK

T0.1

063

[1C]

94901-31970

WASHER, PLATE, SK

T0.2

063

[1C]

94901-31980

WASHER, PLATE, SK

T0.5

064

[1C]

09140-30300

WASHER, LOCK

T0.2

064

[1C]

09140-30310

WASHER, LOCK

T0.3

064

[1C]

09140-30320

WASHER, LOCK

T0.4

064

[1C]

09140-30330

WASHER, LOCK

T0.5

066

[01]

94901-16220

WASHER, STEEL PLAT

068

[01]

09069-70070

BRACKET SUB-ASSY,

069

[02]

09104-10910

SPRING SUB-ASSY, R

071

[01]

94904-72700

BOLT, W/WASHER

M6,L20 -9911

072

[02]

94904-81460

BOLT, WASHER HEAD

M6,L16 9912-

073

[02]

94904-81470

BOLT, WASHER HEAD

M6,L20 9912-

077

[2C]

09140-30230

WASHER, LOCK

T0.5

077

[2C]

09140-30240

WASHER, LOCK

T0.55

077

[2C]

09140-30250

WASHER, LOCK

T0.6

077

[2C]

09140-30260

WASHER, LOCK

T0.65

077

[2C]

09140-30270

WASHER, LOCK

T0.7

077

[2C]

09140-30280

WASHER, LOCK

T0.75

077

[2C]

09140-30290

WASHER, LOCK

T0.8

078

[01]

09069-10810

BRACKET, STOP WIRE

080

[01]

09266-40020

SCREW, LEVER STOP

Include in ##:

09130-04711 as GOVERNOR ASSY, MEC

09300-04760 PUMP ASSY, INJECTI

09300-05380

09300-05480
