09130-04630 MITSUBISHI GOVERNOR ASSY, MEC Denso Cross Denso

Buy now

Add to cart Go to cart

Rating:

Buy GOVERNOR ASSY, MEC 09130-04630 MITSUBISHI genuine, new aftermarket engine parts with delivery

Information governor assy, mec Denso

MITSUBISHI GOVERNOR ASSY, MEC EA

*1 WHEN REPLACING A CAM PLATE, SELECT THE SPECIFIED
GUIDE ARM TO MATCH THE MARK.

KIT List:

Part name

Kit1

Kit2

Governor assy, mec

1908900271

Governor assy, mec

1908900271

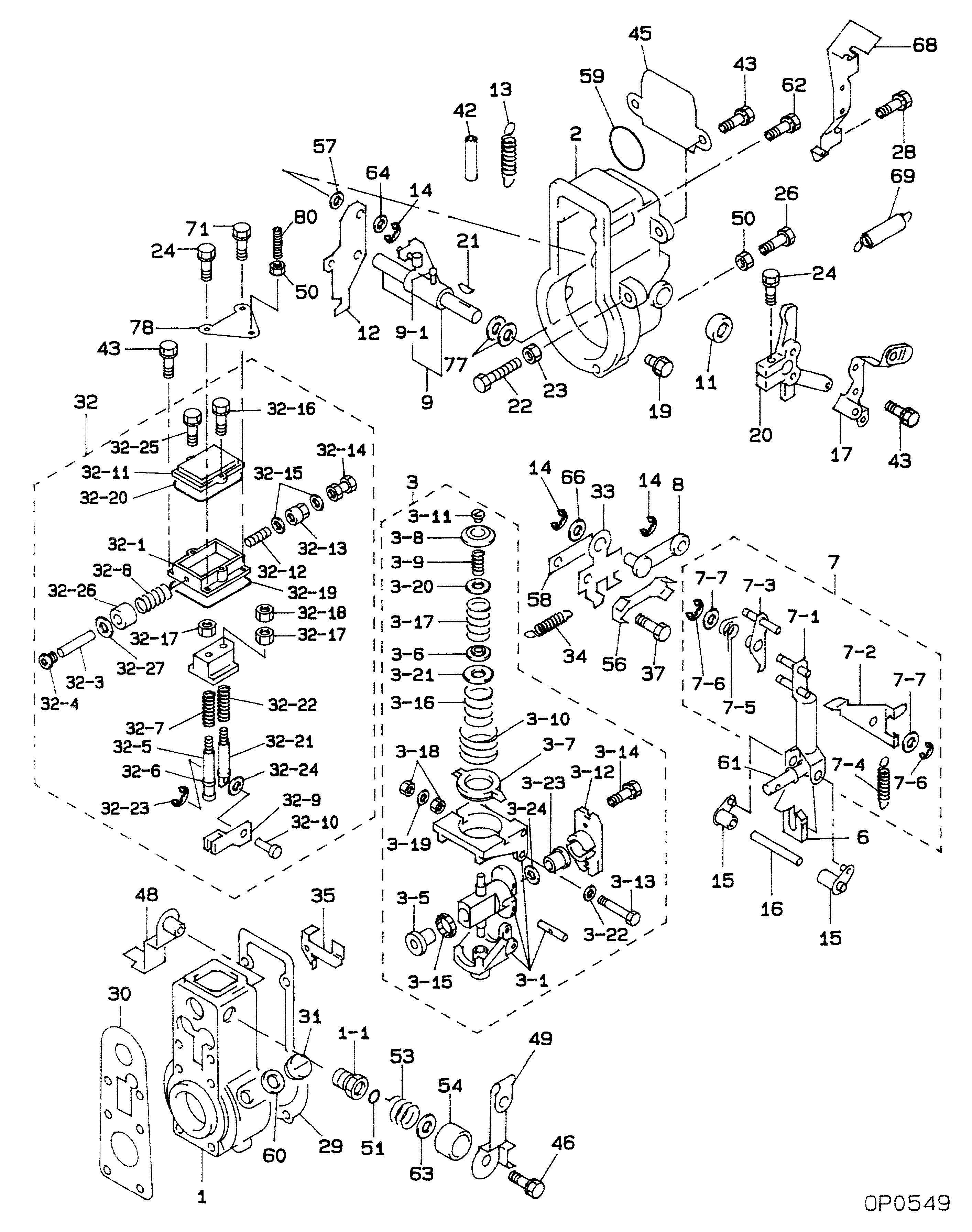

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

09130-04630

GOVERNOR ASSY, MEC

R801

ME736189 MITSUBISHI

001

[01]

09131-00050

HOUSING SUB-ASSY,

ME703107 MITSUBISHI

001-001

[01]

09101-60020

BUSHING, BEARING

ME702636 MITSUBISHI

002

[01]

09145-00881

COVER ASSY, GOVERN

ME736063 MITSUBISHI

003

[01]

09133-00792

FLYWEIGHT ASSY

ME703566 MITSUBISHI

003-001

[01]

09137-00042

FLYWEIGHT SUB-ASSY

ME736515 MITSUBISHI

003-005

[01]

09134-00031

BUSHING ASSY, CAMS

ME702587 MITSUBISHI

003-006

[02]

09137-70341

SEAT, GOVERNOR SPR

ME703119 MITSUBISHI

003-007

[02]

09136-30010

SEAT, GOVERNOR SPR

ME702138 MITSUBISHI

003-008

[02]

09139-30091

GUIDE, SPRING

ME702142 MITSUBISHI

003-009

[02]

09091-81710

SPRING, MECHANICAL

ME702137 MITSUBISHI

003-010

[2C]

09138-90750

SPRING, IDLING

L23.3,YELLOW

ME702018 MITSUBISHI

003-010

[2C]

09138-90811

SPRING, IDLING

L23.8,WHITE

ME702264 MITSUBISHI

003-011

[02]

09139-50020

NUT, ADJUSTING

M8,1.25 -9610

ME702143 MITSUBISHI

003-011

[02]

09139-50050

NUT, ADJUSTING

M8,0.75 9611-

ME728670 MITSUBISHI

003-012

[01]

09140-50071

BUSHING, GUIDE

ME702148 MITSUBISHI

003-013

[01]

09140-10040

BOLT, BELLCRANK

BOLTTYPE -9904

ME702144 MITSUBISHI

003-013

[01]

09140-10061

BOLT, BELLCRANK

PIN TYPE 9905-

ME743665 MITSUBISHI

003-014

[02]

91418-06161

BOLT, W/WASHER

M6,L16 -9512

ME702149 MITSUBISHI

003-014

[02]

94904-78260

BOLT, W/WASHER

M6,L16 9512-

ME736916 MITSUBISHI

003-015

[06]

09133-70150

DAMPER, FLYWEIGHT

ME703171 MITSUBISHI

003-016

[02]

09138-90610

SPRING, IDLING

L26.0,RED

ME703121 MITSUBISHI

003-017

[2C]

09139-10400

SPRING, SPEED CONT

K4.5

ME702141 MITSUBISHI

003-017

[2C]

09139-10481

SPRING, SPEED CONT

K4.25

ME743308 MITSUBISHI

003-018

[02]

90160-06051

NUT, HEXAGON

M6,L5 -9904

ME702588 MITSUBISHI

003-018

[02]

09089-40101

E-RING

PIN TYPE 9905-

ME743666 MITSUBISHI

003-019

[01]

09140-30010

WASHER, LOCK

D16,T0.5 -9904

ME702145 MITSUBISHI

003-020

[2C]

09140-30190

WASHER, LOCK

T0.4

ME702147 MITSUBISHI

003-020

[2C]

09140-30200

WASHER, LOCK

T0.6

ME703124 MITSUBISHI

003-020

[2C]

09140-30410

WASHER, LOCK

T1.0

ME703123 MITSUBISHI

003-020

[2C]

09140-30700

WASHER, LOCK

T0.3

ME728578 MITSUBISHI

003-020

[2C]

09140-30710

WASHER, LOCK

T0.2

ME728579 MITSUBISHI

003-021

[2C]

09140-30160

WASHER, LOCK

T0.2

ME702146 MITSUBISHI

003-021

[2C]

09140-30170

WASHER, LOCK

T0.4

ME702262 MITSUBISHI

003-021

[2C]

09140-30180

WASHER, LOCK

T0.6

ME702263 MITSUBISHI

003-021

[2C]

09140-30400

WASHER, LOCK

T1.0

ME703125 MITSUBISHI

003-022

[01]

94901-33970

WASHER, PLATE, SK

D12,T0.5 -9904

ME702150 MITSUBISHI

003-022

[02]

09140-30800

WASHER, LOCK

ID6,T1.0 9905-

ME743667 MITSUBISHI

003-023

[01]

09133-40040

NUT, ROUND

ME702585 MITSUBISHI

003-024

[1C]

09133-10110

SHIM

T1.6

ME702584 MITSUBISHI

003-024

[1C]

09133-10120

SHIM

T1.65

ME703151 MITSUBISHI

003-024

[1C]

09133-10130

SHIM

T1.7

ME703152 MITSUBISHI

003-024

[1C]

09133-10140

SHIM

T1.75

ME703153 MITSUBISHI

003-024

[1C]

09133-10150

SHIM

T1.8

ME703154 MITSUBISHI

003-024

[1C]

09133-10160

SHIM

T1.85

ME703155 MITSUBISHI

003-024

[1C]

09133-10170

SHIM

T1.9

ME703156 MITSUBISHI

003-024

[1C]

09133-10180

SHIM

T1.95

ME703157 MITSUBISHI

003-024

[1C]

09133-10190

SHIM

T2.0

ME703158 MITSUBISHI

003-024

[1C]

09133-10200

SHIM

T2.1

ME703159 MITSUBISHI

003-024

[1C]

09133-10210

SHIM

T2.2

ME703160 MITSUBISHI

003-024

[1C]

09133-10220

SHIM

T2.3

ME703161 MITSUBISHI

003-024

[1C]

09133-10230

SHIM

T2.05

ME703148 MITSUBISHI

003-024

[1C]

09133-10240

SHIM

T2.15

ME703149 MITSUBISHI

003-024

[1C]

09133-10250

SHIM

T2.25

ME703150 MITSUBISHI

006

[01]

09142-60081

SLIDER

ME702154 MITSUBISHI

007

[01]

09143-00110

LEVER ASSY, FLOATI

ME702156 MITSUBISHI

007-001

[01]

09143-60212

LEVER SUB-ASSY, FL

ME702161 MITSUBISHI

007-002

[01]

09169-50041

STOPPER SUB-ASSY,

ME702162 MITSUBISHI

007-003

[01]

09094-00410

LEVER SUB-ASSY, CO

ME702158 MITSUBISHI

007-004

[01]

09104-20580

SPRING, RETURN

ME702159 MITSUBISHI

007-005

[01]

09104-20610

SPRING, RETURN

ME702160 MITSUBISHI

007-006

[02]

09089-40020

E-RING

ME702639 MITSUBISHI

007-007

[C]

94901-31390

WASHER, PLATE, SK

T0.1

ME703126 MITSUBISHI

007-007

[C]

94901-32370

WASHER, PLATE, SK

T0.05

ME703127 MITSUBISHI

007-007

[C]

94901-33960

WASHER, PLATE, SK

T0.2

ME702190 MITSUBISHI

007-007

[C]

94901-35080

WASHER, PLATE, SK

T0.3

ME728577 MITSUBISHI

007-007

[C]

94901-35090

WASHER, PLATE, SK

T0.4

ME703128 MITSUBISHI

008

[01]

09098-00401

SHACKLE SUB-ASSY

ME703025 MITSUBISHI

009

[1C]

09148-00200

ARM ASSY, GUIDE

NO MARKING *1

ME736064 MITSUBISHI

009

[1C]

09148-00210

ARM ASSY, GUIDE

MARKING II *1

ME736065 MITSUBISHI

009

[1C]

09148-00220

ARM ASSY, GUIDE

MARKING III *1

ME736066 MITSUBISHI

009-001

[01]

19089-00780

OVER-HAUL KIT, GOV

SHAFT KIT

ME736492 MITSUBISHI

011

[01]

94915-02522

SEAL, OIL

ME728021 MITSUBISHI

012

[01]

09101-70051

PLATE, CAM

ME702540 MITSUBISHI

013

[01]

09104-20600

SPRING, RETURN

ME702121 MITSUBISHI

014

[03]

09089-40020

E-RING

ME702639 MITSUBISHI

015

[02]

09156-00031

LEVER SUB-ASSY, SU

ME703162 MITSUBISHI

016

[01]

09156-30050

SHAFT, LEVER SUPPO

ME702173 MITSUBISHI

017

[01]

09107-01600

LEVER SUB-ASSY, AD

ME703163 MITSUBISHI

019

[02]

09116-70110

PLUG, SCREW

ME702131 MITSUBISHI

020

[01]

09107-01730

LEVER SUB-ASSY, AD

ME703131 MITSUBISHI

021

[01]

94913-00030

KEY, WOODRUFF

ME702205 MITSUBISHI

022

[01]

09082-10254

STOPPER

ME702106 MITSUBISHI

023

[01]

09116-90024

NUT

ME702132 MITSUBISHI

024

[02]

91418-06201

BOLT, W/WASHER

M6,L20

ME702041 MITSUBISHI

026

[01]

94904-03840

BOLT, HEXAGON

M6,L25

ME702201 MITSUBISHI

028

[02]

94904-71760

BOLT, W/WASHER

M6,L40

ME702581 MITSUBISHI

029

[01]

09151-70080

GASKET, COVER

ME728999 MITSUBISHI

030

[01]

09082-30240

GASKET

-9408

ME702107 MITSUBISHI

030

[01]

09082-30460

GASKET

9409-

031

[01]

09154-30031

PLUG, SCREW

ME702171 MITSUBISHI

032

[01]

09169-02230

HOUSING SUB-ASSY,

032-001

[01]

09169-10041

HOUSING, FULL LOAD

ME702544 MITSUBISHI

032-003

[01]

09156-30040

SHAFT, LEVER SUPPO

ME702543 MITSUBISHI

032-004

[01]

09031-70270

PLUG, SCREW

ME728357 MITSUBISHI

032-005

[01]

09091-90321

ADAPTER

ME702181 MITSUBISHI

032-006

[01]

09095-30181

BUSHING

ME702183 MITSUBISHI

032-007

[01]

09091-81630

SPRING, MECHANICAL

ME702178 MITSUBISHI

032-008

[01]

09091-81640

SPRING, MECHANICAL

ME702179 MITSUBISHI

032-009

[01]

09152-10770

CAM, FULL STOP

ME728941 MITSUBISHI

032-010

[01]

09098-30300

PIN, CONNECTING

ME702104 MITSUBISHI

032-011

[01]

09105-10592

PLATE, COVER

ME702186 MITSUBISHI

032-012

[01]

09152-40440

SCREW, STOPPER

ME703966 MITSUBISHI

032-013

[01]

09116-90080

NUT

ME703967 MITSUBISHI

032-014

[01]

09103-10220

NUT, CAP

ME703968 MITSUBISHI

032-015

[02]

09024-80010

WASHER, DRAIN SCRE

ME702175 MITSUBISHI

032-016

[01]

94904-74620

BOLT, W/WASHER

-9501

ME728101 MITSUBISHI

032-016

[01]

94904-78060

BOLT, W/WASHER

9502-

ME736692 MITSUBISHI

032-017

[02]

90160-06051

NUT, HEXAGON

ME702588 MITSUBISHI

032-018

[01]

90170-06361

NUT, HEXAGON

ME702591 MITSUBISHI

032-019

[01]

94914-02030

O-RING

ME702853 MITSUBISHI

032-020

[01]

94914-06360

O-RING

ME728427 MITSUBISHI

032-021

[01]

09091-90332

ADAPTER

ME702182 MITSUBISHI

032-022

[01]

09091-81650

SPRING, MECHANICAL

ME702180 MITSUBISHI

032-023

[01]

09089-40020

E-RING

ME702639 MITSUBISHI

032-024

[1C]

94901-35020

WASHER, PLATE, SK

T0.1

ME702628 MITSUBISHI

032-024

[1C]

94901-35030

WASHER, PLATE, SK

T0.2

ME702741 MITSUBISHI

032-024

[1C]

94901-32370

WASHER, PLATE, SK

T0.05

ME703127 MITSUBISHI

032-025

[01]

91418-06161

BOLT, W/WASHER

ME702149 MITSUBISHI

032-026

[1C]

09103-60040

CUP, SPRING

ME736146 MITSUBISHI

032-026

[1C]

09103-60050

CUP, SPRING

ME736147 MITSUBISHI

032-026

[1C]

09103-60060

CUP, SPRING

ME702590 MITSUBISHI

032-026

[1C]

09103-60070

CUP, SPRING

ME702565 MITSUBISHI

032-026

[1C]

09103-60080

CUP, SPRING

L5.8

ME736148 MITSUBISHI

032-026

[1C]

09103-60100

CUP, SPRING

L2.5

ME736149 MITSUBISHI

032-027

[1C]

94901-35020

WASHER, PLATE, SK

T0.1

ME702628 MITSUBISHI

032-027

[1C]

94901-35030

WASHER, PLATE, SK

T0.2

ME702741 MITSUBISHI

032-027

[1C]

94901-35080

WASHER, PLATE, SK

T0.3

ME728577 MITSUBISHI

033

[01]

09115-90540

ARM SUB-ASSY

ME703739 MITSUBISHI

034

[01]

09104-20590

SPRING, RETURN

ME702120 MITSUBISHI

035

[01]

09087-80111

PLATE

ME703024 MITSUBISHI

037

[02]

09057-30150

BOLT, DIAPHRAGM CO

ME703705 MITSUBISHI

042

[01]

94933-06540

TUBE, RUBBER

ME703992 MITSUBISHI

043

[06]

91418-06161

BOLT, W/WASHER

M6,L16

ME702149 MITSUBISHI

045

[01]

09105-10540

PLATE, COVER

ME703135 MITSUBISHI

046

[01]

91418-06141

BOLT, W/WASHER

M6,L14

ME702592 MITSUBISHI

048

[01]

09115-90141

ARM SUB-ASSY

ME703136 MITSUBISHI

049

[01]

09109-81311

STOPPER

ME703137 MITSUBISHI

050

[02]

90160-06051

NUT, HEXAGON

M6,L5

ME702588 MITSUBISHI

051

[01]

94914-00130

O-RING

ID9.0

ME702207 MITSUBISHI

053

[01]

09104-20010

SPRING, RETURN

ME703585 MITSUBISHI

054

[01]

09104-30010

COVER, SPRING

ME702122 MITSUBISHI

056

[01]

09140-30460

WASHER, LOCK

ME703741 MITSUBISHI

057

[01]

09140-30420

WASHER, LOCK

ME702152 MITSUBISHI

058

[01]

09072-10150

PLATE

ME703720 MITSUBISHI

059

[01]

94914-02190

O-RING

ID39.5

ME702208 MITSUBISHI

060

[01]

09169-40170

GASKET

ME736002 MITSUBISHI

061

[1C]

09141-10180

SHAFT, SLIDING WEI

L31.9

ME702153 MITSUBISHI

061

[1C]

09141-10190

SHAFT, SLIDING WEI

L31.7

ME703138 MITSUBISHI

061

[1C]

09141-10200

SHAFT, SLIDING WEI

L31.5

ME703139 MITSUBISHI

061

[1C]

09141-10210

SHAFT, SLIDING WEI

L31.3

ME703140 MITSUBISHI

061

[1C]

09141-10220

SHAFT, SLIDING WEI

L31.1

ME703141 MITSUBISHI

061

[1C]

09141-10230

SHAFT, SLIDING WEI

L30.9

ME703142 MITSUBISHI

061

[1C]

09141-10240

SHAFT, SLIDING WEI

L30.7

ME703143 MITSUBISHI

061

[1C]

09141-10460

SHAFT, SLIDING WEI

L32.0

ME736003 MITSUBISHI

061

[1C]

09141-10470

SHAFT, SLIDING WEI

L32.1

ME736004 MITSUBISHI

062

[04]

91418-06351

BOLT, W/WASHER

M6,L35

ME702594 MITSUBISHI

063

[1C]

94901-31960

WASHER, PLATE, SK

T0.1

ME702866 MITSUBISHI

063

[1C]

94901-31970

WASHER, PLATE, SK

T0.2

ME702867 MITSUBISHI

063

[1C]

94901-31980

WASHER, PLATE, SK

T0.5

ME023379 MITSUBISHI

064

[1C]

09140-30300

WASHER, LOCK

T0.2

ME702151 MITSUBISHI

064

[1C]

09140-30310

WASHER, LOCK

T0.3

ME703109 MITSUBISHI

064

[1C]

09140-30320

WASHER, LOCK

T0.4

ME703110 MITSUBISHI

064

[1C]

09140-30330

WASHER, LOCK

T0.5

ME703111 MITSUBISHI

066

[01]

94901-16220

WASHER, STEEL PLAT

ME703144 MITSUBISHI

068

[01]

09069-10830

BRACKET, STOP WIRE

ME703023 MITSUBISHI

069

[01]

09104-10150

SPRING SUB-ASSY, R

ME703145 MITSUBISHI

071

[01]

94904-72700

BOLT, W/WASHER

M6,L18

ME702204 MITSUBISHI

077

[2C]

09140-30230

WASHER, LOCK

T0.5

ME702589 MITSUBISHI

077

[2C]

09140-30240

WASHER, LOCK

T0.55

ME703112 MITSUBISHI

077

[2C]

09140-30250

WASHER, LOCK

T0.6

ME703113 MITSUBISHI

077

[2C]

09140-30260

WASHER, LOCK

T0.65

ME703114 MITSUBISHI

077

[2C]

09140-30270

WASHER, LOCK

T0.7

ME703115 MITSUBISHI

077

[2C]

09140-30280

WASHER, LOCK

T0.75

ME703116 MITSUBISHI

077

[2C]

09140-30290

WASHER, LOCK

T0.8

ME703117 MITSUBISHI

078

[01]

09069-10810

BRACKET, STOP WIRE

ME702105 MITSUBISHI

080

[01]

09266-40020

SCREW, LEVER STOP

ME702654 MITSUBISHI

Include in ##:

09130-04630 as GOVERNOR ASSY, MEC

09300-04790 PUMP ASSY, INJECTI

Cross reference number

Part num

Firm num

Firm

Name

09130-04630

ME736189

MITSUBISHI

GOVERNOR ASSY, MEC

0913004630

ME736189

MITSUBISHI

GOVERNOR ASSY, MEC

09130-04630 MITSUBISHI GOVERNOR ASSY, MEC Denso Cross

Information governor assy, mec Denso

KIT List:

Scheme #.#:

Include in ##:

Cross reference number

Have questions with 09130-04630?

Group cross 09130-04630 MITSUBISHI
