09130-02301 GOVERNOR ASSY, MEC Denso Cross


Rating:
65
Buy GOVERNOR ASSY, MEC 09130-02301 genuine, new aftermarket engine parts with delivery

Information governor assy, mec Denso

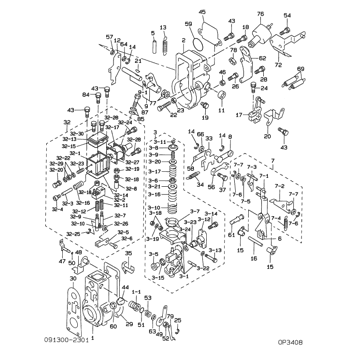

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09130-02301
GOVERNOR ASSY, MEC
R801
22310-3631A HINO
001
[01]
HOUSING SUB-ASSY,
22301-1190A HINO
001-001
[01]
BUSHING, BEARING
22322-2490A HINO
002
[01]
COVER ASSY, GOVERN
22380-1340A HINO
003
[01]
FLYWEIGHT ASSY
22360-1480A HINO
003-001
[01]
FLYWEIGHT SUB-ASSY
22304-1650A HINO
003-005
[01]
BUSHING ASSY, CAMS
22321-1751A HINO
003-006
[02]
SEAT, GOVERNOR SPR
22351-1680A HINO
003-007
[02]
SEAT, GOVERNOR SPR
22351-1370A HINO
003-008
[02]
GUIDE, SPRING
22385-1471A HINO
003-009
[02]
SPRING, MECHANICAL
22341-2160A HINO
003-010
[02]
SPRING, IDLING
L23.3,YELLOW
22411-1980A HINO
003-011
[02]
NUT, ADJUSTING
M8,0.75
003-012
[01]
BUSHING, GUIDE
22322-1760A HINO
003-013
[01]
BOLT, BELLCRANK
BOLTTYPE -9904
22815-1940A HINO
003-013
[01]
BOLT, BELLCRANK
PIN TYPE 9905-
003-014
[02]
BOLT, W/WASHER
M6,L16
22815-1380A HINO
003-015
[06]
DAMPER, FLYWEIGHT
22385-2070A HINO
003-016
[02]
SPRING, IDLING
L26.0,RED
22411-2380A HINO
003-017
[02]
SPRING, SPEED CONT
22321-2050A HINO
003-018
[02]
NUT, HEXAGON
M6,L5 -9904
22825-1480A HINO
003-018
[02]
E-RING
PIN TYPE 9905-
003-019
[01]
WASHER, LOCK
D16,T0.5 -9904
22863-1190A HINO
003-020
[2C]
WASHER, LOCK
T0.4
22877-1300A HINO
003-020
[2C]
WASHER, LOCK
T0.6
22877-1310A HINO
003-020
[2C]
WASHER, LOCK
T1.0
22877-1900A HINO
003-020
[2C]
WASHER, LOCK
T0.3
22877-2250A HINO
003-020
[2C]
WASHER, LOCK
T0.2
22877-2260A HINO
003-021
[2C]
WASHER, LOCK
T0.2
22877-1270A HINO
003-021
[2C]
WASHER, LOCK
T0.4
22877-1280A HINO
003-021
[2C]
WASHER, LOCK
T0.6
22877-1290A HINO
003-021
[2C]
WASHER, LOCK
T1.0
22877-1890A HINO
003-022
[01]
WASHER, PLATE, SK
D12,T0.5 -9904
22885-1740A HINO
003-022
[02]
WASHER, LOCK
ID6,T1.0 9905-
003-023
[01]
NUT, ROUND
22353-1150A HINO
003-024
[1C]
SHIM
T1.6
22885-2450A HINO
003-024
[1C]
SHIM
T1.65
22885-2460A HINO
003-024
[1C]
SHIM
T1.7
22885-2470A HINO
003-024
[1C]
SHIM
T1.75
22885-2480A HINO
003-024
[1C]
SHIM
T1.8
22885-2490A HINO
003-024
[1C]
SHIM
T1.85
22885-2500A HINO
003-024
[1C]
SHIM
T1.9
22885-2510A HINO
003-024
[1C]
SHIM
T1.95
22885-2520A HINO
003-024
[1C]
SHIM
T2.0
22885-2530A HINO
003-024
[1C]
SHIM
T2.1
22885-2540A HINO
003-024
[1C]
SHIM
T2.2
22885-2550A HINO
003-024
[1C]
SHIM
T2.3
22885-2560A HINO
003-024
[1C]
SHIM
T2.05
22885-5950A HINO
003-024
[1C]
SHIM
T2.15
22885-5960A HINO
003-024
[1C]
SHIM
T2.25
22885-5970A HINO
005
[01]
TUBE, RUBBER
22385-1800A HINO
006
[01]
SLIDER
22349-1131A HINO
007
[01]
LEVER ASSY, FLOATI
22041-1140A HINO
007-001
[01]
LEVER SUB-ASSY, FL
22350-1182A HINO
007-002
[01]
STOPPER SUB-ASSY,
22357-1091A HINO
007-003
[01]
LEVER SUB-ASSY, CO
22042-1190A HINO
007-004
[01]
SPRING, RETURN
22341-1680A HINO
007-005
[01]
SPRING, RETURN
22341-1690A HINO
007-006
[02]
E-RING
22873-1390A HINO
007-007
[C]
WASHER, PLATE, SK
T0.1
22885-1920A HINO
007-007
[C]
WASHER, PLATE, SK
T0.05
22885-1930A HINO
007-007
[C]
WASHER, PLATE, SK
T0.2
22885-1030A HINO
007-007
[C]
WASHER, PLATE, SK
T0.3
22885-1270A HINO
007-007
[C]
WASHER, PLATE, SK
T0.4
22885-1280A HINO
008
[01]
SHACKLE SUB-ASSY
22045-1110A HINO
009
[1C]
ARM ASSY, GUIDE
NO MARKING *1
009
[1C]
ARM ASSY, GUIDE
MARKING II *1
009
[1C]
ARM ASSY, GUIDE
MARKING III *1
009-001
[01]
OVER-HAUL KIT, GOV
011
[01]
SEAL, OIL
22827-1530A HINO
012
[01]
PLATE, CAM
*1
22369-1800A HINO
013
[01]
SPRING, RETURN
22341-1710A HINO
014
[03]
E-RING
22873-1390A HINO
015
[02]
LEVER SUB-ASSY, SU
22350-1190A HINO
016
[01]
SHAFT, LEVER SUPPO
22358-1410A HINO
017
[01]
LEVER SUB-ASSY, AD
22309-3190A HINO
018
[04]
BOLT, W/WASHER
M6,L35
22815-1920A HINO
019
[02]
PLUG, SCREW
22845-1250A HINO
020
[01]
LEVER SUB-ASSY, AD
22309-3180A HINO
021
[01]
KEY, WOODRUFF
22891-1060A HINO
022
[01]
STOPPER
22865-1360A HINO
023
[01]
NUT
M8,L19
22825-1890A HINO
024
[01]
BOLT, W/WASHER
M6,L20
22815-1290A HINO
025
[01]
WASHER, SPRING
28219-1110A HINO
026
[01]
BOLT, HEXAGON
M6,L25
22396-1020A HINO
028
[02]
BOLT, W/WASHER
22815-2160A HINO
029
[01]
GASKET, COVER
22847-2370A HINO
030
[01]
GASKET
22847-2490A HINO
032
[01]
HOUSING SUB-ASSY,
22370-1530A HINO
032-001
[01]
HOUSING, FULL LOAD
22370-2240A HINO
032-002
[01]
BLOCK, SLIDING
99999-3545A HINO
032-003
[01]
SHAFT, LEVER SUPPO
22338-1090A HINO
032-004
[01]
PLUG, SCREW
22845-1480A HINO
032-005
[01]
CAM, FULL STOP
22369-1820A HINO
032-006
[01]
PIN, CONNECTING
22455-1230A HINO
032-007
[01]
ADAPTER
22385-1610A HINO
032-008
[01]
COLLAR
22332-1590A HINO
032-009
[01]
ADAPTER
22385-1670A HINO
032-010
[01]
BUSHING
22322-1701A HINO
032-011
[01]
SPRING, MECHANICAL
22411-1790A HINO
032-012
[01]
SPRING, MECHANICAL
22411-1710A HINO
032-013
[01]
PLATE, COVER
22371-1240A HINO
032-014
[01]
O-RING
ID54.5 -9911
22817-1320A HINO
032-014
[01]
GASKET
51X51 MM 9912-
22847-2690A HINO
032-015
[01]
O-RING
ID52.5 -9911
22817-1310A HINO
032-015
[01]
GASKET
54X42 MM 9912-
22847-2590A HINO
032-016
[01]
SPRING, MECHANICAL
22411-1800A HINO
032-017
[01]
COMPENSATOR SUB-AS
22430-1040A HINO
032-018
[02]
NUT, HEXAGON
M6,L5
22825-1480A HINO
032-019
[01]
NUT, HEXAGON
M6,L36
92100-6040A HINO
032-020
[01]
CAP
22342-1470A HINO
032-022
[02]
WASHER, DRAIN SCRE
T1.0
22847-1730A HINO
032-023
[01]
SCREW, STOPPER
22395-1390A HINO
032-024
[03]
BOLT, W/WASHER
M6,L14
22815-1480A HINO
032-025
[01]
E-RING
22873-1390A HINO
032-026
[1C]
WASHER, PLATE, SK
T0.05
22885-1930A HINO
032-026
[1C]
WASHER, PLATE, SK
T0.1
22885-1440A HINO
032-026
[1C]
WASHER, PLATE, SK
T0.2
22885-1450A HINO
032-027
[01]
O-RING
ID26.2
22847-2140A HINO
032-028
[02]
BOLT, W/WASHER
M6,L16
22815-2920A HINO
032-029
[01]
NUT, LOCK
M6,L5
22821-1530A HINO
032-030
[01]
BOLT, W/WASHER
M6,L16
22815-1380A HINO
033
[01]
ARM SUB-ASSY
22343-3210A HINO
034
[01]
SPRING, RETURN
22341-1700A HINO
035
[01]
PLATE
M2.3,L37
22343-1650A HINO
037
[02]
BOLT, DIAPHRAGM CO
M5,L13
22815-2890A HINO
043
[07]
BOLT, W/WASHER
M6,L16
22815-1380A HINO
044
[01]
PLUG, SCREW
22845-1261A HINO
045
[01]
PLATE, COVER
22386-1390A HINO
046
[02]
NUT, HEXAGON
M6,L5
22825-1480A HINO
047
[01]
ARM SUB-ASSY
22348-1551A HINO
048
[01]
ARM SUB-ASSY
22348-3780A HINO
049
[01]
STOPPER
22348-2460A HINO
050
[01]
O-RING
ID5.5
22847-1740A HINO
051
[01]
O-RING
ID13
22847-1980A HINO
052
[01]
NUT, HEXAGON
M12
22825-1540A HINO
053
[01]
SPRING, RETURN
22341-2180A HINO
054
[02]
BOLT, W/WASHER
M6,L14
22815-1480A HINO
056
[01]
WASHER, LOCK
T0.5
22877-1990A HINO
057
[01]
WASHER, LOCK
T2.0
22877-1880A HINO
058
[01]
PLATE
22343-3180A HINO
059
[01]
O-RING
ID39.5
22847-1540A HINO
060
[01]
GASKET
22847-2360A HINO
061
[1C]
SHAFT, SLIDING WEI
L31.9
22318-1130A HINO
061
[1C]
SHAFT, SLIDING WEI
L31.7
22318-1140A HINO
061
[1C]
SHAFT, SLIDING WEI
L31.5
22318-1150A HINO
061
[1C]
SHAFT, SLIDING WEI
L31.3
22318-1160A HINO
061
[1C]
SHAFT, SLIDING WEI
L31.1
22318-1170A HINO
061
[1C]
SHAFT, SLIDING WEI
L30.9
22318-1180A HINO
061
[1C]
SHAFT, SLIDING WEI
L30.7
22318-1190A HINO
062
[01]
BRACKET SUB-ASSY,
22343-2270A HINO
063
[1C]
WASHER, LOCK
T0.6 -9804
22877-1740A HINO
063
[1C]
WASHER, LOCK
T0.7 -9804
22877-1750A HINO
063
[1C]
WASHER, LOCK
T1.0 -9804
22877-1760A HINO
063
[1C]
WASHER, LOCK
T0.1 9805-
22877-2190A HINO
063
[1C]
WASHER, LOCK
T0.2 9805-
22877-2200A HINO
064
[1C]
WASHER, LOCK
T0.2
22877-1360A HINO
064
[1C]
WASHER, LOCK
T0.3
22877-1370A HINO
064
[1C]
WASHER, LOCK
T0.4
22877-1380A HINO
064
[1C]
WASHER, LOCK
T0.5
22877-1390A HINO
066
[01]
WASHER, STEEL PLAT
T0.5
22877-1320A HINO
069
[02]
SPRING SUB-ASSY, R
22341-1720A HINO
072
[01]
ARM, SPRING
22343-2130A HINO
076
[01]
BELLOWS ASSY, PNEU
22440-1011A HINO
077
[2C]
WASHER, LOCK
T0.5
22877-1400A HINO
077
[2C]
WASHER, LOCK
T0.55
22877-1410A HINO
077
[2C]
WASHER, LOCK
T0.6
22877-1420A HINO
077
[2C]
WASHER, LOCK
T0.65
22877-1430A HINO
077
[2C]
WASHER, LOCK
T0.7
22877-1440A HINO
077
[2C]
WASHER, LOCK
T0.75
22877-1450A HINO
077
[2C]
WASHER, LOCK
T0.8
22877-1460A HINO
078
[01]
NUT, HEXAGON, W/ H
M22
22825-1510A HINO
079
[01]
ARM
22317-1380A HINO
084
[01]
BOLT, W/WASHER
M6,L16
22815-2920A HINO
085
[02]
WASHER
T1
22847-1900A HINO
087
[01]
SCREW, HOLLOW
M10,L19
22835-1110A HINO

Include in ##:

09130-02301 as GOVERNOR ASSY, MEC

Cross reference number



Part num
Firm num
Firm
Name
09130-02301
22310-3631
GOVERNOR ASSY, MEC
