Buy GOVERNOR ASSY, MEC 09130-01711 genuine, new aftermarket engine parts with delivery

Information governor assy, mec Denso

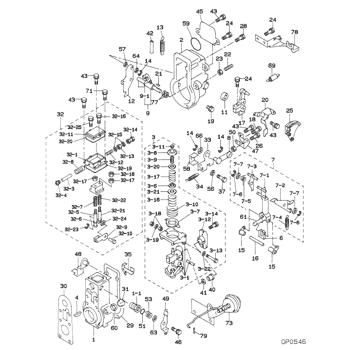

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

09130-01711

GOVERNOR ASSY, MEC

R801

22410-58343 TOYOTA

001

[01]

09131-00140

HOUSING SUB-ASSY,

22017-58230 TOYOTA

001-001

[01]

09101-60020

BUSHING, BEARING

22196-73600-71 TOYOTA

002

[01]

09145-00232

COVER ASSY, GOVERN

22012-58230 TOYOTA

003

[01]

09133-00572

FLYWEIGHT ASSY

22720-58340 TOYOTA

003-001

[01]

09137-00030

FLYWEIGHT SUB-ASSY

003-006

[02]

09137-70341

SEAT, GOVERNOR SPR

22481-58230 TOYOTA

003-007

[02]

09136-30010

SEAT, GOVERNOR SPR

22551-78030 TOYOTA

003-008

[02]

09139-30091

GUIDE, SPRING

22728-78031 TOYOTA

003-009

[02]

09091-81710

SPRING, MECHANICAL

22412-78030 TOYOTA

003-010

[02]

09138-90570

SPRING, IDLING

L23.8,BLUE

22768-78031 TOYOTA

003-011

[02]

09139-50020

NUT, ADJUSTING

M8,1.25 -9610

22729-78030 TOYOTA

003-011

[02]

09139-50050

NUT, ADJUSTING

M8,0.75 9611-

22729-5C440 TOYOTA

003-012

[01]

09140-50071

BUSHING, GUIDE

22738-78030 TOYOTA

003-013

[01]

09140-10040

BOLT, BELLCRANK

BOLTTYPE -9904

22736-78030 TOYOTA

003-013

[01]

09140-10061

BOLT, BELLCRANK

PIN TYPE 9905-

003-014

[02]

91418-06161

BOLT, W/WASHER

M6,L16 -9512

90091-20614 TOYOTA

003-014

[02]

94904-78260

BOLT, W/WASHER

M6,L16 9512-

90099-04491 TOYOTA

003-016

[02]

09138-90560

SPRING, IDLING

L24.4,BLUE

22768-78033 TOYOTA

003-017

[02]

09139-10470

SPRING, SPEED CONT

22726-58230 TOYOTA

003-018

[02]

90160-06051

NUT, HEXAGON

M6,L5 -9904

90092-10101 TOYOTA

003-018

[02]

09089-40101

E-RING

PIN TYPE 9905-

003-019

[01]

09140-30010

WASHER, LOCK

D16,T0.5 -9905

22737-77121 TOYOTA

003-020

[C]

09140-30410

WASHER, LOCK

T1.0

22416-78051 TOYOTA

003-021

[C]

09140-30160

WASHER, LOCK

T0.2

22737-78030 TOYOTA

003-021

[C]

09140-30170

WASHER, LOCK

T0.4

22737-78031 TOYOTA

003-021

[C]

09140-30180

WASHER, LOCK

T0.6

22737-78032 TOYOTA

003-021

[C]

09140-30190

WASHER, LOCK

T0.4

22737-78033 TOYOTA

003-021

[C]

09140-30200

WASHER, LOCK

T0.6

22737-78034 TOYOTA

003-021

[C]

09140-30400

WASHER, LOCK

T1.0

22416-78050 TOYOTA

003-022

[01]

94901-33970

WASHER, PLATE, SK

D12,T0.5 -9904

90093-30611 TOYOTA

003-022

[02]

09140-30800

WASHER, LOCK

ID6,T1.0 9905-

004

[01]

94913-00050

KEY, WOODRUFF

90099-13002 TOYOTA

006

[01]

09142-60081

SLIDER

22761-78031 TOYOTA

007

[01]

09143-00110

LEVER ASSY, FLOATI

22702-78030 TOYOTA

007-001

[01]

09143-60212

LEVER SUB-ASSY, FL

22015-78031 TOYOTA

007-002

[01]

09169-50041

STOPPER SUB-ASSY,

22014-78031 TOYOTA

007-003

[01]

09094-00410

LEVER SUB-ASSY, CO

22490-78030 TOYOTA

007-004

[01]

09104-20580

SPRING, RETURN

22432-78032 TOYOTA

007-005

[01]

09104-20610

SPRING, RETURN

22432-78033 TOYOTA

007-006

[02]

09089-40020

E-RING

22365-48010 TOYOTA

007-007

[C]

94901-31390

WASHER, PLATE, SK

T0.1

90099-01505 TOYOTA

007-007

[C]

94901-32370

WASHER, PLATE, SK

T0.05

90099-01334 TOYOTA

007-007

[C]

94901-33960

WASHER, PLATE, SK

T0.2

90099-30610 TOYOTA

007-007

[C]

94901-35090

WASHER, PLATE, SK

T0.4

90099-01519 TOYOTA

008

[01]

09098-00341

SHACKLE SUB-ASSY

22016-78031 TOYOTA

009

[1C]

09148-00200

ARM ASSY, GUIDE

NO MARKING *1

009

[1C]

09148-00210

ARM ASSY, GUIDE

MARKING II *1

009

[1C]

09148-00220

ARM ASSY, GUIDE

MARKING III *1

009-001

[01]

19089-00780

OVER-HAUL KIT, GOV

SHAFT KIT

011

[01]

94915-02522

SEAL, OIL

90099-15036 TOYOTA

012

[01]

09101-70051

PLATE, CAM

22552-78031 TOYOTA

013

[01]

09104-20600

SPRING, RETURN

22432-78031 TOYOTA

014

[03]

09089-40020

E-RING

22365-48010 TOYOTA

015

[02]

09156-00020

LEVER SUB-ASSY, SU

22011-78030 TOYOTA

016

[01]

09156-30050

SHAFT, LEVER SUPPO

22558-78031 TOYOTA

017

[01]

09107-01950

LEVER SUB-ASSY, AD

22701-58231 TOYOTA

018

[01]

94904-71760

BOLT, W/WASHER

M6,L40

90099-04328 TOYOTA

019

[02]

09116-70110

PLUG, SCREW

22446-78030 TOYOTA

020

[01]

09107-02081

LEVER SUB-ASSY, AD

22701-58230 TOYOTA

021

[01]

94913-00030

KEY, WOODRUFF

90099-13013 TOYOTA

022

[01]

09152-40160

SCREW, STOPPER

22776-78032 TOYOTA

023

[01]

94805-30121

NUT, HEXAGON, W/HO

90099-05175 TOYOTA

024

[04]

91418-06201

BOLT, W/WASHER

M6,L20

90091-20608 TOYOTA

025

[01]

09632-00110

LEVER SUB-ASSY

35503-36011 TOYOTA

026

[01]

94904-03840

BOLT, HEXAGON

M6,L25

90099-04996 TOYOTA

028

[05]

91418-06351

BOLT, W/WASHER

M6,L35

90091-20615 TOYOTA

029

[01]

09151-70050

GASKET, COVER

-9209

22774-78030 TOYOTA

029

[01]

09151-70080

GASKET, COVER

9209-

22774-78140 TOYOTA

030

[01]

09082-30240

GASKET

-9408

22442-78030 TOYOTA

030

[01]

09082-30460

GASKET

9409-

031

[01]

09154-30031

PLUG, SCREW

22795-77121 TOYOTA

032

[01]

09169-00360

HOUSING SUB-ASSY,

-8810

22013-58340 TOYOTA

032

[01]

09169-00361

HOUSING SUB-ASSY,

8810-

22013-58340 TOYOTA

032-001

[01]

09169-10041

HOUSING, FULL LOAD

22559-78030 TOYOTA

032-003

[01]

09156-30040

SHAFT, LEVER SUPPO

22558-78030 TOYOTA

032-004

[01]

09031-70060

PLUG, SCREW

-8912

22129-78030 TOYOTA

032-004

[01]

09031-70270

PLUG, SCREW

8912-

032-005

[01]

09091-90321

ADAPTER

22433-78031 TOYOTA

032-006

[01]

09095-30181

BUSHING

22554-78030 TOYOTA

032-007

[01]

09091-81630

SPRING, MECHANICAL

22411-78030 TOYOTA

032-008

[01]

09091-81640

SPRING, MECHANICAL

22411-78031 TOYOTA

032-009

[01]

09152-10382

CAM, FULL STOP

22557-58340 TOYOTA

032-010

[01]

09098-30300

PIN, CONNECTING

22423-78030 TOYOTA

032-011

[01]

09105-10591

PLATE, COVER

-8810

22458-78140 TOYOTA

032-011

[01]

09105-10592

PLATE, COVER

8810-

22458-78140 TOYOTA

032-012

[01]

09152-40390

SCREW, STOPPER

22776-78034 TOYOTA

032-013

[01]

09634-20010

NUT, LOCK

22775-77121 TOYOTA

032-014

[01]

09103-10180

NUT, CAP

22437-58230 TOYOTA

032-015

[02]

09024-80010

WASHER, DRAIN SCRE

22378-76010 TOYOTA

032-016

[01]

94904-71790

BOLT, W/WASHER

M6,L14 -8810

90099-04997 TOYOTA

032-016

[01]

94904-74620

BOLT, W/WASHER

M6,L16 8810-

90099-04587 TOYOTA

032-017

[02]

90160-06051

NUT, HEXAGON

90092-10101 TOYOTA

032-018

[01]

90170-06361

NUT, HEXAGON

M6,L3.6

94120-40600 TOYOTA

032-019

[01]

94914-02030

O-RING

ID52.5

90099-14039 TOYOTA

032-020

[01]

94914-01950

O-RING

ID44.5 -9306

90099-14068 TOYOTA

032-020

[01]

94914-06360

O-RING

W51*31 9306-

90099-14132 TOYOTA

032-021

[01]

09091-90331

ADAPTER

22433-78032 TOYOTA

032-022

[01]

09091-81650

SPRING, MECHANICAL

22411-78032 TOYOTA

032-023

[01]

09089-40020

E-RING

22365-48010 TOYOTA

032-024

[C]

94901-32370

WASHER, PLATE, SK

T0.05

90099-01334 TOYOTA

032-024

[C]

94901-35020

WASHER, PLATE, SK

T0.1

90099-01540 TOYOTA

032-024

[C]

94901-35030

WASHER, PLATE, SK

T0.2

90099-01541 TOYOTA

032-025

[01]

91418-06161

BOLT, W/WASHER

M6,L16

90091-20614 TOYOTA

033

[01]

09115-90170

ARM SUB-ASSY

22408-78031 TOYOTA

034

[01]

09104-20590

SPRING, RETURN

22432-78030 TOYOTA

035

[01]

09087-80060

PLATE

22555-78030 TOYOTA

037

[01]

09057-30150

BOLT, DIAPHRAGM CO

22329-78130 TOYOTA

040

[01]

09084-40010

NUT, ROUND

22451-77123 TOYOTA

041

[01]

94901-50500

WASHER, SPRING

T2.5

22348-76010 TOYOTA

042

[01]

94933-06540

TUBE, RUBBER

90099-33856 TOYOTA

043

[07]

91418-06161

BOLT, W/WASHER

M6,L16

90091-20614 TOYOTA

045

[01]

09105-10540

PLATE, COVER

22458-78030 TOYOTA

046

[01]

91418-06141

BOLT, W/WASHER

M6,L14

22188-73600 TOYOTA

047

[01]

09081-80100

BRACKET

22562-58230 TOYOTA

048

[01]

09115-90140

ARM SUB-ASSY

22408-78030 TOYOTA

049

[01]

09109-00950

LEVER SUB-ASSY, ST

22702-58231 TOYOTA

050

[01]

90160-06051

NUT, HEXAGON

90092-10101 TOYOTA

051

[01]

94914-00130

O-RING

ID9.0

90099-14005 TOYOTA

053

[01]

09104-20840

SPRING, RETURN

22432-78050 TOYOTA

056

[01]

90258-05001

WASHER, SPRING

90032-04023 TOYOTA

057

[01]

09140-30420

WASHER, LOCK

22416-58270 TOYOTA

058

[01]

09108-30260

ARM

22428-78030 TOYOTA

059

[01]

94914-02190

O-RING

ID39.5

90099-14069 TOYOTA

060

[01]

09169-40020

GASKET

-9302

060

[01]

09169-40170

GASKET

9302-

22561-78030 TOYOTA

061

[C]

09141-10180

SHAFT, SLIDING WEI

L31.9

22752-78030 TOYOTA

061

[C]

09141-10190

SHAFT, SLIDING WEI

L31.7

22752-78031 TOYOTA

061

[C]

09141-10200

SHAFT, SLIDING WEI

L31.5

22752-78032 TOYOTA

061

[C]

09141-10210

SHAFT, SLIDING WEI

L31.3

22752-78033 TOYOTA

061

[C]

09141-10220

SHAFT, SLIDING WEI

L31.1

22752-78034 TOYOTA

061

[C]

09141-10230

SHAFT, SLIDING WEI

L30.9

22752-78035 TOYOTA

061

[C]

09141-10240

SHAFT, SLIDING WEI

L30.7

22752-78036 TOYOTA

063

[1C]

94901-31960

WASHER, PLATE, SK

T0.1

90099-02315 TOYOTA

063

[1C]

94901-31970

WASHER, PLATE, SK

T0.2

90099-01369 TOYOTA

063

[1C]

94901-31980

WASHER, PLATE, SK

T0.5

90099-01381 TOYOTA

064

[1C]

09140-30300

WASHER, LOCK

T0.2

22416-78032 TOYOTA

064

[1C]

09140-30310

WASHER, LOCK

T0.3

22416-78033 TOYOTA

064

[1C]

09140-30320

WASHER, LOCK

T0.4

22416-78034 TOYOTA

064

[1C]

09140-30330

WASHER, LOCK

T0.5

22416-78035 TOYOTA

066

[01]

94901-16220

WASHER, STEEL PLAT

90099-01511 TOYOTA

069

[01]

09104-10200

SPRING SUB-ASSY, R

22440-58230 TOYOTA

071

[01]

94904-72700

BOLT, W/WASHER

M6,L18

90099-04325 TOYOTA

073

[01]

09647-20430

ACTUATOR SET, IDLE

22579-58231 TOYOTA

077

[2C]

09140-30230

WASHER, LOCK

T0.5

22737-78035 TOYOTA

077

[2C]

09140-30240

WASHER, LOCK

T0.55

22737-78036 TOYOTA

077

[2C]

09140-30250

WASHER, LOCK

T0.6

22737-78037 TOYOTA

077

[2C]

09140-30260

WASHER, LOCK

T0.65

22737-78038 TOYOTA

077

[2C]

09140-30270

WASHER, LOCK

T0.7

22737-78039 TOYOTA

077

[2C]

09140-30280

WASHER, LOCK

T0.75

22416-78030 TOYOTA

077

[2C]

09140-30290

WASHER, LOCK

T0.8

22416-78031 TOYOTA

078

[01]

09097-50950

ARM, SPRING

22424-58341 TOYOTA

079

[01]

09647-20430

ACTUATOR SET, IDLE

22579-58231 TOYOTA

Include in ##:

09130-01711 as GOVERNOR ASSY, MEC

19100-03070 PUMP ASSY, INJECTI

Cross reference number

Part num

Firm num

Firm

Name

09130-01711

22410-5834

GOVERNOR ASSY, MEC

09130-01711 GOVERNOR ASSY, MEC Denso Cross

Information governor assy, mec Denso

Scheme #.#:

Include in ##:

Cross reference number

Have questions with 09130-01711?

Group cross 09130-01711
