09130-01684 GOVERNOR ASSY, MEC Denso Cross Denso

Buy now

Add to cart Go to cart

Rating:

Buy GOVERNOR ASSY, MEC 09130-01684 genuine, new aftermarket engine parts with delivery

Information governor assy, mec Denso

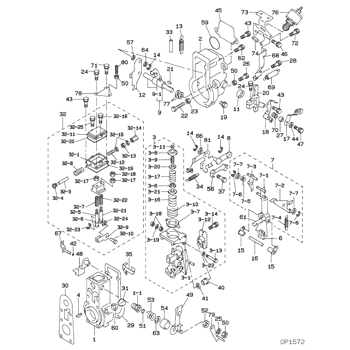

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

09130-01684

GOVERNOR ASSY, MEC

R801

001

[01]

09131-00131

HOUSING SUB-ASSY,

001-001

[01]

09101-60290

BUSHING, BEARING

002

[01]

09145-00384

COVER ASSY, GOVERN

-9512

002

[01]

09145-00891

COVER ASSY, GOVERN

R801 9512-

003

[01]

09133-00393

FLYWEIGHT ASSY

003-001

[01]

09137-00031

FLYWEIGHT SUB-ASSY

003-006

[02]

09137-70341

SEAT, GOVERNOR SPR

003-007

[02]

09136-30010

SEAT, GOVERNOR SPR

003-008

[02]

09139-30091

GUIDE, SPRING

003-009

[02]

09091-81710

SPRING, MECHANICAL

003-010

[02]

09138-90570

SPRING, IDLING

L23.8,BLUE

003-011

[02]

09139-50020

NUT, ADJUSTING

M8,1.25 -9610

003-011

[02]

09139-50050

NUT, ADJUSTING

M8,0.75 9611-

003-012

[01]

09140-50071

BUSHING, GUIDE

003-013

[01]

09140-10040

BOLT, BELLCRANK

BOLTTYPE -9904

003-013

[01]

09140-10061

BOLT, BELLCRANK

PIN TYPE 9905-

003-014

[02]

91418-06161

BOLT, W/WASHER

M6,L16 -9512

003-014

[02]

94904-78260

BOLT, W/WASHER

M6,L16 9512-

003-016

[02]

09138-90610

SPRING, IDLING

L26.0,RED

003-017

[02]

09139-10391

SPRING, SPEED CONT

L23.5

003-018

[02]

90160-06051

NUT, HEXAGON

M6,L5 -9904

003-018

[02]

09089-40101

E-RING

PIN TYPE 9905-

003-019

[01]

09140-30010

WASHER, LOCK

D16,T0.5 -9905

003-020

[2C]

09140-30190

WASHER, LOCK

T0.4

003-020

[2C]

09140-30200

WASHER, LOCK

T0.6

003-020

[2C]

09140-30410

WASHER, LOCK

T1.0

003-020

[2C]

09140-30700

WASHER, LOCK

T0.3

003-020

[2C]

09140-30710

WASHER, LOCK

T0.2

003-021

[2C]

09140-30160

WASHER, LOCK

T0.2

003-021

[2C]

09140-30170

WASHER, LOCK

T0.4

003-021

[2C]

09140-30180

WASHER, LOCK

T0.6

003-021

[2C]

09140-30400

WASHER, LOCK

T1.0

003-022

[01]

94901-33970

WASHER, PLATE, SK

D12,T0.5 -9904

003-022

[02]

09140-30800

WASHER, LOCK

ID6,T1.0 9905-

004

[01]

94913-00050

KEY, WOODRUFF

006

[01]

09142-60081

SLIDER

007

[01]

09143-00110

LEVER ASSY, FLOATI

007-001

[01]

09143-60212

LEVER SUB-ASSY, FL

007-002

[01]

09169-50041

STOPPER SUB-ASSY,

007-003

[01]

09094-00410

LEVER SUB-ASSY, CO

007-004

[01]

09104-20580

SPRING, RETURN

007-005

[01]

09104-20610

SPRING, RETURN

007-006

[02]

09089-40020

E-RING

007-007

[C]

94901-31390

WASHER, PLATE, SK

T0.1

007-007

[C]

94901-32370

WASHER, PLATE, SK

T0.05

007-007

[C]

94901-33960

WASHER, PLATE, SK

T0.2

007-007

[C]

94901-35090

WASHER, PLATE, SK

T0.4

007-007

[C]

94901-35080

WASHER, PLATE, SK

T0.3

008

[01]

09098-00341

SHACKLE SUB-ASSY

009

[1C]

09148-00200

ARM ASSY, GUIDE

NO MARKING *1

009

[1C]

09148-00210

ARM ASSY, GUIDE

MARKING II *1

009

[1C]

09148-00220

ARM ASSY, GUIDE

MARKING III *1

009-001

[01]

19089-00780

OVER-HAUL KIT, GOV

SHAFT KIT

011

[01]

94915-02522

SEAL, OIL

012

[01]

09101-70051

PLATE, CAM

013

[01]

09104-20600

SPRING, RETURN

014

[03]

09089-40020

E-RING

015

[02]

09156-00021

LEVER SUB-ASSY, SU

016

[01]

09156-30050

SHAFT, LEVER SUPPO

017

[01]

09107-01720

LEVER SUB-ASSY, AD

018

[01]

09107-12540

LEVER, ADJUSTING

019

[02]

09116-70110

PLUG, SCREW

020

[01]

09107-01730

LEVER SUB-ASSY, AD

021

[01]

94913-00030

KEY, WOODRUFF

022

[01]

09082-10254

STOPPER

023

[01]

09116-90024

NUT

024

[02]

91418-06201

BOLT, W/WASHER

M6,L20

025

[01]

90258-06001

WASHER, SPRING

FOR M6

026

[01]

94904-03840

BOLT, HEXAGON

M6,L25

027

[01]

94919-23520

COLLAR, STEEL

H10.5 -9209

027

[01]

94919-26770

COLLAR, STEEL

9209-

028

[01]

94904-71760

BOLT, W/WASHER

M6,L40

029

[01]

09151-70060

GASKET, COVER

-9103

029

[01]

09151-70090

GASKET, COVER

9103-

030

[01]

09082-30240

GASKET

-9408

030

[01]

09082-30460

GASKET

9409-

031

[01]

09154-30031

PLUG, SCREW

032

[01]

09169-00682

HOUSING SUB-ASSY,

032-001

[01]

09169-10110

HOUSING, FULL LOAD

032-003

[01]

09156-30040

SHAFT, LEVER SUPPO

032-004

[01]

09031-70270

PLUG, SCREW

032-005

[01]

09091-90460

ADAPTER

L62.5

032-006

[01]

09095-30181

BUSHING

032-007

[01]

09091-81630

SPRING, MECHANICAL

032-008

[01]

09091-82360

SPRING, MECHANICAL

032-009

[01]

09152-10011

CAM, FULL STOP

032-010

[01]

09098-30300

PIN, CONNECTING

032-011

[01]

09105-10651

PLATE, COVER

032-012

[01]

09152-40450

SCREW, STOPPER

-8912

032-012

[01]

09152-40400

SCREW, STOPPER

8912-

032-013

[01]

09634-20010

NUT, LOCK

032-014

[01]

09103-10180

NUT, CAP

032-015

[02]

09024-80010

WASHER, DRAIN SCRE

032-016

[01]

94904-74620

BOLT, W/WASHER

M6,L16

032-017

[02]

90160-06051

NUT, HEXAGON

M6,L5

032-018

[01]

90170-06361

NUT, HEXAGON

M6,L3.6

032-019

[01]

94914-04200

O-RING

ID54.5

032-020

[01]

94914-02030

O-RING

ID52.5

032-021

[01]

09091-90470

ADAPTER

L63.5

032-022

[01]

09091-82050

SPRING, MECHANICAL

032-023

[01]

09089-40020

E-RING

032-024

[1C]

94901-32370

WASHER, PLATE, SK

T0.05

032-024

[1C]

94901-35030

WASHER, PLATE, SK

T0.2

032-024

[1C]

94901-35020

WASHER, PLATE, SK

T0.1

032-025

[01]

91418-06161

BOLT, W/WASHER

M6,L16

033

[01]

94933-06540

TUBE, RUBBER

034

[01]

09104-20590

SPRING, RETURN

035

[01]

09087-80102

PLATE

037

[02]

09057-30150

BOLT, DIAPHRAGM CO

040

[01]

09084-40010

NUT, ROUND

041

[01]

94901-50500

WASHER, SPRING

T2.5

042

[01]

94914-03660

O-RING

ID5.5

043

[06]

91418-06161

BOLT, W/WASHER

M6,L16

044

[01]

90200-06241

WASHER, PLATE

045

[01]

09105-10540

PLATE, COVER

046

[01]

91418-06141

BOLT, W/WASHER

L14

047

[01]

91418-06251

BOLT, W/WASHER

M6,L25

048

[01]

09115-90321

ARM SUB-ASSY

049

[01]

09109-81630

STOPPER

050

[03]

90160-06051

NUT, HEXAGON

051

[01]

90801-10130

O-RING

ID13

052

[01]

94905-04420

NUT, HEXAGON

M12

053

[01]

09104-20220

SPRING, RETURN

054

[01]

09104-30070

COVER, SPRING

056

[01]

09140-30460

WASHER, LOCK

T0.5

057

[01]

09140-30420

WASHER, LOCK

058

[01]

09072-10150

PLATE

059

[01]

94914-02190

O-RING

ID39.5

060

[01]

09169-40020

GASKET

-9302

060

[01]

09169-40170

GASKET

9302-

061

[1C]

09141-10180

SHAFT, SLIDING WEI

L31.9

061

[1C]

09141-10190

SHAFT, SLIDING WEI

L31.7

061

[1C]

09141-10200

SHAFT, SLIDING WEI

L31.5

061

[1C]

09141-10210

SHAFT, SLIDING WEI

L31.3

061

[1C]

09141-10220

SHAFT, SLIDING WEI

L31.1

061

[1C]

09141-10230

SHAFT, SLIDING WEI

L30.9

061

[1C]

09141-10240

SHAFT, SLIDING WEI

L30.7

062

[04]

91418-06351

BOLT, W/WASHER

M6,L35

063

[1C]

94901-30360

WASHER, PLATE, SK

T0.2 -9804

063

[1C]

94901-30370

WASHER, PLATE, SK

T0.1 -9804

063

[1C]

94901-30380

WASHER, PLATE, SK

T0.2 -9804

063

[1C]

94901-30510

WASHER, PLATE, SK

T0.1 9805-

063

[1C]

94901-30520

WASHER, PLATE, SK

T0.2 9805-

064

[1C]

09140-30300

WASHER, LOCK

T0.2

064

[1C]

09140-30310

WASHER, LOCK

T0.3

064

[1C]

09140-30320

WASHER, LOCK

T0.4

064

[1C]

09140-30330

WASHER, LOCK

T0.5

066

[01]

94901-16220

WASHER, STEEL PLAT

T0.5

067

[01]

09115-90311

ARM SUB-ASSY

068

[01]

09069-10710

BRACKET, STOP WIRE

069

[01]

09104-10150

SPRING SUB-ASSY, R

070

[01]

09104-20801

SPRING, RETURN

071

[01]

94904-72700

BOLT, W/WASHER

M6,L20

072

[01]

94904-72220

BOLT, W/WASHER

M6,L45

073

[01]

09072-00180

BRACKET SUB-ASSY,

074

[01]

94905-30241

NUT, HEXAGON, W/ H

M22

076

[01]

09071-00023

BELLOWS ASSY, PNEU

077

[2C]

09140-30230

WASHER, LOCK

T0.5

077

[2C]

09140-30240

WASHER, LOCK

T0.55

077

[2C]

09140-30250

WASHER, LOCK

T0.6

077

[2C]

09140-30260

WASHER, LOCK

T0.65

077

[2C]

09140-30270

WASHER, LOCK

T0.7

077

[2C]

09140-30280

WASHER, LOCK

T0.75

077

[2C]

09140-30290

WASHER, LOCK

T0.8

078

[01]

09069-10970

BRACKET, STOP WIRE

079

[01]

09108-30571

ARM

080

[01]

09266-40020

SCREW, LEVER STOP

081

[01]

09115-90500

ARM SUB-ASSY

Include in ##:

09130-01684 as GOVERNOR ASSY, MEC

09300-01890 PUMP ASSY, INJECTI
