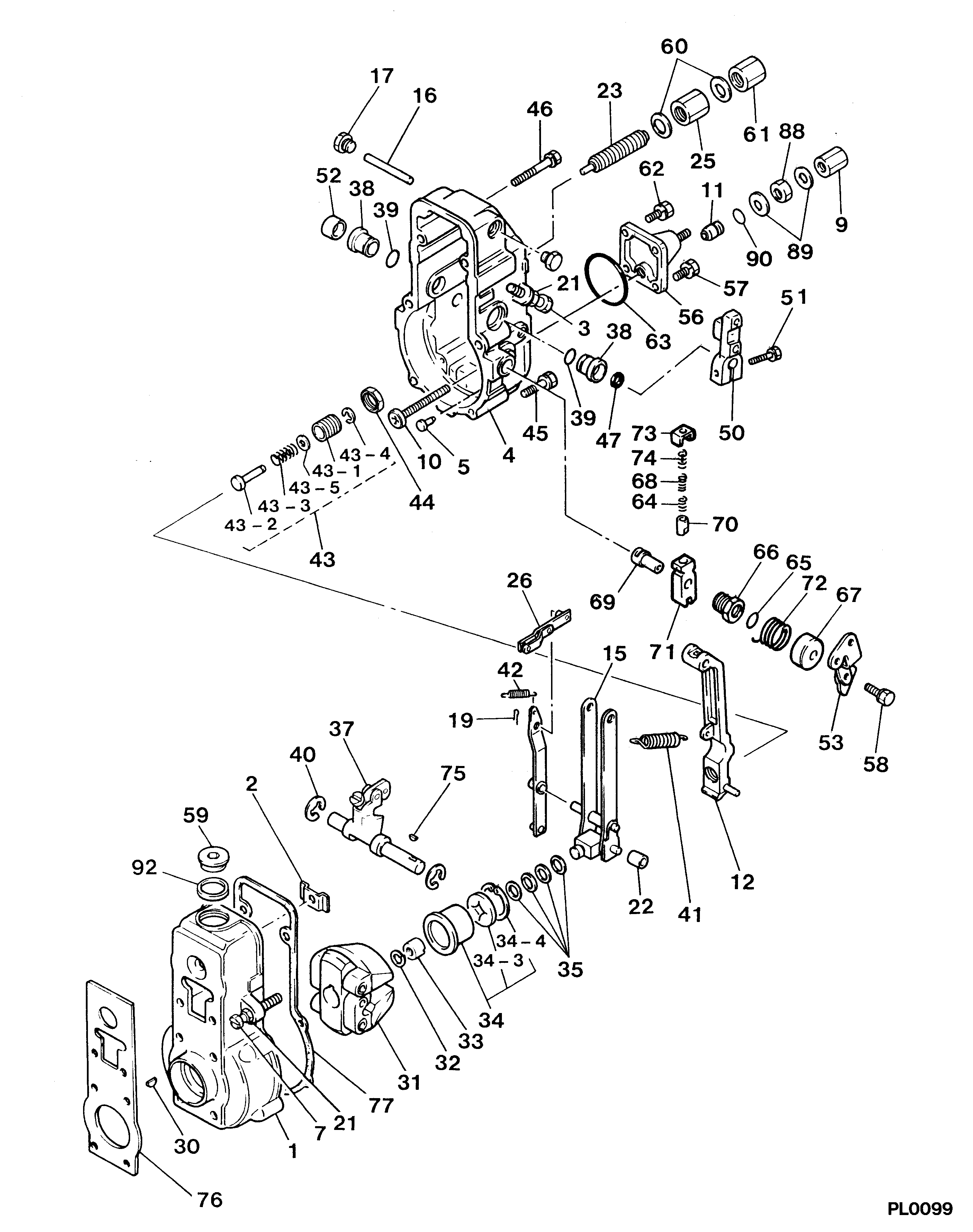

09080-09450 GOVERNOR ASSY, MEC Denso Cross


Rating:
9
Buy GOVERNOR ASSY, MEC 09080-09450 genuine, new aftermarket engine parts with delivery

Information governor assy, mec Denso

KIT List:

Part name
Kit1
Kit2
Governor assy, mec
Governor assy, mec

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09080-09450
GOVERNOR ASSY, MEC
001
[01]
HOUSING, GOVERNOR
-9311
001
[01]
HOUSING SUB-ASSY,
9312-
002
[01]
PLATE
003
[01]
STOPPER
004
[01]
COVER, GOVERNOR
005
[01]
PIN, STOP
007
[01]
SCREW, ADJUSTING
M8,L57
009
[01]
NUT, CAP
010
[01]
SCREW, STROKE ADJU
011
[01]
BUSHING
012
[01]
LEVER, TENSION
-9201
012
[01]
LEVER, TENSION
9201-
015
[01]
LEVER ASSY, CONTRO
L/R:1.2
016
[01]
SHAFT, LEVER SUPPO
017
[02]
PLUG, SCREW
019
[02]
PIN, SPLIT
D2,L10
021
[02]
NUT, HEXAGON, W/HO
022
[01]
SLIDER, SUPPORTING
023
[01]
CAPSULE, FULL STOP
025
[01]
NUT, ADAPTER LOCK
026
[01]
SHACKLE ASSY
030
[01]
KEY, WOODRUFF
031
[01]
FLYWEIGHT ASSY
032
[01]
WASHER, SPRING
T2.5
033
[01]
NUT, ROUND
034
[01]
SLEEVE SUB-ASSY, F
034-003
[01]
PLATE, THRUST
034-004
[01]
RING, HOLE SNAP
OD30
035
[4C]
WASHER, PLATE, SK
T0.2
035
[4C]
WASHER, PLATE, SK
T0.3
035
[4C]
WASHER, PLATE, SK
T0.4
035
[4C]
WASHER, PLATE, SK
T0.1
035
[4C]
WASHER, PLATE, SK
T1.0
037
[01]
LEVER ASSY, SWIEVE
-9103
037
[01]
LEVER ASSY, SWIEVE
9103-
038
[02]
BUSHING, LEVER
039
[02]
O-RING
ID15.8
040
[02]
WASHER, SNAP
ID15
041
[01]
SPRING, SPEED CONT
042
[01]
SPRING, START
043
[01]
ADAPTER ASSY
043-001
[01]
SCREW, ADPTER
043-002
[01]
ADAPTER
043-003
[01]
SPRING, MECHANICAL
K3.0
043-004
[01]
E-RING
043-005
[C]
WASHER, PLATE, SK
T0.1
043-005
[C]
WASHER, PLATE, SK
T0.25
043-005
[C]
WASHER, PLATE, SK
T0.5
043-005
[C]
WASHER, PLATE, SK
T0.2
043-005
[C]
WASHER, PLATE, SK
T1.0
044
[01]
NUT, ADAPTER LOCK
045
[04]
BOLT, W/WASHER
M6,L40
046
[02]
BOLT, W/WASHER
M6,L50
047
[01]
SEAL, OIL
050
[01]
LEVER, ADJUSTING
051
[01]
BOLT, W/WASHER
M6,L22
052
[01]
CAP, LEVER
053
[01]
LEVER SUB-ASSY, ST
056
[01]
PLATE SUB-ASSY, CO
-9201
056
[01]
PLATE SUB-ASSY, CO
9201-
057
[02]
BOLT, W/WASHER
M6,L18
058
[01]
BOLT, W/WASHER
M6,L14
059
[01]
PLUG, SCREW
060
[02]
WASHER, AIR BLEEDE
061
[01]
NUT, CAP
062
[02]
BOLT, W/WASHER
M6,L16
063
[01]
PACKING, RUBBER PL
064
[01]
SPRING, B
065
[01]
O-RING
066
[01]
BUSHING, BEARING
067
[01]
COVER, SPRING
068
[01]
SPRING, B
069
[01]
SHAFT, MECHANICAL
070
[01]
CUP, SPRING
071
[01]
LEVER, SUPPORT
072
[01]
SPRING, RETURN
073
[01]
PLATE, CAP
074
[01]
SPRING, B
075
[01]
KEY, WOODRUFF
076
[01]
GASKET
-9408
076
[01]
GASKET
9409-
077
[01]
GASKET
-9309
077
[01]
GASKET
9310-
088
[01]
NUT, HEXAGON
M8 -9503
088
[01]
NUT, HEXAGON
M8 9504-
089
[02]
WASHER, COPPER PLA
T1
090
[01]
O-RING
ID12.3
092
[01]
WASHER, COPPER PLA
T1.5

Include in ##:

09080-09450 as GOVERNOR ASSY, MEC

Cross reference number



Part num
Firm num
Firm
Name
09080-09450

GOVERNOR ASSY, MEC




Information:


3306 Engine Shown1. Turn the fuel supply line valve to the "OFF" position.2. Remove the clamp that holds fuel drain line (1) to the fuel transfer pump. Remove fuel lines (4) and (5).3. Remove bolts (2) and fuel transfer pump (3) from the fuel injection pump housing. Remove the O-ring seal from the fuel transfer pump if necessary.4. Make sure the O-ring seal is in position on the fuel transfer pump. Put the fuel transfer pump in position on the fuel injection pump housing. Install bolts (2) that hold the fuel transfer pump to the fuel injection pump housing.5. Install the clamp that holds fuel drain line (1) to the fuel transfer pump. Install fuel line (4) between the fuel transfer pump and the fuel filter base. Install fuel line (5) between the fuel transfer pump and the fuel priming pump.6. Turn the fuel supply line valve to the "ON" position.Disassemble Fuel Transfer Pump
Start By:a. remove fuel transfer pump
Cover (1) is under spring force. To prevent possible personal injury, carefully remove bolts (2) and cover (1).
1. Remove bolts (2) and cover (1) from the housing. 2. Remove O-ring seals (3) and (4) from the cover.3. Remove valve assembly (5) from the cover. 4. Remove spring (6) from the housing. 5. Remove piston (12) from sleeve (10). Remove washer (15), valve assembly (14) and seal (13) from piston (12).6. Remove sleeve (10) from housing (7). Remove O-ring seal (11) from the sleeve.7. Remove guide and tappet assembly (9) and seal (8) from housing (7). 8. Remove two screws (16), cover (17) and the seal from housing (7). 9. Remove valve assembly (18) from housing (7).Assemble Fuel Transfer Pump
Be sure all parts of the fuel transfer pump are clean before assembly.
1. Install valve assembly (2) in housing (1) as shown. 2. Put clean diesel fuel on seal (2). Put seal (3) in position on cover (4) as shown. Put cover (4) on housing (1). Install the screws that hold the cover. 3. Put clean diesel fuel on seal (5). Put seal (5) and guide and tappet assembly (6) in position in housing (1).4. Put clean diesel fuel on O-ring seal (8). Put O-ring seal (8) in position on sleeve (7). Install sleeve (7) in housing (1).5. Install piston (9) in sleeve (7).6. Put clean diesel fuel on seal (10). Put seal (10), valve assembly (11) and washer (12) in position in piston (7). 7. Put clean diesel fuel on O-ring seals (13) and (14). Put the O-ring seals and valve assembly (15) in position in cover (16) as shown. 8. Put spring (17) and cover (16) in position on housing (1). Install the bolts that hold the spring and cover.End By:a. install fuel transfer pump
