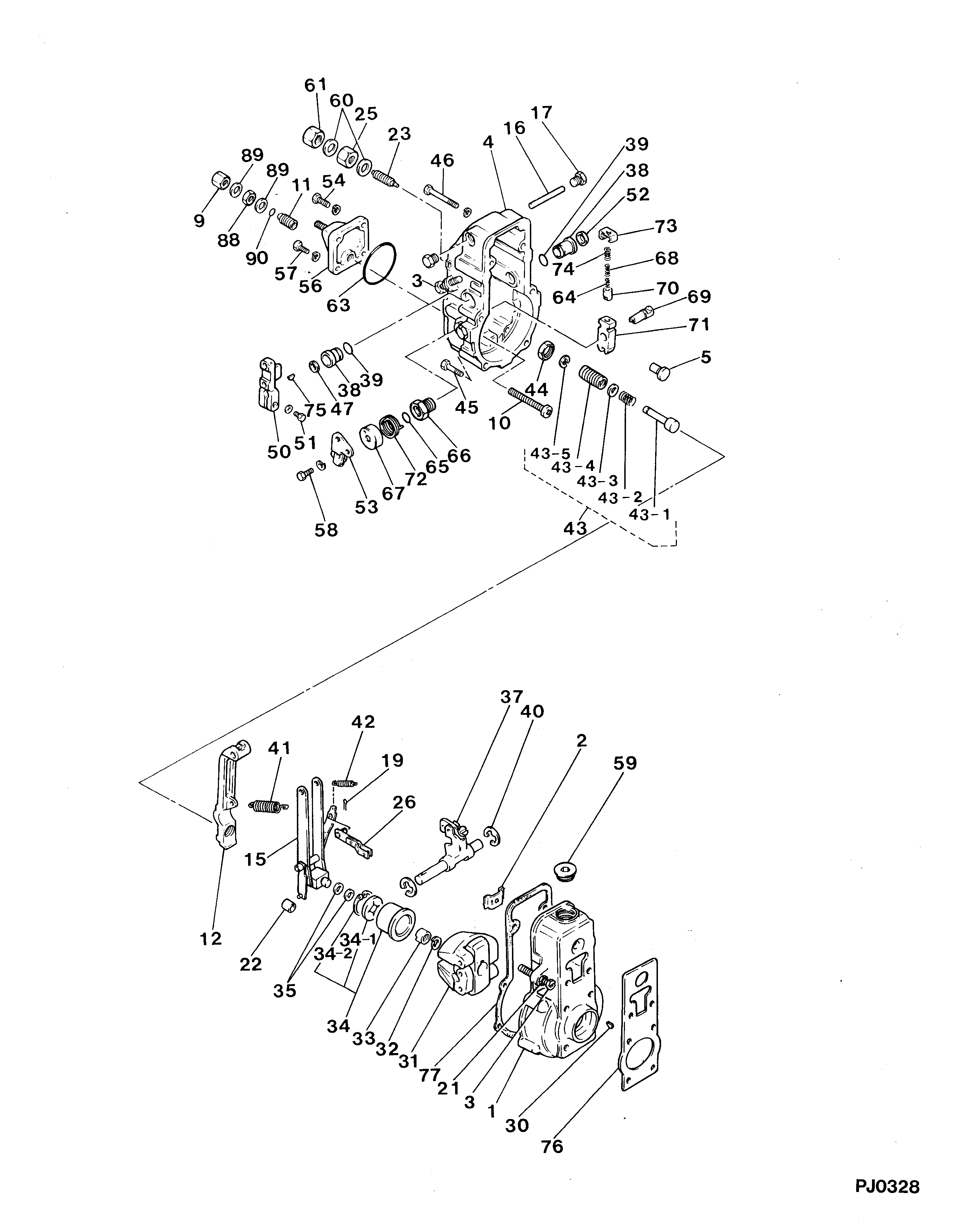

09080-08900 GOVERNOR ASSY, MEC Denso Cross

30Sep2011
(Revised 02Nov2011)
O-365
U-415
Before/After
PRODUCT SUPPORT PROGRAM FOR INSPECTING THE INJECTOR WIRING HARNESS ON CERTAIN D8T TRACK-TYPE TRACTORS AND 740B ARTICULATED TRUCKS
1290 1408 1900 PS43392
This Program must be administered either before or after failure.In either case the decision whether to apply the Program is made by the dealer. When reporting the repair, use "PS43392" as the Part Numberand "7755" as the Group Number. If administered before failure, use "56" as the Warranty Claim Description Code and "T" as the SIMS Description code.If administered after failure, use "96" as the Warranty Claim Description Code, and "Z" as the SIMS Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
This Revised Service Letter replaces the 30 September 2011 Service Letter. Changes have been made to the Affected Product, Parts Needed, and Rework Procedure.
TERMINATION DATE
30Sep2013
PROBLEM
The existing injector harness can fail on certain D8T Track-Type Tractors, and 740B Articulated Trucks. If the existing harness fails it can cause a loss of engine performance. The injector harness can contact the valve springs if the harness routed incorrectly. If this happens the valve spring can rub through the harness causing a short circuit or an open circuit.
AFFECTED PRODUCT
Model Identification Number
*******Group 1*******
735B T4P00252-00285
740B T4R00262-00379
740B EJ T4S00272-00281
*******Group 2*******
D8T FCT00111-00283
PARTS NEEDED
Qty
Part Number Description
*******Group 1*******
1 3561642 HARNESS AS-FOAM (After Failure Only)
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 16% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
*******Group 2*******
1 3396272 HARNESS AS-FOAM (After Failure Only)
1 3448311 CLAMP-BAND (After Failure Only)
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 16% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
