Information governor assy, mec Denso

KIT List:

Part name

Kit1

Kit2

Governor assy, mec

1908900170

Governor assy, mec

1908900170

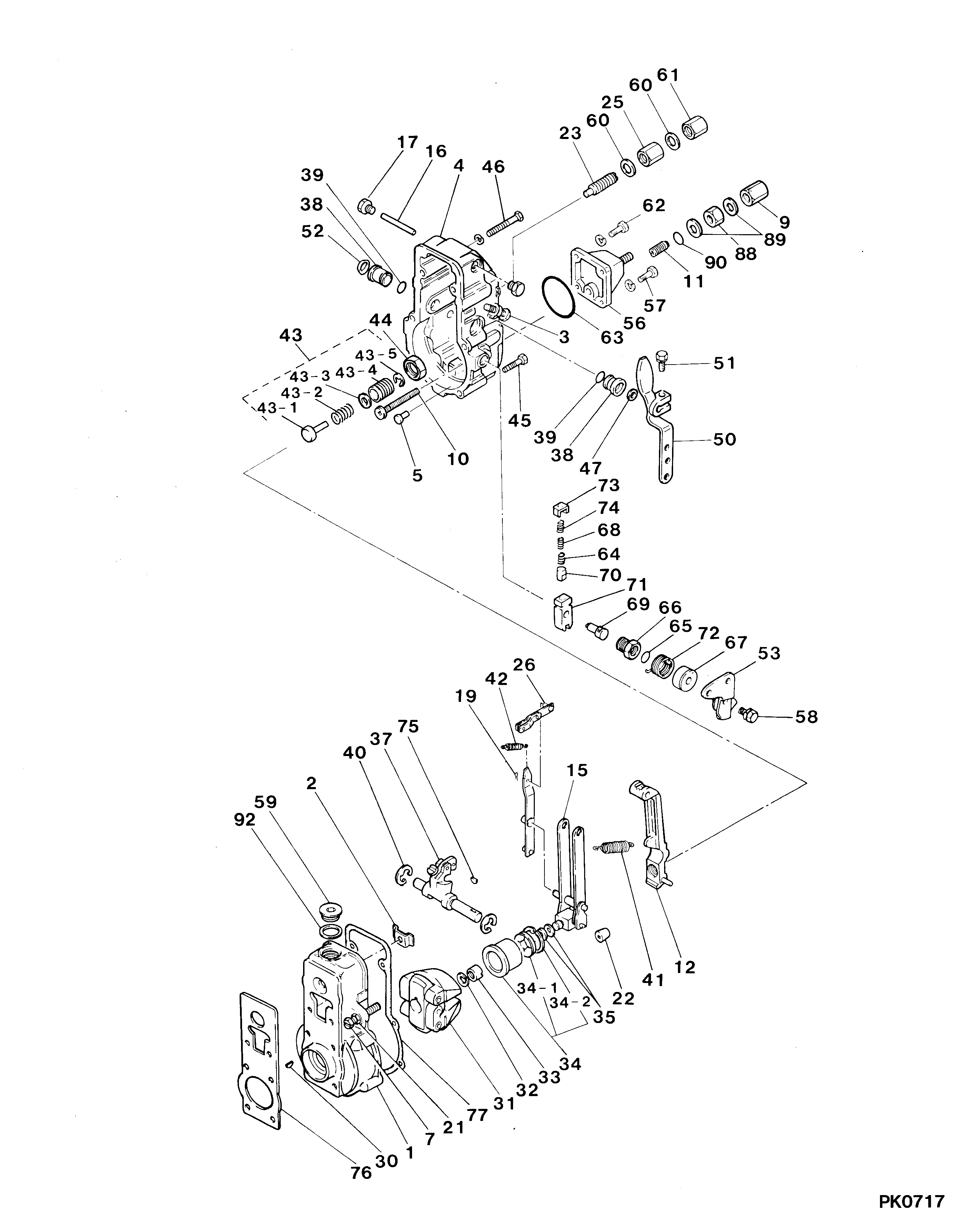

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

09080-08830

GOVERNOR ASSY, MEC

RSV

001

[01]

09081-10810

HOUSING, GOVERNOR

-9311

001

[01]

09081-00660

HOUSING SUB-ASSY,

9312-

002

[01]

09087-80030

PLATE

003

[01]

09082-10080

STOPPER

004

[01]

09101-11321

COVER, GOVERNOR

005

[01]

09101-40090

PIN, STOP

007

[01]

09102-40031

SCREW, ADJUSTING

M8,L57

009

[01]

09103-10150

NUT, CAP

010

[01]

09100-60150

SCREW, STROKE ADJU

011

[01]

09094-40310

BUSHING

012

[01]

09090-10150

LEVER, TENSION

015

[01]

09093-00510

LEVER ASSY, CONTRO

L/R:1.2

016

[01]

09098-90010

SHAFT, LEVER SUPPO

017

[02]

09099-10010

PLUG, SCREW

019

[02]

90400-02101

PIN, SPLIT

D2,L10

021

[02]

94805-30051

NUT, HEXAGON, W/HO

022

[01]

09104-60010

SLIDER, SUPPORTING

023

[01]

09056-00170

CAPSULE, FULL STOP

025

[01]

09092-30060

NUT, ADAPTER LOCK

026

[01]

09097-00170

SHACKLE ASSY

030

[01]

94913-00050

KEY, WOODRUFF

031

[01]

09084-00310

FLYWEIGHT ASSY

032

[01]

94901-50500

WASHER, SPRING

T2.5

033

[01]

09084-40010

NUT, ROUND

034

[01]

09086-00200

SLEEVE SUB-ASSY, F

034-001

[01]

09086-80030

PLATE, THRUST

034-002

[01]

90567-30000

RING, HOLE SNAP

OD30

035

[C]

94901-34060

WASHER, PLATE, SK

T0.2

035

[C]

94901-34070

WASHER, PLATE, SK

T0.3

035

[C]

94901-34080

WASHER, PLATE, SK

T0.4

035

[C]

94901-34090

WASHER, PLATE, SK

T0.1

035

[C]

94901-34100

WASHER, PLATE, SK

T1.0

037

[01]

09088-00120

LEVER ASSY, SWIEVE

-9103

037

[01]

09088-00140

LEVER ASSY, SWIEVE

9103-

038

[02]

09089-20080

BUSHING, LEVER

039

[02]

90801-20160

O-RING

ID15.8

040

[02]

94907-10090

WASHER, SNAP

ID15

041

[01]

09099-20480

SPRING, SPEED CONT

042

[01]

09099-30010

SPRING, START

043

[01]

09091-01470

ADAPTER ASSY

043-001

[01]

09091-90010

ADAPTER

043-002

[01]

09091-82010

SPRING, MECHANICAL

K3.0

043-003

[C]

94901-33880

WASHER, PLATE, SK

T0.1

043-003

[C]

94901-34020

WASHER, PLATE, SK

T0.25

043-003

[C]

94901-34030

WASHER, PLATE, SK

T0.5

043-003

[C]

94901-34040

WASHER, PLATE, SK

T0.2

043-004

[01]

09091-10010

SCREW, ADPTER

043-005

[01]

09089-40010

E-RING

044

[01]

09092-30011

NUT, ADAPTER LOCK

045

[04]

94904-71760

BOLT, W/WASHER

M6,L40

046

[02]

94904-71750

BOLT, W/WASHER

M6,L50

047

[01]

94915-00210

SEAL, OIL

050

[01]

09107-00553

LEVER SUB-ASSY, AD

051

[01]

94904-71190

BOLT, W/WASHER

M6,L22

052

[01]

09109-40060

CAP, LEVER

053

[01]

09109-00750

LEVER SUB-ASSY, ST

056

[01]

09105-00380

PLATE SUB-ASSY, CO

-9201

056

[01]

09105-00491

PLATE SUB-ASSY, CO

9201-

057

[02]

94904-01140

BOLT, HEXAGON

M6,L20

058

[01]

91418-06141

BOLT, W/WASHER

M6,L14

059

[01]

09116-70050

PLUG, SCREW

060

[02]

09024-10010

WASHER, AIR BLEEDE

T1.6

061

[01]

09103-10030

NUT, CAP

062

[02]

91418-06161

BOLT, W/WASHER

M6,L16

063

[01]

94906-21270

PACKING, RUBBER PL

064

[01]

09103-80040

SPRING, B

OD3.6

065

[01]

94914-00130

O-RING

ID9.0

066

[01]

09101-60020

BUSHING, BEARING

-9707

066

[01]

09101-60360

BUSHING, BEARING

9707-

067

[01]

09104-30010

COVER, SPRING

068

[01]

09103-80050

SPRING, B

OD6.6

069

[01]

09103-50240

SHAFT, MECHANICAL

070

[01]

09103-60010

CUP, SPRING

071

[01]

09103-40130

LEVER, SUPPORT

072

[01]

09104-20250

SPRING, RETURN

073

[01]

09103-30030

PLATE, CAP

074

[01]

09103-80030

SPRING, B

OD8.6

075

[01]

94913-00030

KEY, WOODRUFF

076

[01]

09082-30240

GASKET

077

[01]

09082-30180

GASKET

-9309

077

[01]

09082-30420

GASKET

9310-

088

[01]

94905-01020

NUT, HEXAGON

M8 -9503

088

[01]

94905-03390

NUT, HEXAGON

M8 9504-

089

[02]

94901-81020

WASHER, COPPER PLA

090

[01]

90801-10120

O-RING

ID12.3

092

[01]

94901-81550

WASHER, COPPER PLA

T1.5

Include in ##:

09080-08830 as GOVERNOR ASSY, MEC

19000-08120 PUMP ASSY, INJECTI
