09080-07060 GOVERNOR ASSY, MEC Denso Cross


Rating:
65
Buy GOVERNOR ASSY, MEC 09080-07060 genuine, new aftermarket engine parts with delivery

Information governor assy, mec Denso

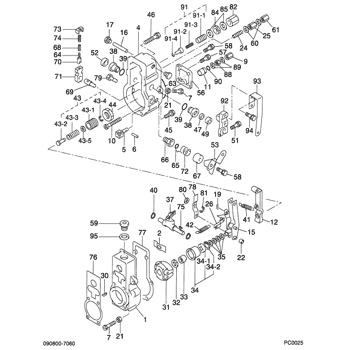

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09080-07060
GOVERNOR ASSY, MEC
RSV
001
[01]
HOUSING, GOVERNOR
-8208
001
[01]
HOUSING, GOVERNOR
8208--9311
001
[01]
HOUSING SUB-ASSY,
9312-
002
[01]
PLATE
003
[01]
STOPPER
L45
004
[01]
COVER, GOVERNOR
005
[01]
PIN, STOP
-8210
005
[01]
PIN, STOP
8210-
006
[01]
PIN, STOP
-8210
007
[01]
SCREW, ADJUSTING
M8,L57
009
[01]
NUT, CAP
L15.5
010
[01]
SCREW, STROKE ADJU
011
[01]
BUSHING
012
[01]
LEVER ASSY, TENSIO
-8601
012
[01]
LEVER ASSY, TENSIO
8601--9404
012
[01]
LEVER ASSY, TENSIO
9404-
015
[01]
LEVER ASSY, CONTRO
L/R:2
016
[01]
SHAFT, LEVER SUPPO
017
[02]
PLUG, SCREW
018
[01]
LEVER SUB-ASSY, CO
019
[02]
PIN, SPLIT
D2,L10
020
[01]
SHIM
021
[02]
NUT, HEXAGON, W/HO
M8
022
[01]
SLIDER, SUPPORTING
023
[01]
SPRING, IDLING
024
[01]
ADAPTER ASSY
024-001
[01]
SCREW, ADPTER
024-002
[01]
SPRING, MECHANICAL
024-003
[01]
ADAPTER
024-004
[01]
E-RING
025
[01]
NUT, HEXAGON
M12
026
[01]
SHACKLE ASSY
030
[01]
KEY, WOODRUFF
031
[01]
FLYWEIGHT ASSY
032
[01]
WASHER, SPRING
T2.5
033
[01]
NUT, ROUND
M12L12.5
034
[01]
SLEEVE SUB-ASSY, F
034-001
[01]
PLATE, THRUST
034-002
[01]
RING, HOLE SNAP
OD30
035
[4C]
WASHER, PLATE, SK
T0.2
035
[4C]
WASHER, PLATE, SK
T0.3
035
[4C]
WASHER, PLATE, SK
T0.4
035
[4C]
WASHER, PLATE, SK
T0.1
035
[4C]
WASHER, PLATE, SK
T1.0
036
[01]
BEARING, BALL
OD30
037
[01]
LEVER ASSY, SWIEVE
038
[02]
BUSHING, LEVER
039
[02]
O-RING
ID15.8
040
[02]
WASHER, SNAP
ID15
041
[01]
SPRING, SPEED CONT
042
[01]
SPRING, START
043
[01]
ADAPTER ASSY
043-001
[01]
SCREW, ADPTER
043-002
[01]
SPRING, MECHANICAL
043-003
[01]
ADAPTER
043-004
[01]
E-RING
043-005
[C]
WASHER, PLATE, SK
T0.1
043-005
[C]
WASHER, PLATE, SK
T0.25
043-005
[C]
WASHER, PLATE, SK
T0.5
043-005
[C]
WASHER, PLATE, SK
T1.0
044
[01]
NUT, ADAPTER LOCK
045
[04]
BOLT, W/WASHER
M6,L40
046
[02]
BOLT, W/WASHER
M6,L50
047
[01]
SEAL, OIL
049
[01]
COLLAR, STEEL
051
[01]
BOLT, W/WASHER
M6,L22
052
[01]
CAP, LEVER
053
[01]
LEVER SUB-ASSY, ST
054
[01]
BRACKET, STOP WIRE
056
[01]
PLATE, COVER
057
[02]
BOLT, W/WASHER
M6,L14
058
[01]
BOLT, W/WASHER
M6,L14
059
[01]
PLUG, SCREW
060
[02]
WASHER, AIR BLEEDE
T1.6
061
[01]
NUT, CAP
063
[01]
PACKING, RUBBER PL
064
[01]
SPRING, B
OD3.6
065
[01]
O-RING
ID9.0
066
[01]
BUSHING, BEARING
-9707
066
[01]
BUSHING, BEARING
9707-
067
[01]
COVER, SPRING
068
[01]
SPRING, B
OD6.6
069
[01]
SHAFT, MECHANICAL
070
[01]
CUP, SPRING
071
[01]
LEVER, SUPPORT
072
[01]
SPRING, RETURN
073
[01]
PLATE, CAP
074
[01]
SPRING, B
OD8.6
075
[01]
KEY, WOODRUFF
076
[01]
GASKET
-9408
076
[01]
GASKET
9409-
077
[01]
GASKET
-9309
077
[01]
GASKET
9310-
078
[01]
LEVER SUB-ASSY
079
[01]
PIN, TORQUE CONTRO
080
[01]
WASHER, PLATE
T0.5
081
[01]
E-RING
082
[01]
CAP
084
[01]
NUT, HEXAGON, W/HO
085
[02]
WASHER, COPPER PLA
T1,FOR M16
088
[01]
NUT, HEXAGON
M8
089
[02]
WASHER, COPPER PLA
T1
090
[01]
O-RING
ID12.3
091
[01]
ADAPTER ASSY
091-001
[01]
SCREW, ADJUSTING
091-002
[01]
ADAPTER
091-003
[01]
SPRING, TORQUE
091-004
[01]
RING, HOLE SNAP
OD12
092
[01]
LEVER, ADJUSTING
093
[01]
LEVER, ADJUSTING
094
[02]
BOLT, W/WASHER
M6,L16
095
[01]
WASHER, COPPER PLA
T1.5 8810-

Include in ##:

09080-07060 as GOVERNOR ASSY, MEC

Cross reference number



Part num
Firm num
Firm
Name
09080-07060

GOVERNOR ASSY, MEC
