Buy GOVERNOR ASSY, MEC 09080-06881 genuine, new aftermarket engine parts with delivery

Information governor assy, mec Denso

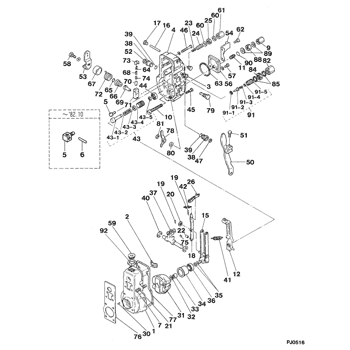

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

09080-06881

GOVERNOR ASSY, MEC

RSV

001

[01]

09081-10810

HOUSING, GOVERNOR

-9311

001

[01]

09081-00660

HOUSING SUB-ASSY,

9312-

002

[01]

09087-80030

PLATE

003

[01]

09082-10080

STOPPER

004

[01]

09101-11380

COVER, GOVERNOR

-8210

004

[01]

09101-11382

COVER, GOVERNOR

8210--9311

004

[01]

09101-11383

COVER, GOVERNOR

9312-

005

[01]

09101-40071

PIN, STOP

-8210

005

[01]

09101-40090

PIN, STOP

8210-

006

[01]

09101-40080

PIN, STOP

-8210

007

[01]

09102-40031

SCREW, ADJUSTING

M8,L57

009

[01]

09103-10151

NUT, CAP

010

[01]

09100-60150

SCREW, STROKE ADJU

011

[01]

09094-40310

BUSHING

012

[01]

09090-00170

LEVER ASSY, TENSIO

-8601

012

[01]

09090-00230

LEVER ASSY, TENSIO

8601--9201

012

[01]

09090-00170

LEVER ASSY, TENSIO

9201-

015

[01]

09095-90190

LEVER ASSY, GUIDE

-8302

015

[01]

09095-90040

LEVER ASSY, GUIDE

8302-

016

[01]

09098-90010

SHAFT, LEVER SUPPO

017

[02]

09099-10010

PLUG, SCREW

018

[01]

09094-00270

LEVER SUB-ASSY, CO

019

[02]

90400-02101

PIN, SPLIT

D2,L10

020

[01]

09098-70010

SHIM

021

[02]

94805-30051

NUT, HEXAGON, W/HO

022

[01]

09104-60010

SLIDER, SUPPORTING

023

[01]

09102-70011

SPRING, IDLING

024

[01]

09102-80050

SCREW, ADJUSTING

025

[01]

94905-02460

NUT, HEXAGON

M12

026

[01]

09097-00170

SHACKLE ASSY

030

[01]

94913-00050

KEY, WOODRUFF

031

[01]

09084-00320

FLYWEIGHT ASSY

-8302

031

[01]

09084-00570

FLYWEIGHT ASSY

8302-

032

[01]

94901-50500

WASHER, SPRING

T2.5

033

[01]

09084-40010

NUT, ROUND

034

[01]

09086-10010

SLEEVE, GOVERNOR

035

[C]

94901-34060

WASHER, PLATE, SK

T0.2

035

[C]

94901-34070

WASHER, PLATE, SK

T0.3

035

[C]

94901-34080

WASHER, PLATE, SK

T0.4

035

[C]

94901-34090

WASHER, PLATE, SK

T0.1

035

[C]

94901-34100

WASHER, PLATE, SK

T1.0

036

[01]

94910-00010

BEARING, BALL

OD30

037

[01]

09088-00120

LEVER ASSY, SWIEVE

-9103

037

[01]

09088-00140

LEVER ASSY, SWIEVE

9103-

038

[02]

09089-20080

BUSHING, LEVER

039

[02]

90801-20160

O-RING

ID15.8

040

[02]

94907-10090

WASHER, SNAP

ID15

041

[01]

09099-20020

SPRING, SPEED CONT

042

[01]

09099-30010

SPRING, START

043

[01]

09091-01110

ADAPTER ASSY

043-001

[01]

09091-90010

ADAPTER

043-002

[01]

09091-81690

SPRING, MECHANICAL

043-003

[C]

94901-33880

WASHER, PLATE, SK

T0.1

043-003

[C]

94901-34020

WASHER, PLATE, SK

T0.25

043-003

[C]

94901-34030

WASHER, PLATE, SK

T0.5

043-003

[C]

94901-34040

WASHER, PLATE, SK

T0.2

043-004

[01]

09091-10010

SCREW, ADPTER

043-005

[01]

09089-40010

E-RING

044

[01]

09092-30011

NUT, ADAPTER LOCK

045

[04]

94904-71760

BOLT, W/WASHER

M6,L40

046

[02]

94904-71750

BOLT, W/WASHER

M6,L50

047

[01]

94915-00210

SEAL, OIL

049

[01]

94919-24580

COLLAR, STEEL

050

[01]

09107-00600

LEVER SUB-ASSY, AD

051

[01]

94904-71190

BOLT, W/WASHER

M6,L22

052

[01]

09109-40060

CAP, LEVER

053

[01]

09109-00500

LEVER SUB-ASSY, ST

054

[01]

09069-10660

BRACKET, STOP WIRE

056

[01]

09105-00380

PLATE SUB-ASSY, CO

-9201

056

[01]

09105-00491

PLATE SUB-ASSY, CO

9201-

057

[02]

94904-72700

BOLT, W/WASHER

M6,L20

058

[01]

91418-06141

BOLT, W/WASHER

M6,L14

059

[01]

09116-70050

PLUG, SCREW

060

[02]

09024-10010

WASHER, AIR BLEEDE

T1.6

061

[01]

09103-10010

NUT, CAP

062

[02]

94904-71190

BOLT, W/WASHER

M6,L22

063

[01]

94906-21270

PACKING, RUBBER PL

064

[01]

09103-80040

SPRING, B

OD3.6

065

[01]

94914-00130

O-RING

ID9.0

066

[01]

09101-60020

BUSHING, BEARING

-9707

066

[01]

09101-60360

BUSHING, BEARING

9707-

067

[01]

09104-30010

COVER, SPRING

068

[01]

09103-80050

SPRING, B

OD6.6

069

[01]

09103-50240

SHAFT, MECHANICAL

070

[01]

09103-60010

CUP, SPRING

071

[01]

09103-40130

LEVER, SUPPORT

-8302

071

[01]

09103-40161

LEVER, SUPPORT

8302-

072

[01]

09104-20220

SPRING, RETURN

073

[01]

09103-30030

PLATE, CAP

074

[01]

09103-80030

SPRING, B

OD8.6

075

[01]

94913-00030

KEY, WOODRUFF

076

[01]

09082-30170

GASKET

-8110

076

[01]

09082-30240

GASKET

8110--9408

076

[01]

09082-30460

GASKET

9409-

077

[01]

09082-30180

GASKET

-9309

077

[01]

09082-30420

GASKET

9310-

078

[01]

09117-00070

LEVER SUB-ASSY

079

[01]

09108-40050

PIN, TORQUE CONTRO

080

[01]

90218-08250

WASHER, PLATE

T0.5

081

[01]

09089-40030

E-RING

082

[01]

09003-20040

CAP

084

[01]

94905-30090

NUT, HEXAGON, W/ H

M16

085

[01]

94901-80350

WASHER, COPPER PLA

T1,FOR M16

088

[01]

94905-01020

NUT, HEXAGON

M8 -9503

088

[01]

94905-03390

NUT, HEXAGON

M8 9504-

089

[01]

94901-81020

WASHER, COPPER PLA

090

[01]

90801-10120

O-RING

ID12.3

091

[01]

09091-00930

ADAPTER ASSY

091-001

[01]

90567-12000

RING, HOLE SNAP

OD12

091-002

[01]

09091-90240

ADAPTER

091-003

[01]

09091-80251

SPRING, MECHANICAL

091-004

[C]

94901-33880

WASHER, PLATE, SK

T0.1

091-004

[C]

94901-34020

WASHER, PLATE, SK

T0.25

091-004

[C]

94901-34030

WASHER, PLATE, SK

T0.5

091-004

[C]

94901-34040

WASHER, PLATE, SK

T0.2

091-005

[01]

09002-60080

SCREW, ADJUSTING

092

[01]

94901-81550

WASHER, COPPER PLA

T1.5

Include in ##:

09080-06881 as GOVERNOR ASSY, MEC

19000-05630 PUMP ASSY, INJECTI

19100-02200
