09080-03144 GOVERNOR ASSY, MEC Denso Cross


Rating:
8
Buy GOVERNOR ASSY, MEC 09080-03144 genuine, new aftermarket engine parts with delivery

Information governor assy, mec Denso

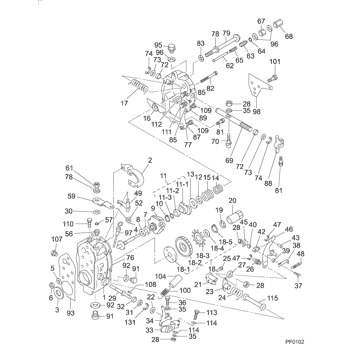

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09080-03144
GOVERNOR ASSY, MEC
RU
001
[01]
HOUSING SUB-ASSY,
002
[01]
GUIDE SUB-ASSY, OI
003
[01]
SEAL, OIL
004
[01]
SHAFT SUB-ASSY, GO
005
[01]
WASHER, STEEL PLAT
T2.3
006
[01]
NUT, HEXAGON
M10,L6 -9111
006
[01]
NUT, HEXAGON
M10 9111-
007
[01]
BEARING, BALL
OD31
008
[04]
WASHER, PLATE, SK
T0.1
009
[01]
FLYWEIGHT ASSY
010
[01]
RING, SHAFT SNAP
ID11
011
[01]
SLEEVE SUB-ASSY, F
011-001
[01]
SLEEVE SUB-ASSY, G
011-002
[01]
BEARING, BALL
OD31
011-003
[01]
RING, SNAP
ID14
012
[01]
WASHER, PLATE, SK
T0.1
013
[01]
WASHER, PLATE, SK
T0.1
014
[01]
SPRING, MECHANICAL
015
[01]
SPRING, MECHANICAL
016
[01]
SEAT SUB-ASSY, SPR
017
[01]
SPRING, SPEED CONT
018
[01]
GEAR ASSY
018-001
[01]
BUSHING, CAMSHAFT
018-002
[01]
GEAR, GOVERNOR
018-003
[01]
DISC, SLIP
018-004
[02]
WASHER, PLATE, SK
T0.15
018-005
[01]
RING, SHAFT SNAP
ID21
019
[01]
WASHER, SPRING
T3
020
[01]
NUT, ROUND
021
[01]
ARM SUB-ASSY
022
[02]
WASHER, PLATE, SK
T1.5 -7904
023
[01]
LEVER, SUPPORT
024
[01]
SPRING, SAFETY
025
[01]
BOLT, GOVERNOR STO
026
[01]
BOLT, CONNECTING
027
[01]
WASHER, LOCK
T0.6
028
[04]
NUT, HEXAGON
M5,L4
029
[01]
SHAFT, MECHANICAL
030
[1C]
WASHER, PLATE, SK
T0.5
030
[1C]
WASHER, PLATE, SK
T0.1
030
[1C]
WASHER, PLATE, SK
T0.2
031
[1C]
WASHER, PLATE, SK
T0.2
031
[1C]
WASHER, PLATE, SK
T0.4
032
[01]
SEAL, OIL
D14,T4
033
[01]
LEVER SUB-ASSY, AD
034
[01]
STOPPER
035
[02]
WASHER, SPRING
M5
036
[01]
BOLT, W/WASHER
037
[01]
PIN, CONNECTING
038
[01]
ARM, SPRING
039
[01]
BUSHING
040
[01]
BUSHING
042
[01]
SHACKLE
043
[01]
PIN, SHACKLE
045
[01]
WASHER, LOCK
T0.6
046
[01]
LEVER ASSY, FLOATI
047
[02]
E-RING
D11,T0.7
048
[01]
SPRING, START
049
[01]
ARM SUB-ASSY
052
[01]
SPRING, RETURN
056
[01]
BUSHING, BEARING
057
[01]
O-RING
ID7.8
059
[01]
STOPPER
061
[01]
NUT, HEXAGON
M8
062
[01]
ADAPTER
063
[01]
CAPSULE, ADAPTER
064
[01]
O-RING
ID2.8
065
[01]
SPRING, IDLE
067
[01]
NUT, HEXAGON, W/ H
M12
068
[01]
NUT, CAP
069
[01]
SHAFT
070
[01]
SCREW, STOP
072
[02]
SEAL, OIL
D18,T5
073
[02]
WASHER, STEEL PLAT
T1
074
[02]
E-RING
D10
076
[01]
GASKET
-9103
076
[01]
GASKET
9103-
077
[01]
COVER SUB-ASSY, GO
078
[02]
WASHER, SPRING
FOR M8
079
[01]
BOLT, SLOTTED HEXA
M8,L114
081
[05]
BOLT, W/WASHER
M6,L25
082
[02]
BOLT, W/WASHER
M6,L70
083
[01]
WASHER, COUPLING S
085
[02]
NUT, HEXAGON, W/ H
M8 -7905
085
[02]
NUT, HEXAGON, W/HO
M8 7906-
087
[01]
NUT, LOCK
M6,L5
088
[01]
LEVER, ADJUSTING
-8208
088
[01]
LEVER, ADJUSTING
8209-
089
[01]
NUT, HEXAGON, W/HO
091
[02]
PLUG, SCREW
092
[02]
WASHER, FUEL PIPE
ID11.8T2
093
[01]
GASKET
9011--9408
093
[01]
GASKET
9409-
095
[01]
CLEANER, INJECTION
-5101
095
[01]
CLEANER, INJECTION
5102-
096
[03]
WASHER, AIR BLEEDE
T1.6ID12
097
[01]
GAUGE SUB-ASSY, GO
098
[01]
SUPPORT, PUMP
099
[01]
STOPPER
100
[01]
SPRING, RETURN
101
[03]
BOLT, W/WASHER
104
[01]
TUBE, RUBBER
107
[01]
BUSHING, BEARING
108
[01]
KEY
109
[01]
BOLT, HEXAGON, W/
M6,L35
110
[01]
SCREW, STOP
111
[01]
STOPPER
112
[01]
STOPPER
L46
113
[01]
BOLT, HEXAGON
M5,L30
114
[02]
WASHER, PLATE
T1.6
115
[01]
COLLAR
7904-
131
[02]
E-RING
-7904

Include in ##:

09000-06920 as GOVERNOR ASSY, MEC

Cross reference number



Part num
Firm num
Firm
Name
09080-03144

GOVERNOR ASSY, MEC
