Buy GOVERNOR ASSY, COM 09070-00412 genuine, new aftermarket engine parts with delivery

Information governor assy, com Denso

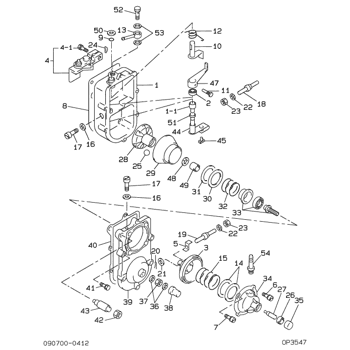

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

09070-00412

GOVERNOR ASSY, COM

COMBINED

22320-58010 TOYOTA

001

[01]

09051-00151

HOUSING SUB-ASSY,

22306-56040 TOYOTA

001-001

[01]

09051-30101

BUSHING

002

[01]

06223-70010

SEAL, OIL

85613-31010 TOYOTA

003

[01]

09058-00041

DIAPHRAGM SUB-ASSY

22303-47010 TOYOTA

004

[01]

09053-00902

LEVER SUB-ASSY, IN

22308-56040 TOYOTA

004-001

[01]

91518-05161

BOLT, W/WASHER

M5,L16

005

[01]

09009-20060

BRACKET

22178-56011 TOYOTA

006

[03]

94900-72430

SCREW, W/WASHER

M5,L20

90099-00936 TOYOTA

007

[01]

94904-61430

BOLT

M5,L20

90099-04945 TOYOTA

008

[01]

09082-30460

GASKET

22442-58260 TOYOTA

009

[01]

90801-10080

O-RING

ID7.8

96711-19008 TOYOTA

010

[01]

09115-90150

ARM SUB-ASSY

21408-68010 TOYOTA

011

[01]

09055-30020

BOLT, GOVERNOR STO

22332-77021 TOYOTA

012

[01]

09055-40180

SPRING, DIAPHRAGM

22333-56040 TOYOTA

013

[01]

09264-20090

UNION

90099-81013 TOYOTA

014

[2C]

09061-60050

SHIM, MAIN SPRING

T0.5

22364-76010 TOYOTA

014

[2C]

09061-60060

SHIM, MAIN SPRING

T1.0

22363-76010 TOYOTA

014

[2C]

09061-60070

SHIM, MAIN SPRING

T2.0

22362-76010 TOYOTA

014

[2C]

09061-60080

SHIM, MAIN SPRING

T3.0

22361-76010 TOYOTA

015

[01]

09061-50510

SPRING, GOVERNOR M

22326-58010 TOYOTA

016

[02]

09024-80010

WASHER, DRAIN SCRE

T1.0

22378-76010 TOYOTA

017

[02]

09078-20010

SCREW

22386-46010 TOYOTA

018

[01]

09057-30070

BOLT, DIAPHRAGM CO

22329-77130 TOYOTA

019

[01]

09057-30050

BOLT, DIAPHRAGM CO

22329-77021 TOYOTA

020

[01]

90400-02101

PIN, SPLIT

D2,L10

90095-02001 TOYOTA

021

[01]

90200-06001

WASHER, PLATE

T1.0

90093-00602 TOYOTA

022

[02]

90258-05001

WASHER, SPRING

90032-04023 TOYOTA

023

[02]

91170-05321

NUT, HEXAGON

90092-20582 TOYOTA

024

[01]

94913-00010

KEY, WOODRUFF

90099-13001 TOYOTA

025

[06]

94912-00260

BALL, STEEL

90099-12010 TOYOTA

026

[01]

09064-50010

NUT, GOVERNOR IDRI

22319-77010 TOYOTA

027

[01]

09063-00170

CAPSULE, IDLING

22318-48030 TOYOTA

028

[01]

09065-50020

GUIDE, BALL

22693-77130 TOYOTA

029

[01]

09073-00020

SLIDER SUB-ASSY

-8111

22692-56040 TOYOTA

029

[01]

09073-00030

SLIDER SUB-ASSY

8111-

22692-56041 TOYOTA

030

[01]

94901-35120

WASHER, PLATE, SK

90099-01441 TOYOTA

031

[01]

94901-35110

WASHER, PLATE, SK

-8111

90099-01440 TOYOTA

031

[01]

09066-40040

SHEET, SPRING

8111-

22696-56040 TOYOTA

032

[01]

09099-20521

SPRING, SPEED CONT

22449-48030 TOYOTA

033

[01]

09065-60010

BEARING SUB-ASSY

22694-77130 TOYOTA

034

[01]

09062-10070

HOUSING, GOVERNOR

-8312

22323-77010 TOYOTA

034

[01]

09062-10160

HOUSING, GOVERNOR

8401-

035

[01]

09064-70030

PLUG, DIAPHRAGM HO

-8312

22311-77130 TOYOTA

035

[01]

09109-40140

CAP, LEVER

8401-

22457-58010 TOYOTA

036

[02]

94901-81020

WASHER, COPPER PLA

90201-08106 TOYOTA

037

[01]

94805-30130

NUT, HEXAGON, W/HO

-8312

90099-05133 TOYOTA

037

[01]

94905-03390

NUT, HEXAGON

8401-

90099-05173 TOYOTA

038

[01]

09103-10020

NUT, CAP

L18

22437-77130 TOYOTA

039

[01]

09101-11090

COVER, GOVERNOR

22703-56040 TOYOTA

040

[01]

09082-30350

GASKET

22442-77130 TOYOTA

041

[06]

91418-06251

BOLT, W/WASHER

M6,L25

90091-20605 TOYOTA

042

[01]

94905-30040

NUT, HEXAGON, W/ H

M12

90099-05056 TOYOTA

043

[01]

09056-00110

CAPSULE, FULL STOP

22336-68010 TOYOTA

044

[01]

09066-00011

ARM SUB-ASSY

-8111

22697-77130 TOYOTA

044

[01]

09066-00020

ARM SUB-ASSY

8111-

045

[01]

09066-20010

PIN, SHIFTING

-8111

22698-77130 TOYOTA

045

[01]

09066-20020

PIN, SHIFTING

8111-

22698-77131 TOYOTA

047

[01]

09053-00890

LEVER SUB-ASSY, IN

048

[01]

94901-50500

WASHER, SPRING

T2.5

22348-76010 TOYOTA

049

[01]

09084-40010

NUT, ROUND

M12L12.5

22451-77123 TOYOTA

050

[01]

94901-34330

WASHER, PLATE, SK

T0.3

90099-01445 TOYOTA

051

[01]

94901-34190

WASHER, PLATE, SK

T0.5

052

[01]

94918-00050

SCREW, HOLLOW

M12,L24

90401-12006 TOYOTA

053

[02]

09024-10010

WASHER, AIR BLEEDE

T1.6

22119-77020 TOYOTA

054

[01]

09062-40040

UNION, VENTURI PIP

90404-58030 TOYOTA

Include in ##:

09070-00412 as GOVERNOR ASSY, COM

19000-04651 PUMP ASSY, INJECTI

19000-04661

19000-06101

19000-06110

Cross reference number

Part num

Firm num

Firm

Name

09070-00412

22320-5801

GOVERNOR ASSY, COM
