09250-00441 COUPLING ASSY Denso Cross


Rating:
34
Buy COUPLING ASSY 09250-00441 genuine, new aftermarket engine parts with delivery

Information coupling assy Denso

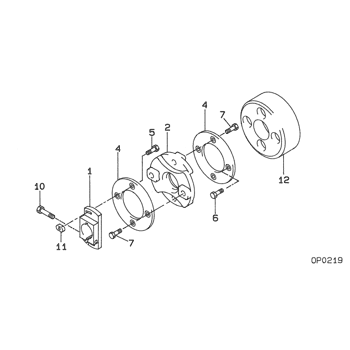

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09250-00441
COUPLING ASSY
SD
001
[01]
FLANGE, COUPLING
002
[01]
COUPLING, CROSS
-8701
002
[01]
COUPLING, CROSS
8701-
004
[02]
PLATE SUB-ASSY, CO
005
[02]
BOLT, HEXAGON
M10,L27
006
[06]
BOLT, HEXAGON
M10,L24 -9312
006
[02]
BOLT, HEXAGON
M10,L24 9401-
007
[04]
BOLT, HEXAGON
M10L17.5 9401-
010
[01]
BOLT, HEXAGON
M12,L55
011
[02]
NUT, COUPLING FLAN
8701--9803
011
[02]
NUT, COUPLING FLAN
9803-
012
[01]
BLOCK, COUPLING

Cross reference number



Part num
Firm num
Firm
Name
09250-00441

COUPLING ASSY
