09649-01790 COMPENSATOR SUB-AS Denso Cross


Rating:
13
Buy COMPENSATOR SUB-AS 09649-01790 genuine, new aftermarket engine parts with delivery

Information compensator sub-as Denso

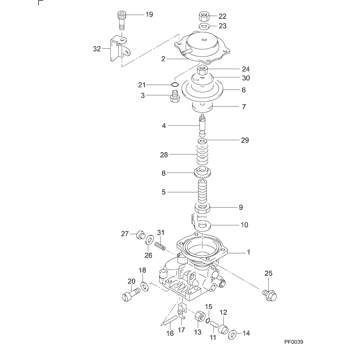

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09649-01790
COMPENSATOR SUB-AS
001
[01]
COVER SUB-ASSY, GO
002
[01]
COVER SUB-ASSY, GO
003
[01]
STOPPER, TIMER SLI
004
[01]
R0D, PUSH
005
[01]
BUSHING, GUIDE
006
[01]
DIAPHRAGM
007
[01]
SHEET, PLUNGER SPR
008
[01]
BUSHING, GUIDE
009
[01]
NUT, HEXAGON
M18
010
[01]
CLIP, TIMER
011
[01]
PIN, LEVER CONECTI
012
[01]
BUSHING, GUIDE
013
[01]
NUT, GOVERNOR SHAF
014
[01]
WASHER, COPPER PLA
T1
015
[01]
O-RING
ID 4
016
[01]
PIN, LEVER SUPPORT
017
[01]
LEVER SUB-ASSY, CO
018
[02]
GASKET, DELIVERY V
019
[05]
BOLT, SOCKET
M6,L14
020
[02]
BOLT, GOVERNOR LIN
021
[01]
O-RING
ID10
022
[01]
NUT, HEXAGON
M8 -0602
022
[01]
NUT, HEXAGON
M8 0602-
023
[01]
WASHER, PLATE
T1
024
[01]
NUT, HEXAGON
025
[01]
SCREW SUB-ASSY, OV
W/FILTER
026
[01]
GASKET, DELIVERY V
ID12.2
027
[01]
PLUG, SCREW
028
[1C]
SPRING, BOOST COMP
K1.2
028
[1C]
SPRING, BOOST COMP
K1.3
028
[1C]
SPRING, BOOST COMP
K1.4
029
[1C]
SHIM, BOOST COMPEN
T1.9
029
[1C]
SHIM, BOOST COMPEN
T2.1
029
[1C]
SHIM, BOOST COMPEN
T2.3
029
[1C]
SHIM, BOOST COMPEN
T2.5
029
[1C]
SHIM, BOOST COMPEN
T2.7
029
[1C]
SHIM, BOOST COMPEN
T2.9
029
[1C]
SHIM, BOOST COMPEN
T3.1
029
[1C]
SHIM, BOOST COMPEN
T3.3
029
[1C]
SHIM, BOOST COMPEN
T1.1
029
[1C]
SHIM, BOOST COMPEN
T1.3
029
[1C]
SHIM, BOOST COMPEN
T1.5
029
[1C]
SHIM, BOOST COMPEN
T1.7
029
[1C]
SHIM, BOOST COMPEN
T0.3
029
[1C]
SHIM, BOOST COMPEN
T0.5
029
[1C]
SHIM, BOOST COMPEN
T0.7
029
[1C]
SHIM, BOOST COMPEN
T0.9
030
[01]
WASHER, THRUST
031
[01]
SPRING
032
[01]
BRACKET, IDLE UP

Include in ##:

09649-01790 as COMPENSATOR SUB-AS

Cross reference number



Part num
Firm num
Firm
Name
09649-01790

COMPENSATOR SUB-AS




Information:

INTRODUCING NEW CAT 256-4968 DIESEL FUEL CONDITIONER
Introduction
A new diesel fuel conditioner, specified for and by Caterpillar, is now available.
In order to address customer requests linked to differences in fuel quality found throughout the world, Caterpillar has responded with a cost effective, multi-purpose Diesel Fuel Conditioner. It incorporates a much more robust level of chemistry and performance not found in other products of its type.
Available April 4, 2005, in NACD, with world-wide distribution later in the year, the new Diesel Fuel Conditioner, part number 256-4968, includes a number of performance enhancing features.
Features
Benefits
Results
Lubricity
Compensates for reduced lubricity found in some low sulfur diesel fuels.
Protects fuel pumps and injectors from wear and scuffing.
Detergency
Helps maintain correct injector spray pattern.
Improves combustion efficiency.
Fuel Stability
Reduces the formation of gums, sludge and deposits that can block fuel filters.
Dramatically improves fuel storage stability.
Disperses insoluble gums.
Cetane Improvement
Easier starting, especially at low temperatures.
Helps to reduce white smoke.
Improved combustion for smoother operation.
Water Handling
