09649-00800 COMPENSATOR SUB-AS Denso Cross


Rating:
39
Buy COMPENSATOR SUB-AS 09649-00800 genuine, new aftermarket engine parts with delivery

Information compensator sub-as Denso

Manufacture:
22540-58790 TOYOTA
Dim 1
-
Dim 2
10.65-10.75
Dim 3
-
Dim 4
-
Dim 5
Dim 6
Information

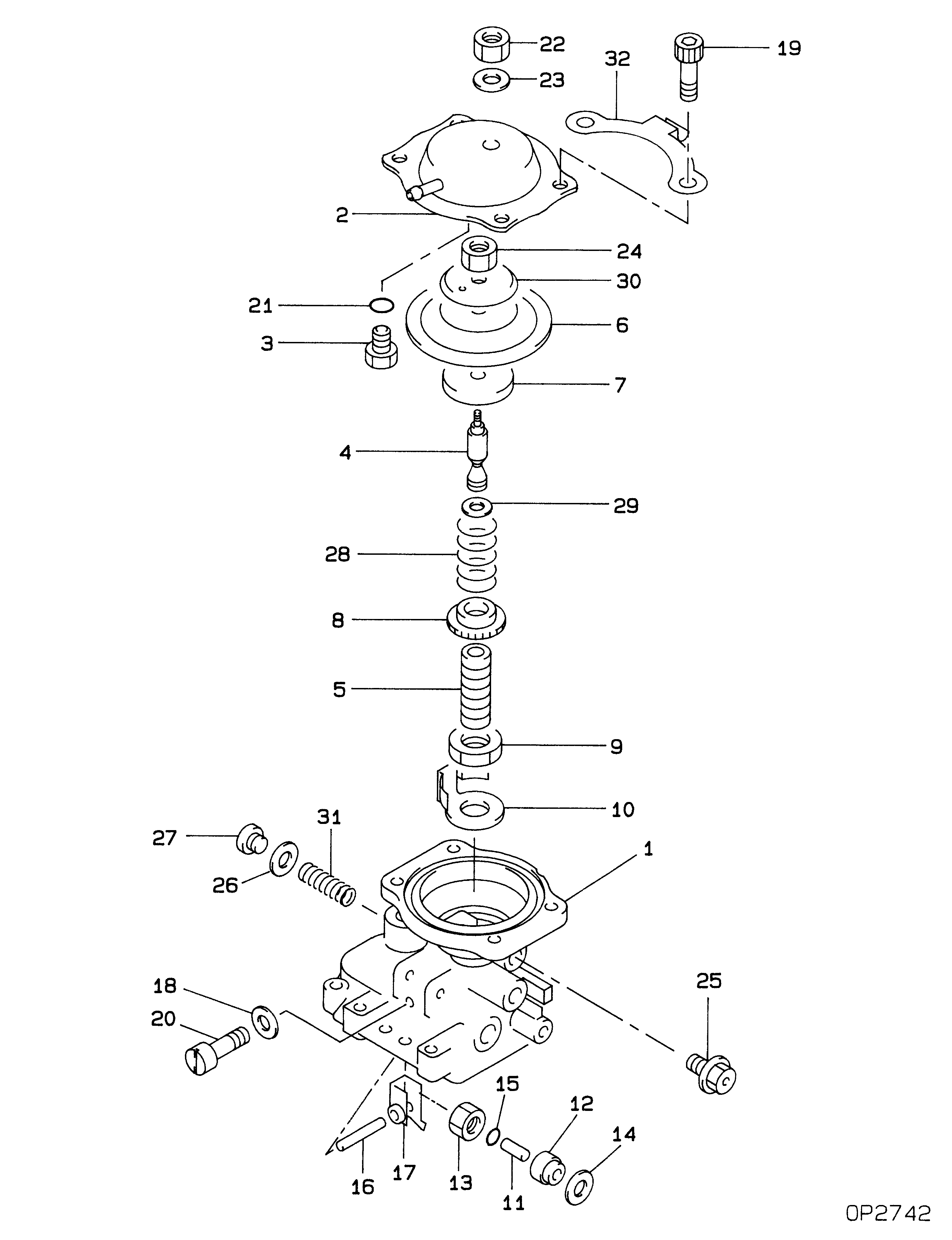

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09649-00800
COMPENSATOR SUB-AS
22540-58790 TOYOTA
001
[01]
COVER SUB-ASSY, GO
22703-64850 TOYOTA
002
[01]
COVER SUB-ASSY, GO
22703-54262 TOYOTA
003
[01]
STOPPER, TIMER SLI
22658-64518 TOYOTA
004
[01]
R0D, PUSH
22321-58780 TOYOTA
005
[01]
BUSHING, GUIDE
22348-64360 TOYOTA
006
[01]
DIAPHRAGM
22542-54260 TOYOTA
007
[01]
SHEET, PLUNGER SPR
22143-54260 TOYOTA
008
[01]
BUSHING, GUIDE
22348-54490 TOYOTA
009
[01]
NUT, HEXAGON
M18
90099-05156 TOYOTA
010
[01]
CLIP, TIMER
22656-54490 TOYOTA
011
[01]
PIN, LEVER CONECTI
22338-54120 TOYOTA
012
[01]
BUSHING, GUIDE
22348-54121 TOYOTA
013
[01]
NUT, GOVERNOR SHAF
22722-54120 TOYOTA
014
[01]
WASHER, COPPER PLA
T1
90099-01473 TOYOTA
015
[01]
O-RING
ID 4
22193-55031 TOYOTA
016
[01]
PIN, LEVER SUPPORT
22526-54120 TOYOTA
017
[01]
LEVER SUB-ASSY, CO
-9805
22308-54140 TOYOTA
017
[01]
LEVER SUB-ASSY, CO
9806-
22308-17570 TOYOTA
018
[02]
WASHER, DRAIN SCRE
-9407
22378-76010 TOYOTA
018
[02]
GASKET, DELIVERY V
9407-
22149-6D450 TOYOTA
019
[04]
BOLT, SOCKET
M6,L14
22395-54263 TOYOTA
020
[02]
BOLT, GOVERNOR LIN
22739-54120 TOYOTA
021
[01]
O-RING
ID10
22193-54561 TOYOTA
022
[01]
NUT, HEXAGON
M8 -0602
90099-05181 TOYOTA
022
[01]
NUT, HEXAGON
M8 0602-
90099-05252 TOYOTA
023
[01]
WASHER, PLATE
T1
90093-00802 TOYOTA
024
[01]
NUT, HEXAGON
M6,L3.6 -9204
94120-40600 TOYOTA
024
[01]
NUT, HEXAGON
9204-
90092-20608 TOYOTA
025
[01]
SCREW SUB-ASSY, OV
W/FILTER
22160-54262 TOYOTA
026
[01]
WASHER, AIR BLEEDE
T1.6 -9703
22119-77020 TOYOTA
026
[01]
GASKET, DELIVERY V
9704-
22149-54800 TOYOTA
027
[01]
PLUG, SCREW
22129-55110 TOYOTA
028
[1C]
SPRING, BOOST COMP
L19.8
22546-54260 TOYOTA
028
[1C]
SPRING, BOOST COMP
L19.5
22546-58780 TOYOTA
028
[1C]
SPRING, BOOST COMP
L19.5
22546-55030 TOYOTA
028
[1C]
SPRING, BOOST COMP
L19.9
22546-64360 TOYOTA
028
[1C]
SPRING, BOOST COMP
L19.9
22546-58790 TOYOTA
029
[1C]
SHIM, BOOST COMPEN
T1.9 -9103
22547-54260 TOYOTA
029
[1C]
SHIM, BOOST COMPEN
T2.1 -9103
22547-54261 TOYOTA
029
[1C]
SHIM, BOOST COMPEN
T2.3 -9103
22547-54262 TOYOTA
029
[1C]
SHIM, BOOST COMPEN
T2.5 -9103
22547-54263 TOYOTA
029
[1C]
SHIM, BOOST COMPEN
T2.7 -9103
22547-54264 TOYOTA
029
[1C]
SHIM, BOOST COMPEN
T2.9 -9103
22547-54268 TOYOTA
029
[1C]
SHIM, BOOST COMPEN
T3.1 -9103
22547-64360 TOYOTA
029
[1C]
SHIM, BOOST COMPEN
T3.3 -9103
22547-64361 TOYOTA
029
[1C]
SHIM, BOOST COMPEN
T1.1 -9103
22547-54490 TOYOTA
029
[1C]
SHIM, BOOST COMPEN
T1.3 -9103
22547-54265 TOYOTA
029
[1C]
SHIM, BOOST COMPEN
T1.5 -9103
22547-54266 TOYOTA
029
[1C]
SHIM, BOOST COMPEN
T1.7 -9103
22547-54267 TOYOTA
030
[01]
WASHER, THRUST
22549-17140 TOYOTA
031
[01]
SPRING
22327-58780 TOYOTA
032
[01]
CLIP, CONNECTOR SU
22172-58790 TOYOTA

Include in ##:

09600-06200 as COMPENSATOR SUB-AS
09649-00800 COMPENSATOR SUB-AS

Cross reference number



Part num
Firm num
Firm
Name
09649-00800
22540-5879
COMPENSATOR SUB-AS
0964900800
22540-58790
TOYOTA
COMPENSATOR SUB-AS
