09649-00381 COMPENSATOR SUB-AS Denso Cross


Rating:
3
Buy COMPENSATOR SUB-AS 09649-00381 genuine, new aftermarket engine parts with delivery

Information compensator sub-as Denso

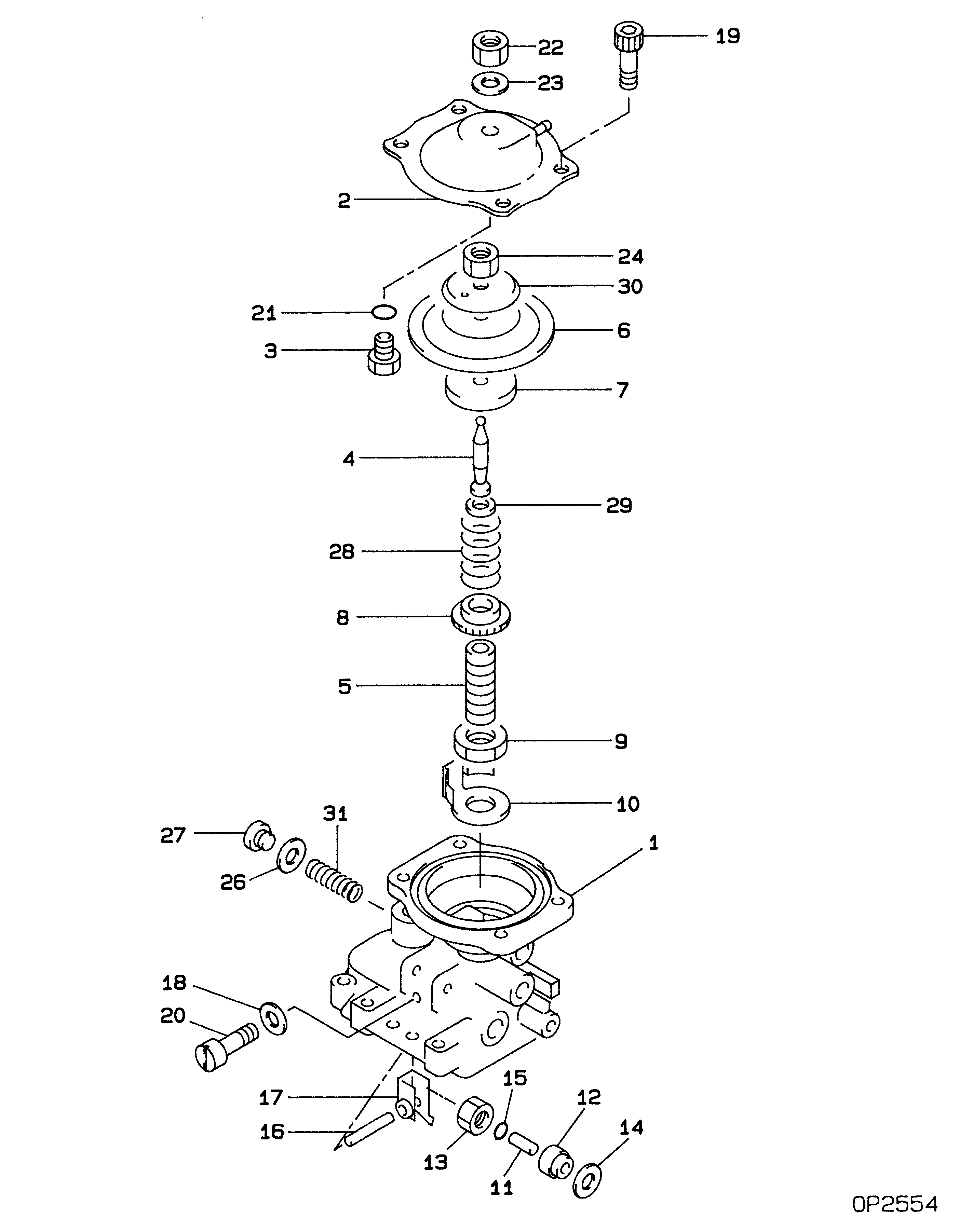

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09649-00381
COMPENSATOR SUB-AS
001
[01]
COVER SUB-ASSY, GO
002
[01]
COVER SUB-ASSY, GO
003
[01]
STOPPER, TIMER SLI
004
[01]
R0D, PUSH
005
[01]
BUSHING, GUIDE
006
[01]
DIAPHRAGM
007
[01]
SHEET, PLUNGER SPR
008
[01]
BUSHING, GUIDE
009
[01]
NUT, HEXAGON
M18
010
[01]
CLIP, TIMER
011
[01]
PIN, LEVER CONECTI
012
[01]
BUSHING, GUIDE
013
[01]
NUT, GOVERNOR SHAF
014
[01]
WASHER, COPPER PLA
T1
015
[01]
O-RING
016
[01]
PIN, LEVER SUPPORT
017
[01]
LEVER SUB-ASSY, CO
-9805
017
[01]
LEVER SUB-ASSY, CO
9806-
018
[02]
WASHER, DRAIN SCRE
-9407
018
[02]
GASKET, DELIVERY V
9407-
019
[04]
BOLT, SOCKET
M6,L14
020
[02]
BOLT, GOVERNOR LIN
021
[01]
O-RING
022
[01]
NUT, HEXAGON
M8 -0602
022
[01]
NUT, HEXAGON
M8 0602-
023
[01]
WASHER, PLATE
T1
024
[01]
NUT, HEXAGON
-9005
024
[01]
NUT, HEXAGON
9005-
026
[01]
WASHER, AIR BLEEDE
-9703
026
[01]
GASKET, DELIVERY V
9704-
027
[01]
PLUG, SCREW
028
[01]
SPRING, BOOST COMP
K2.0
029
[1C]
SHIM, BOOST COMPEN
T1.9 -9102
029
[1C]
SHIM, BOOST COMPEN
T2.1 -9102
029
[1C]
SHIM, BOOST COMPEN
T2.3 -9102
029
[1C]
SHIM, BOOST COMPEN
T2.5 -9102
029
[1C]
SHIM, BOOST COMPEN
T0.3 -9102
029
[1C]
SHIM, BOOST COMPEN
T0.5 -9102
029
[1C]
SHIM, BOOST COMPEN
T0.7 -9102
029
[1C]
SHIM, BOOST COMPEN
T0.9 -9102
029
[1C]
SHIM, BOOST COMPEN
T1.1 -9102
029
[1C]
SHIM, BOOST COMPEN
T1.3 -9102
029
[1C]
SHIM, BOOST COMPEN
T1.5 -9102
029
[1C]
SHIM, BOOST COMPEN
T1.7 -9102
030
[01]
WASHER, THRUST
031
[01]
SPRING
K0.043

Include in ##:

Cross reference number



Part num
Firm num
Firm
Name
09649-00381

COMPENSATOR SUB-AS




Information:


Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
The following changes are adaptable to the products within the listed serial numbers, and are effective with all products after the listed serial numbers.The new and former DEF filter part numbers are listed in Table 1.
Table 1
Required Parts
Qty New Part Number Part Name Former Part Numbers(1)
1 584-8135 Diesel Exhaust Fluid Filter Gp 453-1604
1 584-8136 Diesel Exhaust Fluid Filter Gp 453-1605
1 584-8137 Diesel Exhaust Fluid Filter Gp 453-1606
(1) The former part number listed is for reference only and may differ.
