19010-01980 BODY ASSY, INJECTI Denso Cross


Rating:
57
Buy BODY ASSY, INJECTI 19010-01980 genuine, new aftermarket engine parts with delivery

Information body assy, injecti Denso

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
No Application
Body assy, injecti
No Application
Body assy, injecti
No Application
Body assy, injecti
No Application

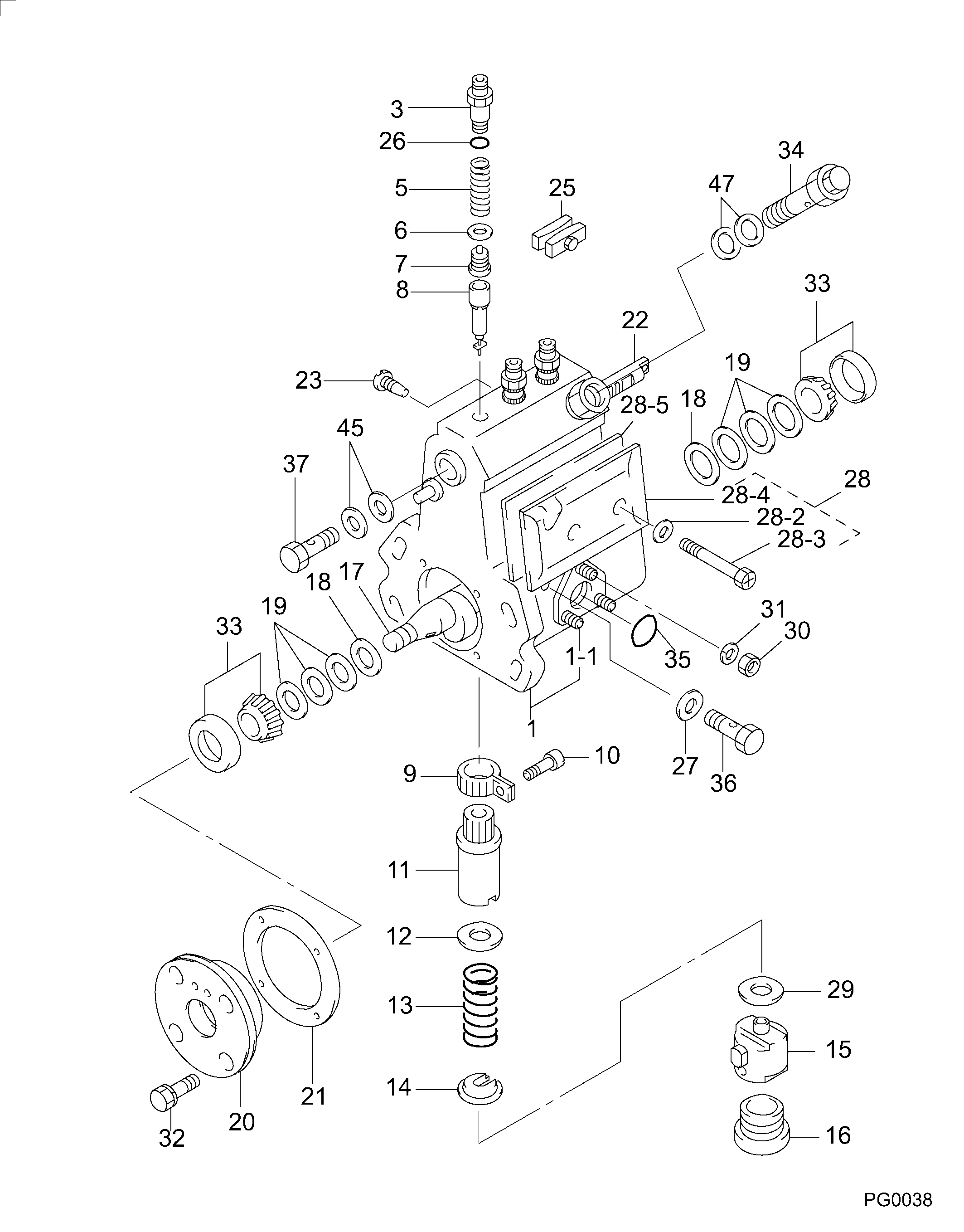

Scheme #.#:

BODY ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19010-01980
BODY ASSY, INJECTI
A3
001
[01]
19011-05320
HOUSING KIT, INJEC
001-001
[03]
94904-30010
BOLT, STUD
M6,L26
003
[03]
09013-10330
HOLDER, DELIVERY V
005
[03]
09013-60020
SPRING, DELIVERY V
006
[03]
09013-70100
GASKET, DELIVERY V
D13
007
[03]
09014-00660
VALVE SUB-ASSY, IN
MK:0660
008
[03]
09015-02980
ELEMENT SUB-ASSY,
MK:2980
009
[03]
09015-60010
PINION, PLUNGER CO
010
[03]
09015-70010
SCREW, PLUNGER CON
011
[03]
09016-10330
SLEEVE, PLUNGER CO
012
[03]
09016-30191
SEAT, SPRING, UPR
013
[03]
09016-40090
SPRING, PUMP PLUNG
L49.4
014
[03]
09016-50160
SEAT, SPRING, LWR
015
[03]
09017-00070
TAPPET SUB-ASSY,IN
016
[03]
09018-90090
PLUG, INJECTION PU
M26,D30
017
[01]
09019-10201
CAMSHAFT, INJECTIO
018
[02]
09019-30020
RING, CAMSHAFT ADJ
SIDE GOVERNOR
019
[6C]
09019-40010
PLATE, CAMSHAFT SH
T0.1
019
[6C]
09019-40020
PLATE, CAMSHAFT SH
T0.12
019
[6C]
09019-40030
PLATE, CAMSHAFT SH
T0.14
019
[6C]
09019-40040
PLATE, CAMSHAFT SH
T0.16
019
[6C]
09019-40050
PLATE, CAMSHAFT SH
T0.18
019
[6C]
09019-40060
PLATE, CAMSHAFT SH
T0.5
019
[6C]
09019-40110
PLATE, CAMSHAFT SH
T0.3
019
[6C]
09019-40140
PLATE, CAMSHAFT SH
T1.0
019
[6C]
09019-40150
PLATE, CAMSHAFT SH
T1.5
019
[6C]
09019-40290
PLATE, CAMSHAFT SH
T2.0
019
[6C]
09019-40400
PLATE, CAMSHAFT SH
T0.03
020
[01]
09020-10300
COVER, BEARING
021
[01]
09020-60160
GASKET, BEARING CO
022
[01]
09021-20050
RACK, CONTROL
023
[01]
09021-50060
SCREW, RACK GUIDE
M6,L9.8
025
[01]
09023-00060
PLATE SET, VALVE H
026
[03]
94914-02570
O-RING
ID17
027
[02]
09025-10010
WASHER, INJECTION
T1,D13.9
028
[01]
09027-01150
COVER SUB-ASSY, IN
028-002
[02]
09024-30030
PACKING, AIR BLEED
ID6.7
028-003
[02]
09027-60030
SCREW
M6,L54
028-004
[01]
09027-50133
PROCESSING DRAWING
028-005
[01]
09027-20200
GASKET, INJECTION
029
[3C]
09031-10010
PLATE, TAPPET ADJU
T0.6
029
[3C]
09031-10020
PLATE, TAPPET ADJU
T0.7
029
[3C]
09031-10030
PLATE, TAPPET ADJU
T0.8
029
[3C]
09031-10040
PLATE, TAPPET ADJU
T0.9
029
[3C]
09031-10050
PLATE, TAPPET ADJU
T1.0
029
[3C]
09031-10060
PLATE, TAPPET ADJU
T1.1
029
[3C]
09031-10070
PLATE, TAPPET ADJU
T1.2
029
[3C]
09031-10080
PLATE, TAPPET ADJU
T1.3
029
[3C]
09031-10090
PLATE, TAPPET ADJU
T1.4
029
[3C]
09031-10100
PLATE, TAPPET ADJU
T0.1
029
[3C]
09031-10110
PLATE, TAPPET ADJU
T0.2
029
[3C]
09031-10120
PLATE, TAPPET ADJU
T0.3
029
[3C]
09031-10130
PLATE, TAPPET ADJU
T0.4
029
[3C]
09031-10140
PLATE, TAPPET ADJU
T0.5
029
[3C]
09031-10150
PLATE, TAPPET ADJU
T0.15
030
[03]
90160-06051
NUT, HEXAGON
M6,L5
031
[03]
90258-06001
WASHER, SPRING
T1.5
032
[04]
94904-71360
BOLT, W/WASHER
M6,L14
033
[02]
94910-10120
BEARING, ROLLER
D40,T13
034
[01]
09031-00130
VALVE ASSY, OVERFL
1.5-1.7K
035
[01]
94914-00380
O-RING
ID32.0
036
[01]
94918-00690
SCREW, HOLLOW
M10
037
[01]
94918-00310
SCREW, HOLLOW
M14,L26
045
[02]
09022-20070
WASHER, FUEL PIPE
ID13.8
047
[02]
09022-20060
WASHER, FUEL PIPE
ID11.8T2

Include in ##:

09200-05440 as BODY ASSY, INJECTI
09200-05450 PUMP ASSY, INJECTI
09200-05690
19010-01980 BODY ASSY, INJECTI
